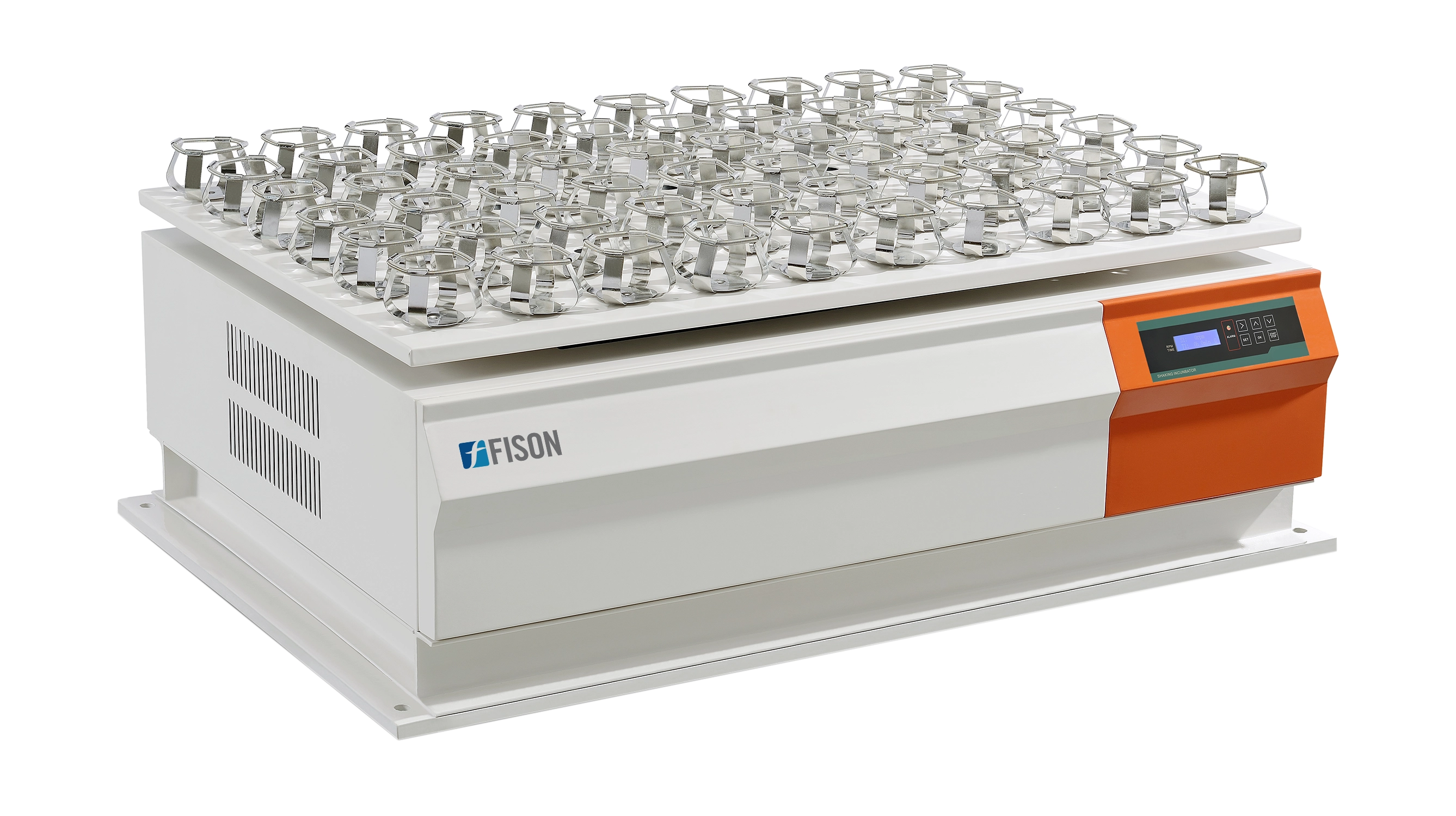

Single Layer Orbital Floor Shaker FM-SFS-A103

Single Layer Orbital Floor Shaker FM-SFS-A103

Single Layer Orbital Floor Shaker FM-SFS-A103 is a microprocessor PID control system with LCD Display. Features orbital oscillation mode, single shaft balance drive and 8 segment adjustable program controller. It comes with shaking speed range of 30 to 300 rpm and 50 mm vibration range. Designed with powder coated steel construction. The unique design of speed monitoring circuit provides long working life under repeated and continuous use. A wide range of platforms available make them ideal for use with culture flasks, bottles and other vessels.

Specifications

Controller PID (Environmental Scanning Microprocessor)
Shaking mode Orbital
Shaking speed 30 to 300 rpm
Shaking accuracy ± 1 rpm
Vibration range 50 mm
Shaking plate size 1108 × 740 mm
Program control 8 segments (adjustable)
Working environment temperature Constant room temperature (indoors)
Drive mode Single shaft balance device
Convection mode Natural convection
Display LCD (simultaneous display of working and set parameters)
Timing range 0 to 999.59 h continuous
Shaking plate quantity 1 pc
Chamber material Polished stainless steel
External material Steel with powder coating
Safety function Audio and visual alarm for over temperature, alarm for over speed
Power 280 W
Power supply AC 200 V to 240 V, 50/60 Hz
Dimension (W × D × H) 1210 × 775 × 480 mm
Net weight 250 kg

Features

  • Microprocessor PID control system with LCD display
  • 8 segment adjustable program settings of different speed and time
  • Powder coated steel construction
  • Single shaft drive technology
  • Chrome alloy and iron casting key parts
  • Recovery function after power cut-off
  • Over speed acoustic and visual alarm function
  • Slow start circuit prevent sudden start and liquid splash
  • Power cut off protection for overheating motor and over temperature
  • Frequency control system with accuracy ± 1 rpm
  • Large torque converter motor

Applications

  • Used for cell culturing, staining/de-staining and general mixing in microbiology, chemistry, immunology, biochemistry, molecular biology, biopharmaceutical and biomedical laboratories.

Standard Configuration

  • Flask specification Standard quantity Maximum capacity
    Flask clamp (PCS) 250 ml 96 96
    500 ml - 60
    1000 ml - 40
    5000 ml - 12
    Note: Other sizes listed above can be offered as standard configuration to replace the size with standard quantity alternatively.
