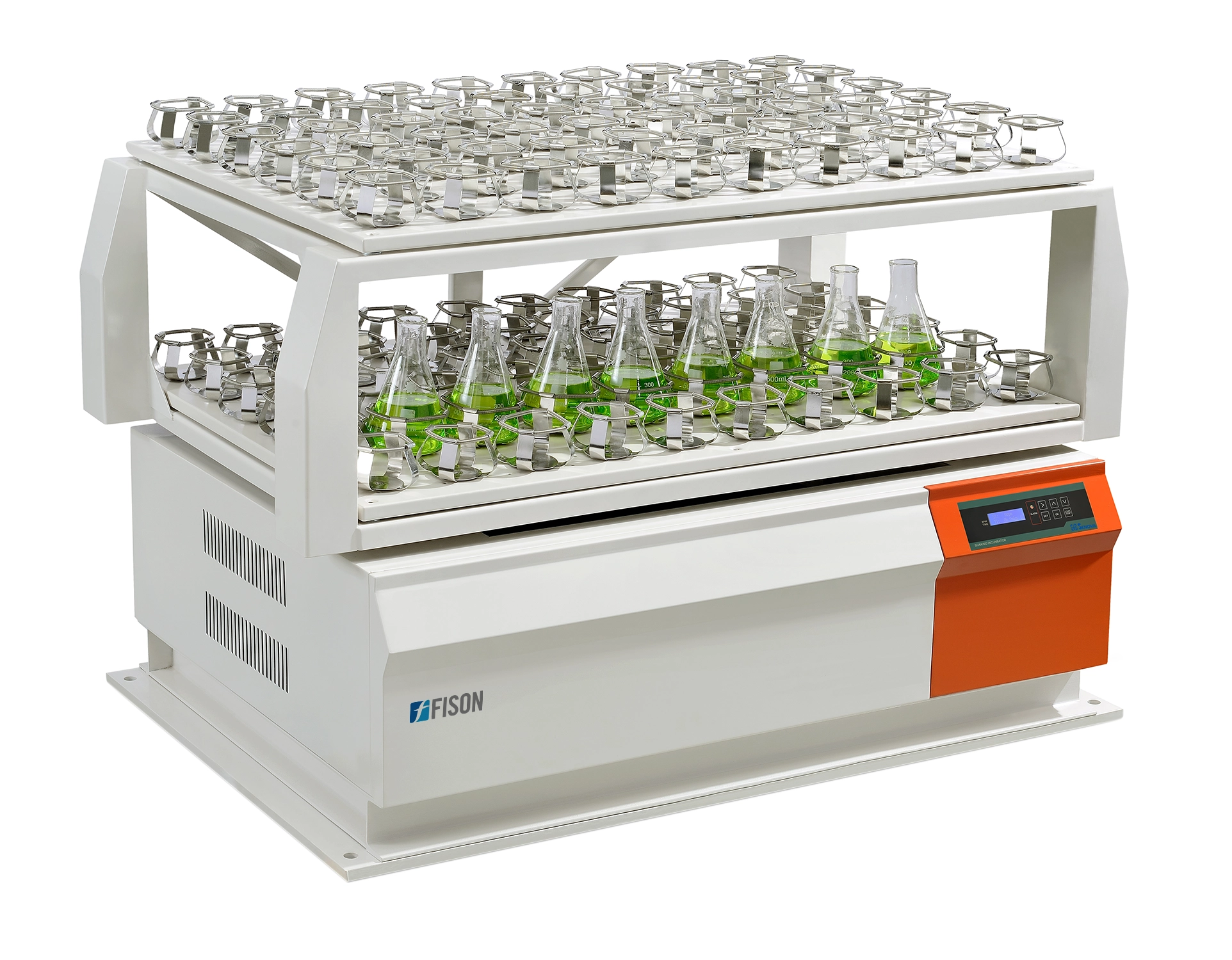

Double Layer Orbital Floor Shaker FM-DFS-A101

Name: Double Layer Orbital Floor Shaker FM-DFS-A101
Brand: Fison
SKU: FM-DFS-A101
Rating: 4.3 (207 reviews)

Double Layer Orbital Floor Shaker FM-DFS-A101 is a microprocessor PID control system with LCD Display. Features orbital oscillation mode, single shaft balance drive and 8 segment adjustable program controller. It comes with 1108 × 740 mm tray size, 30 to 300 rpm shaking speed and 50 mm vibration range. Designed with powder coated steel construction. The unique design of speed monitoring circuit provides long working life under repeated and continuous use. A wide range of platforms available make them ideal for use with culture flasks, bottles and other vessels.

Catalog Buy Now

✔ Microprocessor PID control system with LCD display
✔ 8 segment adjustable program settings of different speed and time
✔ Powder coated steel construction
✔ Single shaft drive technology
✔ Chrome alloy and iron casting key parts
✔ Recovery function after power cut-off
✔ Over speed acoustic and visual alarm function
✔ Slow start circuit prevent sudden start and liquid splash
✔ Power cut off protection for overheating motor and over temperature
✔ Frequency control system with accuracy ± 1 rpm
✔ Large torque converter motor

Controller	PID (Environmental Scanning Microprocessor）
Shaking mode	Orbital
Shaking speed	30 to 300 rpm
Shaking accuracy	± 1 rpm
Vibration range	50 mm
Shaking plate size	1108 × 740 mm
Program control	8 segments (adjustable)
Working environment temperature	Constant room temperature (indoor)
Drive mode	Single shaft balance device
Convection mode	Natural convection
Display	LCD (simultaneous display of working and set parameters)
Timing range	0 to 999.59 h continuous
Shaking plate quantity	2 pcs
Chamber material	Polished stainless steel
External material	Steel with powder coating
Safety function	Audio and visual alarm for over temperature, alarm for over speed
Power	280 W (250 W converter motor)
Power supply	AC 200 to 240 V , 50 to 60 Hz
Dimension (W × D × H)	1270 × 810 × 820 mm
Net weight	400 kg

Used for cell culturing, staining/de-staining and general mixing in microbiology, chemistry, immunology, biochemistry, molecular biology, biopharmaceutical and biomedical laboratories.

Flask specification		Standard quantity	Maximum capacity
Flask clamp (PCS)	250 ml	96 × 1pier	192
	500 ml	60 × 1pier	120
	1000 ml	-	80
Note: Other sizes listed above can be offered as standard configuration to replace the size with standard quantity alternatively.
