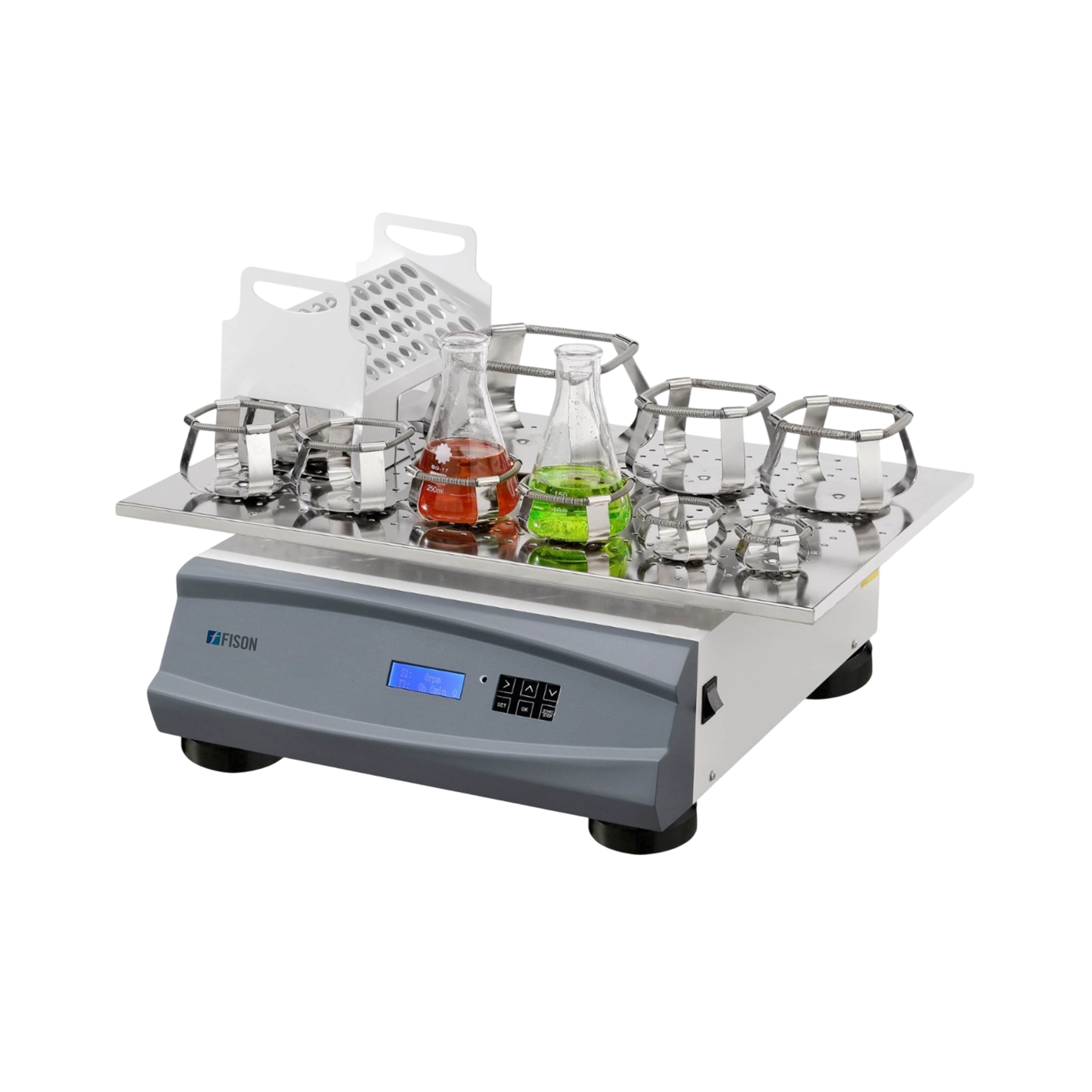

Orbital and Linear Shaker FM-OLS-A101

Orbital and Linear Shaker FM-OLS-A101

Orbital and Linear Shaker FM-OLS-A101 operate efficiently in a speed range of 30 to 600 rpm. It features a long-life brushless motor, ensuring durability and minimal maintenance. Their complete safety alarms provide real-time monitoring for secure operation. The automatic power cut-off enhances safety by preventing overloads. Our shaker has step and curve programming that allows precise control for various processes.

Specifications

Speed Range 30 to 600 rpm
Speed Accuracy ±1 rpm
Working Environment Temperature 15℃ to 35℃
Working Environment Humidity 20 % to 90 %
Temperature Range Room Temperature
Convection Mode High-Speed Circulation
Shaking Mode Linear-Orbital (Switchable)
Drive Single-Shaft Balance Device
Orbit Φ 0 to 50 (30 to 300 rpm) / Φ 50 (600 rpm)
Timing Range 0 to 999.59 hr
Platform Size 500 × 400 mm
Flask Capacity 1000 ml×6, 500 ml×15, 250 ml×25
Platform Quantity 1 pc
Platform Material SUS304
Exterior ABS + Steel
Power Supply AC 200-240 V/50-60 Hz, AC110 V/60 Hz
Power Consumption 80 W
Dimensions (D × W × H) 500 × 480 × 220 mm
Packing Dimensions (L × W × H) 620 × 620 × 460 mm
Net Weight 49 kg
Gross Weight 65 kg

Features

  • Durable ABS exterior
  • Advanced PID controller
  • Long-life brushless motor
  • 5D single-shaft technology
  • Stable pneumatic lid support

Applications

  • Orbital and Linear Shaker FM-OLS-A101 ensures efficient mixing and agitation of samples with precise motion ideal for microbiology, molecular biology, and biochemistry. This compact shaker is for uniform mixing, incubation, and sample preparation for reliable lab results.

Accessories Optional

  • Universal Spring Shaking Platform (SUS304) – 550 × 400 × 80
    Flask Shaking Platform – 550 × 400 × 15
    Flask Clamp – 1000 ml
    Microplate Holder
    Microplate Rack – Capacity: 10×96 – well microplates (1 layer), 20×96 – well microplates (2 layers)
    Roller Shaking Platform
    Integrated Printer

Alternative Models Of Orbital and Linear Shaker

Orbital and Linear Shaker FM-OLS-A100

  • Operation Method: Circling and Reciprocating
  • Shaker Diameter: 10 mm
  • Maximum Loading Weight: 7.5 Kg
Catalog

Double Sided Vertical Shaker

Fison Double-Sided Vertical Shakers are designed for efficient sample mixing and agitation, ensuring uniform distribution. They feature a user-friendly digital control panel with a digital interface for easy operation. They are equipped with adjustable speed and time settings for customized shaking intensity and duration. They provide stable, quiet operation with a vibration-damping system for smooth performance. They deliver a compact and space-saving design, making them ideal for laboratories.

Double Sided Vertical Shaker FM-DVS-A100

  • Shaking speed : 300 T (turns)/ min
  • Shaking (distance) range : 40 mm
  • Shaking method : Vertical and Slanting shaking (tilt angle 0 to 20° adjustable)
Catalog

Reciprocating Horizontal Shaker

Fison Reciprocating Horizontal Shakers are designed for precise and efficient sample agitation. They offer a controlled reciprocating motion that ensures uniform mixing of various samples. These units feature quiet, low-vibration operation to minimize disruptions in sensitive laboratory settings. They provide variable speed control, allowing users to adjust the shaking intensity based on experimental requirements. Our shakers are equipped with a user-friendly interface allowing easy handling and monitoring.

Reciprocating Horizontal Shaker FM-RHS-A100

  • Shaking method : Reciprocating shaking
  • Shaking range : 40 mm
  • Shaking speed : 0 to 200 T/ min (Adjustable)
Catalog

Microplate Shaker

Fison Microplate Shaker features adjustable shaking speeds to customize the mixing intensity to suit specific experimental requirements. Their multiple shaking modes, including orbital, linear, and vortex motions, optimize sample mixing for various applications. They include an LCD or touch display for precise parameter adjustments and real-time monitoring. The non-slip platforms or spring-loaded clamps provide stability, even during high-speed operation. Our Microplate Shaker operates quietly, minimizing disruptions in shared lab environments.

Microplate Shaker FM-MPS-A100
  • Speed : 100 to 1200 rpm
  • Motor : Brushless Motor
  • Horizontal Gyration Amplitude : 4 mm
Catalog
Microplate Shaker FM-MPS-A101
  • Speed : 100 to 1200 rpm
  • Motor : Brushless Motor
  • Horizontal Gyration Amplitude : 4 mm
Catalog

Microplate Shaker FM-MPS-A102

  • Speed : 100 to 1200 rpm
  • Motor : Brushless Motor
  • Horizontal Gyration Amplitude : 3 mm
Catalog

Water Bath Shaker

Water Bath Shaker FM-WBS-A100

  • Capacity : 45 L
  • Control : Microprocessor PID controlled system
  • Speed range : 20 to 200 rpm
Catalog
Water Bath Shaker FM-WBS-A101
  • Capacity : 83 L
  • Control : Microprocessor PID controlled system
  • Speed range : 20 to 200 rpm
Catalog
Water Bath Shaker FM-WBS-A102
  • Capacity : 175 L
  • Control : Microprocessor PID controlled system
  • Speed range : 20 to 200 rpm
Catalog

De-staining Shaker

De-staining Shaker FM-DS-A100

  • Controller : Microprocessor PID control system
  • Shaking mode : Orbital
  • Shaking speed : 30 to 300 rpm
Catalog

De-staining Shaker FM-DS-A101

  • Controller : Microprocessor PID control system
  • Shaking mode : Orbital
  • Shaking speed : 30 to 300 rpm
Catalog
De-staining Shaker FM-DS-A102
  • Controller : Microprocessor PID control system
  • Shaking mode : Linear
  • Shaking speed : 30 to 300 rpm
Catalog
