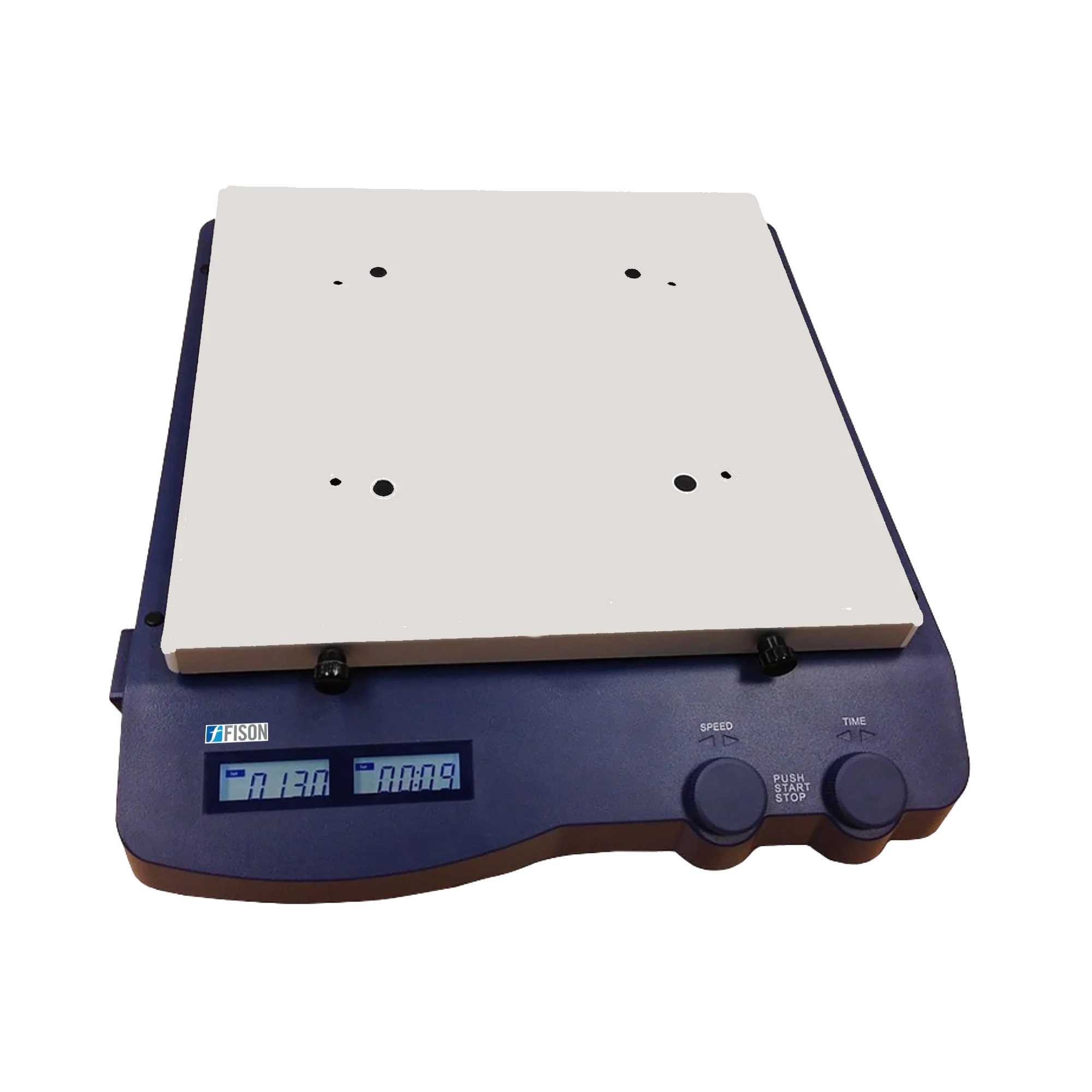

Orbital and Linear Shaker FM-OLS-A100

Orbital and Linear Shaker FM-OLS-A100

Orbital and Linear Shaker FM-OLS-A100 perform efficient shaking and mixing. It operates using both circling and reciprocating methods, enhancing reliability. The speed range is 100 to 500 rpm for orbital shaking and 40 to 350 rpm for linear shaking. Designed to accommodate a variety of vessel types, offering flexibility for diverse laboratory applications. These features, including adjustable speed and dual-motion options ensure that shaker meets a wide range of laboratory requirements.

Specifications

Operation Method Circling and Reciprocating
Shaker Diameter 10 mm
Maximum Loading Weight 7.5 Kg
Motor Type Brushless DC Motor
Speed Range 100 to 500 rpm (Orbital) / 40 to 350 rpm (Linear)
Securing Bars Platform Adjustable for different types of containers
Display LCD
Time Setting Range 1 to 19 hours 59 minutes
Operation Mode Timing/Continuous
Shaking Table Lock Yes
Permissible Ambient Temperature 5 to 50 ℃
Permissible Relative Moisture 0.8
Protection Class (DIN EN 60529) IP21
Analog Output Yes
Spring Clamp Model Compatibility 25 ml / 50 ml / 100 ml / 200 ml / 500 ml
Frequency 50/60 Hz
Power supply AC 100 to 240 V
Input Power 35 W
Motor Output Power 10 W
Dimensions (W × D × H) 420 × 100 × 360 mm
Weight 13 Kg

Features

  • Orbital and Linear Shaker has versatile shaking options
  • Intuitive LCD display
  • High load capacity
  • Compact and durable design
  • Noiseless operation
  • Digital time and speed setting

Applications

  • Orbital and Linear Shaker is commonly used in scientific research, biotechnology, and other fields where mixing and shaking are required for experimental processes.

Accessories Optional

  • Plate work tray
    Axis roller tray
    Four claw work tray
    25 ml spring clamp
    50 ml spring clamp
    100 ml spring clamp
    200 ml/250 ml spring clamp
    500 ml spring clamp

Alternative Models Of Orbital and Linear Shaker

Orbital and Linear Shaker FM-OLS-A101

  • Speed Range: 30 to 600 rpm
  • Speed Accuracy: ±1 rpm
  • Working Environment Temperature: 15℃ to 35℃
Catalog

Double Sided Vertical Shaker

Fison Double-Sided Vertical Shakers are designed for efficient sample mixing and agitation, ensuring uniform distribution. They feature a user-friendly digital control panel with a digital interface for easy operation. They are equipped with adjustable speed and time settings for customized shaking intensity and duration. They provide stable, quiet operation with a vibration-damping system for smooth performance. They deliver a compact and space-saving design, making them ideal for laboratories.

Double Sided Vertical Shaker FM-DVS-A100

  • Shaking speed : 300 T (turns)/ min
  • Shaking (distance) range : 40 mm
  • Shaking method : Vertical and Slanting shaking (tilt angle 0 to 20° adjustable)
Catalog

Reciprocating Horizontal Shaker

Fison Reciprocating Horizontal Shakers are designed for precise and efficient sample agitation. They offer a controlled reciprocating motion that ensures uniform mixing of various samples. These units feature quiet, low-vibration operation to minimize disruptions in sensitive laboratory settings. They provide variable speed control, allowing users to adjust the shaking intensity based on experimental requirements. Our shakers are equipped with a user-friendly interface allowing easy handling and monitoring.

Reciprocating Horizontal Shaker FM-RHS-A100

  • Shaking method : Reciprocating shaking
  • Shaking range : 40 mm
  • Shaking speed : 0 to 200 T/ min (Adjustable)
Catalog

Microplate Shaker

Fison Microplate Shaker features adjustable shaking speeds to customize the mixing intensity to suit specific experimental requirements. Their multiple shaking modes, including orbital, linear, and vortex motions, optimize sample mixing for various applications. They include an LCD or touch display for precise parameter adjustments and real-time monitoring. The non-slip platforms or spring-loaded clamps provide stability, even during high-speed operation. Our Microplate Shaker operates quietly, minimizing disruptions in shared lab environments.

Microplate Shaker FM-MPS-A100
  • Speed : 100 to 1200 rpm
  • Motor : Brushless Motor
  • Horizontal Gyration Amplitude : 4 mm
Catalog
Microplate Shaker FM-MPS-A101
  • Speed : 100 to 1200 rpm
  • Motor : Brushless Motor
  • Horizontal Gyration Amplitude : 4 mm
Catalog

Microplate Shaker FM-MPS-A102

  • Speed : 100 to 1200 rpm
  • Motor : Brushless Motor
  • Horizontal Gyration Amplitude : 3 mm
Catalog

Water Bath Shaker

Water Bath Shaker FM-WBS-A100

  • Capacity : 45 L
  • Control : Microprocessor PID controlled system
  • Speed range : 20 to 200 rpm
Catalog
Water Bath Shaker FM-WBS-A101
  • Capacity : 83 L
  • Control : Microprocessor PID controlled system
  • Speed range : 20 to 200 rpm
Catalog
Water Bath Shaker FM-WBS-A102
  • Capacity : 175 L
  • Control : Microprocessor PID controlled system
  • Speed range : 20 to 200 rpm
Catalog

De-staining Shaker

De-staining Shaker FM-DS-A100

  • Controller : Microprocessor PID control system
  • Shaking mode : Orbital
  • Shaking speed : 30 to 300 rpm
Catalog

De-staining Shaker FM-DS-A101

  • Controller : Microprocessor PID control system
  • Shaking mode : Orbital
  • Shaking speed : 30 to 300 rpm
Catalog
De-staining Shaker FM-DS-A102
  • Controller : Microprocessor PID control system
  • Shaking mode : Linear
  • Shaking speed : 30 to 300 rpm
Catalog
