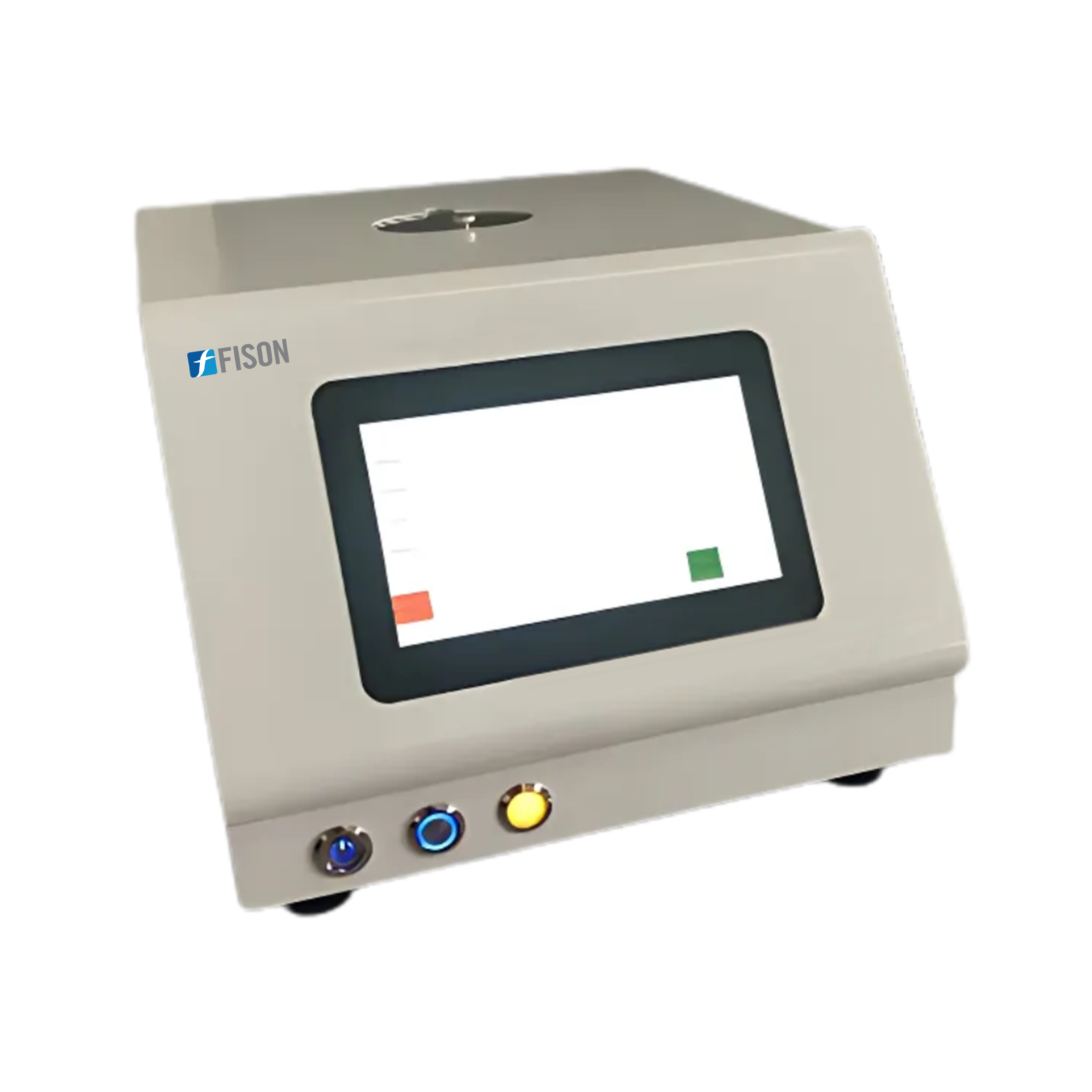

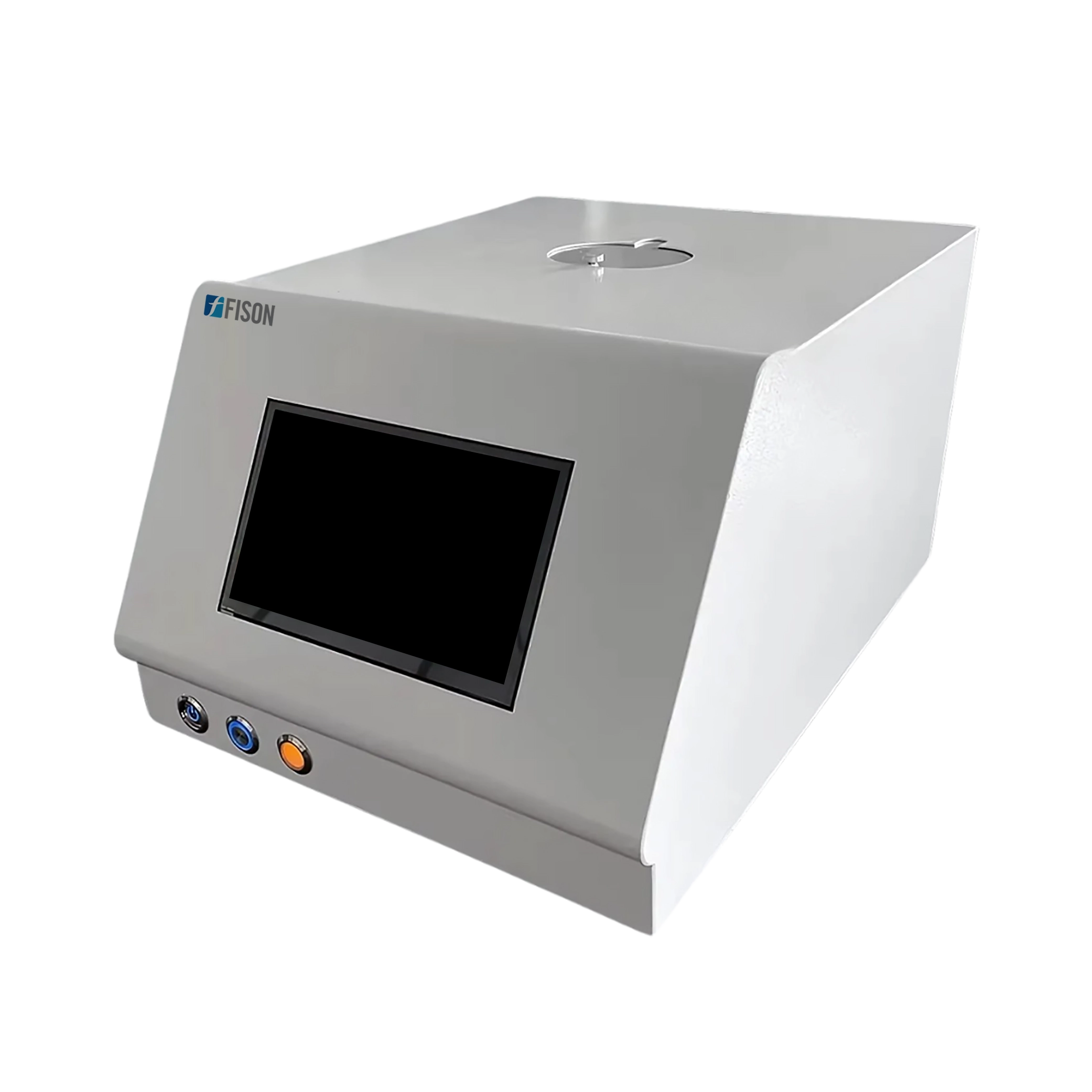

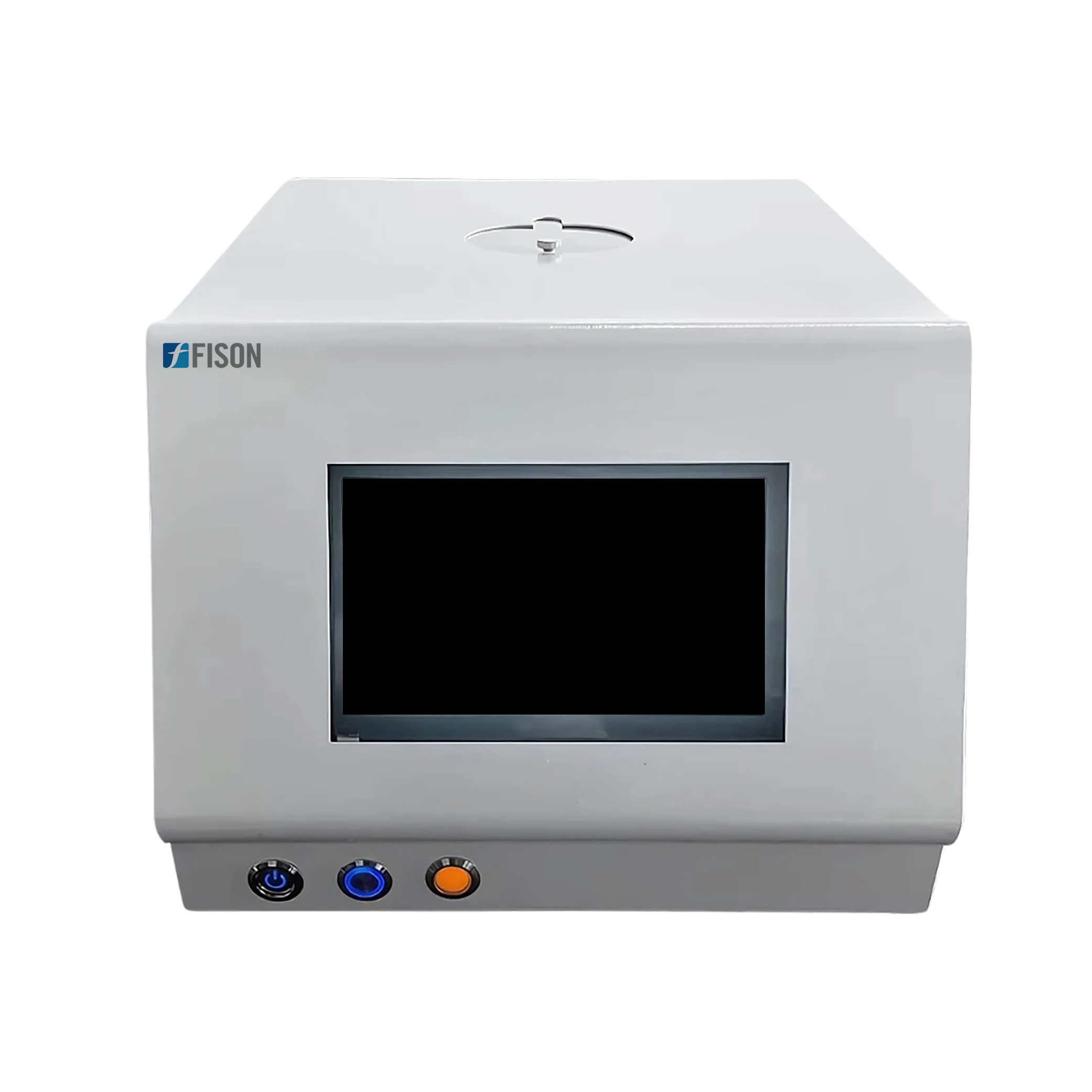

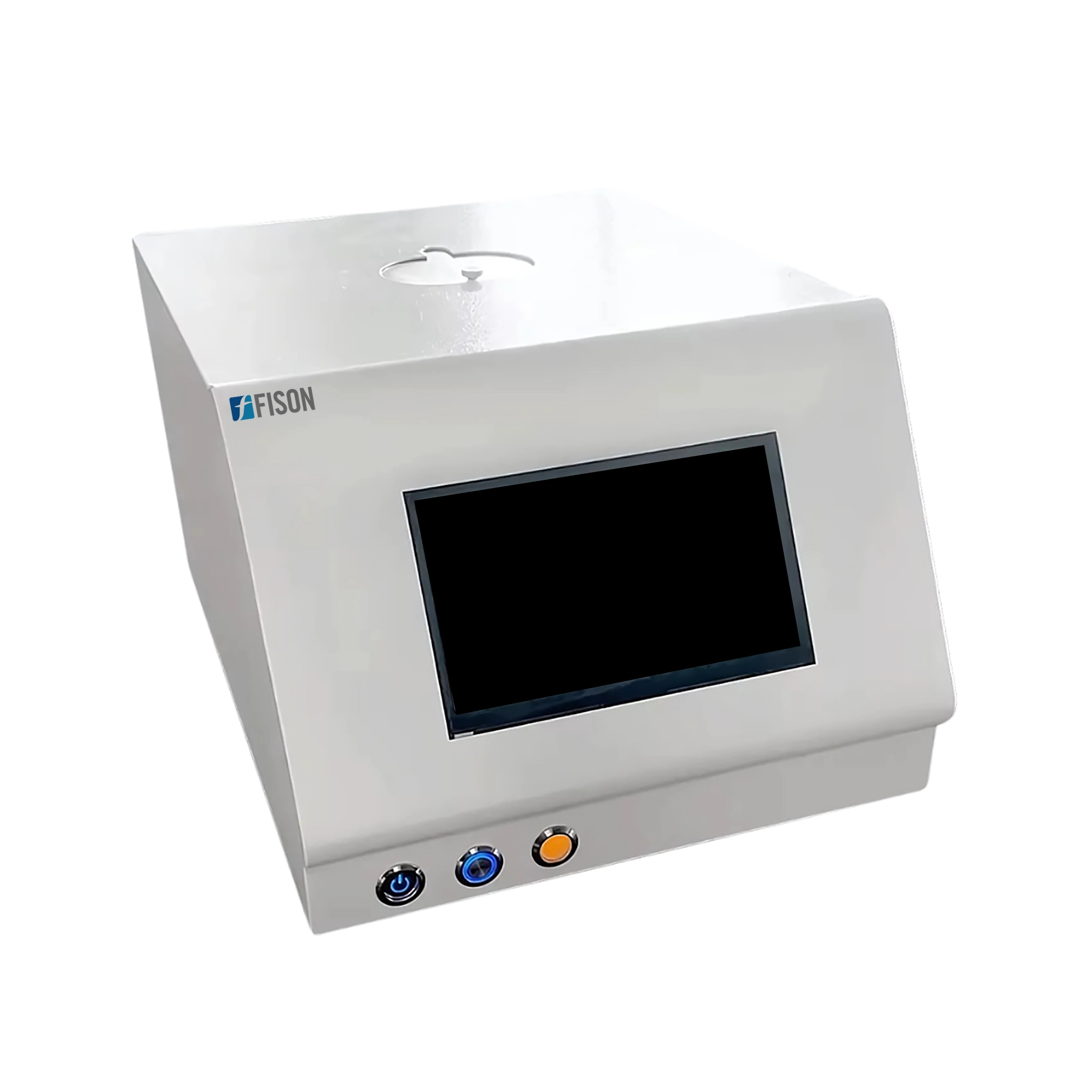

Oil Sulfur Analyzer FM-OSA-A100 ensures precise analysis with minimal sample consumption using the fluorescence intensity ratio method. It features an integrated microcomputer for user-friendly operation and automated corrections. This automatically corrects temperature, pressure, and carbon-to-hydrogen ratio for accurate results. Our Analyzer offers radiation protection, tested to ensure operator safety and compliance with standards.
| Measuring Range of Sulfur | 7 ppm to 6% |
| Repeatability | <0.02894 (X + 0.1691) |
| Reproducibility | <0.01215 (X + 0.05555) |
| Sample Size | 2 to 3 ml (equivalent to 3 to 4 mm) |
| Measuring Time | 30, 60, 90, 120, or 150s (arbitrarily adjustable) |
| Calibration Curves | Stores 10 calibration curves |
| Temperature | 5 to 35°C |
| Relative Humidity | ≤85% at 30°C |
| Power | 30W |
| Power Supply | AC 220V ± 20V, 50 Hz |
| Dimensions(L×W×H) | 430 × 250 × 240 mm |
| Weight | 10kg |
Oil Sulfur Analyzer FM-OSA-A100 is used for sulfur content analysis in crude oil, refined oil products, and petrochemicals. It is widely applied in oil refineries, petrochemical plants, and quality control laboratories for monitoring sulfur levels during production and testing.
Sample cup
