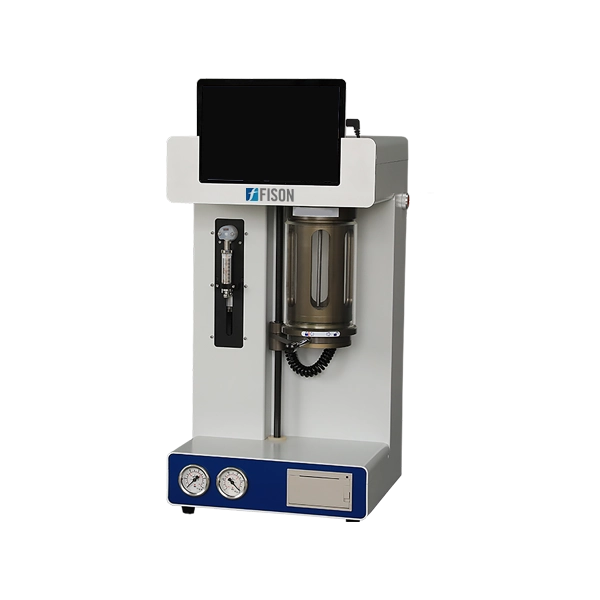

Oil Particle Counter FM-OPC-A101
Oil Particle Counter FM-OPC-A101 is a compact and table-top unit, comprised with photoresist method (shading type) optical system and semiconductor laser, offers measuring range of 0.8 to 600 µm with 64 channels and 0.2 to 6000 ml sampling volume. With high-pressure syringe pump sampling method and positive and negative pressure combined sample injection system, features built-in air purification system and pressure sensor. Designed with ISO11171-1999 standard and built-in data analysis system, has multiple calibration curves and unlimited data storage. Equipped with multi-level account authority management and Windows operation interface, has optional sensor modules to achieve multi-parameter testing, makes it an optimal unit for fast, accurate, reliable and repeatable test results.
Specifications
| Particle size range | 0.8 to 600 µm |
| Detection channel | 64 |
| Sensitivity | 0.8 µm or 3 µm |
| Resolution | < 10% |
| Repeatability | RSD < 2% |
| Light source | Semiconductor laser |
| Sample detection viscosity | ≤ 650 cSt |
| Sampling volume | 0.2 to 6000 ml (interval: 0.1 ml) |
| Sampling accuracy | Better than ± 0.5% |
| Sampling speed | 5 to 80 l/min |
| Air pressure chamber | Positive and negative air pressure chamber device |
| Maximum vacuum of air pressure chamber | -0.08 MPa |
| Maximum positive pressure of air pressure chamber | 0.8 MPa |
| Maximum particle concentration | 12000 to 40000 capsules/ml |
| Absolute water content | 1 to 300 ppm |
| Accuracy | ± 10 ppm |
| Power supply | 110 to 245 V AC 50 Hz |
| Power | 70 W |
| Dimension (W×D×H) | 340×310×730 mm |
| Packaging dimension (W×D×H) | 850×560×700 mm |
| Net weight | 25 kg |
| Gross weight | 45 kg |
Features
- A compact and table-top unit with photoresist method (shading type) optical system
- Semiconductor laser, wide test range and stable performance with high resolution
- Measuring range of 0.8 to 600 µm with 64 channels and 0.2 to 6000 ml sampling volume
- High-pressure syringe pump sampling method, stable sampling speed with high accuracy
- Positive and negative pressure combined sample injection system
- Built-in air purification system, ensures non-polluted test operation
- Built-in pressure sensor, automatically set the pressure value to ensure safety
- Built-in data analysis system, can give all standard test data and pollution level
- Built-in multiple calibration curves, compatible with all common standards
- Multi-level account authority management, supports digital signature
- Windows operation interface with unlimited data storage and built-in database
- Optional sensor modules to achieve multi-parameter testing
- Designed as per ISO11171-1999 standard configurations
- An optimal unit for fast, accurate, reliable and repeatable test results
Applications
- Oil Particle Counter is used in aviation, aerospace, electric power, petroleum, chemical industry, transportation, port, metallurgy, machinery, automobile manufacturing etc.
Accessories Optional
- Temperature acquisition: -40 to 100℃; Accuracy: ±0.5℃
Moisture: Water activity collection: 1 to 100% RH; Accuracy: ± 1% RH
Dielectric constant: 1 to 6
Viscosity: 0.5 to 50 cP ; Accuracy: ± 2% (>10 cP), ± 0.2 cP (<10 cP)
