| Accessories No. | Accessories Name | Quantity |
| 1 | Data processing software | 1 set |
| 2 | Fuse (2 A) | 2 pcs |
| 3 | 1cm quartz square sample cell | 2 pcs |
| 4 | 1mm quartz micro sample cell | 2 pcs |

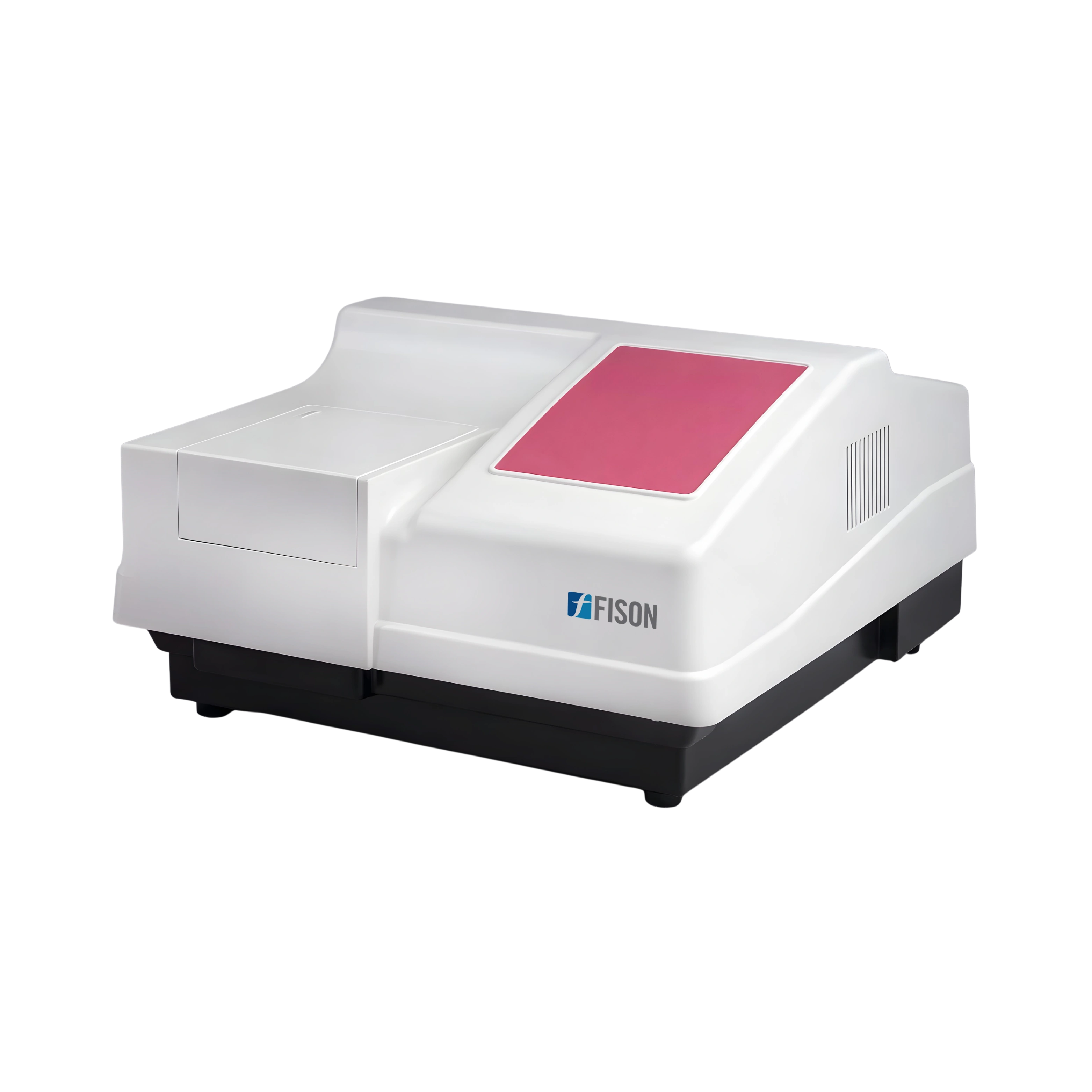

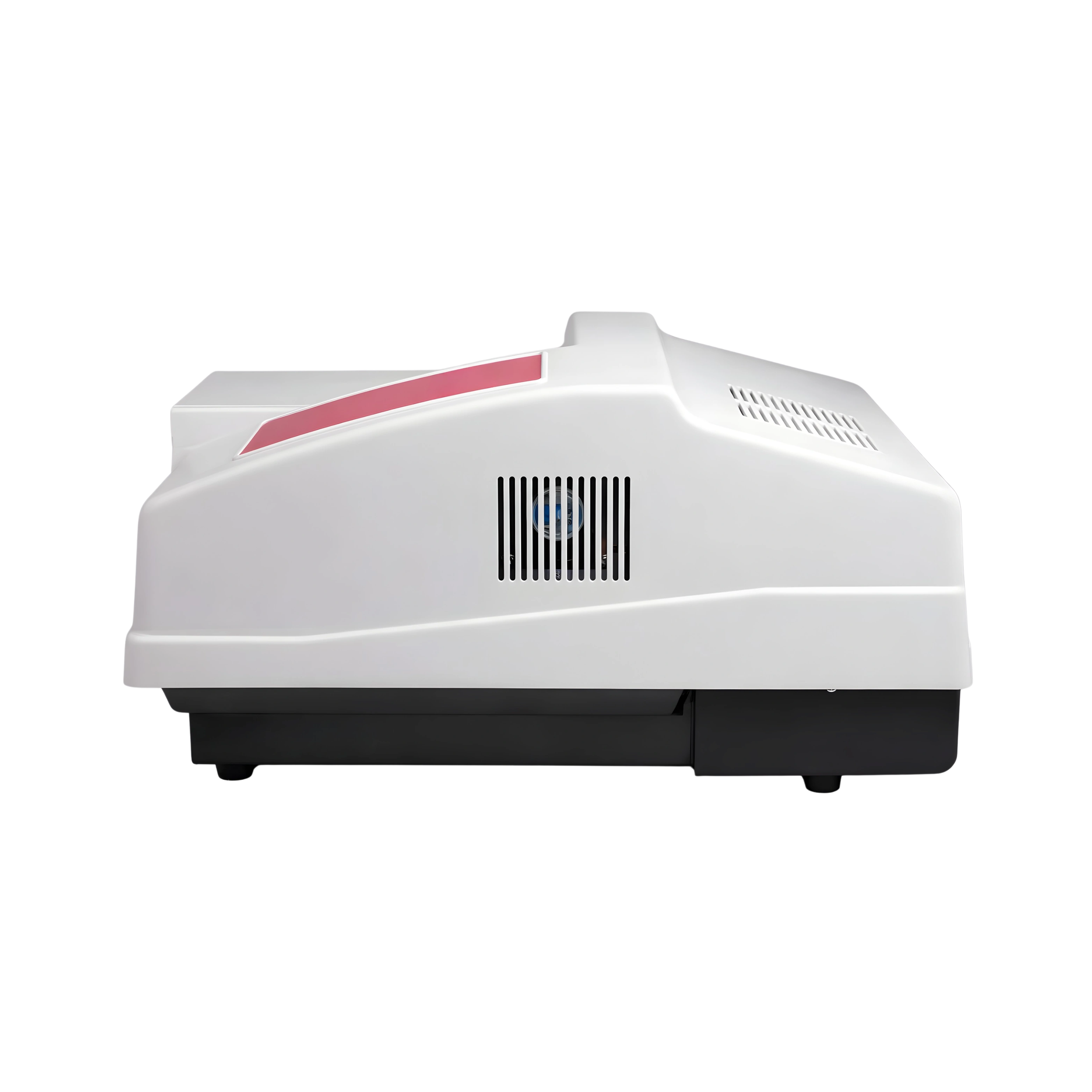

NIR Spectrophotometer FM-NIS-A100
NIR Spectrophotometer FM-NIS-A100 is a grating monochromator comprised unit, comes with 900 to 2500 nm of wavelength range and 8 nm of bandwidth. Equipped with single channel whole spectrum scanning and transmission measurement, features 1 min or above of analysis time with automatic reference calibration and monitoring of wavelengths. Built-in high-quality PTFE reference module and polystyrene wavelength standard filter, offers real-time monitoring of ambient temperature and humidity with storage in spectrum file along with USB 2.0 interface. With easy procedure and high sensitivity, can obtained results for various components of the tested sample at the same time.
Specifications
| Optical System | Grating Monochromator |
| Measurement Mode | Transmission |
| Wavelength Range | 900 nm to 2500 nm |
| Wavelength Accuracy | ≤ 0.2 |
| Wavelength Reproducibility | ≤ 0.05 |
| Bandwidth | 8 nm |
| Stray Light | ≤0.1 % |
| Noise | ≤ 0.0005 Abs |
| Analysis time | 1 minute or above |
| Interface | USB 2.0 |
| Temperature Requirement | 5 to 35℃ |
| Humidity Requirement | 5 to 85 % RH |
| Power Supply | 90 to 250 V, 50/60 Hz |
| Dimension (W×D×H) | 360 × 460 × 240 mm |
| Packaging Dimension (W×D×H) | 530×500×380 mm |
| Net Weight | 12 kg |
| Gross Weight | 14 kg |
Features
- A grating monochromator optical system comprised NIR spectrophotometer
- 900 to 2500 nm of wavelength range and 8 nm bandwidth with ≥1 min of analysis time
- Single channel whole spectrum scanning and transmission measurement
- Automatic reference calibration with wavelengths monitoring
- Built-in high-quality PTFE reference module and polystyrene wavelength standard filter
- Real-time monitoring of ambient temperature and humidity with storage in spectrum file
- USB 2.0 interface, fast data transfer with backward compatibility
- Easy procedure and high sensitivity, without sample preparation can obtain accurate results
- Various components of the tested sample can be obtained at the same time
- Highly-efficient, stable and reliable unit for rapid non-destructive analysis
Applications
- NIR Spectrophotometer is used for product identification, classification and quality control, as well as for the determination of product properties (chemical and physical) and component concentration across pharmaceutical, food and agrochemical quality control, atmospheric chemistry, combustion research and astronomy, medical and physiological diagnostics etc.
Accessories
