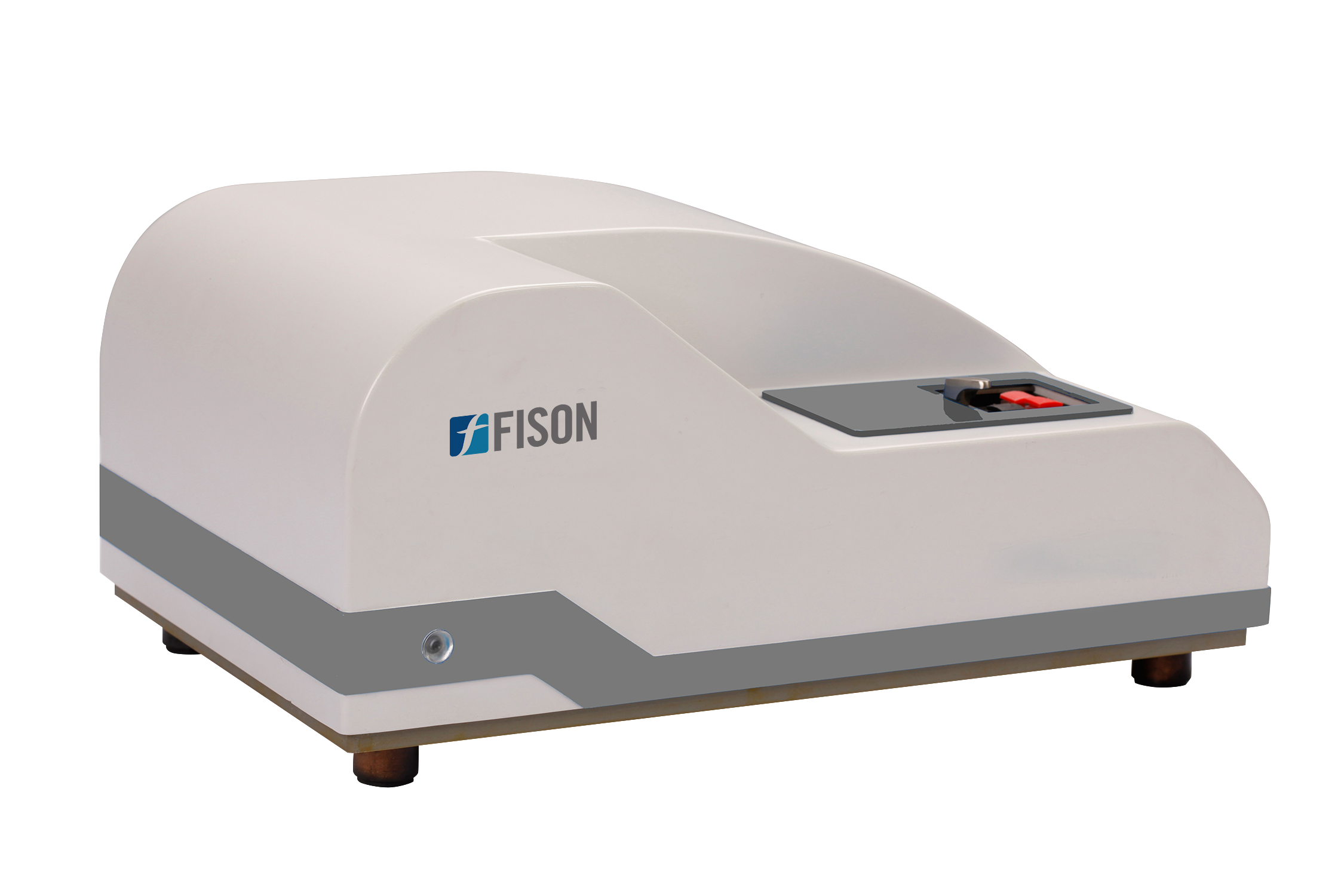

Nanoparticle Size Analyzer FM-NSA-A300
Nanoparticle Size Analyzer FM-NSA-A300 offers a measurement range of 1 to 10000nm and a concentration range of 0.1mg/ml to 100mg/ml for precise analysis. It includes ultra-fast data acquisition for enhanced measurement efficiency. This unit utilizes electrophoretic light scattering for accurate measurement of particle size. Our Nanoparticle Size Analyzer features a digital correlator for reliable analysis and data processing.
Specifications
| Sample Measuring Range | 1 to 10000 nm |
| Sample Concentration Range | 0.1mg/ml to 100mg/ml |
| Electrophoretic Mobility Range | > ±20μm.cm/V. s |
| Sample Highest Conductivity | 200mS/cm |
| Accuracy Error | <1% (National standard sample D50 value) |
| Repeatability Error | <1% (National standard sample D50 value) |
| Laser Source | Semiconductor laser λ=635nm, P=1-40mw (adjustable) |
| Detector | Photomultiplier Tube |
| Scattering Angle | 90° |
| Sample Cell Volume | 10 × 10 × 40 mm, 1 to 4 mL |
| Temperature Range | 5 to 45°C |
| Temperature Control Accuracy | 0.1°C |
| Test Speed | < 5 Min |
| Auto-correlation Channels | 892 |
| Baseline Channel | 4 |
| Physical Channels | 5000 |
| Unit Delay Time | 1μs-10ms (adjustable) |
| Executive Standard | GB/T 19627-2005/ISO 13321: 1996 |
| Dimensions (L × B × H) | 560 × 450 × 300 mm |
| Weight | 20 Kg |
Features
- Enhanced signal-to-noise ratio
- Integrated photomultiplier tube system
- Inbuilt semiconductor temperature control
- Features an optical path system
- Equipped with frequency shifting device
Applications
- Nanoparticle Size Analyzer FM-NSA-A300 measures the size, concentration, and distribution of nanoparticles in a sample and is mainly used in pharmaceuticals, materials science, and environmental studies.
