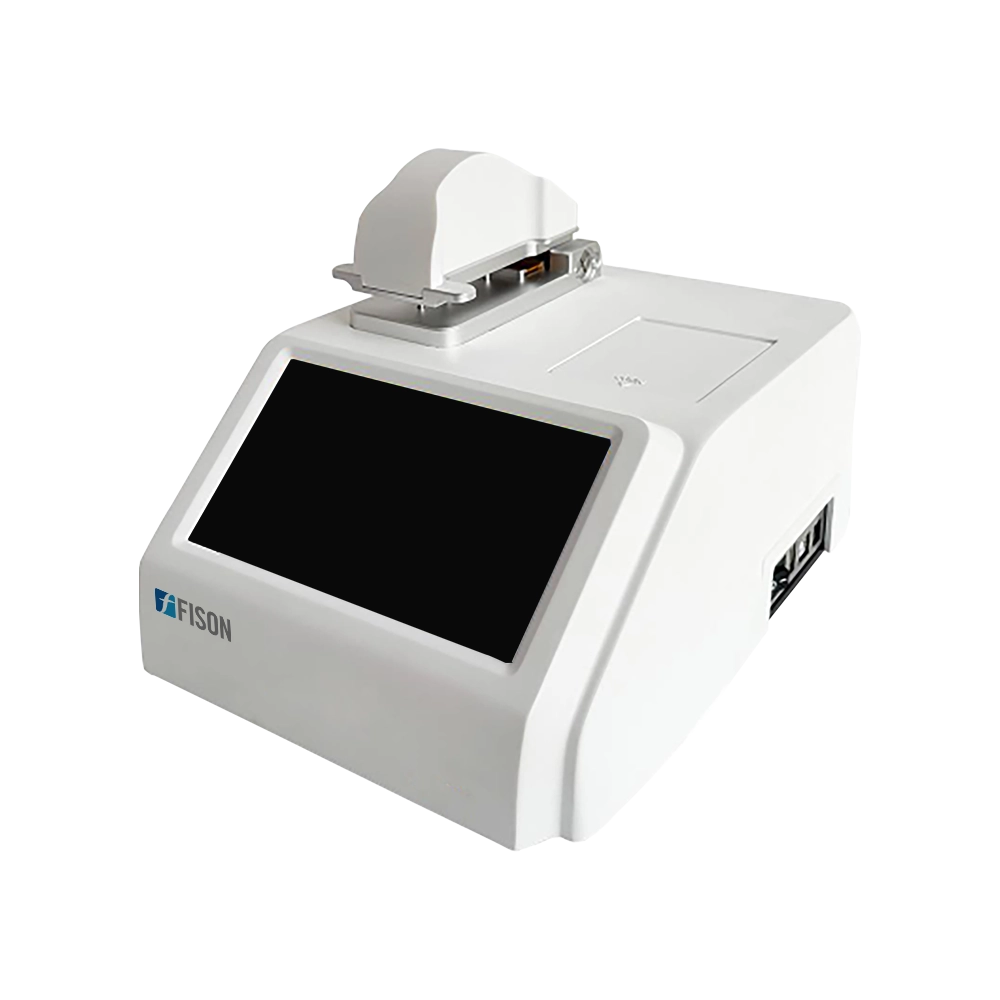

Nano Spectrophotometer FM-NS-A100
Nano Spectrophotometer FM-NS-A100 is intended for quick, precise, and sensitive measurements of biological samples. Equipped with a 7-inch touchscreen and an android operating system, this device offers an intuitive user interface. A variety of innovative features assist laboratory procedures. It is ideal for both absorbance and fluorescence measurements in labs requiring high precision and reliability while using a minimal sample volume. The tool offers extensive capabilities and robust performance for a variety of laboratory applications.
Specifications
| Absorbance precision | 0.002 Abs |
| Wavelength detector | 2048 element linear CMOS array |
| Sample volume | 0.5μl to 2μl (recommended 2μl) |
| Absorbance accuracy | ±1% (7.332 at 260nm) |
| Power adaptor | DC 12V 4A |
| Wavelength range | 180 to 910 nm |
| Measurement time | <6 seconds |
| Power consumption | 48W |
| Wavelength accuracy | ±1 nm |
| Path lengths | 0.03 mm, 0.05 mm, 0.1 mm, 0.2 mm, 1 mm |
| Spectral resolution | ≤ 1.5 nm (FWHM at Hg 253.7 nm) |
| Light source / life | Xenon / > 109 flashes |
| Absorbance range | 0.02 to 750 (260 nm, equivalent to 10 mm wavelength) |
| Concentration range | 2 ng/μl dsDNA to 37500 ng/μl dsDNA |
| OD600 absorbance range | 0 to 4.000 Abs |
| Fluorometer sample volume | 1 to 20 μl |
| Fluorometer measurement time | 3 seconds |
| Absorbance stability | [0,3) ≤ 0.5%, [3,4) ≤ 1.5% |
| Fluorometer concentration range | 0.01 ng/μl to 120 ng/μl dsDNA HS, 0.2 ng/μl to 2000 ng/μl dsDNA BR, 0.05 ng/μl to 240 ng/μl Oligo, 0.1 mg/ml to 20 mg/ml protein BR |
| Absorbance repeatability | [0,3) ≤ 0.5%, [3,4) ≤ 1.5% |
| Repeatability | < 1.5% |
| Linear dynamic range | R2 ≥ 0.995 |
| Light source | LED |
| Heating | Up to 37°C |
| Excitation wavelengths | 470/625 nm |
| Stirring speed | 100 to 900 rpm |
| Emission wavelengths | 525/690 nm |
| Dimensions (W×D×H) | 300 × 232 × 196 mm |
| Packing dimensions (W×D×H) | 450 × 400 × 350 mm |
| Net weight | 3.5 Kg |
| Gross weight | 7 Kg |
Features
- Nano Spectrophotometer has user-friendly interface
- Quick detection within 2 to 6 seconds
- Automatic detection function
- Long shelf life of xenon flash lamp
- Excellent repeatability
- Built-in printer facilitates immediate printout of results
- Exportable results
Applications
- Nano Spectrophotometer is widely used across molecular biology, food, environmental sciences, forensic sciences, pharmaceuticals, and clinical diagnostics.
