Multi-viewing Biological Microscope FM-MBM-A101

Multi-viewing Biological Microscope FM-MBM-A101

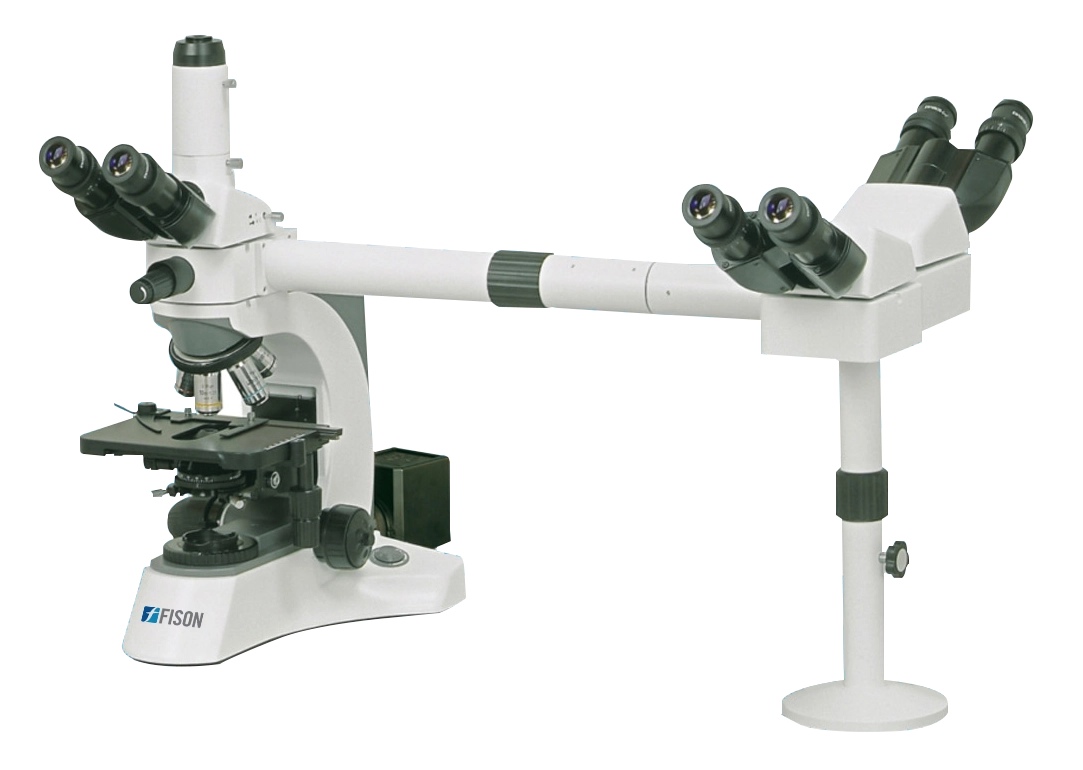

Multi-viewing Biological Microscope FM-MBM-A101 offers observation of single specimen by multiple people at a time. It has two viewing head: 1 piece trinocular head and 2 piece of binocular head inclined at 30° and 360° rotatable. With coaxial coarse and fine focus adjustment, it delivers sharp and clear image of the specimen. Equipped with built in LED green light pointer with adjustable brightness. Kohler external illumination aspherical collector, and halogen lamp 24 V/ 100 W acts as illumination source. Used in pathology, medical diagnostic, molecular biology, other scientific institute for demonstration and research purpose.

Specifications

Optical system Infinite optical system
Trinocular viewing head
Inclination angle30°, 360° rotatable
Interpupillary distance48 to 75 mm
No. of viewing head1 pc
Binocular viewing head
Inclination angle30°, 360° rotatable
Interpupillary distance48 to 75 mm
No. of viewing head2 pcs
Eyepiece Extra wide field EW10X/22, Eyepiece tube diameter 30 mm (6 pcs)
Nosepiece Quintuple nosepiece, Sextuple nosepiece
Objective Achromatic objective 4X, 10X, 40X and 100X
Condenser Swing condenser N.A.0.9/ 0.25
Focusing Coaxial coarse and fine focus adjustment, fine division 0.001 mm
Stage double layer mechanical stage 185 × 142 mm, moving range 75 × 55 mm
Illumination Kohler external illumination aspherical collector, halogen lamp 24 V/ 100 W
Pointer Green LED pointer, brightness adjustable
Net weight 12 kg
Gross weight 15 kg

Features

  • Infinite optical system
  • Compensation free trinocular & binocular 30° inclined, 360° rotatable head
  • Double layer mechanical stage
  • Inverse quintuple and sextuple nosepiece
  • Extra wide field eyepiece EWF10X/22
  • Eyepiece tube diameter 30 mm
  • Interpupillary distance 48 to 75 mm
  • Infinite plan objective 4X, 10X, 40X, 100X
  • Green LED pointer system

Applications

  • Used in pathology, medical diagnostic, molecular biology, other scientific institute for demonstration and research purpose.

Accessories Optional

  • Accessories no. Accessories name Unit
    1 Infinite Plan Achromatic Objective 20X 1
    2 External Illumination, Aspherical Collector 1
    3 Halogen Lamp 24V/ 101W 1
    4 3W LED Illumination 1
    5 5W LED Illumination 1
    6 Dual Color Pointer , Brightness Adjustable 1
    7 Photo Attachment 1
    8 Video Adapter C mount 1X 1
    9 Video Adapter C mount 0.5X 1
    10 Polarization attachment 1
    11 Turret Phase contrast kit 1
    12 Dark field condenser (Oil) 1
    13 Dark field condenser (Dry) 1
