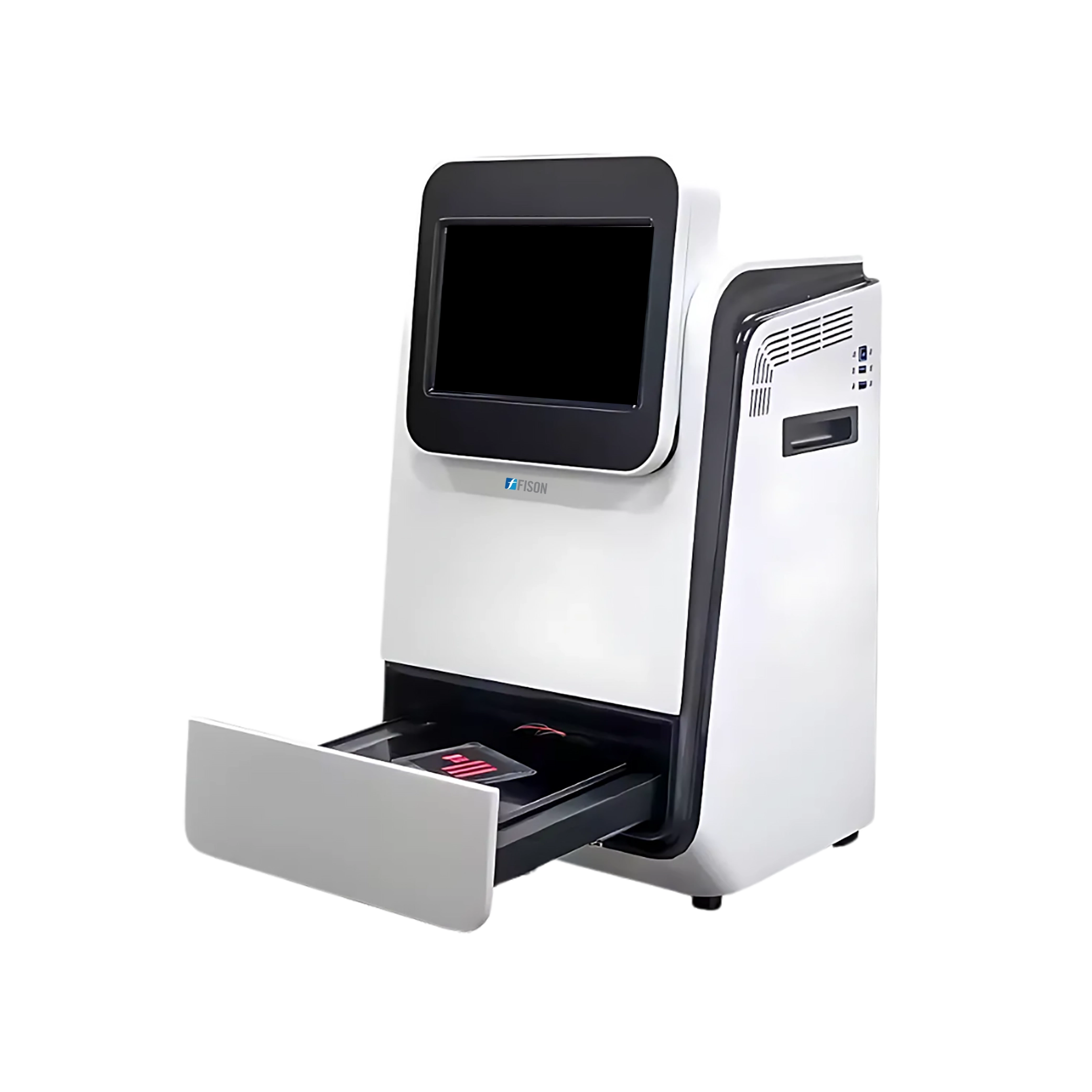

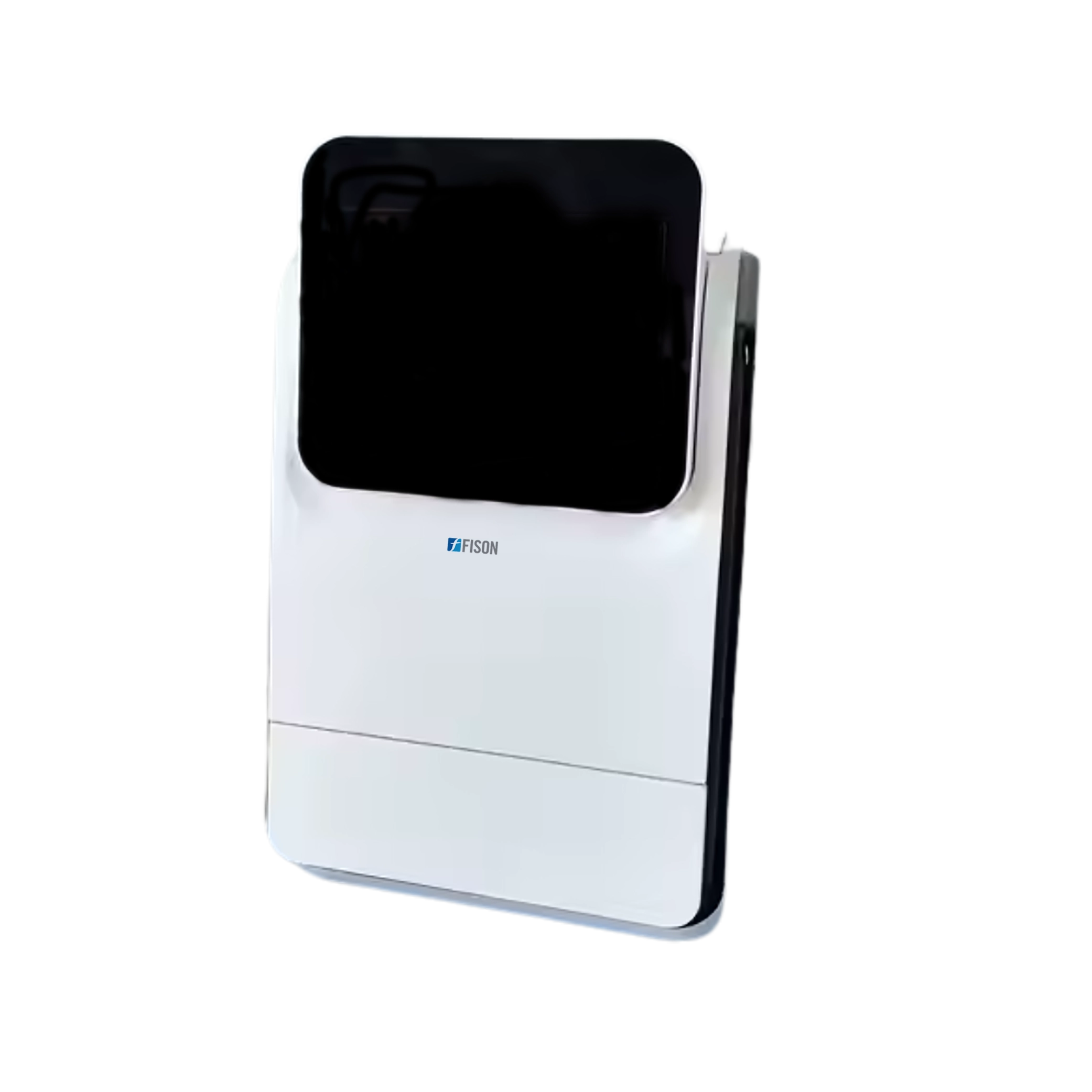

Multispectral Imager FM-MI-A100 features high-resolution 9.0 Megapixel imaging for detailed, accurate analysis. This delivers high performance with an exposure time of up to 30 minutes for detailed imaging. It supports unlimited software users, allowing efficient collaboration and data access across multiple workstations. Our imager features a flexible electronic lifting platform for easy sample positioning and enhanced workflow efficiency.
| Resolution | 9.0 Megapixels |
| Sensor | Cooled Back-illuminated CMOS |
| Linear Range | 4.8 OD |
| Temperature | -30°C regulated |
| Pixel Size | 3.76 × 3.76 μm |
| Pixel Density | 16-bit (65,536 Grey scales) |
| Lens | F0.95 as standard (optional F0.8) Auto focus |
| Sample tray | Electronic Lifting Platform for multiple membrane sizes |
| Protein gel illumination | Electronic Lifting White LED Transmission |
| DNA/RNA detection | Electronic Lifting Blue LED Transmission |
| Dimensions(L×W×H) | 520 × 560 × 1100 mm |
| Weight | 50kg |
Multispectral Imager FM-MI-A100 is widely used in life sciences, materials science, and environmental research. It is ideal for detailed spectral analysis applications, such as imaging and diagnostics.
Industrial computer
Fison UV Trans illuminators comes with 04 light filters which ensures uniform light distribution during operations. They have an observation board and an adjustable UV blocking shield that aids in safe and user-friendly observation. The UV intensity is 20µW/cm2 when the sample is 20cm away, and they support real-time observation. These also come with a fixed camera port rack that makes it easier to take images of the gel. Our UV trans illuminators are more intuitive and safer for UV light examination across research institutes, molecular biology, medicine and tissue culture laboratories.
Fison Chemiluminescence Imager is a specialized device used to detect and visualize chemiluminescent signals in various scientific applications. Their high-resolution imaging allows the imager to capture clear, detailed images with precise accuracy. They offer high sensitivity for low-light detection, enabling the capture of precise signals. The automated workflow ensures efficient, consistent results with minimal manual effort. Our imager is equipped with software for precise analysis and quantification of results.
Fison Gel Doc Imaging System is used for capturing high-resolution images of gel-based experiments, such as electrophoresis. The system features a powerful camera that provides high-resolution images for accurate analysis. They have integrated software that allows for image analysis, data quantification, and easy documentation. Their ability to visualize gels under different light conditions enhances detection sensitivity. Our Gel Doc Imaging System has automated settings that ensure consistent and reproducible results with minimal user intervention.
Fison Blue Light Transilluminator uses high-intensity blue LED light, ensuring clear and sharp imaging while protecting samples from UV damage. Their large, anti-scratch viewing surface provides a broad work area, accommodating various gel sizes with ease. They are energy-efficient with minimal heat output, cost-effective, and environmentally friendly. The adjustable brightness settings, allow users to control light intensity for an optimal image. Our Transilluminator features a corrosion-resistant hardware design, ensuring durability and reliability even in high-humidity laboratory environments.
