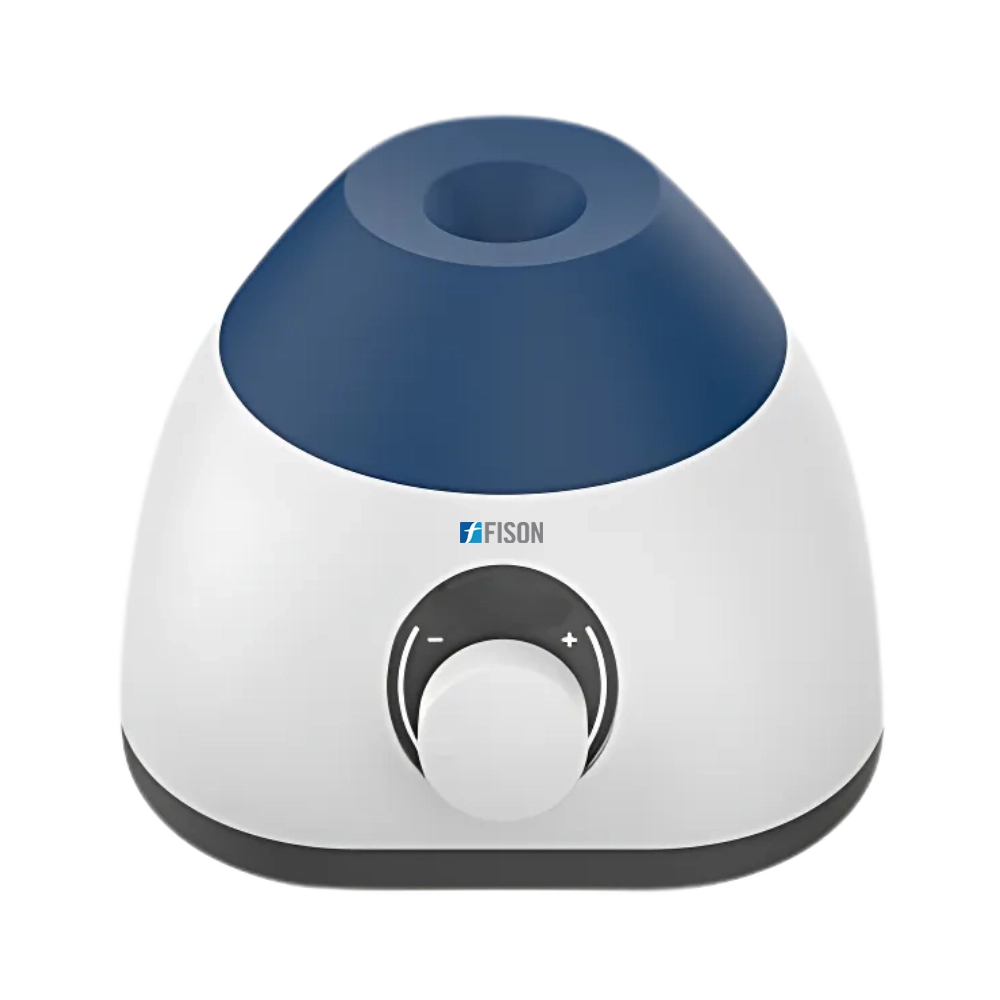

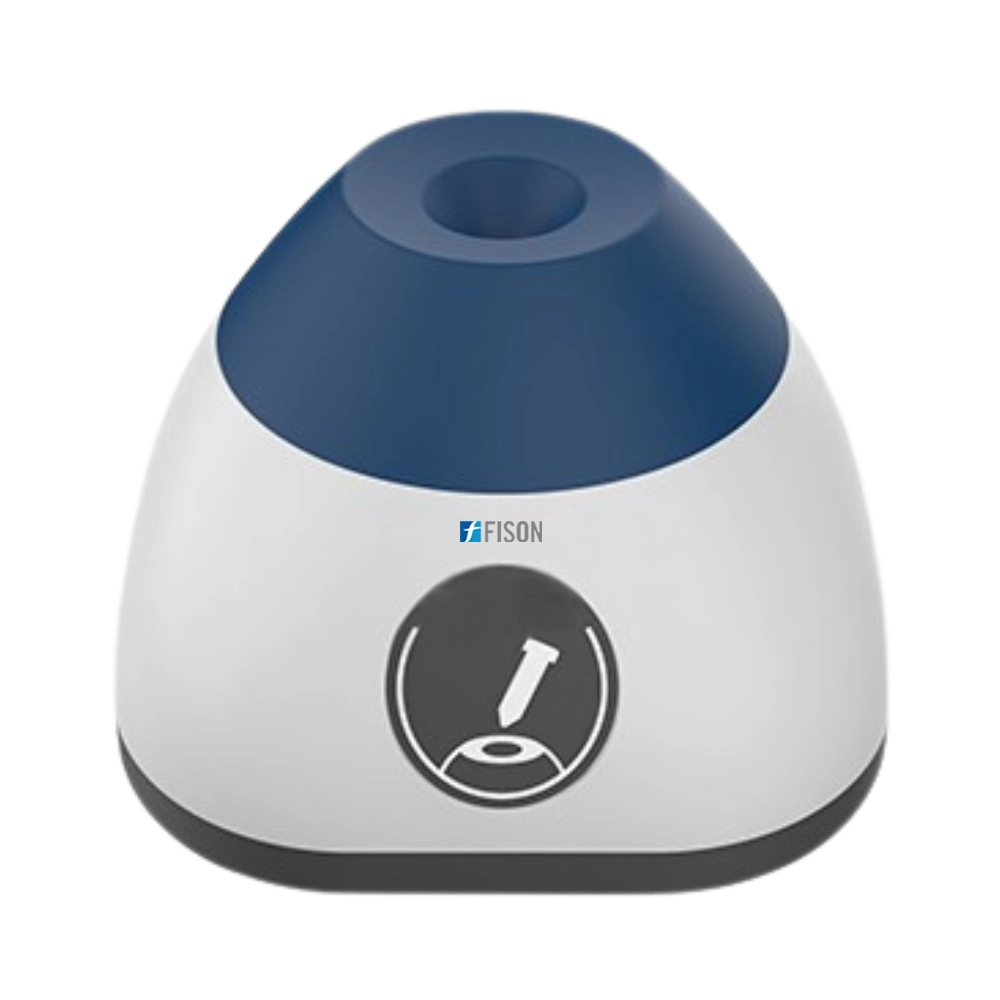

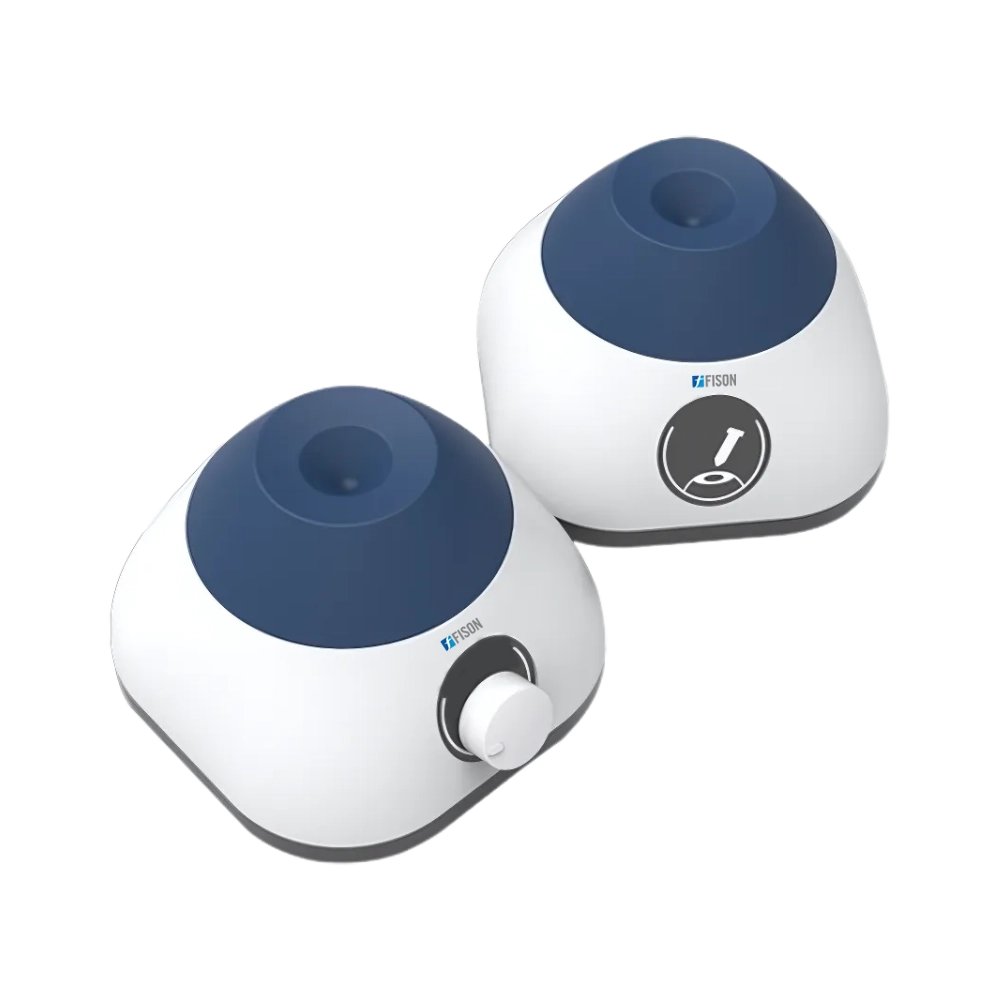

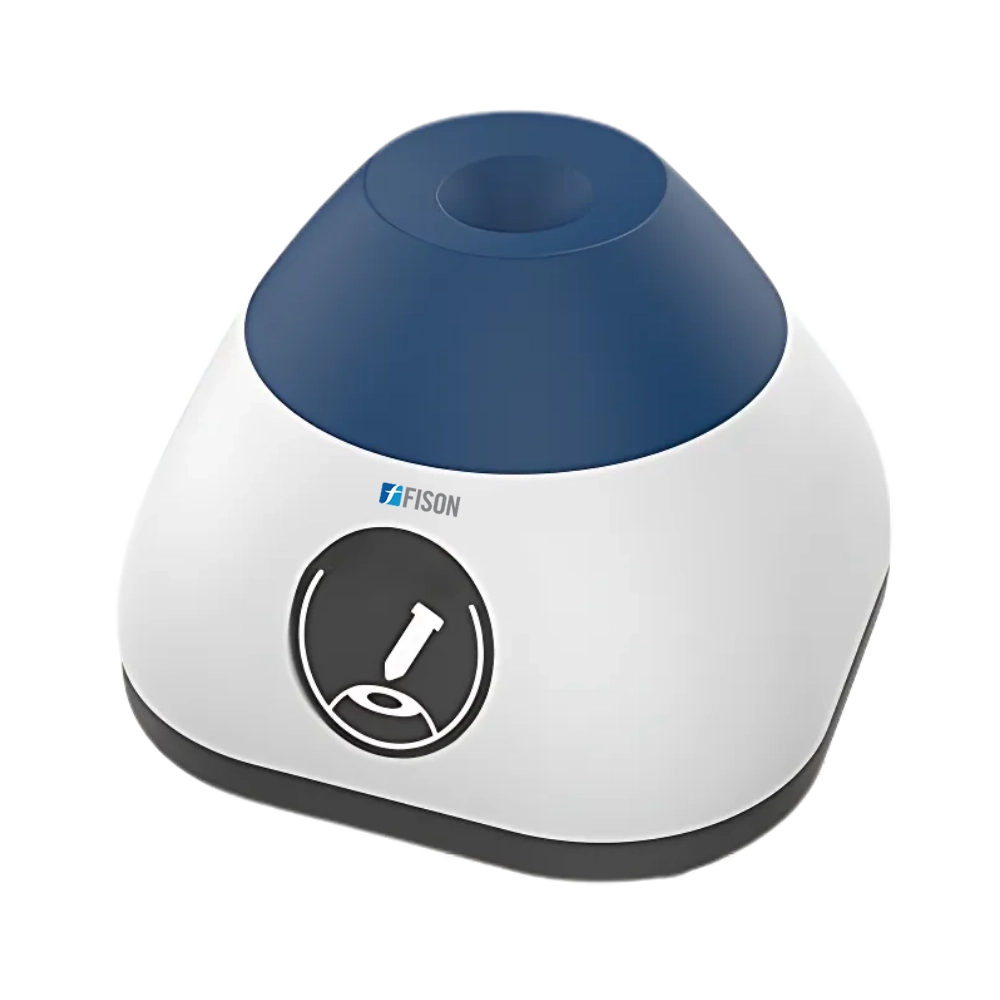

Mini Vortex Mixer FM-MVM-B100

Mini Vortex Mixer FM-MVM-B100 has an adjustable shaking speed ranging from 0 to 3000 rpm for precise control and consistent and reproducible results. Its robust construction ensures durability and reliability for scientific, clinical, and industrial applications. The minimal footprint enhances portability and workspace integration for users of all skill levels. Our mixer is equipped with a non-slip base for stability during use and a motor designed for quiet operation.

Specifications

Control Method Knob Speed Regulation
Motor Brushless Motor
Shaking Orbit 4.5 mm (circle)
Loading Capacity 50 ml
Shaking Speed 0 to 3000 rpm
Enclosure Protection Level IP42
Allowable Ambient Temperature 50 to 40℃, 80% RH
Voltage 100 to 240 V, 50/60 Hz
Power Consumption 12 W
Dimensions (W × D × H) 100 × 93 × 72
Packing Size (W × D × H) 190 × 126 × 113
Gross Weight 0.56 kg
Net Weight 0.37 kg

Features

  • Easy Tube Loading
  • Quick Start Function
  • Variable Speed Range
  • High-Speed Efficiency
  • Chemical-Resistant Build

Applications

  • Mini Vortex Mixer FM-MVM-B100 is a compact laboratory device for rapidly mixing small volumes of liquids. It is commonly used in molecular biology, clinical diagnostics, and pharmaceutical research to mix reagents, blood samples, and test solutions.

Alternative Models Of Mini Vortex Mixer

Fison Mini Vortex Mixer is capable of vortexing samples at high speeds, ensuring thorough mixing even in small volumes. They allow the user to adjust the mixing speed based on the sample requirements. Their built-in overload protection prevents damage by automatically adjusting the motor under excessive strain. The cooling system prevents the sample from overheating during prolonged mixing sessions. Our Mini Vortex Mixers are crafted to consume less energy than their larger counterparts, making them more energy-efficient.

Mini Vortex Mixer FM-MVM-A100

  • Capacity: 50ml
  • Speed: 3500 rpm
  • Amplitude: 4mm (Horizontal rotation)
Catalog

Mini Vortex Mixer FM-MVM-B101

  • Control Method: Constant Speed
  • Motor: Brushless Motor
  • Shaking Orbit: 4.5 mm (circle)
Catalog

Mini Vortex Mixer FM-MVM-A101

  • Speed: 2800rpm
  • Orbital Diameter: 3.6mm
  • Operation: Touch/Continuous
Catalog

Vortex Mixer

Fison Vortex Mixer is constructed with a heavy, non-slip base to absorb vibrations and prevent the mixer from moving during operation. They feature digital controls and an LED/LCD screen for precise RPM settings and timers. Their chemical-resistant coatings are used for durability and to handle accidental spills. The built-in timer sets a specific mixing duration for extended applications, ranging from seconds to hours. Our Vortex Mixer accommodates various tube sizes for versatile lab use, including microcentrifuge and test tubes.

Vortex Mixer FM-VM-A200

  • Shaking Mode : Orbital
  • Orbital Diameter : 4 mm
  • Speed Range : 0 to 2500 rpm
Catalog

Vortex Mixer FM-VM-A201

  • Shaking Mode : Orbital
  • Orbital Diameter : 4 mm
  • Speed Range : 2500 rpm
Catalog
Vortex Mixer FM-VM-C100
  • Speed : 200rpm to 3000rpm
  • Vortex (Max.) Speed : 3500rpm
  • Timer : 1min to 99h59m/0: infinite time
Catalog

Tube Roller Mixer

Our Tube Roller Mixers provide efficient sample mixing in tubes and bottles with smooth and consistent rotation. They are perfect for blending blood, reagents, and other liquids without creating foam or splashes. Easy to use and maintain, our mixers offer adjustable speed settings and roller spacing to fit different tube sizes. With quiet operation and versatile configurations, they are ideal for a variety of laboratory applications

Tube Roller Mixer FM-TRM-A100
  • Speed : Shaking: 0 to 80 times/min
    Rolling: 0 to 80 turns/min
  • Swing amplitude : 22mm ± 1mm
  • Roller size : 236 mm
Catalog

Powder Mixer

Fison Powder Mixer is crafted for low energy consumption, making it ideal for blending free-flowing materials with similar physical properties. Their intensifier bar enhances blending efficiency, particularly for challenging formulations. The gentle mixing action minimizes mechanical wear, extending the lifespan of both the mixer and the materials being processed. They ensure that materials are mixed homogeneously with minimal segregation, even for powders with differing particle sizes or densities. Our Powder Mixers are capable of achieving high throughput with reduced mixing times, for high-volume production lines.

Powder Mixer FM-PWM-A100

  • Total Volume : 300L
  • Operation Volume : 120L
  • Maximum Loading : 60kg
Catalog

Multi Tube Vortex Mixer

Fison Multi Tube Vortex Mixer is equipped with suction feet, which provide safety and minimize movement during high-speed operation. The mixer has an interchangeable tube holder, making it compatible with various test tube sizes. Their anti-slip rubber feet have stability by preventing movement during high-speed operation. They also minimize vibrations, ensuring safer and more efficient mixing. They feature variable speed, and the timer provides customizable mixing settings, ensuring optimal results. Our Multi Tube Vortex Mixer has a digital control panel for seamless operation and monitoring.

Multi Tube Vortex Mixer FM-MTVM-A100

  • RPM Range : 1500 to 3000 rpm
  • Motor : Brushless Motor
  • Horizontal Gyration Amplitude : 4 mm
Catalog
Multi Tube Vortex Mixer FM-MTVM-A101
  • RPM Range : 500 to 3000 rpm
  • Amplitude : 4 mm horizontal swing
  • Operating Mode : Run
Catalog
Multi-tube Vortex Mixer FM-MTVM-B100
  • Speed : 500rpm to 2500rpm
  • Speed Control Accuracy : ±1rpm
  • Timer : 1min to 99h59m/0: infinite time
Catalog

Roller Mixer

Fison Roller Mixer has adjustable speed settings for precise control, ensuring optimal mixing for various sample types and requirements. The multi-tube compatibility accommodates various tube sizes, making it suitable for diverse applications. Their anti-skid base allows for secure placement during operation, eliminating movement and enhancing safety. They offer variable roller speeds, allowing precise adjustments to suit different sample requirements. They operate efficiently across a wide temperature range for various laboratory environments. Our roller mixer supports viscous liquids for handling samples like gels or thick solutions.

Roller Mixer FM-RM-A100

  • Speed : 20 to 80 rpm
  • Motor Type : Brush Motor
  • Type : Rotating Shaking
Catalog

Roller Mixer FM-RM-A101

  • Speed : 20 to 80 rpm
  • Motor Type : Brushless Motor
  • Type : Rotating Shaking
Catalog
Roller Mixer FM-RM-A102
  • Speed : 20 to 80 rpm
  • Motor Type : Brushless Motor
  • Type : Rotating Shaking
Catalog
