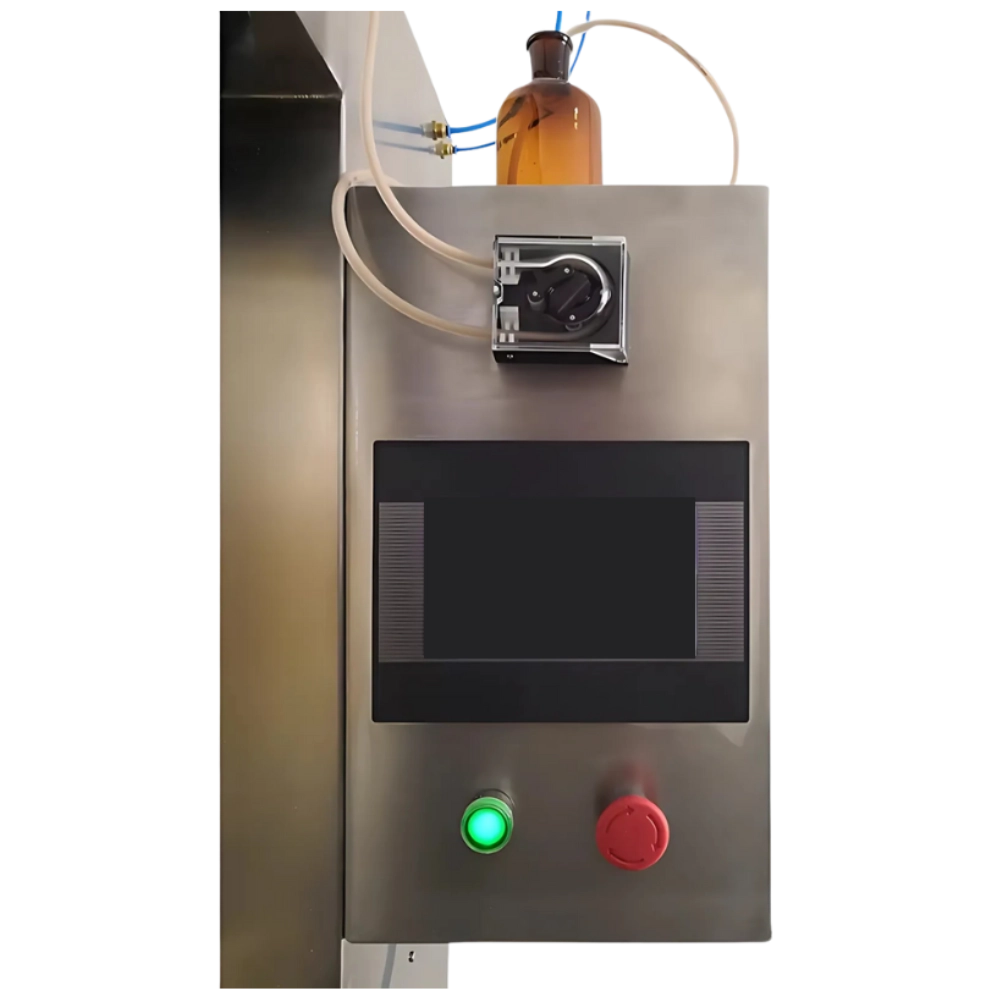

- ✔ Designed with color large touch screen LCD display
- ✔ Offers automatic control and manual control combination
- ✔ Real-time regulation of PID constant temperature control technology
- ✔ The spray, drying and collecting device is made of transparent high-quality high-temperature resistant borosilicate glass
- ✔ Equipped with nozzle cleaner (Through needle), when nozzle is blocked, it will be cleared automatically
- ✔ The atomization structure of the two-fluid spray is made of high-precision 316 stainless steel material
- ✔ Unique protection function

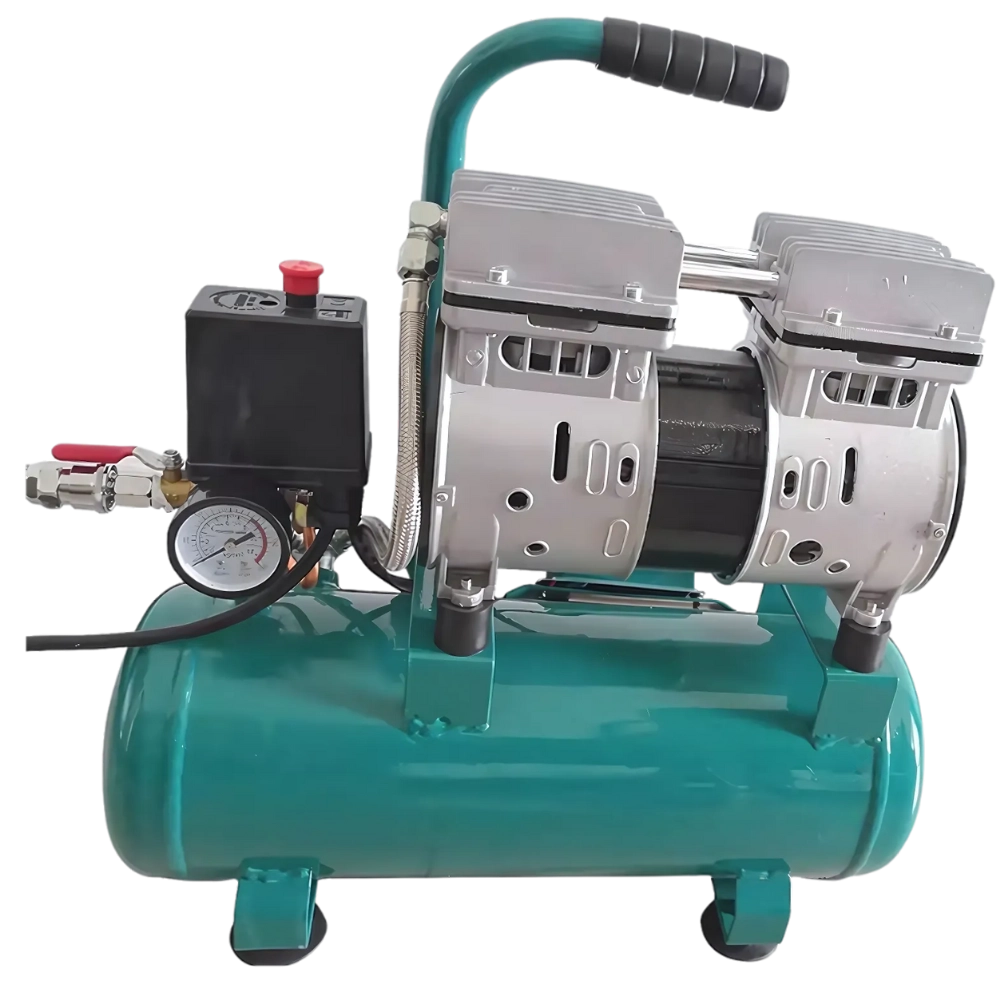

- ✔ Built-in imported oil-free air compressor, noise less than 50 dB
- ✔ Equipped with air inlet filter to ensure the purity of the sample
| Max capacity |
1500 to 2000 ml/h |
| Temperature range of Inlet air |
30℃ to 280℃ |
| Temperature range of outlet air |
40℃ to 120℃ |
| Precision of temperature |
± 1 ℃ |
| Dryer time |
1.0 to 1.5 s |
| Speed of squirmy pump |
30 to 2000 ml/h |
| Consume of dryer air |
0 to 330 m3/h, max pressure: 686 Pa |
| Consume of spray air |
0 to 4.2 m3 /h, spray pressure: 2 to 5 bar |
| Spray system |
Two-fluid spray atomization structure with standard 0.7mm nozzle options of 0.5/1.0/1.5/2.0/2.5 mm |
| Spray direction |
Downwards co-current |
| Standard Nozzle |
0.7 mm |
| Optional Nozzle |
0.5/1.0/1.5/2.0/2.5 mm |
| Dimension |
650 × 500 × 1550 mm |
| Power Consumption |
3.5 kW |
| Power Supply |
220/240 V, 50/60 Hz |
| Weight |
150 kg |
Mini Spray Dryer used in the field of bioengineering, food, biology, chemical, pharmaceuticals and new material sciences for drying aqueous solutions as emulsion, suspension directly into uniform micro powder without concentrating, filtration and crushing.
