Mini Centrifuge FM-MC-A101

Mini Centrifuge FM-MC-A101

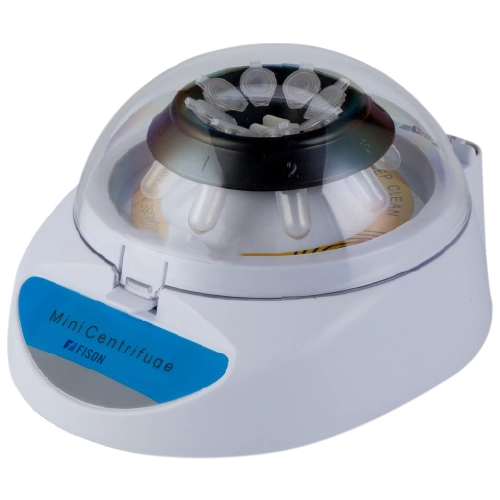

Mini Centrifuge FM-MC-A101 is a compact, portable design centrifuge with 6000 rpm maximum speed and 2000 × g maximum centrifugal force. The rotor capacity offered for centrifugal tube is 6 × 2.0 / 1.5ml / 0.5ml / 0.2ml and 8 × 2.0 / 1.5ml / 0.5ml / 0.2ml. The rotor capacity offered for PCR centrifugal tube is 2 × 8 × 0.2ml and 4 × 8 × 0.2ml. It also offers 0.5ml and 0.2ml capacity adapter. The brushless frequency DC motor offers smooth working of the unit with low noise.

Specifications

Maximum speed 6000 rpm
Maximum RCF 2000 × g
Speed accuracy ±20 rpm
Rotor & Adapter Capacity
Centrifuge tubes6 x 2.0 / 1.5ml / 0.5ml / 0.2ml & 8 x 2.0 / 1.5ml / 0.5ml / 0.2ml
PCR centrifugal tube2 x 8 x 0.2 ml & 4 x 8 x 0.2 ml
Adapter0.5ml and 0.2ml
Construction PVC material centrifugation chamber
Noise ≤ 45 dB
Voltage 85-265 VAC, 50/60 Hz
Dimension (L × W × H) 196 × 176 × 122 mm
Weight 1.1 kg

Features

  • Maximum spin speed 6000 rpm with 2000 × g RCF
  • Transparent lid (Cover) design
  • Opening / closing of lid functions as stop / start of centrifuge
  • Protection against high speed
  • Adopted with high frequency broad voltage technology
  • Unique design of rotor snaps for easy replacement rotor
  • Brushless DC motor with low noise operations

Applications

  • Used to extract serum from whole blood sample, sample extraction solution, blood cell separation, microbiological sample processing and PCR centrifugal experiment.

Alternative Models Of Mini Centrifuge

Fison Mini Centrifuge features a transparent lid design, allowing easy observation of samples during operation. They provide protection at high speed, preventing damage from excessive forces or rapid movements. Their adoption of high-frequency broad voltage technology ensures stable performance across varying voltage levels. The rotor snaps allow for easy replacement, reducing downtime and ensuring continuous, efficient operation. Our mini centrifuge uses the opening and closing of the lid as the stop or start mechanism, ensuring safe and efficient operation.

Mini Centrifuge FM-MC-A100

  • Maximum speed: 4000 rpm
  • Maximum RCF: 900 × g
  • Speed accuracy: ±20 rpm
Catalog

Mini Centrifuge FM-MC-A102

  • Maximum speed: 10000 rpm
  • Maximum RCF: 5500 × g
  • Speed accuracy: ±20 rpm
Catalog

Mini Centrifuge FM-MC-B100

  • Speed Range: 6000 rpm
  • Speed Accuracy: ± 50 rpm
  • Rotor Type: Opposite swing rotor
Catalog
Mini Centrifuge FM-MC-B101
  • Maximum Speed: 15000 rpm
  • Maximum RCF: 15093 × g
  • Maximum Capacity: 8 × 5 ml
Catalog
Mini Centrifuge FM-MC-B102
  • Maximum Speed: 16500 rpm
  • Maximum RCF: 18262 × g
  • Maximum Capacity: 8 × 5 ml
Catalog

Mini Centrifuge FM-MC-C100

  • Speed Range: 4000rpm, 6000rpm & 7000rpm adjustable
  • Maximum RCF: 4000rpm: 960×g
    6000rpm: 2200×g
    7000rpm: 2900×g
  • Maximum Capacity: Centrifuge tube: 6×1.5ml/2.0ml, 6×0.5ml, 16×0.2ml, PCR tube strips:2×8×0.2ml
Catalog

Mini Centrifuge FM-MC-C101

  • Speed Range: 3000 to 10000rpm
  • Maximum RCF: 500 to 5400×g
  • Timer Range: 1s to 99m59s
Catalog

Low Speed Centrifuge

Fison Low Speed Centrifuges are designed for efficient separation of biological and chemical samples. They offer reliable low speed centrifugation, ensuring gentle handling of sensitive materials. These units feature a user-friendly control panel, allowing easy speed and time adjustments. They include a lid-lock mechanism and imbalance detection for enhanced safety. Our centrifuges are equipped with multiple rotors to accommodate various sample types and volumes for versatile use.

Low speed centrifuge FM-LSC-A100

  • Maximum speed : 4000 rpm
  • Maximum RCF : 2432 × g
  • Rotor capacity : 15 ml/ 20 ml × 6
Catalog

Low speed centrifuge FM-LSC-A101

  • Maximum speed : 6000 rpm
  • Maximum RCF : 5000 × g
  • Rotor capacity : 100 ml × 4
Catalog
Low Speed Centrifuge FM-LSC-A102
  • Maximum speed : 6000 rpm
  • Maximum RCF : 5000 × g
  • Rotor capacity : 450 ml × 4
Catalog

Low Speed Refrigerated Centrifuge

Fison Low Speed Refrigerated Centrifuges are designed for efficient separation of temperature-sensitive biological and chemical materials. They offer stable and adjustable temperature control, ensuring optimal conditions for sample preservation. These units feature a user-friendly control panel for easy operation and monitoring. They are equipped with multiple rotor options, accommodating various sample volumes for versatile applications. Our centrifuges deliver quiet and stable operation, minimizing noise and vibration to enhance laboratory efficiency.

Low Speed Refrigerated Centrifuge FM-LRC-A100
  • Maximum speed : 4200 rpm
  • Maximum RCF : 3387 ×g
  • Swing rotor capacity : 4 × 600 ml
Catalog

Low Speed Refrigerated Centrifuge FM-LRC-A101

  • Maximum speed : 4200 rpm
  • Maximum RCF : 5116 ×g
  • Swing rotor capacity : 6 × 1000 ml
Catalog

Low Speed Refrigerated Centrifuge FM-LRC-A102

  • Maximum speed : 8000 rpm
  • Maximum RCF : 11068 ×g
  • Swing rotor capacity : 6 × 2400 ml
Catalog

High Speed Centrifuge

Fison High Speed Centrifuge applies large centrifugal force to separate sample components. They come with microprocessor regulated LCD Display for easy monitoring. Cooling systems protect heat-sensitive samples by maintaining sub-zero temperatures. They feature multiple working modes along with noise-free operation. We offer High Speed Centrifuge with different speed settings, ranging from 6000 to 23000 rpm.

Benchtop High-Speed Centrifuge FM-BHC-A100
  • Maximum RPM : 24000 r/min
  • Maximum RCF : 47800 × g
  • Maximum Capacity : 4 × 100 ml
Catalog
High Speed Centrifuge FM-HSC-A100
  • Maximum speed : 6000 rpm
  • Maximum RCF : 1248 × g
  • Maximum capacity : 2 × 8 × 0.2 ml
Catalog

High Speed Centrifuge FM-HSC-A101

  • Maximum speed : 10000 rpm
  • Maximum RCF : 6596 × g
  • Maximum capacity : 12 × 1.5 / 0.5 / 0.2 ml
Catalog

High Speed Refrigerated Centrifuge

Fison High Speed Refrigerated Centrifuges are designed for rapid and precise separation while maintaining accurate temperature control. They provide an advanced cooling system, maintaining stable temperatures to protect heat-sensitive samples. These units are equipped with multiple rotor types for versatile applications. Our centrifuges deliver low noise and vibration, ensuring a quiet and stable laboratory environment. They feature durable and corrosion-resistant construction for long-term use.

High speed Refrigerated Centrifuge FM-HRC-A303

  • Maximum speed : 21000 r/min
  • Maximum RCF : 31300 × g
  • Maximum Capacity : Angle rotor : 600 ml
    Swing rotor : 3000 ml
Catalog
High Speed Refrigerated Centrifuge FM-HRC-A100
  • Maximum speed : 18000 rpm
  • Maximum RCF : 23846 × g
  • Maximum capacity : 24 × 0.5 ml
Catalog
High Speed Refrigerated Centrifuge FM-HRC-A101
  • Maximum speed : 23000 rpm
  • Maximum RCF : 33097 × g
  • Maximum capacity : 6 × 250 ml
Catalog

Microplate Centrifuge

Fison Microplate Centrifuge offers adjustable speed settings for efficient spin-downs and pellet formation. They are crafted to minimize vibrations for a comfortable lab environment. Their digital controls with pre-set or customizable spin programs to accommodate various protocols. These are equipped with quick acceleration and deceleration to minimize total processing time. The advanced safety features secure lid locks to ensure safe and reliable operation during use. Our Microplate Centrifuge offers a compact storage option, making them easy to store.

Microplate Centrifuge FM-MPC-A100

  • Maximum speed : 2500 rpm
  • Maximum RCF : 500 × g
  • Maximum Rotor Radius : 63 mm
Catalog

Microplate Centrifuge FM-MPC-A101

  • Maximum Speed : 2800rpm
  • Maximum RCF : 600×g
  • Capacity : 8×0.2ml PCR tube strips/ 0.2ml PCR tubes / 2×96-well PCR plate
Catalog
