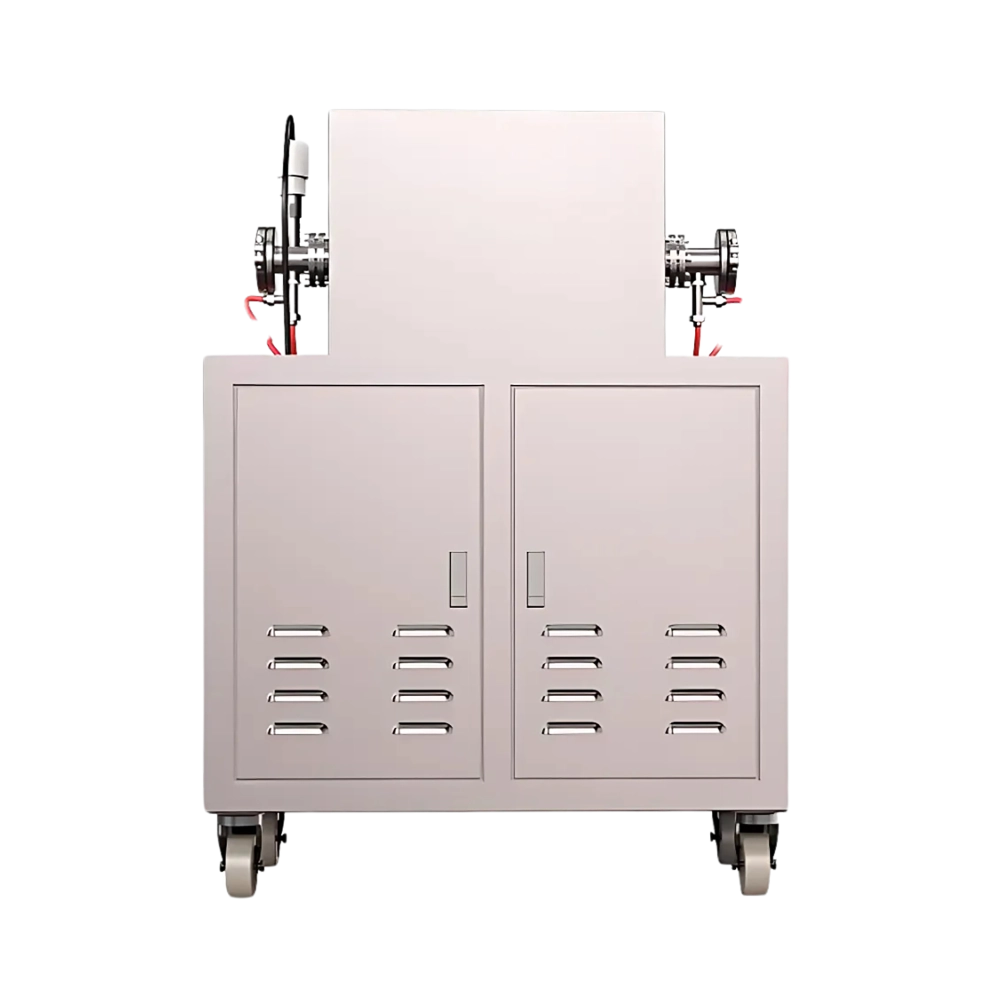

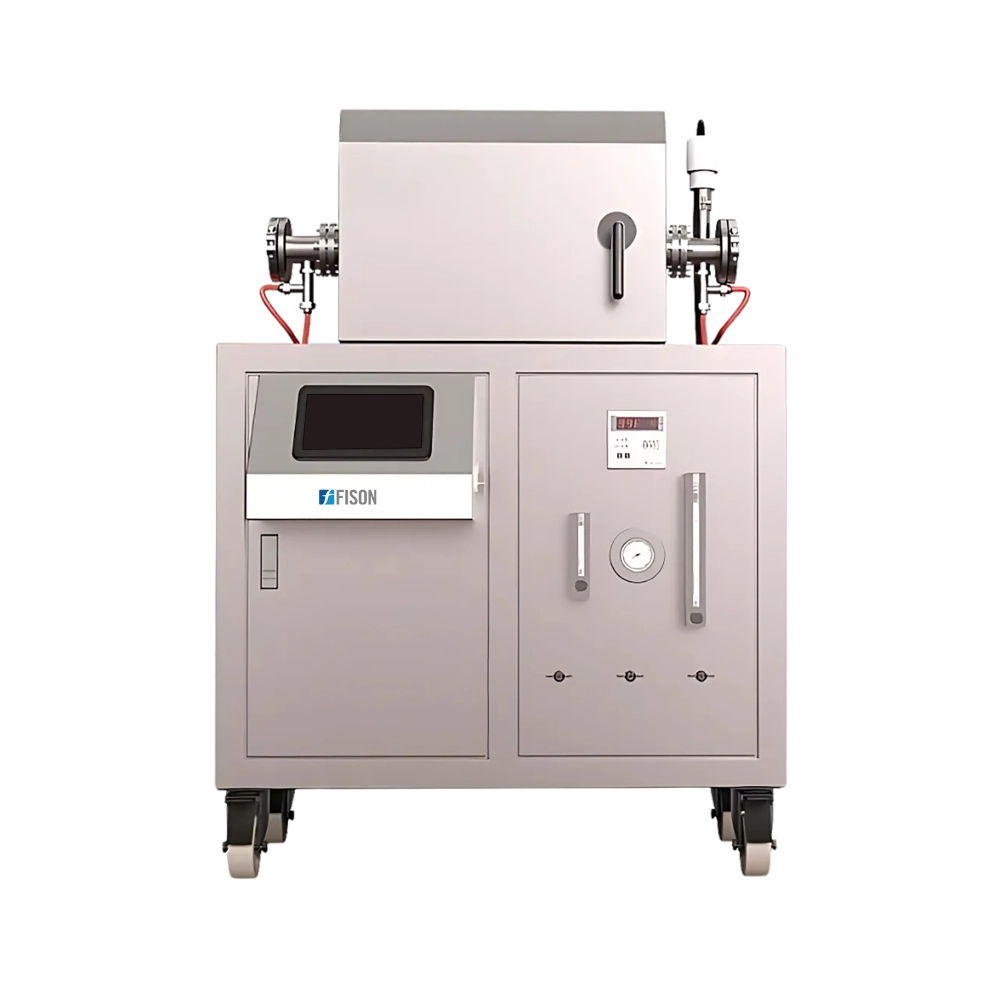

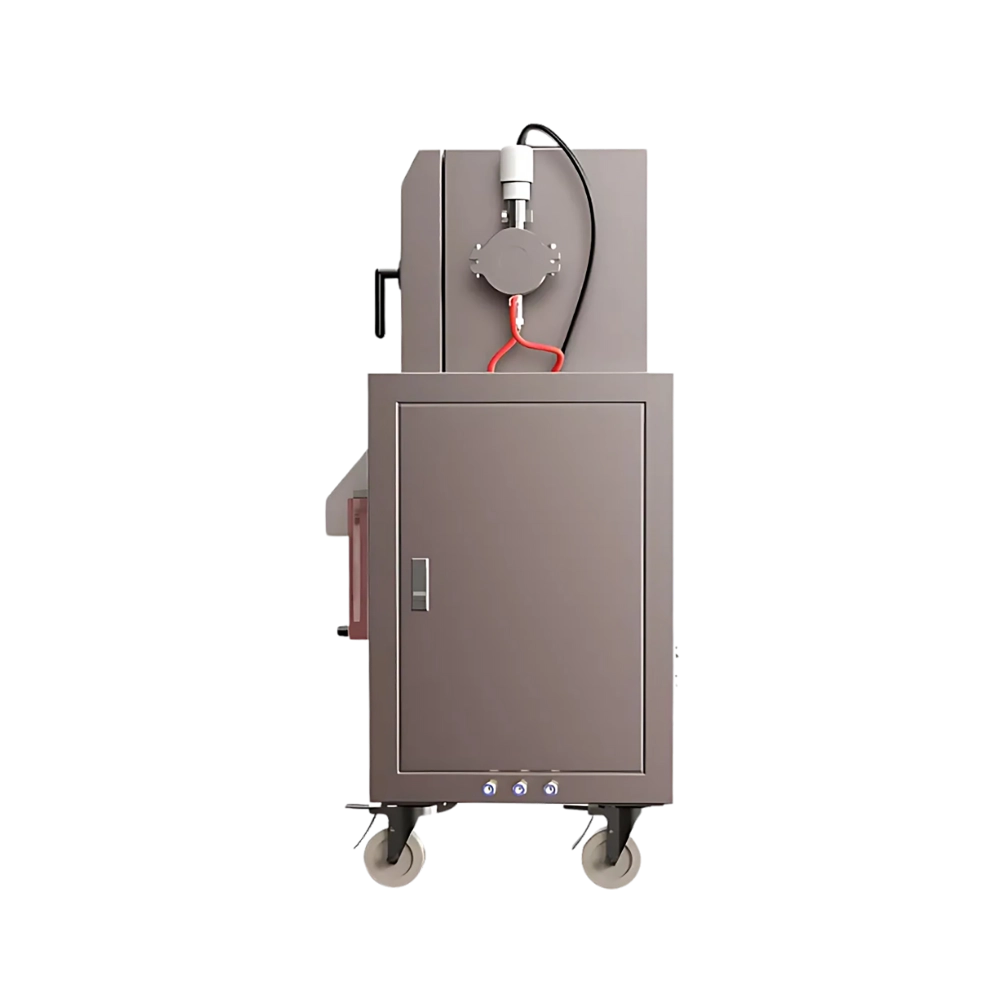

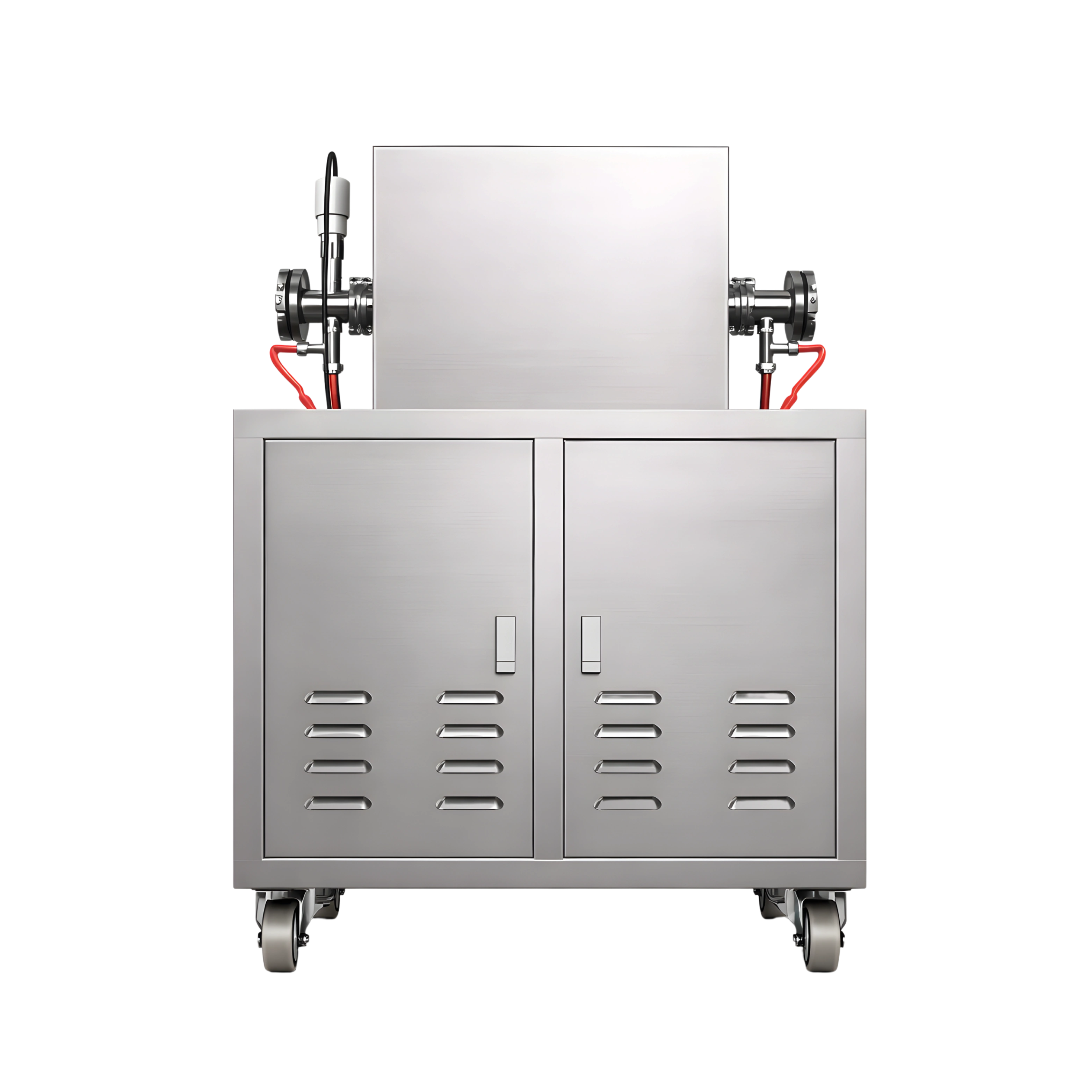

Microwave Tube Furance-FM-MTF-A100
Microwave Tube Furance-FM-MTF-A100 is designed with a temperature range of up to 1600°C for various thermal processing applications. It utilizes microwave heating at a frequency of 2.45 GHz to deliver rapid, uniform, and energy-efficient heating. Our furnace features high-purity polycrystalline fiber insulation, offering exceptional thermal stability. Its high-definition touchscreen interface with PLC-based control ensures seamless operation and real-time monitoring.
Specifications
| Work Temperature | Less than 1600℃ |
| Microwave Frequency | 2.45GHz |
| Heating Space | Ф50×250mm (Diameter × Length) |
| Temperature Measuring Method | Infrared Thermometer + Thermocouple |
| Measurement Range | Thermocouple: RT to 1600℃ |
| Temperature Accuracy | Read ±1℃ |
| Control Method | Touch screen + PLC (40 Sections of Temperature Control) |
| Insulation System | Customized HTF1800 module with 1800℃ high-purity cured polycrystalline fiber, density of 0.6g/cm³ (± 0.05g/cm³), detachable microwave-assisted heating module. |
| Control Procedure | Automatic/Manual/Constant temperature modes, large data storage, USB data export, real-time curve display, online alarm, one-click oven setting, scalable remote control |
| Static Ultimate Vacuum Degree | Less than 100Pa; Pumping speed greater than 2L/S |
| Atmosphere Requirements | Two-way intake, precise gas flow control, rapid pre-vacuuming, capable of filling with oxidizing gases, inert gases, weakly reducing gases, etc. |
| Microwave Leakage | Less than 1mW/cm² (Safety standard less than 5mW/cm²) |
| Magnetron Alarm | Over temperature alarm, over current alarm |
| Furnace Door Protection | Protection Switch |
| Microwave Output Power | 0.01 to 2.80kW Continuously Variable |
| Rated Power | 5KW |
| Power Supply | 220±10V 50Hz |
| Furnace Body Dimensions (L×W×H) | 530×430×380mm |
| Control Cabinet Dimensions (L×W×H) | 900×500×700mm |
| Package Size | 1000×1200×1200mm |
| Net Weight | 180kgs |
| Gross Weight | 200 kgs |
Features
- Self-developed Software
- Pollution-Free Processing
- Customized Absorbing Material Sagger
- Multi-Process Programming
- Customizable Alarm Functions
Applications
- Microwave Tube Furance-FM-MTF-A100 is widely used in Material Science and Research, Metallurgy, Chemical Processing, Electronics and Semiconductor Industry, Glass and Ceramic Industry, Energy and Environmental Applications.
Accessories
Accessory Quantity Power line 1 pc Microwave source 2 pcs Tubular insulation system 1 pc Quartz tube (Φ60mm×680mm) 2 pcs Corundum tube (Φ60mm×680mm) 2 pcs MW-specific heating material 1 pc Thermocouple (RT-1600℃) 1 pc Vane vacuum pump (Pumping speed >2L/S) 1 pc PLC 1 pc Touch screen 1 pc Furnace body and tablet (304 SS & Carbon Steel Coating) 1 pc Sealing rings 4 pcs MW Leak detector 1 pc
Accessories Optional
Chiller- 1pc
Infrared Thermometer (300 to 1800℃)- 1pc
