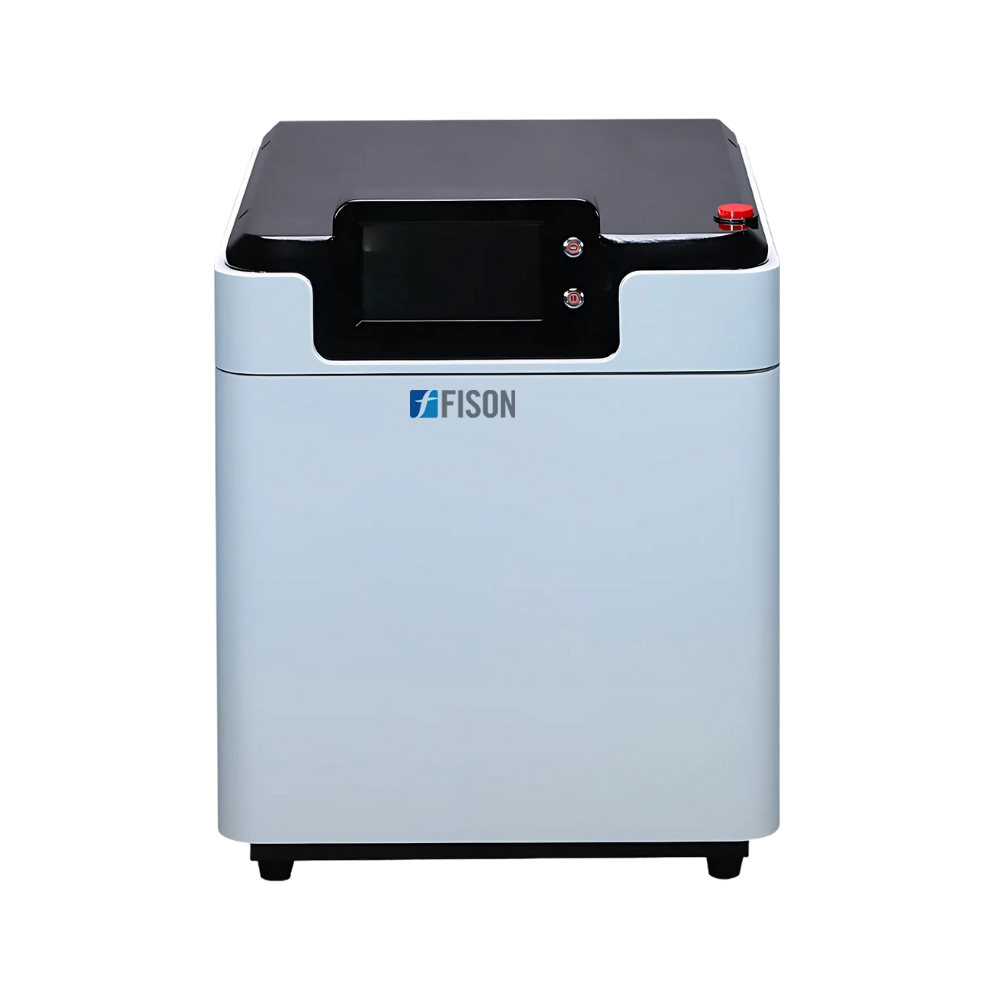

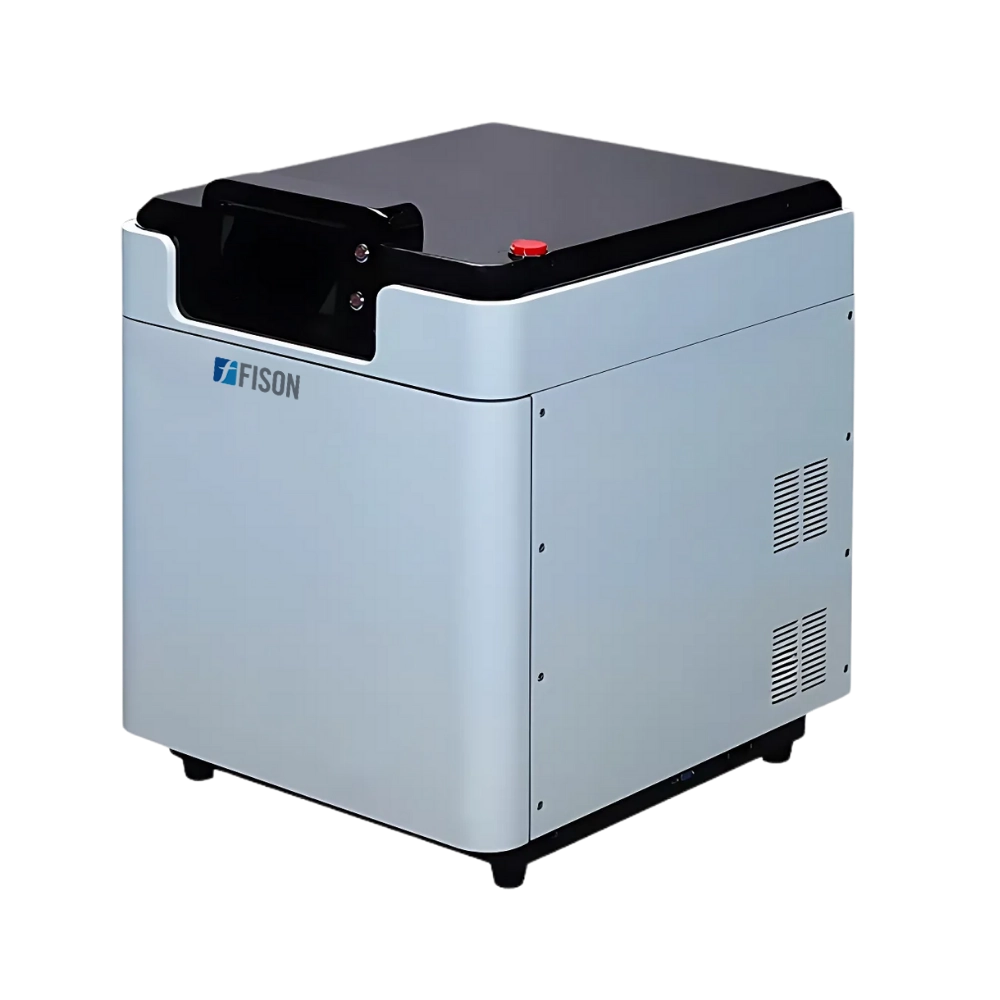

Microwave Digestion System FM-MWD-A100
Microwave Digestion System FM-MWD-A100 break down complex samples into simple ones for precise analysis. It can accommodate 12 vessels and has a vessel volume of 100 ml. Real-time monitoring effectively tracks the condition of digestion process. System's effectiveness, security, and user friendliness have won users all over the world.
Specifications
| No. of Vessels | 12 |
| Vessel Volume | 100 ml |
| Temperature Monitor | Contactless IR Sensor |
| Temperature Control Range | 50 to 400 ℃ |
| Temperature Accuracy | ± 0.1 ℃ |
| Display Accuracy (Temperature) | ± 0.1 ℃ |
| Pressure Monitor | Contactless Sensor |
| Pressure Control Range | 0 to 15 MPa |
| Pressure Accuracy | ± 0.01 MPa |
| Display Accuracy (Pressure) | ± 0.01 MPa |
| Sample Vessel Material | Imported TFM |
| Protection Vessel Material | Peek + Glass Fiber |
| Display | 7-inch Touch Screen |
| Rotation | 360° Continuous Rotating |
| Microwave Tank | 316L Stainless Steel tank with Corrosion-Proof Coating |
| Microwave Power (Adjustable) | 0 to 1000 W (Adjustable) |
| Microwave Leakage | < 5 mw/cm² |
| Air Exhaust | High power corrosion-proof air blower |
| Power Supply | AC 220 V ± 10%, 10A, 50/60 Hz |
| Dimension (L × W × H) | 490 × 560 × 630 mm |
| Weight | 47 Kg |
Features
- Uniform sample digestion due to vertical design
- Real-time monitoring of temperature and pressure
- Contactless sensors reduce maintenance costs
- Imported vessel material enhances safety
- User-friendly color touch screen interface
- Carbon Fiber Reinforced Polymer improves durability
- 316L Stainless steel with Teflon coating provides resistance against acid corrosion
Applications
- Microwave Digestion System is used for preparing various samples in departments like quality control, environmental monitoring, and scientific research across various industries.
Accessories
Sample rotor Auxiliary platform Digestion vessel Vessel holder Pressure calibration ring
