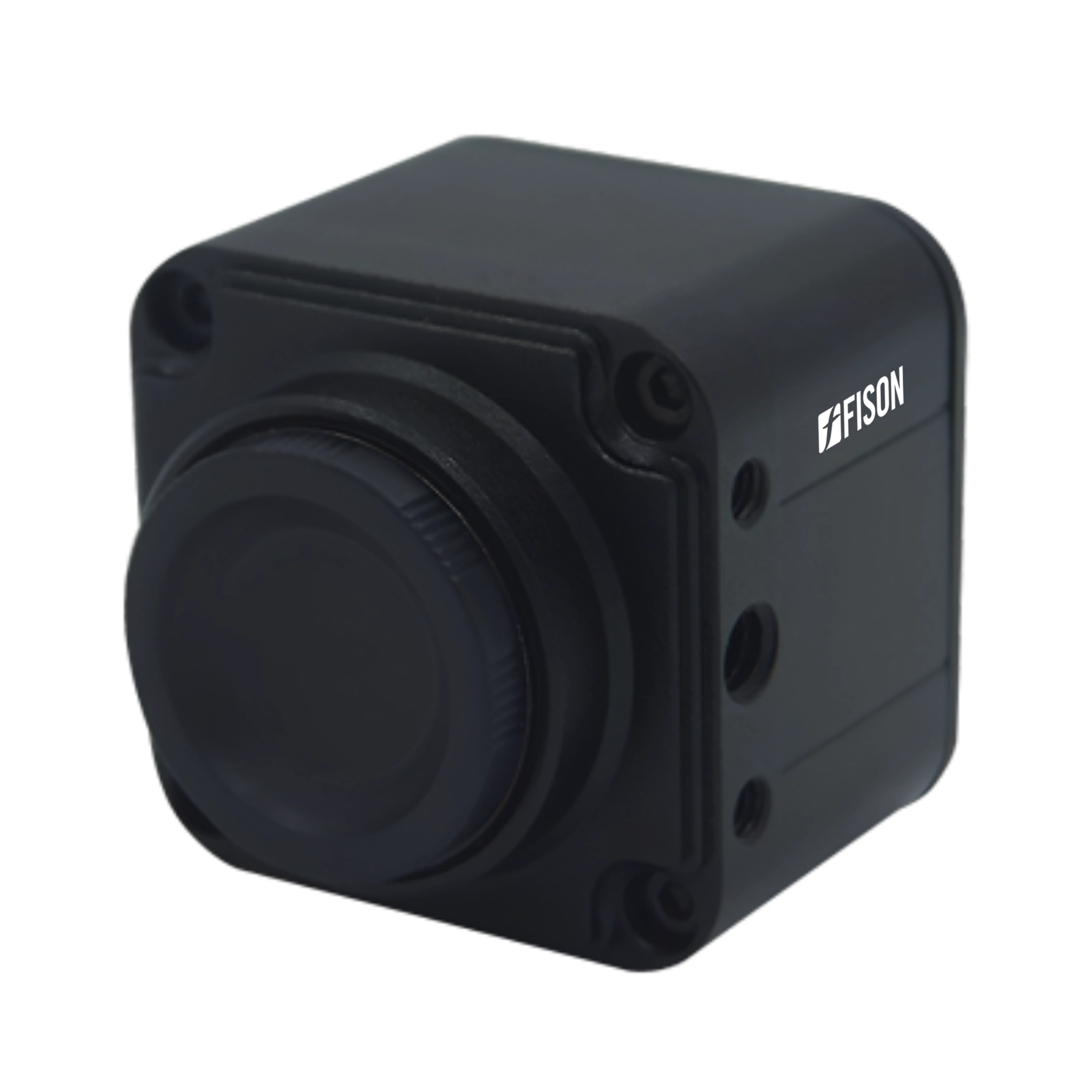

- ✔ CMOS image sensor microscope digital camera
- ✔ Support 1080 P video recording
- ✔ Marks function such as point coordinator, reticle and text explanation
- ✔ Geometrically measures radius, two point, three points setting circle and line length
- ✔ High sensitivity, low noise, excellent color correction
- ✔ Live transmission of images and video over USB 2.0, Wi-Fi
- ✔ Compatibility with supported OS Win X/7/8/10
- ✔ Easy and quick installation
- ✔ User friendly interface with number of image processing functions
| Image sensor type |
CMOS (Micron) |
| Sensor size |
1 / 2.5” |
| Effective pixel |
5 million pixel |
| Imagining resolution |
5.0 MP |
| Hardware resolution |
1920 × 1080 |
| Pixel size |
2.2 × 2.2 µm |
| Frame rate |
30 fps |
| Sensitivity |
1.4 V / lux-sec @ 550nm |
| Signal to noise ratio (SNR) |
42.3 dB |
| Quick image capture |
Support 5 m static image capture |
| Video record |
Support 1080 P video |
| Measuring tool |
S-EYE |
| Exposure |
Auto |
| White balance |
Auto |
| Lens mount |
C mount |
| Data interface |
USB 2.0, WI-FI |
| Working temperature |
-30°C to 70°C |
| Working humidity |
20 % RH to 75 % RH |
| Supported OS |
Win X/7/8/10 |
| Power Supply |
DC 12V / 1A |
| Packaging dimension |
180 × 140 × 140 mm |
| Gross weight |
0.1 kg |
Used for microscopic imaging, visual inspection, and measurement of test specimen across life science, geology, archaeology, forensic science and other industries. Accurately displays images of observed specimen on computer, it is suitable for all kinds of optical microscopes.
| Accessories no. |
Accessories name |
| 1 |
USB 2.0 cable, DC-12V power adapter |
