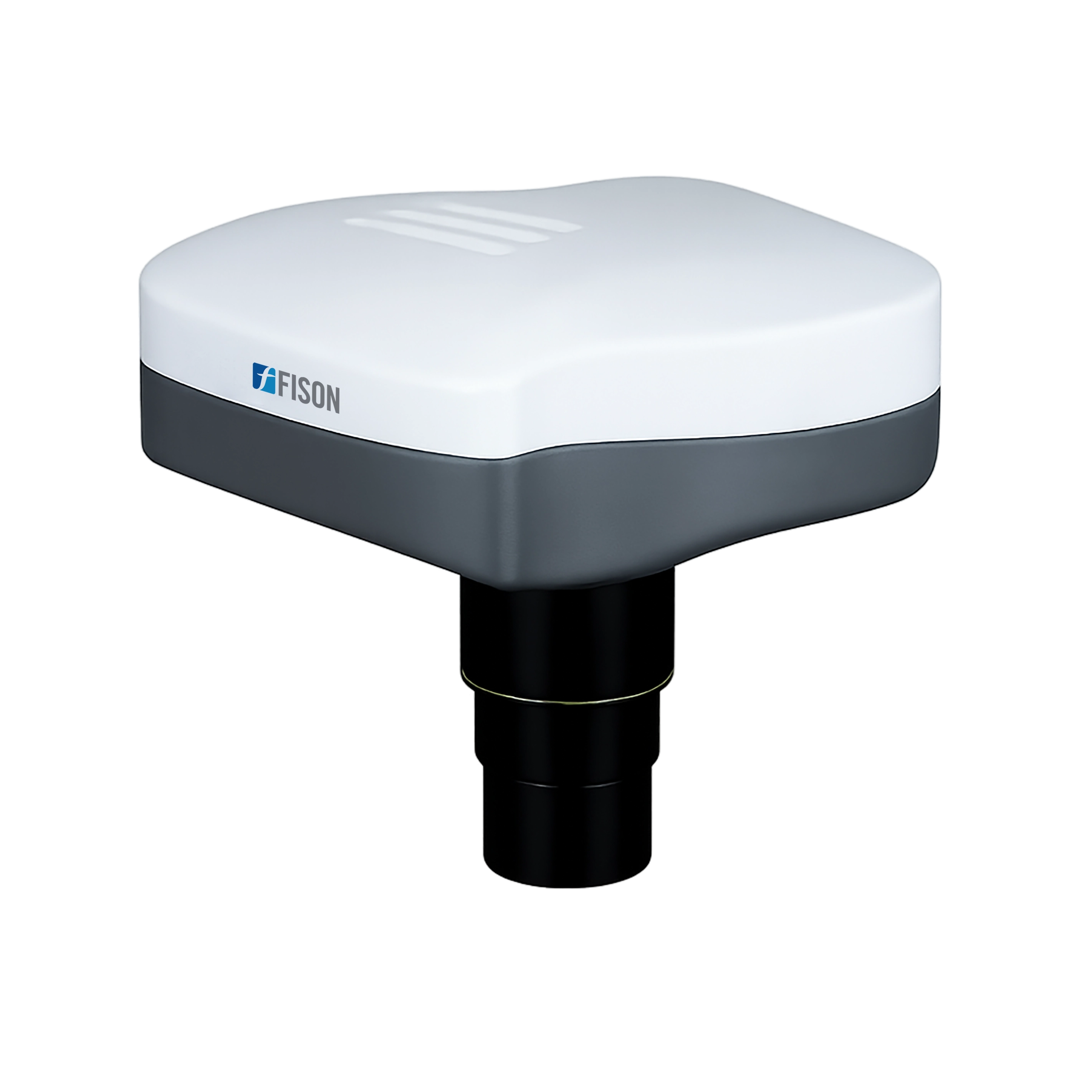

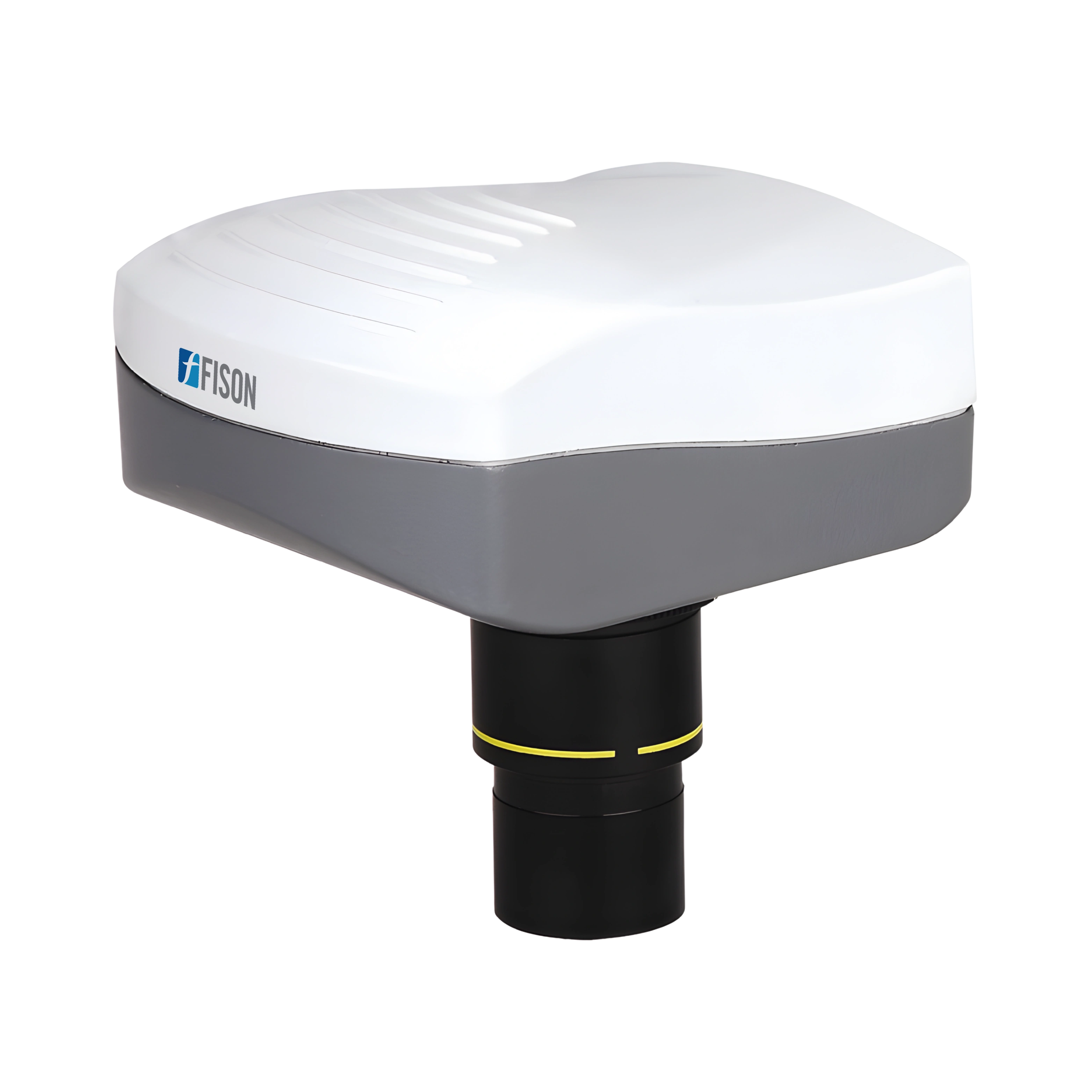

- ✔ 5.0 MP CMOS image sensor microscope digital camera
- ✔ Standard C-mount interface compatible with wide range of optical systems
- ✔ Live transmission of images and video over USB 2.0
- ✔ ScopeImage DynamicPro Image analysis software
- ✔ High sensitivity, low noise, excellent color correction
- ✔ Eyepiece tube adapters with dimensions 23.2 mm / 30 mm and 23.2 mm / 30.5 mm
- ✔ Compatibility with MS Windows 2000/ XP / Vista
- ✔ Easy and quick installation
| Image sensor type |
Color CMOS (Micron) |
| Sensor size |
1/2.3″ CMOS |
| Imagining resolution |
5.0 MP |
| Hardware resolution |
2592 × 1944 |
| Pixel size |
2.2 μm × 2.2 μm |
| Digital output |
24–bit (color) |
| Frame rate |
2592 x 1944 4 fps |
| Sensitivity |
0.44 V/lux-sec (550 nm) |
| Exposure |
Auto / Manual |
| White balance |
Auto / Manual |
| Lens mount |
23.2mm / 30mm diameter adapter tube, C-mount |
| Data interface |
USB 2.0 |
| Standard software |
ScopeImage DynamicPro Image analysis software |
| Working temperature |
-30 to 70°C |
| Relative humidity |
20% to 75% RH |
| Supported OS |
Windows 7/8/10 |
| Power |
DC: 12 V/1 A |
| Dimension |
120 × 120 × 80 mm |
| Gross weight |
450 g |
Used for microscopic imaging, visual inspection, and measurement of test specimen across life science, gemology, archeology, forensic science and other industries. Accurately displays images of observed specimen on computer, it is suitable for all kinds of optical microscopes.
| Accessories no |
Accessories name |
| 1. |
Microscope digital camera including optical lens adapter |
| 2. |
USB 2.0 cable |
| 3. |
ScopeImage DynamicPro Image analysis software |
| 4. |
Eyepiece tube adapters 23.2 mm/30 mm and 23.2 mm/30.5 mm |
| 5. |
Calibration slide 0.01 mm and 0.1 mm |
