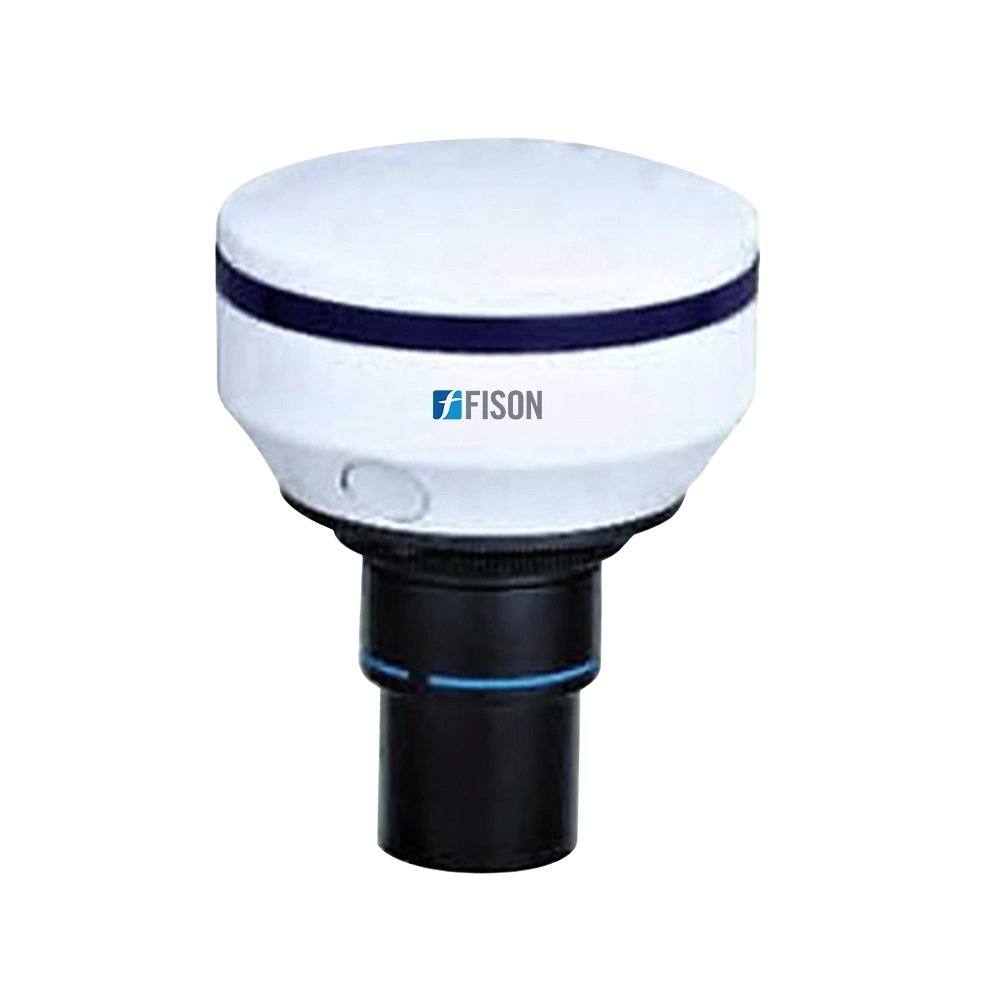

Microscopic Digital Camera FM-MDC-A100
Microscopic Digital Camera FM-MDC-A100 is a digital 2.0 USB eyepiece camera with CMOS image sensor that captures microscope images and displays real-time live video on PC. With maximum resolution of 1.3 MP and frame rate of 1280 × 10241 pixels, it gives higher sensitivity and excellent color correction. This camera is designed to fit an eyepiece tube of 23.2 mm or 30 mm diameter and ScopeImage DynamicPro Image analysis software offers better visual microscopic inspection and measurement of specimen under study.
Specifications
| Image sensor type | Color CMOS (Micron) |
| Sensor size | 1/2″ CMOS |
| Imagining resolution | 1.3 MP |
| Hardware resolution | 1280 × 10241 |
| Pixel size | 5.2 μm × 5.2 μm |
| Digital output | 24–bit (color) |
| Frame rate | 1280 x 1024 6 fps |
| Sensitivity | > 1.0 V/lux-sec (550 nm) |
| Exposure | Auto / Manual |
| White balance | Auto / Manual |
| Lens mount | 23.2mm / 30mm diameter adapter tube, C-mount |
| Data interface | USB 2.0 |
| Standard software | ScopeImage DynamicPro Image analysis software |
| Working temperature | -30 to 70°C |
| Relative humidity | 20% to 75% RH |
| Supported OS | Windows 7/8/10 |
| Power | DC: 12 V/1 A |
| Dimension | 120 × 120 × 80 mm |
| Gross weight | 420 g |
Features
- 1.3 MP CMOS image sensor microscope digital camera
- Standard C-mount interface compatible with wide range of optical systems
- Live transmission of images and video over USB 2.0
- ScopeImage DynamicPro Image analysis software
- High sensitivity, low noise, excellent color correction
- Eyepiece tube adapters with dimensions 23.2 mm / 30 mm and 23.2 mm / 30.5 mm
- Compatibility with MS Windows 2000/ XP / Vista
- Easy and quick installation
Applications
- Used for microscopic imaging, visual inspection, and measurement of test specimen across life science, gemology, archeology, forensic science and other industries. Accurately displays images of observed specimen on computer, it is suitable for all kinds of optical microscopes.
Accessories
Accessories no Accessories name 1. Microscope digital camera including optical lens adapter 2. USB 2.0 cable 3. ScopeImage DynamicPro Image analysis software 4. Eyepiece tube adapters 23.2 mm/30 mm and 23.2 mm/30.5 mm 5. Calibration slide 0.01 mm and 0.1 mm
