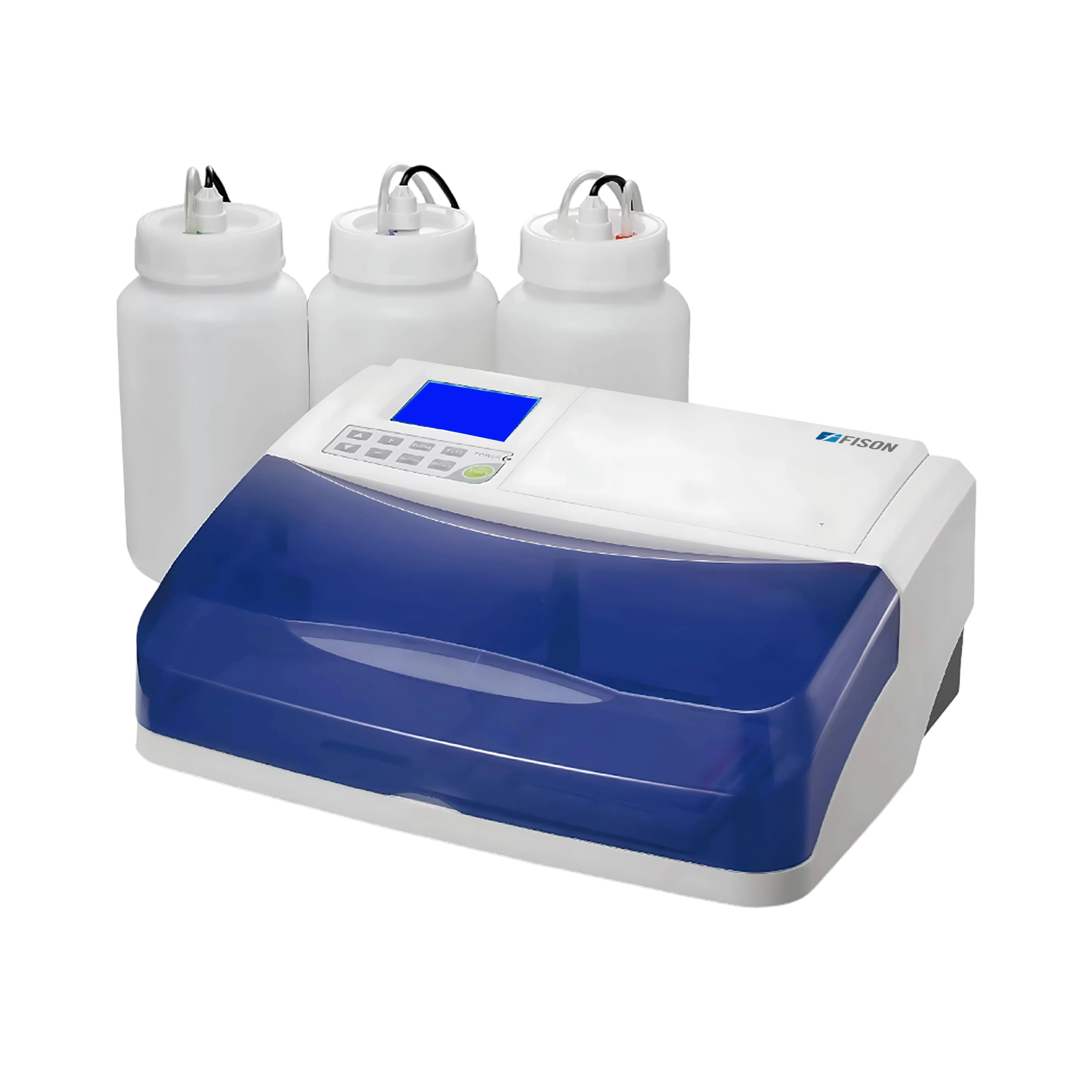

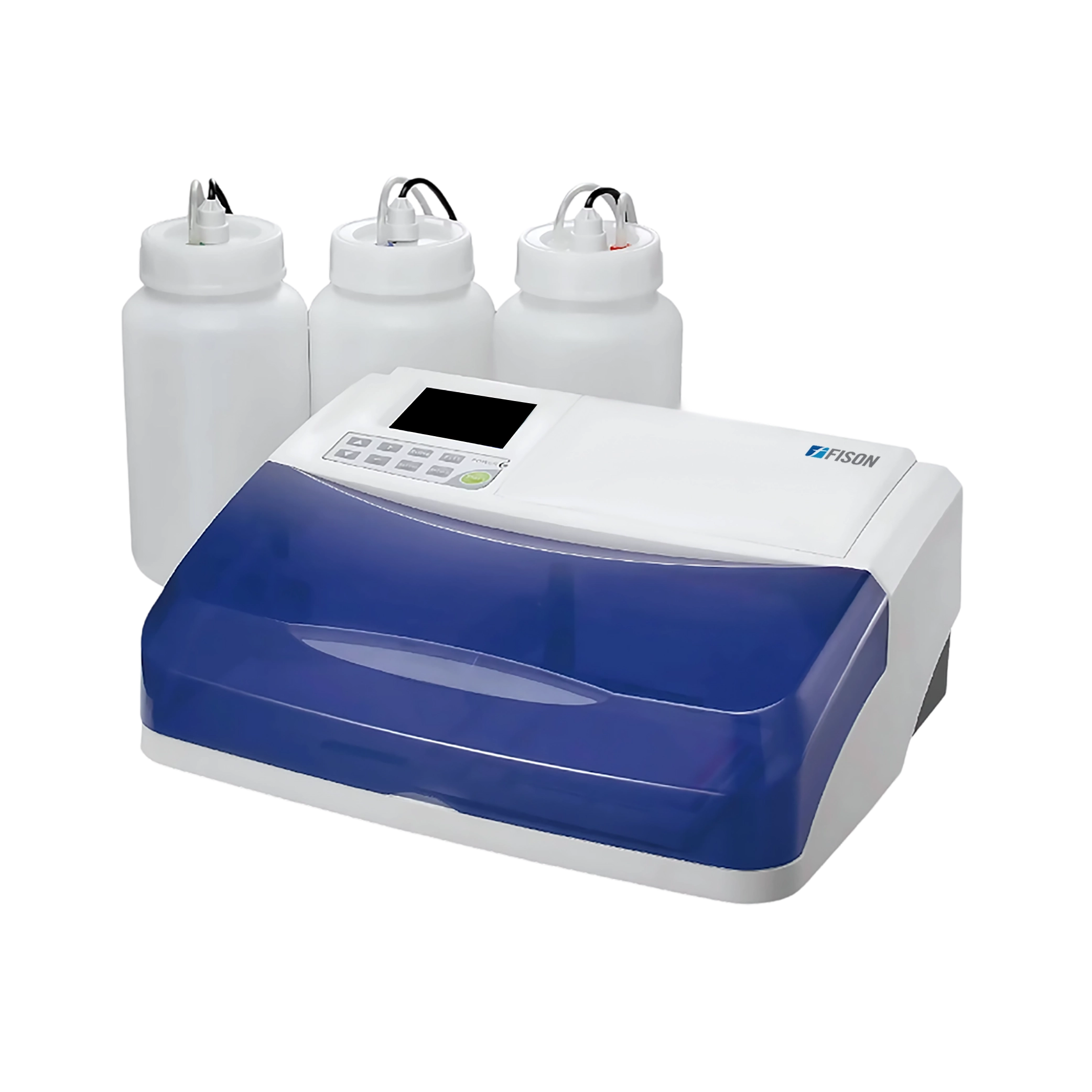

Microplate Washer FM-MPW-A101
Microplate Washer FM-MPW-A101 is a compact, efficient, reliable and user-friendly microplate washer with LCD display. With 8 and 12 manifold channels it provides complete microplate bottom washing. Features with 3 bottles for waste liquid, washing liquid and distilled water. Used for Enzyme Linked Immuno Sorbent Assay (ELISA). They are also used to wash cell cultures, protein arrays, Western blots and beads as well as applied in DNA purification protocols.
Specifications
| Plate type | 96 well plate |
| Residual aspiration | < 2 μl |
| Washing head | 8/12 type |
| Dispensing volume | 10 to 3000 μl, step by 1 μl |
| Washing times | 1 to 99 times adjustable |
| Washing columns | 1 to 12 columns adjustable |
| Soaking time | 0 to 999 seconds adjustable |
| Shaking time | 0 to 999 seconds adjustable |
| Temperature | 5°C to 35°C |
| Humidity | 15% to 85% |
| Dimensions (W × D × H) | 400 × 310 × 169 mm |
| Power supply | AC 110 V, 60 Hz AC 220 V, 50 Hz |
| Weight | 8 kg |
Features

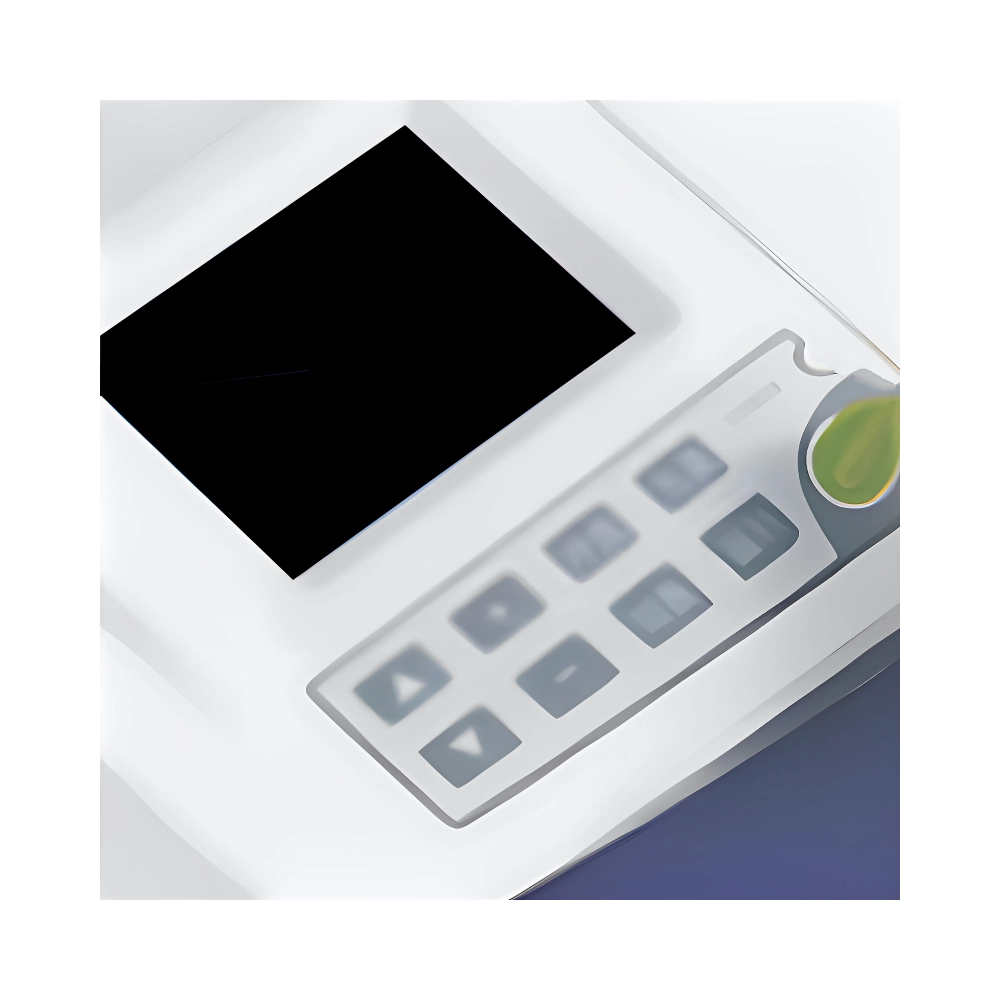

- Large LCD display
- Convenient to use menu design
- Features with 3 bottles: Waste liquid, washing liquid and distilled water
- Applicable for any types of microplate or any combination of plates
- Provides complete bottom washing

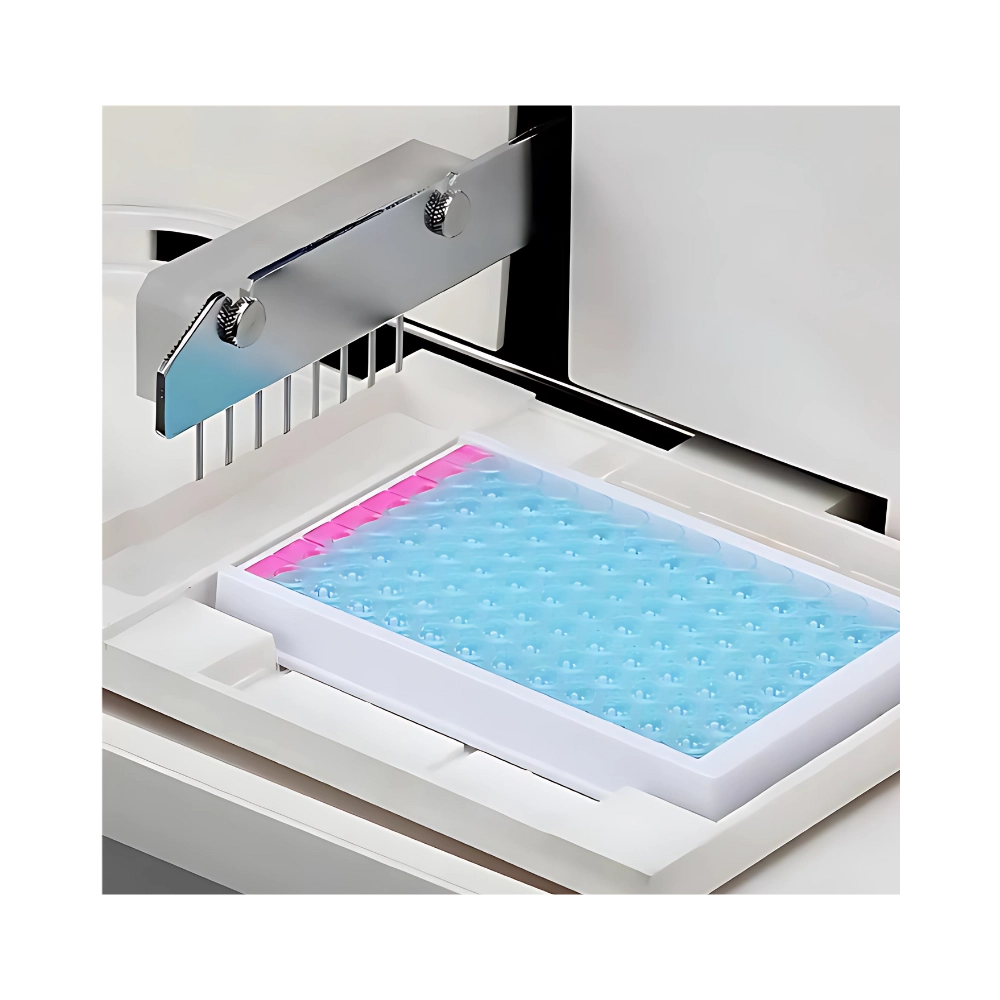

- Includes 8 or 12 manifold channels
- Equipped with adjustable dipping and shaking function
- Automatic rinse cycle to reduce clogging
- Low residual volume
- Emergency stop available for microplate washing
Applications
- Used for Enzyme Linked Immuno Sorbent Assay (ELISA). They are also employed used to wash cell cultures, protein arrays, Western blots and beads as well as applied in DNA purification protocols.
