Microplate washer FM-MPW-A100

Microplate washer FM-MPW-A100

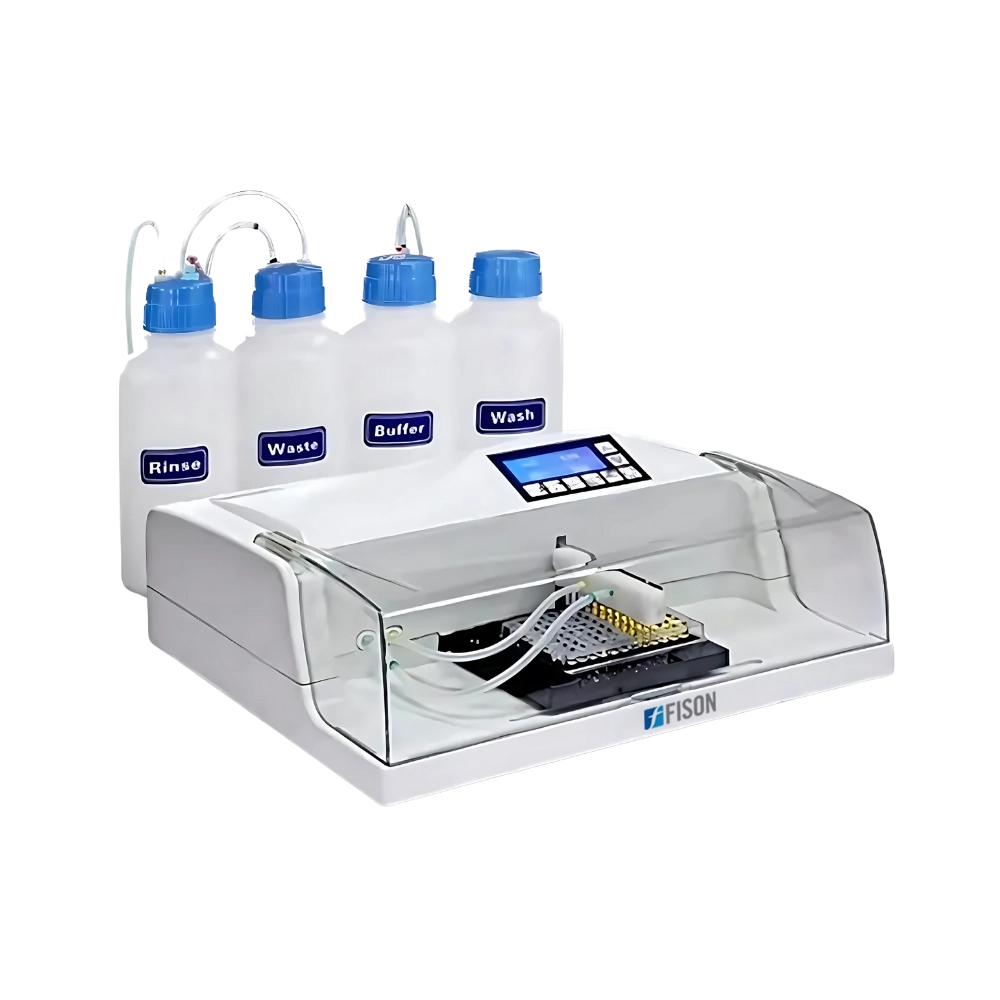

Microplate washer FM-MPW-A100 is a compact, efficient, reliable and user-friendly microplate-strip washer. Compatible for Flat, U or V-bottom, it provides complete bottom washing and includes 8 and 12 manifold channels. In addition it is provided with wash, rinse, buffer and wash bottle to make getting started simpler. Used for Enzyme Linked Immuno Sorbent Assay (ELISA). They are also used to wash cell cultures, protein arrays, Western blots and beads as well as applied in DNA purification protocols.

Specifications

Residual liquid ≤ 1μL / well
Wash mode Plate mode and Strip mode
Washing heads 1 × 8 / 1 × 12
Wash strip 1 to 12 adjustable
Plate types Flat, U-bottom, V-bottom
Washing volume 50 to 3000 μl/well
Washing times 0 to 99 times adjustable
Dipping time 0 to 3600 sec. adjustable
Shaking time 0 to 600 sec. adjustable
Sipping time 0.1 to 9.9 sec.
Dispense precision CV ≤ 2%
Input 8 key membrane keyboard
Display High brightness LCD display screen
Operating environment Temperature: 5°C to 40°C, maximum humidity: 80%
Storage capacity Up to 120 user defined wash board procedures
Power supply 100 to 240 V, 50/60 Hz
Dimension (L × W × H) 448 × 382 × 163 mm
Net weight 8 kg

Features

  • Large LCD display
  • Convenient to use menu design
  • 1 wash, rinse, buffer and waste bottle included
  • Applicable for plate mode or strip mode washing
  • Compatible for Flat, V-bottom or U-bottom microplate or strip
  • Provides complete bottom washing
  • Includes 8 or 12 manifold channels
  • Equipped with adjustable dipping and shaking function
  • Automatic monitoring of vacuum and pressure
  • Automatic rinse cycle to reduce clogging
  • Low residual volume
  • Emergency stop available for liquid warning
  • Large memory to store up to 120 user programmed wash protocols
  • Compact and portable to use

Applications

  • Used for Enzyme Linked Immuno Sorbent Assay (ELISA). They are also employed used to wash cell cultures, protein arrays, Western blots and beads as well as applied in DNA purification protocols.
