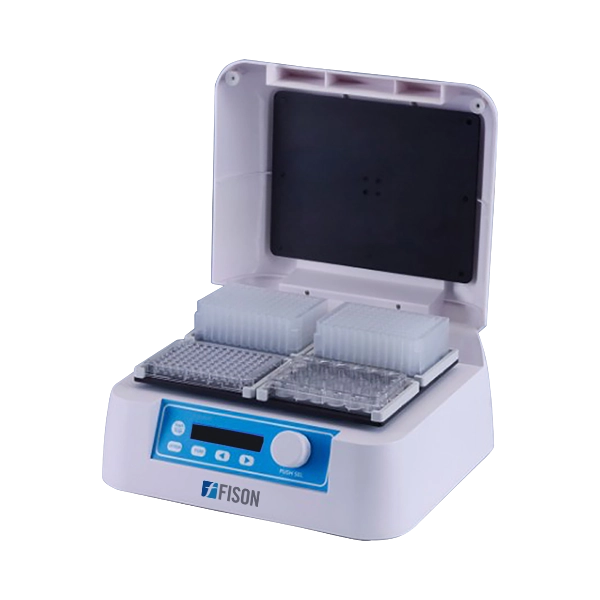

Microplate Shaker FM-MPS-A201

Microplate Shaker FM-MPS-A201

Microplate Shaker FM-MPS-A201 is a multipurpose thermostatic shaker comprising brushless DC motor and PID intelligent temperature control technology, provides sample capacity for 4 pcs × 96 well microplates and deep-well plates. Features compact design with PID fuzzy control technology, offers shaking speed of 300 to 1350 rpm with temperature control range of RT+5°C to 80°C. Equipped with real time display, and automatic preheating and power recovery function, this shaker has heating time of ≤10 min. Built-in software and hardware over temperature protection and temperature calibration function with constant temperature and oscillation, makes it an ideal automation tool for samples hatching, catalytic reaction process of preserving, blending, save and etc.

Specifications

Shaking speed range 300 to 1350 rpm
Capacity 4 pcs × 96 well microplates or deep-well plate
Shaking motion Orbital
Amplitude 3 mm
Temperature range RT+5° to 80°C
Temperature setting range 0 to 80°C
Temperature uniformity ≤+0.5°C
Temperature control accuracy ≤+0.5°C
Display accuracy 0.1°C
Heating time ≤10 min (from 25 to 80°C)
Timer 1 min to 99 h 59 min
Display Real-time display
Motor Brushless DC motor
Temperature controller PID
Operation mode One touch knob operation
Power recovery function Yes
Preheating Automatic
Protection Over-temperature
Power supply AC 110/220 V. 50/60 Hz
Power 300 W
Dimension (W×D×H) 340×320×200 mm
Weight 9.5 kg

Features

  • Compact, tabletop multipurpose thermostatic shaker
  • Brushless DC motor, maintenance free and low noise
  • PID intelligent temperature control technology, ensures precise temperature control
  • Sample capacity for 4 pcs × 96 well microplates and deep-well plates
  • PID fuzzy control technology, ensures accuracy
  • Shaking speed of 300 to 1350 rpm with temperature control range of RT+5°C to 80°C
  • Real time display, convenient to observe running parameters
  • Automatic preheating and power recovery function
  • Built-in software and hardware over temperature protection
  • Temperature calibration function with constant temperature and oscillation
  • High-efficient stable and reliable with precise control

Applications

  • Microplate shaker is used for cell lysis, mixing tissue samples or cytogenetic suspensions, and vortexing cell suspensions, in immunoassays, ELISA, cell cultures, denaturation of nucleic acids and proteins, stains and blots, and to emulsify bipolar viscous fluids to obtain a homogenous blend across various labs and research institutes.

Alternative Models Of Microplate Shaker

Fison Microplate Shaker features adjustable shaking speeds to customize the mixing intensity to suit specific experimental requirements. Their multiple shaking modes, including orbital, linear, and vortex motions, optimize sample mixing for various applications. They include an LCD or touch display for precise parameter adjustments and real-time monitoring. The non-slip platforms or spring-loaded clamps provide stability, even during high-speed operation. Our Microplate Shaker operates quietly, minimizing disruptions in shared lab environments.

Microplate Shaker FM-MPS-A200

  • Shaking speed range: 200 to 1600 rpm
  • Capacity: 2 pcs × 96 wells microplates or culture plate
  • Shaking motion: Orbital
Catalog

Microplate Shaker FM-MPS-B200

  • Microplate configuration: ELISA plate (96/384 microplate) and cell culture plate (24/48/96 plate)
  • Shaking speed range: 200 to 1500 rpm
  • Timer range: 0 to 99 h 59 min
Catalog

Microplate Shaker FM-MPS-B201

  • Capacity: 2 plates
  • Speed: 200 to 1500 rpm
  • Temperature Control Range: R.T. +5°C to 80°C
Catalog
Microplate Shaker FM-MPS-B202
  • Capacity: 4 Microplate
  • Speed: 200 to 1500 rpm
  • Amplitude: 3mm (Horizontal rotation)
Catalog
Microplate Shaker FM-MPS-A100
  • Speed: 100 to 1200 rpm
  • Motor: Brushless Motor
  • Horizontal Gyration Amplitude: 4 mm
Catalog

Microplate Shaker FM-MPS-A101

  • Speed: 100 to 1200 rpm
  • Motor: Brushless Motor
  • Horizontal Gyration Amplitude: 4 mm
Catalog

Microplate Shaker FM-MPS-A102

  • Speed: 100 to 1200 rpm
  • Motor: Brushless Motor
  • Horizontal Gyration Amplitude: 3 mm
Catalog

Microplate Shaker FM-MPS-A103

  • Speed: 500 to 1200 rpm
  • Motor: Brushless Motor
  • Horizontal Gyration Amplitude: 3 mm
Catalog

Double Sided Vertical Shaker

Fison Double-Sided Vertical Shakers are designed for efficient sample mixing and agitation, ensuring uniform distribution. They feature a user-friendly digital control panel with a digital interface for easy operation. They are equipped with adjustable speed and time settings for customized shaking intensity and duration. They provide stable, quiet operation with a vibration-damping system for smooth performance. They deliver a compact and space-saving design, making them ideal for laboratories.

Double Sided Vertical Shaker FM-DVS-A100

  • Shaking speed : 300 T (turns)/ min
  • Shaking (distance) range : 40 mm
  • Shaking method : Vertical and Slanting shaking (tilt angle 0 to 20° adjustable)
Catalog

Reciprocating Horizontal Shaker

Fison Reciprocating Horizontal Shakers are designed for precise and efficient sample agitation. They offer a controlled reciprocating motion that ensures uniform mixing of various samples. These units feature quiet, low-vibration operation to minimize disruptions in sensitive laboratory settings. They provide variable speed control, allowing users to adjust the shaking intensity based on experimental requirements. Our shakers are equipped with a user-friendly interface allowing easy handling and monitoring.

Reciprocating Horizontal Shaker FM-RHS-A100

  • Shaking method : Reciprocating shaking
  • Shaking range : 40 mm
  • Shaking speed : 0 to 200 T/ min (Adjustable)
Catalog

Water Bath Shaker

Water Bath Shaker FM-WBS-A100
  • Capacity : 45 L
  • Control : Microprocessor PID controlled system
  • Speed range : 20 to 200 rpm
Catalog
Water Bath Shaker FM-WBS-A101
  • Capacity : 83 L
  • Control : Microprocessor PID controlled system
  • Speed range : 20 to 200 rpm
Catalog

Water Bath Shaker FM-WBS-A102

  • Capacity : 175 L
  • Control : Microprocessor PID controlled system
  • Speed range : 20 to 200 rpm
Catalog

De-staining Shaker

De-staining Shaker FM-DS-A100

  • Controller : Microprocessor PID control system
  • Shaking mode : Orbital
  • Shaking speed : 30 to 300 rpm
Catalog
De-staining Shaker FM-DS-A101
  • Controller : Microprocessor PID control system
  • Shaking mode : Orbital
  • Shaking speed : 30 to 300 rpm
Catalog
De-staining Shaker FM-DS-A102
  • Controller : Microprocessor PID control system
  • Shaking mode : Linear
  • Shaking speed : 30 to 300 rpm
Catalog

Wrist Shaker

Wrist Shaker FM-WRS-A100

  • Shaking angle : 3°
  • Shaking speed : 30 to 1000 rpm
  • Shaking accuracy : ±1 rpm
Catalog
