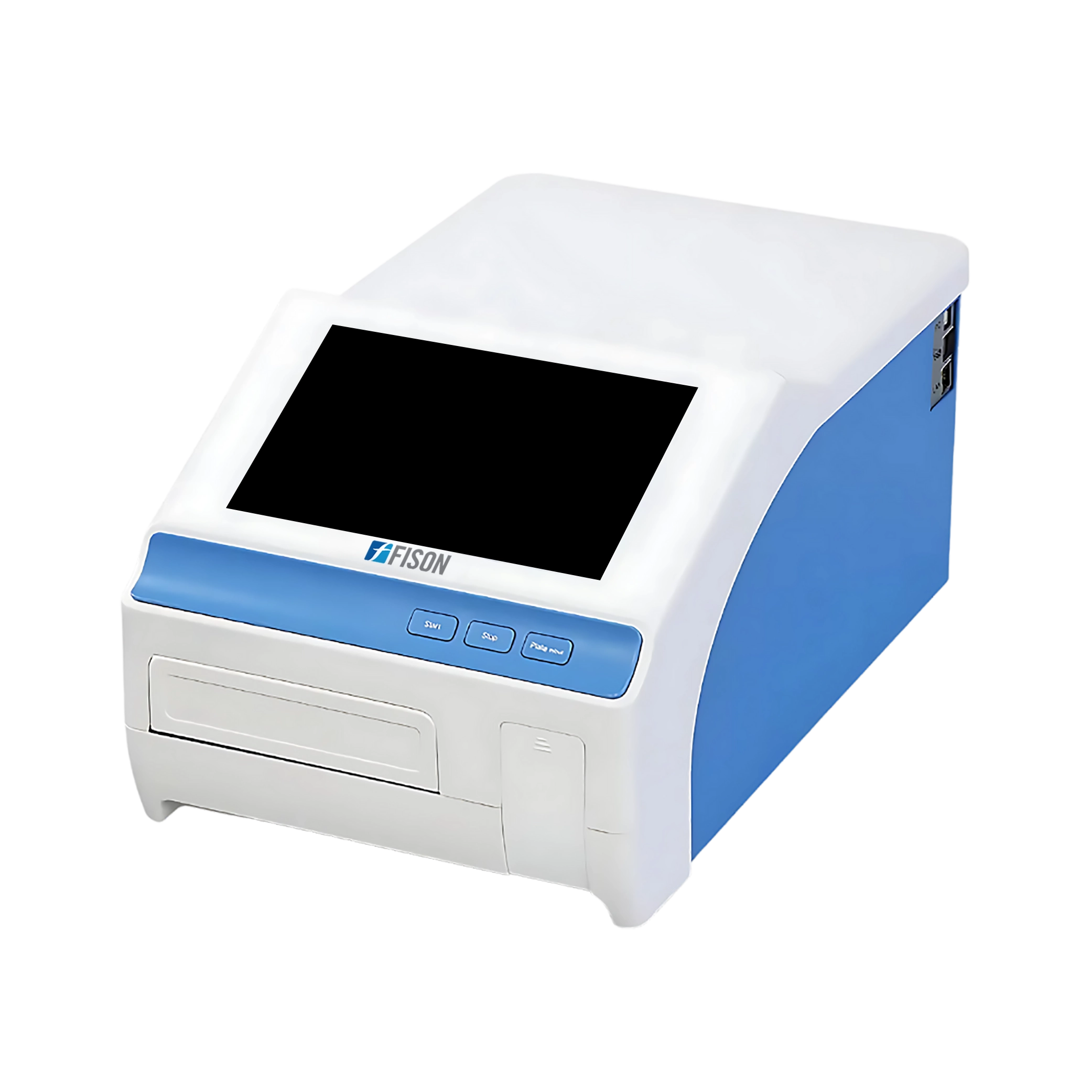

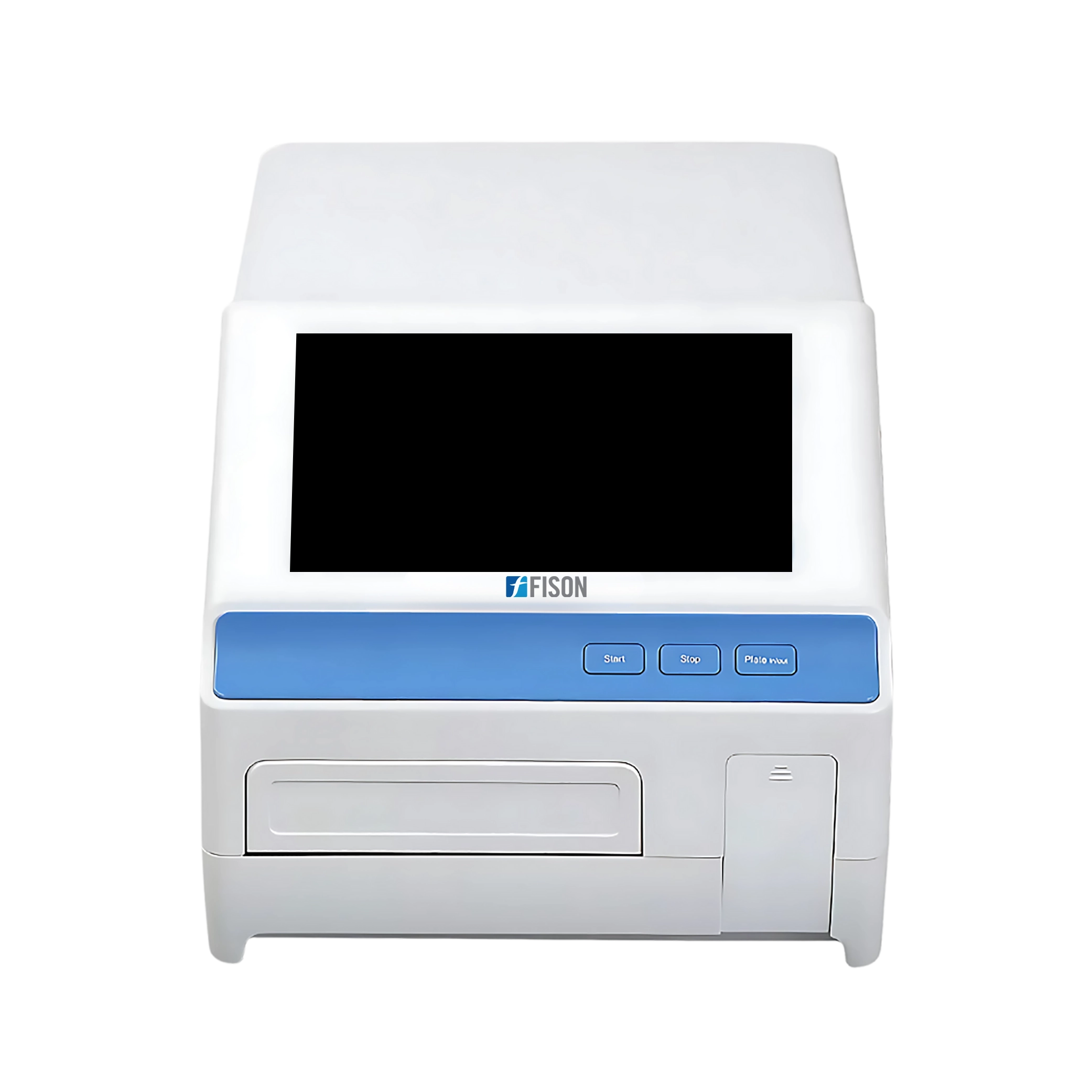

Microplate Reader FM-MPR-A104
Microplate Reader FM-MPR-A104 offers a wavelength range of 200 to 1000 nm, with 1 nm steps, ensuring precise absorbance measurements. It features an automatic calibration system for light source, grating and detector, providing reliable operation. Its independent cuvette slot allows for simultaneous detection and incubation. It is equipped with powerful software for data analysis and multiple export options. Our microplate reader is designed for accurate data analysis in laboratory settings.
Specifications
| Cuvette Mode | Yes |
| Microplate Type | 96/384 wells |
| Detection Mode | Absorbance |
| Light Source | Xenon flash lamp/number of flashes > 109 |
| Wavelength Range | 200 to 1000 nm |
| Wavelength Accuracy | 2 nm |
| Wavelength Repeatability | 0.2 nm |
| Optical System | Monochromator, 1 nm step |
| Reading Range | 0 to 4.0 OD |
| Bandwidth | < 2.5 nm |
| Detection System | 2 silicon photodetectors, one for measurement, one for reference |
| Linear at 450nm | R2 ≥ 0.999, (0.0 to 3.0 Abs) |
| Absorbance Accuracy at 450nm | ± (1.0 % + 0.003 Abs), (0 to 2.0 Abs); ± 2.0 %, (2.0 to 2.5 Abs) |
| Absorbance Repeatability at 450nm | CV < 0.5 % or SD < 0.003 accurate mode; CV < 1.0% fast mode |
| Measuring Speed | 96 well plate: fast mode < 8 seconds, accurate mode < 28 seconds (end point method) |
| Shaking | Linear, 3 speeds adjustable |
| Temperature Range | RT + 4℃ to 45℃ |
| Temp. Accuracy & Uniformity | ±0.5℃ at 37℃, ±0.5℃ at 37℃ |
| User Interface | Built-in software, independent use |
| Operation Display | 10-inch LCD display |
| Internal Storage | 16 G storage, can store more than 20,000 data files |
| Port | 1 type B USB interface, 2 type A USB interfaces, 1 network port |
| Robotic Arm Compatibility | Temporarily incompatible |
| Electricity | DC 24 V, 6.67 A |
| External Dimension (W × D × H) | 300 × 500 × 260 mm |
| Package Dimension (W × D × H) | 690 × 490 × 480 mm |
| Net Weight | 15.5 kg |
| Gross Weight | 21 kg |
Features
- High-quality data and stable performance
- User authority classification
- Printer connectivity via PC
- Optional double beam system
- Optional u-Nano Ultra-Micro Plate
Applications
- Microplate Reader is used for high-throughput sample analysis in fields like drug discovery and diagnostics. It is widely used in research labs, pharmaceutical companies, hospitals, and academic institutions.
