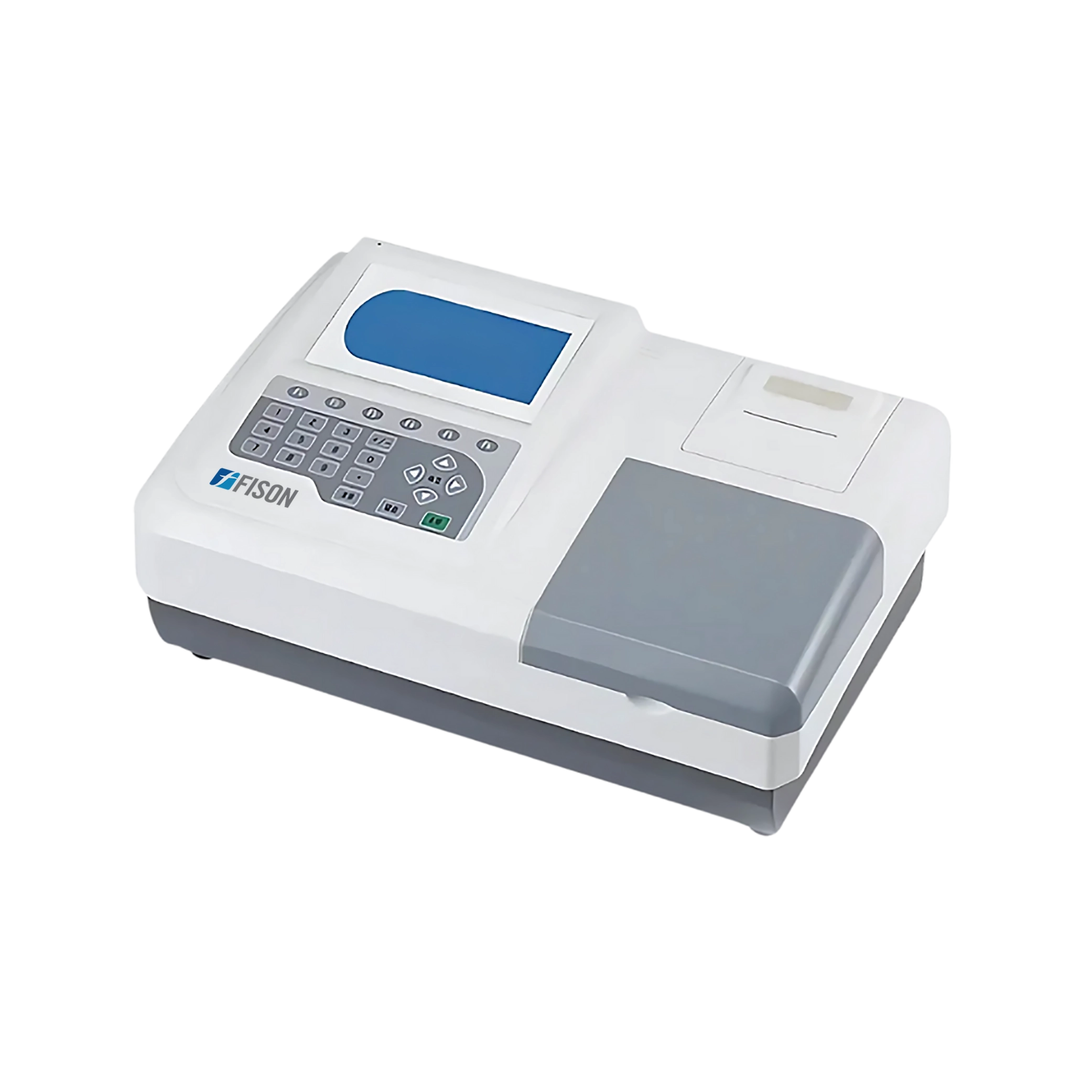

Microplate Reader FM-MPR-A103

Microplate Reader FM-MPR-A103

Microplate Reader FM-MPR-A103 is a benchtop, compact plate reader comprising optical system with 8 channel optical fiber scanning, offers wavelength range from 400 nm to 800 nm along with single and dual measurements. Arranged with new shell and operation system, single board multiple test functions; thermal printer and high sensitive touch screen input it provides more than 20 different reporting formats including patient comprehensive report. Incorporated incubator and shaker with 3 linear shaking motions; flexible plate layout with auto centering system; auto lamp adjustment along with enhanced security software, user friendly interface and LED display with touch panel ensures qualitative results with high precision.

Specifications

Microplate type 96/48 well plate
Applicable hole Flat, V/U bottom
Wavelength range 400 nm to 800 nm
Standard filters 405 nm, 450 nm, 492 nm, 630 nm and 4 optional
Reproducibility ≤0.2%
Shaker 3 speed linear shaker
Light source Controlled tungsten halogen lamp 8 V/50 W
Photodetector Silicon photodiode
Indication range 0.000 to 4.000 A
Resolution 0.001 A
Accuracy ±0.008 A
Stability ±0.003 A
Reading range Single wavelength ≤3 s; Double wavelength ≤6 s
Printer Built in thermal printer; Optional external printer
Display 10.4 inch color LED display with high sensitive touch panel
Interface USB, DVI, VGA, NETWORK INTERFACE,AUDIO INTERFACE, RS-232
Data storage Up to 20 million test data; 500 test projects
Power supply 100 V to 240 V, 50 Hz to 60 Hz
Dimensions (W×D×H) 460×350×197 mm
Net weight 8 kg

Features

  • 8 channel optical fiber scanning
  • New shell and operation system
  • Controlled tungsten halogen lamp as light source
  • Silicon photodiode as photodetector
  • Single/dual wavelength measurements
  • Comprehensive qualitative and quantitative data-evaluation functions with cut-offs, curve-fits and transformation formulas
  • Auto plate centering system, auto lamp adjustment and auto calibration
  • 10.4 inch color LED display with high sensitive touch screen input
  • Graphical operating interface with convenient menu design
  • Flexible Plate layout with Blanks, Standards, Samples, Reference, QC in one screen
  • More than 20 different reporting formats
  • Single board multiple tests function, performing 24 different tests at the same time just in one plate
  • Multi-forms in data output ( local, USB, network), including text file and Excel file
  • Built-in thermal printer; Support USB printers, mouse and keyboard
  • Large stable storage up to 20 million test data and 500 test projects

Applications

  • Microplate reader is ideal for life science research applications such as fluorometric protein and enzyme studies, molecular interactions, nucleic acid quantification as well as reporter gene, fluorometric kinase, immuno- and cell-based assays.
