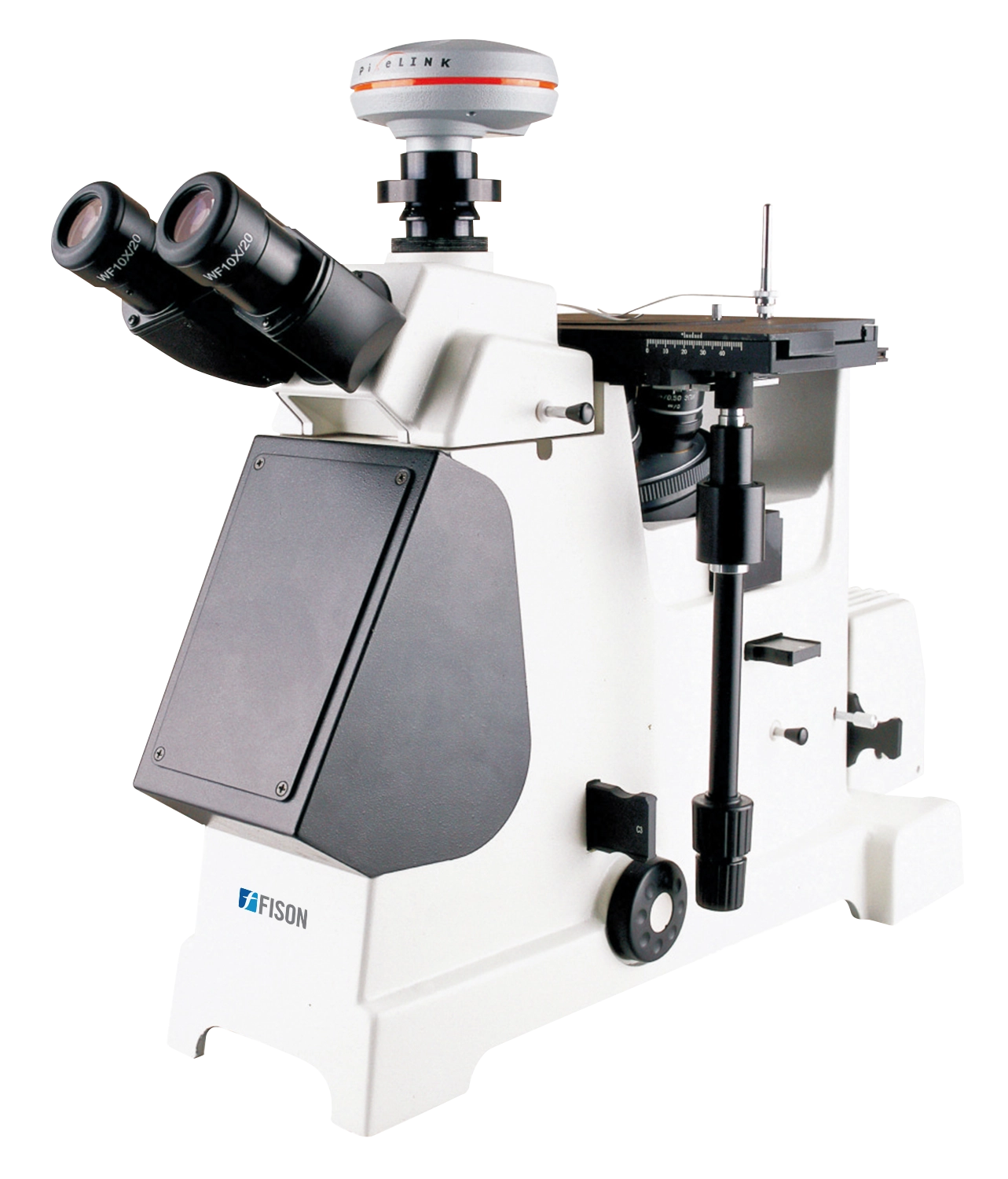

Metallurgical Microscope FM-MM-A300 is a siedentopf type trinocular inverted metallurgical microscope with infinite optical system. Digital camera is added to trinocular tube for documentation and image viewing. Polarization effect is achieved using polarizer and analyzer. Mainly used in electronic and IT field.

  •  Plan apochromatic (BF/DF) objectives
  •  Infinite optical system
  •  Stage Teardrop: Φ16, Φ40
  •  Ergonomic design

Optical system Infinite optical system
Viewing head Siedentopf trinocular viewing head, inclined at 30° interpupillary distance 48 to 75 mm
Objective
Infinite Plan Apochromatic Objectives
5X/0.17/∞/- (BF/DF) WD 8.6 mm
10X/0.28/∞/- (BF/DF) WD 3.4 mm
20X/0.5/∞/0 (BF/DF) WD 1.1 mm
50X/0.85/∞/0 (BF/DF) WD 0.5 mm
100X/0.95(dry)/∞/0 (BF) WD 0.1 mm
Eyepiece Extra wide field EW10X/ 20, EW10X/ 20 eyepiece with scale of cross hair
Stage Double layer mechanical stage 200 × 190 mm, moving range: 40 × 40 mm
Stage Teardrop: Φ16, Φ40
Stage Micrometer with scale 0.01 mm
Condenser Swing out condenser NA 0.9/0.25
Illumination 12 V/ 100W Halogen light, Center brightness adjustable
Polarization Polarizer and Analyzer
Nosepiece Quintuple nosepiece
Focusing Coaxial coarse and fine adjustment, fine division 2 µm, moves up 1 mm, down 12 mm
Filter Blue, Green, Yellow, Gray, Ground glass
Dimension (L×W×H) 430 × 280 × 700 mm
Net Weight 19 kg

Used in inspection and microscopic, photographic observation of metals, alloys, non-metallic structures, integrated circuits, PCB, wires, chips and others.

Accessories NO. Name
1 Infinite plan apochromatic objectives: 100X/1.32(oil)/∞/0 (BF) WD 0.1 mm
2 Eyepiece EW15X/ 16 mm
3 Eyepiece EW20X/ 12 mm
4 DIC
5 Photo attachment: 1X photo adapter
6 Photo attachment: 1X photo adapter to connect to Nikon SLR Camera
7 Video attachment: C Mount 1X
8 Video attachment: C Mount 0.5X
