Metallurgical Microscope FM-MM-A201

Metallurgical Microscope FM-MM-A201

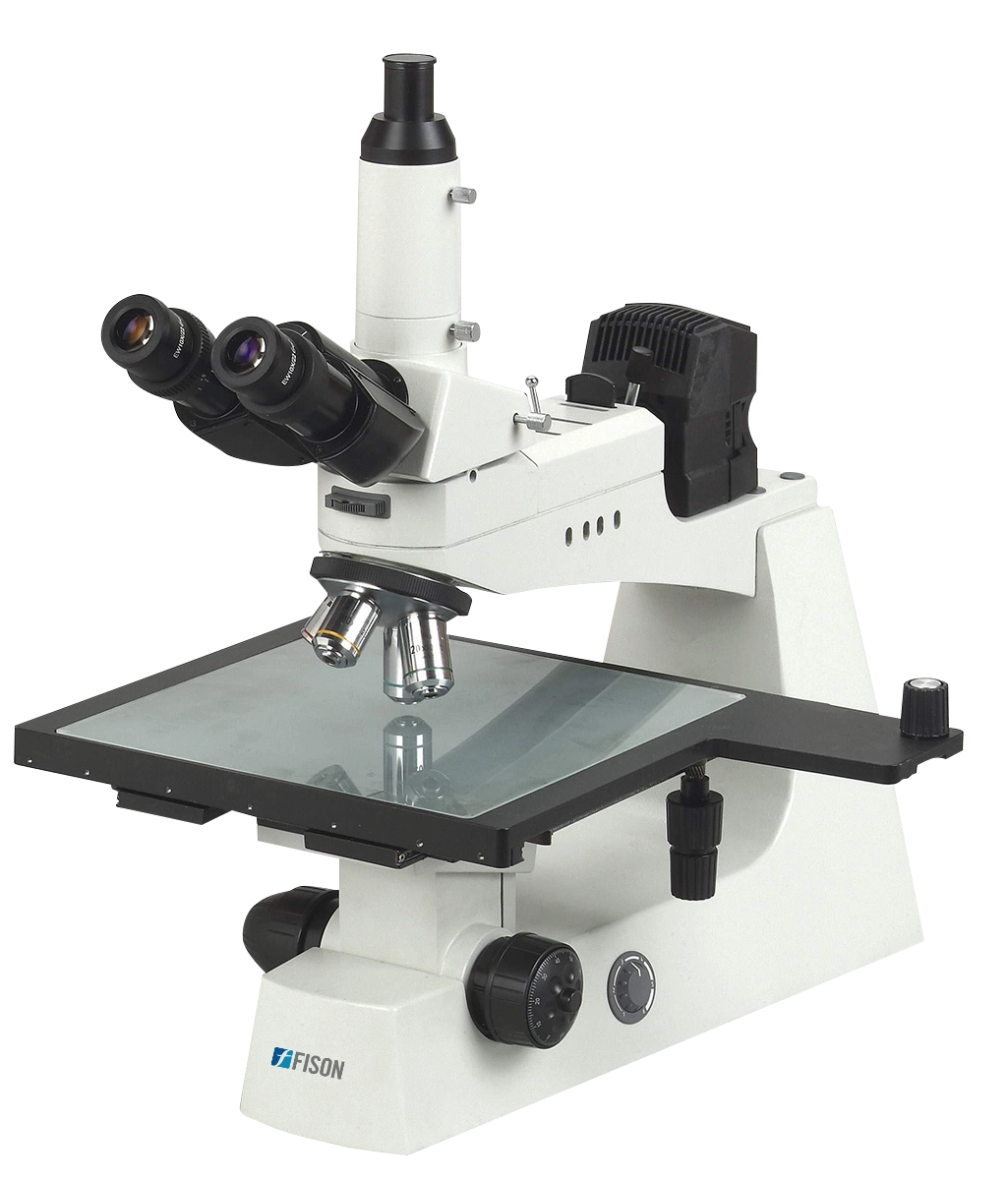

Metallurgical Microscope FM-MM-A201 is an upright metallurgical microscope with large size stage and wide moving range. Designed with low and pre-position control knobs, for ergonomic microscopic observations. Its speedy stage movement by hand helps in getting observation point easily.

  •  Infinite optical system
  •  Coaxial coarse and fine focusing adjustment
  •  Safe, easy, reliable lamp replacement device
  •  Can observe different specimens using polarization set
  •  Can be fitted with digital camera
  •  User friendly operations

Optical system Infinite optical system
Viewing head Seidentopf type trinocular head
Objective
Infinite Plan Achromatic Objectives
5X/ 0.12/∞/- WD 15.5 mm
10X/ 0.25/∞/- (BF/DF) WD 10.0 mm
20X/ 0.40/∞/0 (BF/DF) WD 4.3 mm
50X/ 0.75/∞/0 WD 0.32 mm
100X/ 0.80/∞/0 WD 2.00 mm
Eyepiece Extra wide field EWF10X/ 22 mm
Stage Mechanical stage size: 300 × 268 mm, Moveable stage size: 250 × 250 mm
Illumination 24V/ 100W Halogen lamp, brightness adjustable
Nosepiece Quintuple nosepiece
Focusing Coaxial coarse and fine focusing adjustment, range 24 mm
Filter Blue, Green, Yellow, Ground glass
Dimension (L×W×H) 540 × 400 × 460 mm
Net Weight 25 kg

Used for inspection, microscopic observation of wafers (electronic), large area integrated circuit, PCB boards in IT industry.

Accessories no. Name
1 Polarizer & Analyzer (As Polarization Kit)
2 Video adapter C mount 1X
3 Video adapter C mount 0.5X
4 Photo attachment: 1X photo adapter
5 Photo attachment: 1X photo adapter to connect to Nikon SLR Camera
6 Microscopic Digital Camera FM-MDC-A2 Series (with Image Processing Software)
