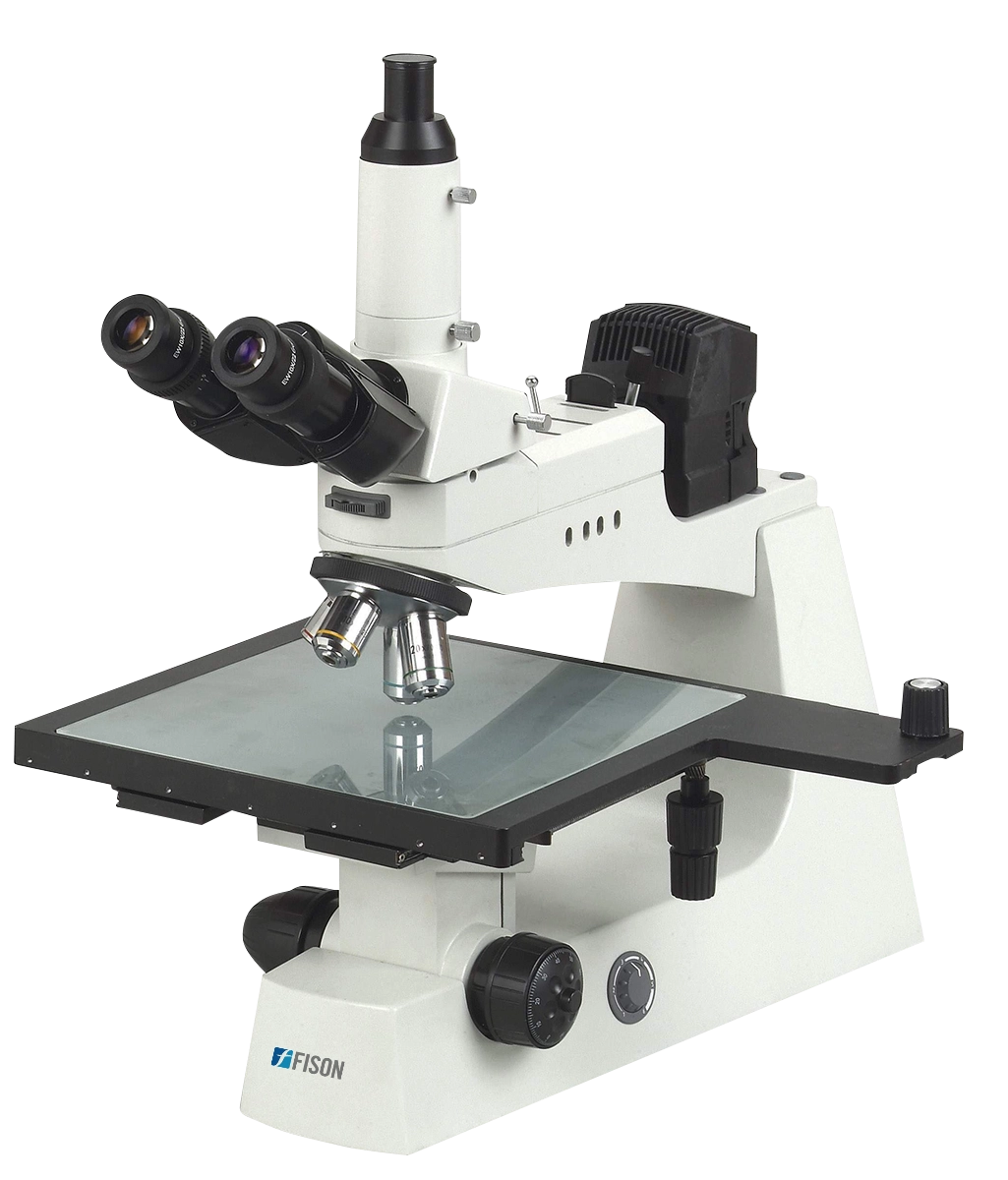

Metallurgical Microscope FM-MM-A200

Metallurgical Microscope FM-MM-A200

Metallurgical Microscope FM-MM-A200 is an upright metallurgical microscope with large size stage and wide moving range. Designed with low and pre-position control knobs, for ergonomic microscopic observations. Its speedy stage movement by hand helps in getting observation point easily.

Specifications

Optical system Infinite optical system
Viewing head Seidentopf type trinocular head
Objective
Infinite Plan Achromatic Objectives
4X/ 0.10/∞/- WD 17.8 mm
10X/ 0.25/∞/- WD 10.0 mm
20X/ 0.40/∞/0 WD 5.8 mm
40X/ 0.65/∞/0 WD 2.90 mm
Eyepiece Extra wide field EWF10X/ 22 mm
Stage Mechanical stage size: 300 × 268 mm, Moveable stage size: 250 × 250 mm
Illumination 6V/ 20W Halogen lamp, brightness adjustable
Nosepiece Quintuple nosepiece
Focusing Coaxial coarse and fine focusing adjustment, range 24 mm
Filter Blue, Green, Yellow, Ground glass
Dimension (L×W×H) 588 × 400 × 498 mm
Net Weight 25 kg

Features

  • Infinite optical system
  • Coaxial coarse and fine focusing adjustment
  • Safe, easy, reliable lamp replacement device
  • Can observe different specimens using polarization set
  • Can be fitted with digital camera
  • User friendly operations

Applications

  • Used for inspection, microscopic observation of wafers (electronic), large area integrated circuit, PCB boards in IT industry.

Accessories Optional

  • Accessories no. Name
    1 Polarizer & Analyzer (As Polarization Kit)
    2 Video adapter C mount 1X
    3 Video adapter C mount 0.5X
    4 Photo attachment: 1X photo adapter
    5 Photo attachment: 1X photo adapter to connect to Nikon SLR Camera
    6 Microscopic Digital Camera FM-MDC-A2 Series (with Image Processing Software)

Alternative Models Of Metallurgical Microscopes

Fison Metallurgical Microscopes employ dual transmitted and reflected light for sample illumination. They are equipped with multiple objective lenses with different magnification levels from 4x to 100x. Heavy base and robust frame for vibration-resistant observations. We offer you both upright and inverted designs suiting to your research needs. Our Metallurgical microscopes are versatile tools featuring brightfield, darkfield, phase contrast and polarisation to visualize microstructure of metals and alloys.

Metallurgical Microscope FM-MM-A100

  • Optical system: Finite optical system
  • Viewing head: Sliding binocular viewing head 45° inclined
  • Objective: Achromatic Objective 10X/ 0.25 WD= 6.3 mm, Plan achromatic objective 40X/ 0.65 WD= 0.7 mm
Catalog

Metallurgical Microscope FM-MM-A201

  • Optical system: Infinite optical system
  • Viewing head: Seidentopf type trinocular head
  • Objective:
    Infinite Plan Achromatic Objectives
    5X/ 0.12/∞/- WD 15.5 mm
    10X/ 0.25/∞/- (BF/DF) WD 10.0 mm
    20X/ 0.40/∞/0 (BF/DF) WD 4.3 mm
    50X/ 0.75/∞/0 WD 0.32 mm
    100X/ 0.80/∞/0 WD 2.00 mm
Catalog

Metallurgical Microscope FM-MM-A300

  • Optical system: Infinite optical system
  • Viewing head: Siedentopf trinocular viewing head, inclined at 30° interpupillary distance 48 to 75 mm
  • Objective:
    Infinite Plan Apochromatic Objectives
    5X/0.17/∞/- (BF/DF) WD 8.6 mm
    10X/0.28/∞/- (BF/DF) WD 3.4 mm
    20X/0.5/∞/0 (BF/DF) WD 1.1 mm
    50X/0.85/∞/0 (BF/DF) WD 0.5 mm
    100X/0.95(dry)/∞/0 (BF) WD 0.1 mm
Catalog
Metallurgical Microscope FM-MM-A400
  • Optical system: Infinite optical system
  • Viewing head: Siedentopf type trinocular viewing head, inclined at 30° interpupillary 48 to 75 mm adjustable distance
  • Objective:
    Infinite Plan Apochromatic Objectives
    5X/0.12/∞/- (BF) LWD 15.5 mm
    10X/0.25/∞/- (BF) LWD 10 mm
    20X/0.4/∞/0 (BF) LWD 5.8 mm
    50X/0.75/∞/0 (BF) LWD 0.32 mm
    100X/0.8/∞/0 (BF) LWD 2 mm
Catalog
Metallurgical Microscope FM-MM-A401
  • Optical system: Infinite optical system
  • Viewing head: Siedentopf type trinocular viewing head, inclined at 30° interpupillary 48 to 75 mm adjustable distance
  • Objective:
    Infinite Plan Apochromatic Objectives
    5X/0.12/∞/- (BF/DF) LWD 12 mm
    10X/0.25/∞/- (BF/DF) LWD 10 mm
    20X/0.4/∞/0 (BF/DF) LWD 4.3 mm
    50X/0.75/∞/0 (BF/DF) LWD 0.32 mm
    100X/0.8/∞/0 (BF/DF) LWD 2 mm
Catalog

Biological Microscopes

Fison Biological Microscopes are specifically constructed for observing biological specimens. Our routine range of microscopes have classroom-friendly utility as well as special design considerations for reduced strain on user’s eyes. They feature both finite and infinite ocular systems with a wide field of view. Equipped with dynamic lens system having different types of objectives (4X to 100X) and condenser types. We provide you with additional blue filter with our C series, phase contrast condenser with our D series, on demand digital cameras setups and much more.

Biological Microscope FM-BM-A100

  • Optical System : Finite Optical System
  • Viewing Head : Binocular viewing head, 30° inclined, 360° rotation, interpupillary distance 48 to 75 mm
  • Magnification : 40X to 1600X
Catalog

Biological Microscope FM-BM-A101

  • Optical System : Finite Optical System
  • Viewing Head : Binocular viewing head, 30° inclined, 360° rotation, interpupillary distance 48 to 75 mm
  • Magnification : 40X to 1600X
Catalog
Biological Microscope FM-BM-A102
  • Optical System : Finite Optical System
  • Viewing Head : Trinocular viewing head, 30° inclined, 360° rotation, interpupillary distance 48 to 75 mm
  • Magnification : 40X to 1600X
Catalog

Digital Microscopes

Fison Digital Microscopes are engineered with built in camera and IPS/LCD touch screens for live specimen viewing. They are incorporated with zoom controls, auto-focus, intelligent illumination systems for enhanced clarity. Sophisticated software integration systems produce undistorted, high-resolution images. They feature advanced optical systems with binocular/trinocular heads for multi-angle visualization of specimens. Our digital scopes support Wi-Fi, Bluetooth, USB, HDMI and more, for real time documentation and analysis.

Digital Microscope FM-DM-A100
  • Optical system : Infinite optical system
  • Viewing head : Seidentopf Binocular head, 30° inclined, Interpupillary 48 to 75 mm
  • LCD Touch pad Screen : 8 Inch TFT Touching screen, 5.0 Mega Pixel CMOS Chip
Catalog

Digital Microscope FM-DM-A101

  • Optical system : Infinite optical system
  • Viewing head : Seidentopf Binocular head, 30° inclined, Interpupillary 48 to 75 mm
  • LCD Touch pad Screen : 8 Inch TFT Touching screen, 5.0 Mega Pixel CMOS Chip
Catalog

Digital Microscope FM-DM-A200

  • Optical system : Infinite optical system
  • Viewing head : Seidentopf Binocular head, 30° inclined, Interpupillary 48 to 75 mm
  • LCD Touch pad Screen : 8 Inch TFT Touching screen, 5.0 Mega Pixel CMOS Chip
Catalog

Fluorescence Microscopes

Fison’s suite of Fluorescence Microscopes are specially engineered to visualize specimens that emit fluorescence when exposed to monochromatic light. They are equipped with high quality filters to observe vast array of samples such as cultured tissue, plant and animal cells. Designed with infinite optical systems and binocular/trinocular viewing heads. They are capable of 3D, real time and time series analysis. We offer Fluorescence Microscopes that are highly sensitive, non-destructive with superior imaging facilities.

Fluorescence Microscope FM-FM-A200
  • Optical system : Infinite optical system
  • Viewing head : Compensation free binocular head inclined at 30°, interpupillary distance 48 to 75 mm
  • Eyepiece : Wide field eyepiece EW10X/ 18 mm
Catalog
Fluorescence Microscope FM-FM-A201
  • Optical system : Infinite optical system
  • Viewing head : Compensation free trinocular head inclined at 30°, interpupillary distance 48 to 75 mm
  • Eyepiece : Wide field eyepiece EW10X/ 18 mm
Catalog

Fluorescence Microscope FM-FM-A202

  • Optical system : Infinite optical system
  • Viewing head : Compensation free binocular head inclined at 30°, interpupillary distance 48 to 75 mm
  • Eyepiece : Wide field eyepiece EW10X/ 18 mm
Catalog

Inverted Biological Microscope

Fison Inverted Biological Microscopes offer non-invasive observation of live cells, tissues and organisms. Limited sample handling reduces risk of contamination. They feature greater working distances with high-resolution optical systems. Clear contrast renders distinct visualization of cells within 4X to 40X magnification. Our all-in-one Inverted Microscope come with phase contrast objectives, colour filters and optional fluorescent attachments.

Inverted Biological Microscope FM-BM-B100

  • Optical System : Finite optical system
  • Viewing head : Compensation free binocular head inclined at 45°C, interpupillary distance 50 to 75 mm
  • Eyepiece : WF10X/ 20 mm
Catalog
Inverted Biological Microscope FM-BM-B101
  • Optical System : Infinite optical system
  • Viewing head : Compensation free binocular head inclined at 45°C, interpupillary distance 50 to 75 mm
  • Eyepiece : WF10X/ 22 mm
Catalog
Inverted Biological Microscope FM-BM-B200
  • Optical system : Infinite optical system
  • Viewing head : Seidentopf binocular viewing head, inclined at 45°, 360° rotation, interpupillary distance adjustable 48 to 75 mm
  • Eyepiece : Wide field eyepiece WF10X/ 22 mm, Eyepiece tube diameter: 30 mm
Catalog

Multi-viewing Biological Microscope

Multi-viewing Biological Microscope FM-MBM-A100

  • Optical system : Infinite optical system
  • Trinocular viewing head :
    Inclination angle30°, 360° rotatable
    Interpupillary distance48 to 75 mm
    No. of viewing head1 pc
  • Binocular viewing head :
    Inclination angle30°, 360° rotatable
    Interpupillary distance48 to 75 mm
    No. of viewing head4 pcs
Catalog

Multi-viewing Biological Microscope FM-MBM-A101

  • Optical system : Infinite optical system
  • Trinocular viewing head :
    Inclination angle30°, 360° rotatable
    Interpupillary distance48 to 75 mm
    No. of viewing head1 pc
  • Binocular viewing head :
    Inclination angle30°, 360° rotatable
    Interpupillary distance48 to 75 mm
    No. of viewing head2 pcs
Catalog
Multi-viewing Biological Microscope FM-MBM-A102
  • Optical system : Infinite optical system
  • Trinocular viewing head :
    Inclination angle30°, 360° rotatable
    Interpupillary distance48 to 75 mm
    No. of viewing head1 pc
  • Binocular viewing head :
    Inclination angle30°, 360° rotatable
    Interpupillary distance48 to 75 mm
    No. of viewing head1 pc
Catalog
