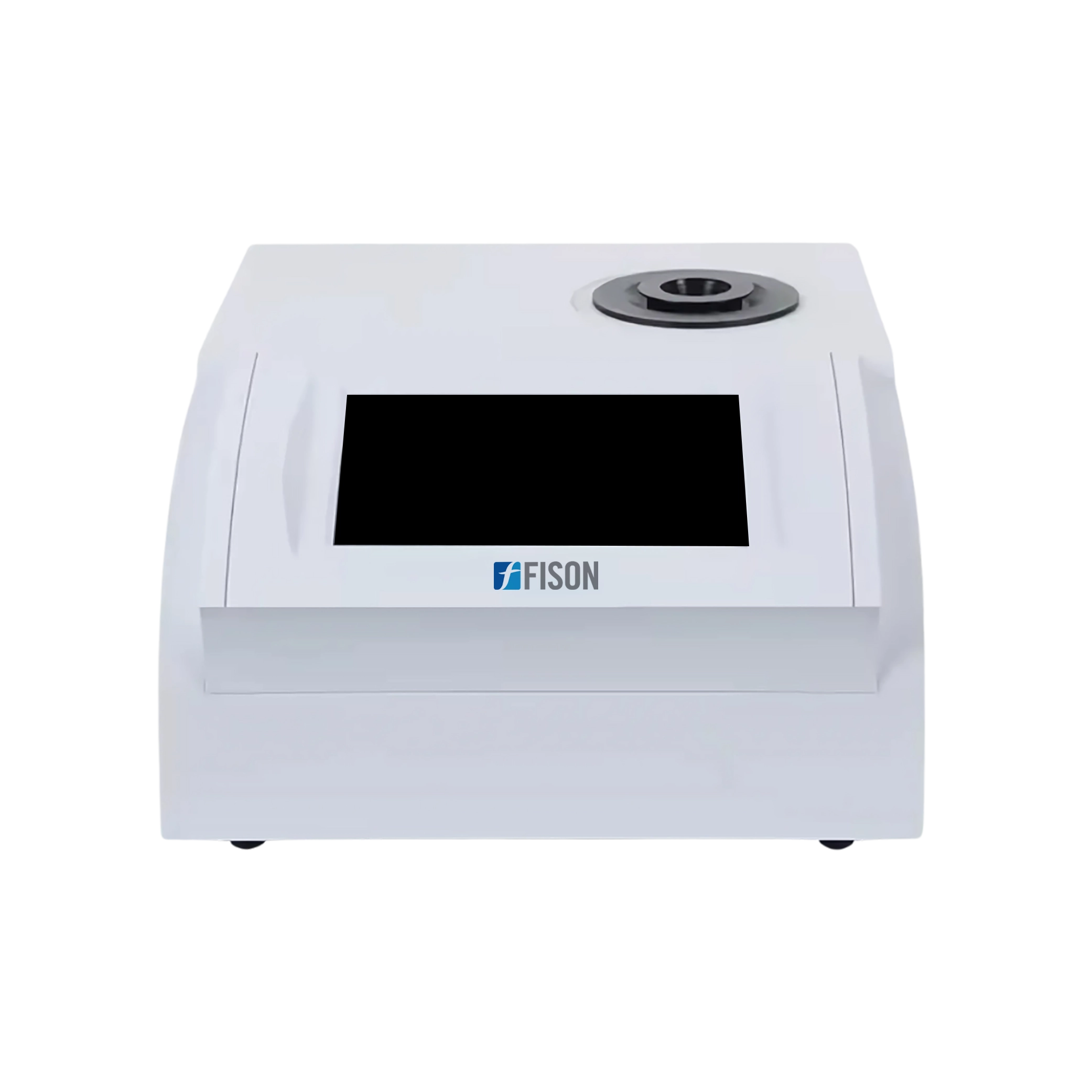

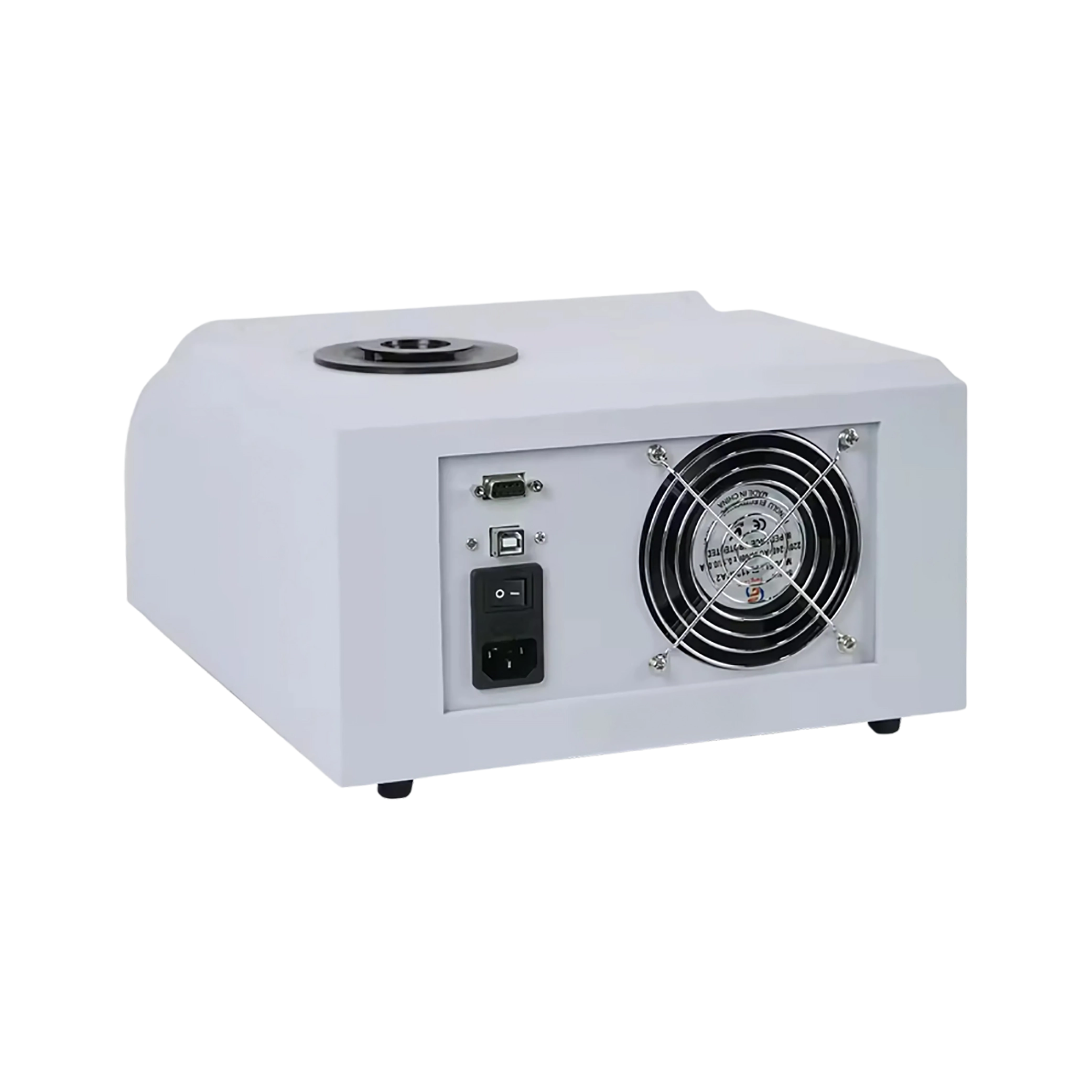

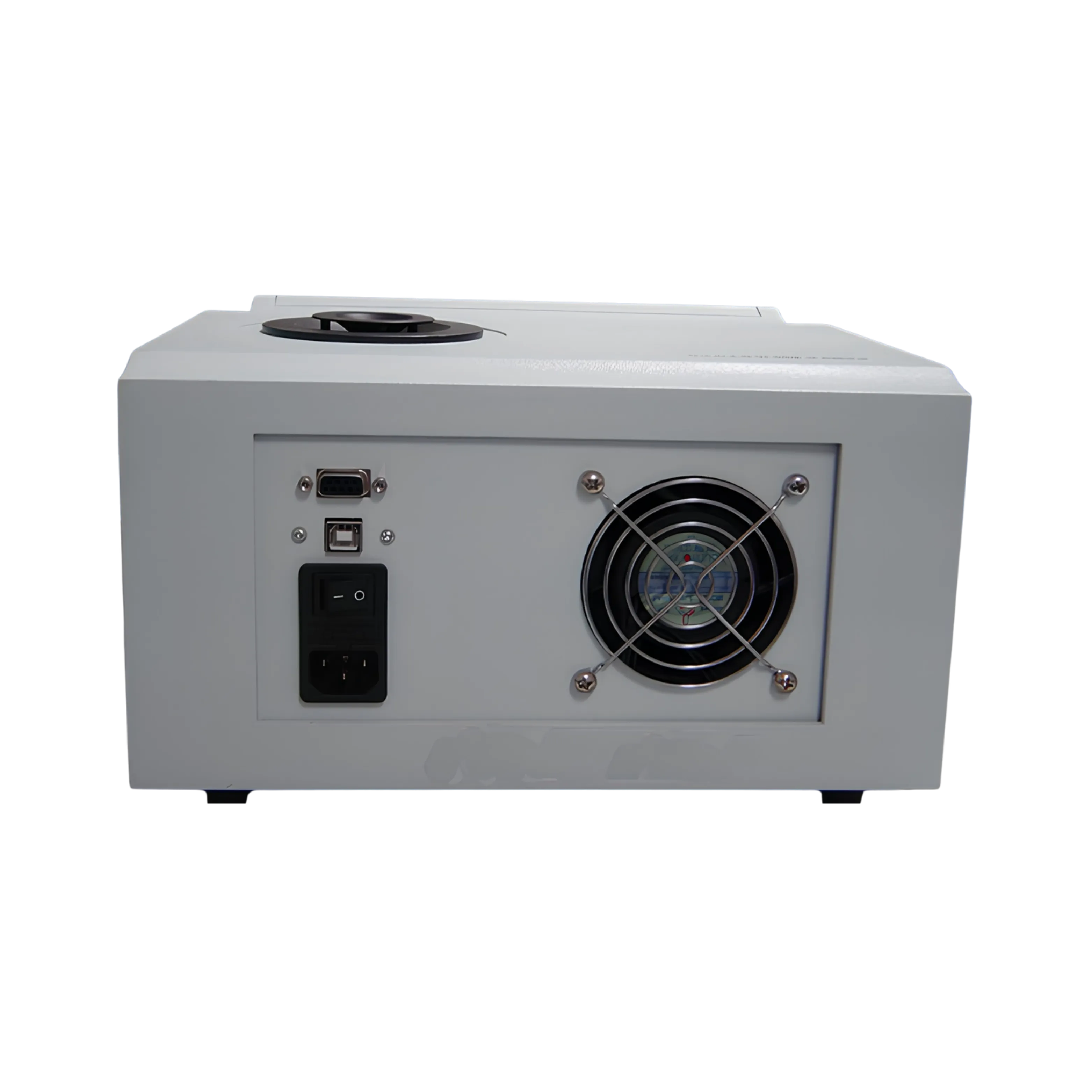

Melting Point Apparatus FM-MP-A101
Melting Point Apparatus FM-MP-A101 utilizes PID and PWM technology to provide precise temperature regulation. It has a measurement range of room temperature to 360 ℃ with a resolution of 0.1℃. Temperature and process status may be easily monitored in real time to improve the user experience. Export data quickly and easily for further analysis, improving your lab's efficiency and data integrity. This powerful tool is an absolute necessity for any research or quality control laboratory.
Specifications
| Measuring range | RT to 360 °C |
| Resolution | 0.1 °C |
| Linear Heating-up Rate | 0.1 °C to 20 °C/min |
| Temperature accuracy | 0.4 °C (≤ 200°C), 0.7 °C (> 200 °C) |
| Repeatability | 0.3 °C |
| Capillary size | φ1.4 mm (outside diameter), φ1.0mm (inside diameter), 80mm (height) |
| Sample loading height | 3 mm |
| Data storage | 1000 sets |
| Power supply | AC 110/220V ±10%, 50/60Hz |
| Exterior dimension (W × D × H) | 360 × 290 × 270 mm |
| Packing dimension (W × D × H) | 580 × 430 × 310 mm |
| Gross weight | 13 Kg |
Features

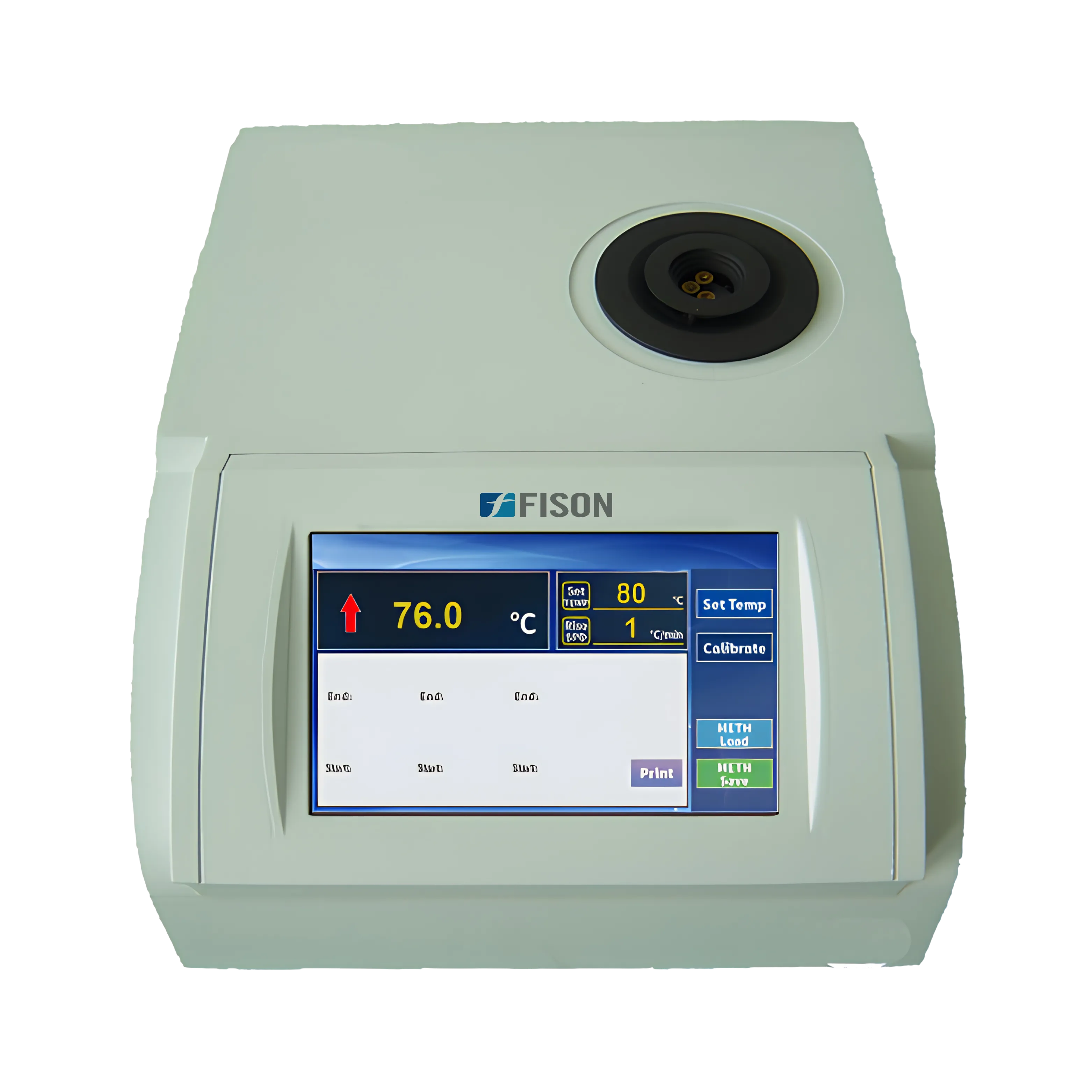

- High resolution LCD touchscreen display
- Consistent temperature stability
- Melting Point Apparatus has seamless connectivity
- Automatic calculation of melting point
- Straightforward workflow
Applications
- Melting Point Apparatus is widely used across cosmetics, pharmaceuticals, chemicals, food, environmental testing, etc.
Accessories
- Printer
