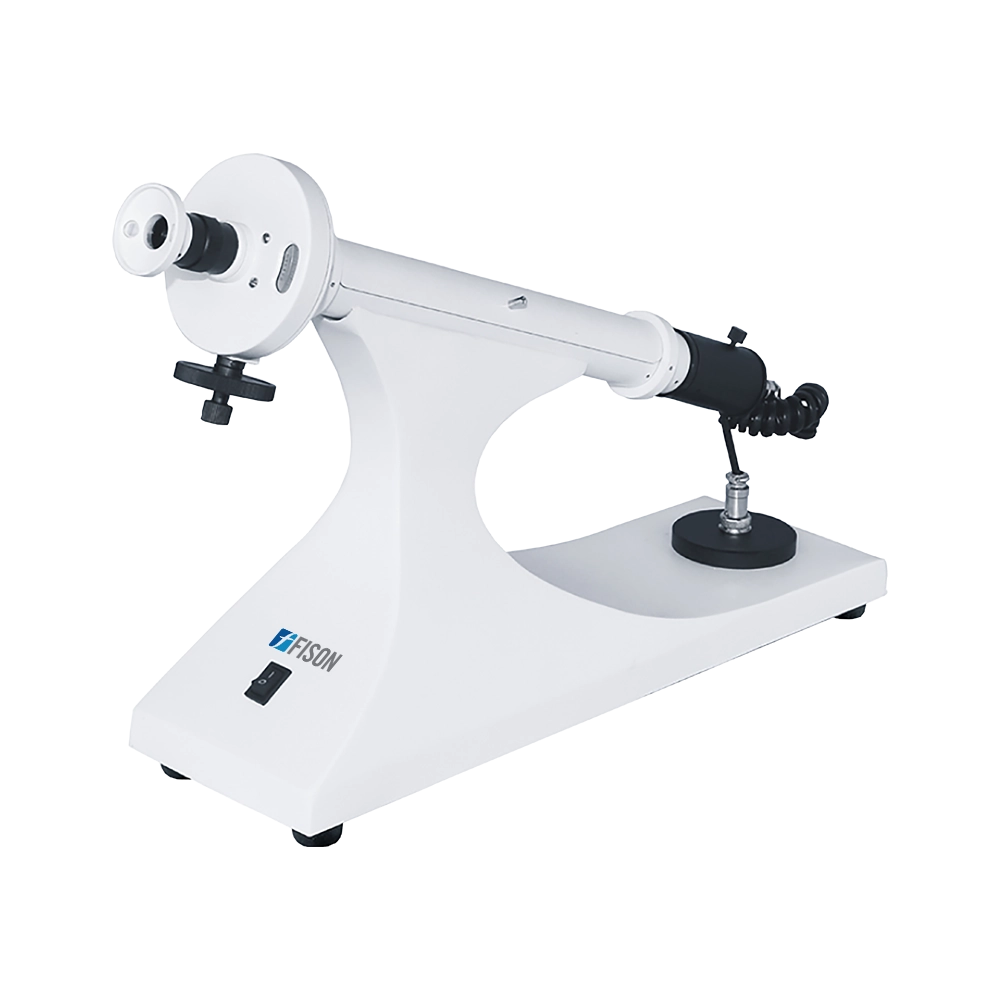

Manual polarimeter FM-MPM-A100
Manual polarimeter FM-MPM-A100 is a precision optical instrument used to measure the optical rotation of substances. The polarimeter has a measurement range of ± 180° and includes an LED bulb with an interference filter. Designed with temperature control capabilities to improve reliability. It can accommodate a variety of tubes, including micro, thermostatic, and regular quartz tubes. Thus, makes it suitable for a range of sample quantities and temperature regulation needs.
Specifications
| Measurement range | ± 180° |
| Light source | LED Lamp and interference filter |
| Division Value | 1° |
| Dial Venire Value in Reading | 0.05° |
| Magnifying Factor of the Magnifying Glass | 4 times |
| Wavelength | 589.44 nm |
| Test Tube | 100 mm/200 mm |
| Dimensions | 600 × 220 × 400 mm |
| Packing Dimensions | 730 × 480 × 470 mm |
| Net weight | 6.6 Kg |
| Gross Weight | 7.6 Kg |
Features
- Manual polarimeter suitable for micro tubes up to 0.8ml
- Compatible with thermostatic tubes 50 mm and 100 mm lengths
- Comes with standard quartz tubes for calibration
- Robust construction
- User friendly interface
Applications
- Manual polarimeter is widely used across pharmaceuticals, food and beverage, chemical industry, etc.
