Specifications

Freeze Drying Area	0.12m²
Ice Condenser Capacity	3 to 4 kg /24h
Condenser Temperature	-50℃
Final Vacuum	< 10 Pa
Tray	Ф200mm,4 layers, Spacing 70mm
Bulk Capacity	1.2L, 10mm thickness
Vial Capacity Φ12mm	820 pcs
Vial Capacity Φ16mm	460 pcs
Vial Capacity Φ22mm	244 pcs
Condenser Size	Ф215mm, 140mm deep
Drying Chamber Size	Ф260×430mm
Vacuum Pump Flow Rate	2 L/S, 7.2 m3/h
Defrosting	Off-Cycle Defrosting
Cooling	Air cooling, ambient temperature ≤ 25℃
Power Consumption	970 W
Power Supply	220V /50 Hz, single phase
Packaging Dimensions (W×D×H)	610 × 450 × (370+430) mm
Weight	70 kg

Features

• Pre-freezing function
• Convenient USB port for Excel data export
• Secure sealing to prevent leaks
• Long-lasting stainless-steel components
• Multi-functional display showing real-time performance curves

Applications

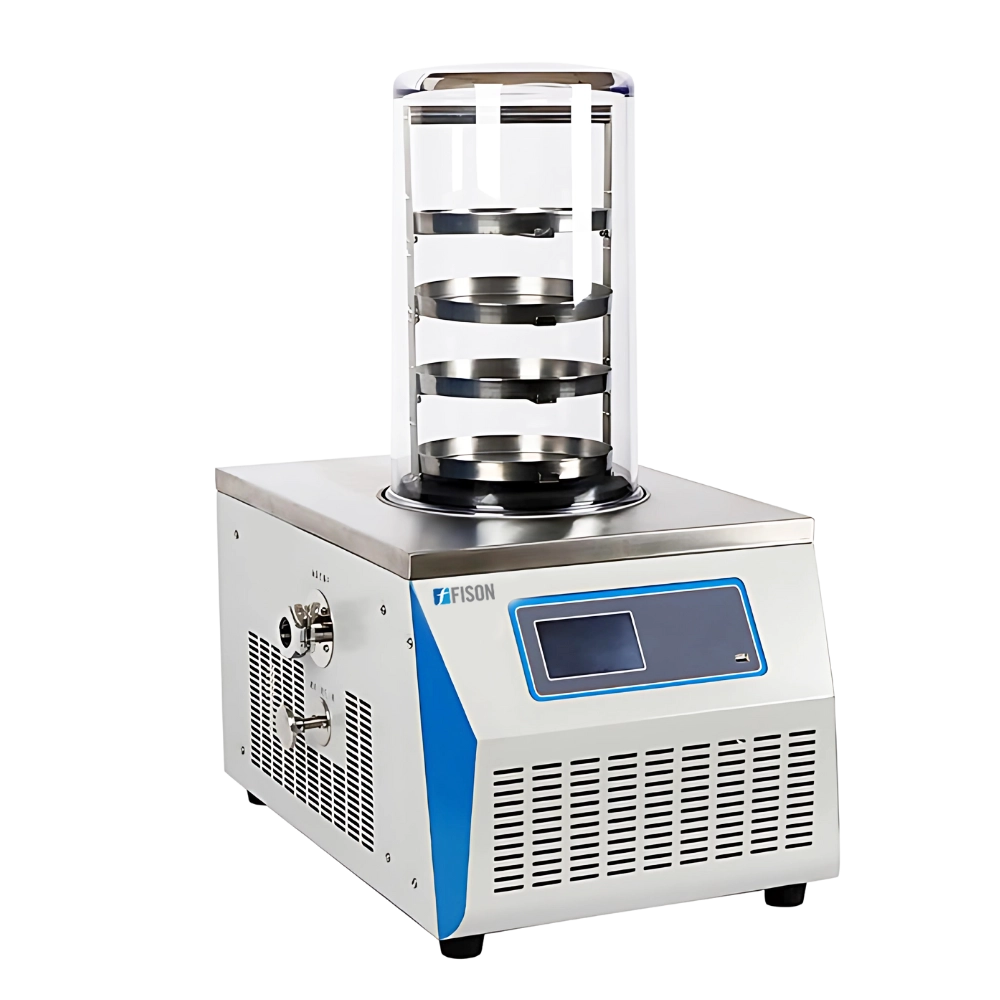

• Lyophilizer Freeze Dryer FM-FD-B100 is ideal for small-scale applications in the pharmaceuticals, biotechnology, and food industries. It is used for preserving and stabilizing sensitive materials through freeze-drying processes.

Accessories

• Name	Quantity
  Acrylic Drying Chamber	1 pc
  Drying Shelf, Tray	1 pc
  Sealing Gasket	1 pc
  Pre Freeze Shelf	1 pc
  Insulation Cover	1 pc
  Vacuum Pump	1 pc
  Connection Tube	1 pc
  Clamps	1 pc
  Pump Oil	1 pc

Accessories Optional

• Nitrogen inflation valve

  ---

  Exhaust filter/ Oil mist filter for pump

  ---

  Anti oil return valve/check valve for pump

  ---

  Intake backfilling filter

  ---

  Electricity heating defrosting

  ---

  Hot gas defrost

  ---

  HEPA filter

  ---

  Better Vacuum pump VRI-8D, 8 m3/h

  ---

  Acrylic chamber with 12 ports

  ---

  Rubber valve
