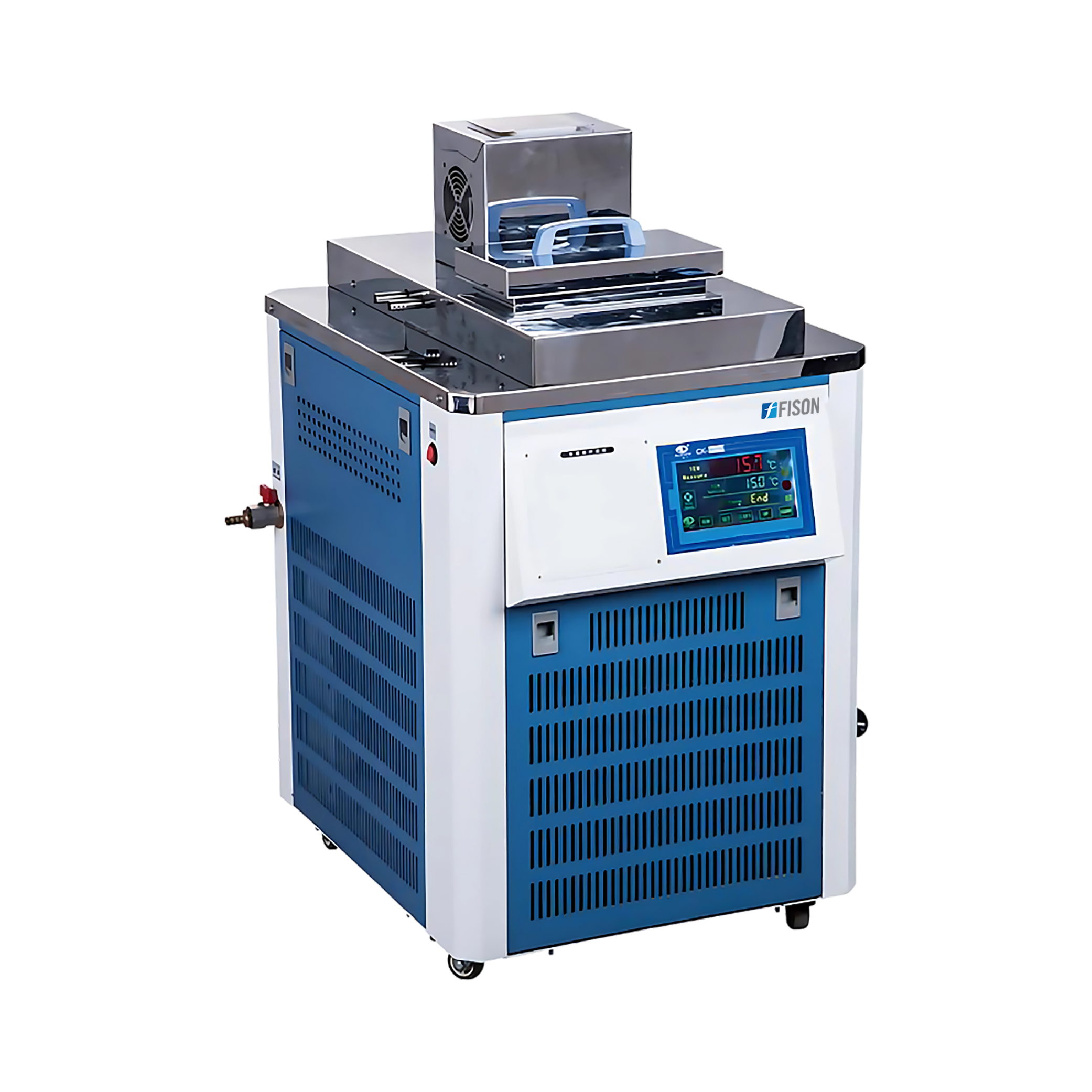

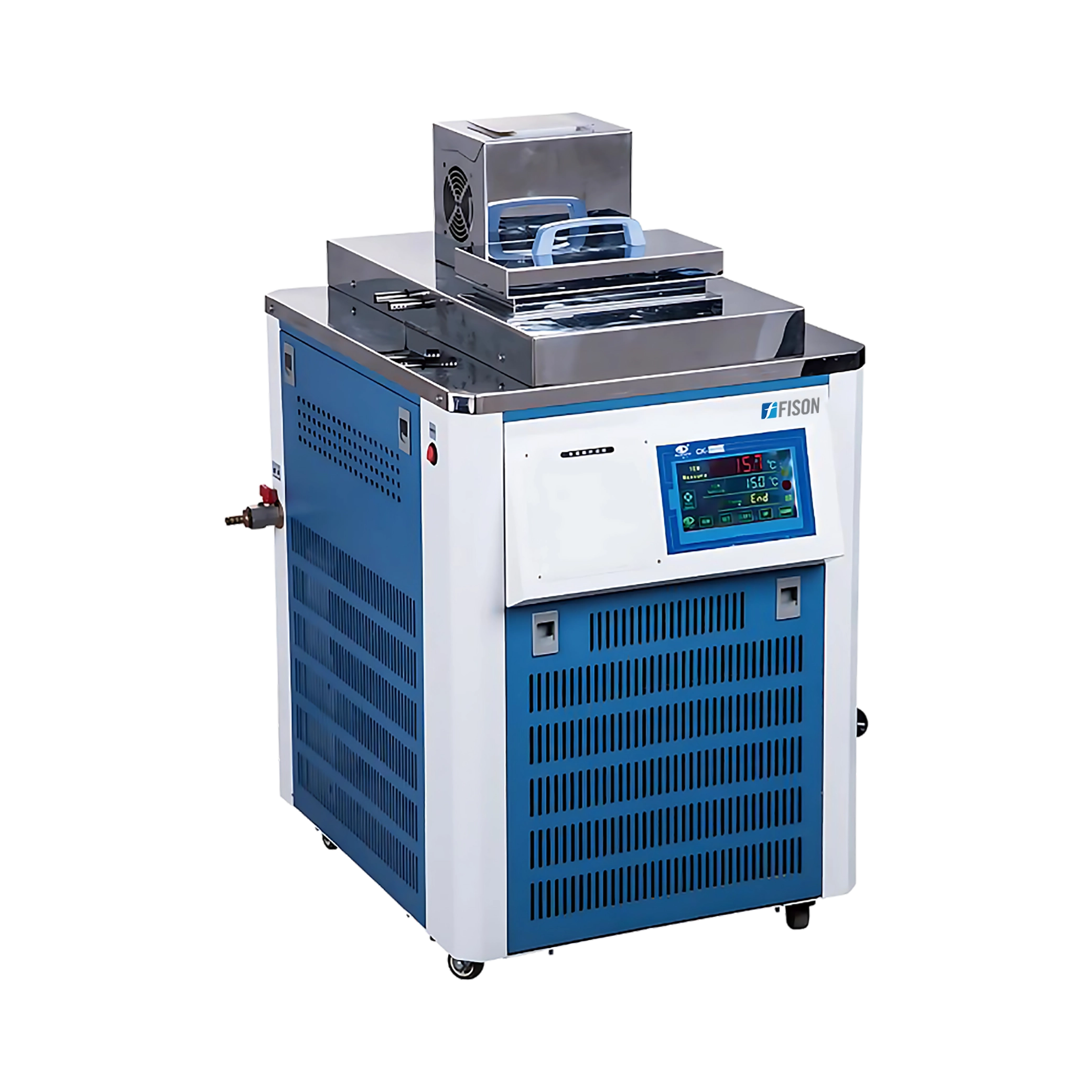

Low Temperature Circulating Bath FM-LCB-A102 is a rapid low temperature cooling circulating bath with a microcomputer PID automatic controller. Designed with 10 L capacity, -40°C to 200°C temperature range and double window (red and green) LED display. It has internal and external cycles with external cycles discharging thermostatic liquid outside the bath to lower or raise the temperature of the external vessel. Pump for external circulation with maximum flow rate of 20 L/min and drainage system. Used in petrochemical industry, national defence, metallurgy, chemical industry, physics, biology engineering, chemistry, pharmaceutical, life science, electronic instrument, quality inspection and measurement, plant laboratory, colleges, research and development institutes.
| Capacity | 10 L |
| Temperature range | -40°C to 200°C |
| Temperature stability | ± 0.1°C |
| Head of delivery pump | 10 m |
| Pump flow | 20 L/min |
| Temperature control tier | 32 controls points |
| Timer range | 0 to 9999 min |
| Display | Dual window LED display |
| Display resolution | 0.1°C |
| Drainage | Yes |
| Cooling power | 3610 W |
| Heating power | 2500 W |
| Power supply | 220 V, 50 Hz |
| Net weight | 65 kg |
| Gross weight | 80 kg |
| Packaging Dimension | 670 ×750 × 830 mm |
Used in petrochemical industry, national defence, metallurgy, chemical industry, physics, biology engineering, chemistry, pharmaceutical, life science, electronic instrument, quality inspection and measurement, plant laboratory, colleges, research and development institutes.
