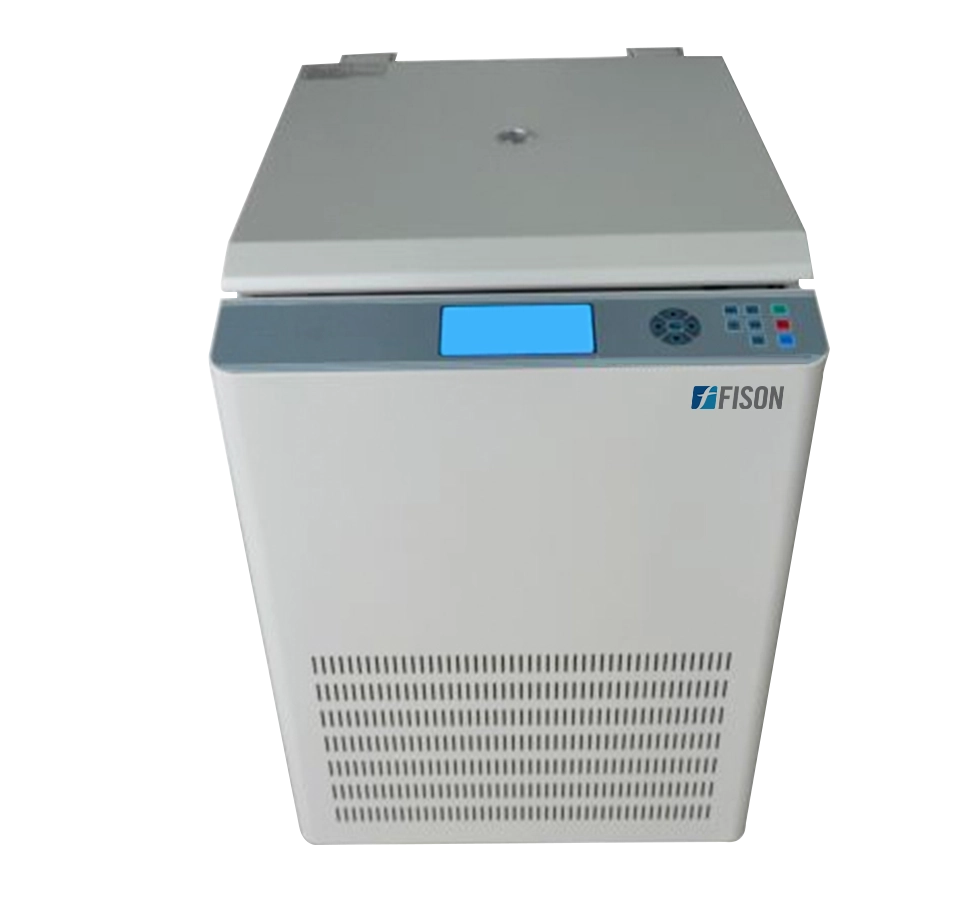

Low Speed Centrifuge FM-LSC-A401

Low Speed Centrifuge FM-LSC-A401

Low Speed Centrifuge FM-LSC-A401 is a vertical floor of unit designed for operation with vacuum blood tubes 124 × 4 ml. It is driven by AC frequency conversion motor for high speed governing system. It has microprocessor controlled technology with digital display to set parameters for centrifuging time, rotation speed and centrifugal force. It is indispensable equipment used in blood transfusion departments and blood banks.

Specifications

Maximum speed 4000 rpm
Maximum Rcf 3184 xg
Rotor capacity 4 ml x 124 vacuum blood tube
Rotor type Swing bucket rotor
Rotor material Swing bucket rotor
Body construction Stainless steel centrifugal chamber
Temperature increment ≤ 10℃ (running 20 minutes)
Speed accuracy ± 10 rpm
Noise level ≤ 55 dB
Centrifugation time 1s to 99 min continuous /timed centrifugation
Power supply AC 220 V/50 Hz, 10 A
Weight 86 kg
Dimensions (L×W×H) 580 × 740 × 890 mm

Features

  • Microcomputer control with digital display and driven by AC frequency conversion motor
  • Spin speed: 4000 rpm with 3184 ×g Rcf
  • Equipped with swing rotor including 124 of aluminum sleeves for 4 ml vacuum blood tubes
  • Offers 9 programs for acceleration / deceleration rate selection and 12 programs for self-defined work modes
  • Synchronous display of rotation speed and centrifugal force
  • Two optional work setting type: run start and interval run time settings can be switched
  • Parameters modifying function in middle of run without stopping machine
  • All-steel construction with stainless steel centrifugal chamber, electric safety door lock and imbalance protection
  • Automatic balancing with the need of trimming
  • Inching function with brief centrifuging

Applications

  • Ideal for general laboratory applications, including biological sample separations of cellular materials. Also, used for clinical applications of PRF, PRP and lipid cell and stem cell isolation. Applied for gentle, soft spin-down or washing of primary cells & cell line.

Alternative Models Of Low Speed Centrifuge

Fison Low Speed Centrifuges are designed for efficient separation of biological and chemical samples. They offer reliable low speed centrifugation, ensuring gentle handling of sensitive materials. These units feature a user-friendly control panel, allowing easy speed and time adjustments. They include a lid-lock mechanism and imbalance detection for enhanced safety. Our centrifuges are equipped with multiple rotors to accommodate various sample types and volumes for versatile use.

Low Speed Centrifuge FM-LSC-A103

  • Maximum speed: 4000 rpm
  •  Maximum RCF: 2432 × g
  •  Rotor capacity: 15 ml/ 20 ml × 12
Catalog

Low Speed Centrifuge FM-LSC-A200

  • Maximum speed: 5000 rpm
  • Maximum RCF: 3075 × g
  • Rotor capacity: 10 ml × 12
Catalog

Low Speed Centrifuge FM-LSC-A201

  • Maximum speed: 4200 rpm
  • Maximum RCF: 3155 × g
  • Rotor capacity: 4 ml × 12, 48 vacuum blood tube
Catalog
Low Speed Centrifuge FM-LSC-A300
  • Maximum speed: 6000 rpm
  • Maximum RCF: 4830 ×g
  • Rotor capacity: 12 × 15 ml
Catalog
Low Speed Centrifuge FM-LSC-A301
  • Maximum speed: 6000 rpm
  • Maximum RCF: 5000 ×g
  • Rotor capacity: 4 × 100 ml
Catalog

Low Speed Centrifuge FM-LSC-A400

  • Maximum speed: 4200 rpm
  • Maximum Rcf: 3387 ×g
  • Rotor capacity: 600 ml ×4
Catalog

Low Speed Centrifuge FM-LSC-A402

  • Maximum speed: 4000 rpm
  • Maximum Rcf: 3184 xg
  • Rotor capacity: 4 ml x 148 vacuum blood tube
Catalog

Low speed centrifuge FM-LSC-A100

  • Maximum speed: 4000 rpm
  • Maximum RCF: 2432 × g
  • Rotor capacity: 15 ml/ 20 ml × 6
Catalog
Low speed centrifuge FM-LSC-A101
  • Maximum speed: 6000 rpm
  • Maximum RCF: 5000 × g
  • Rotor capacity: 100 ml × 4
Catalog
Low Speed Centrifuge FM-LSC-A102
  • Maximum speed: 6000 rpm
  • Maximum RCF: 5000 × g
  • Rotor capacity: 450 ml × 4
Catalog

Low-Speed Centrifuge FM-LSC-A403

  • Maximum speed: 5000 r/min
  • Maximum RCF: 4730 × g
  • Maximum Capacity: 4 × 800 ml
Catalog

Low Speed Centrifuge FM-LSC-A404

  • Maximum Speed: 4000 rpm
  • Maximum RCF: 3580 × g
  • Maximum Capacity: 4 × 1000 ml
Catalog

Low Speed Centrifuge FM-LSC-A405

  • Maximum Speed: 6000 rpm
  • Maximum RCF: 5201 × g
  • Maximum Capacity: 4 × 800 ml
Catalog
Low-Speed Centrifuge FM-LSC-A406
  • Maximum Speed: 5000 rpm
  • Maximum RCF: 4390×g
  • Maximum Capacity: 4×750ml
Catalog

Low Speed Refrigerated Centrifuge

Fison Low Speed Refrigerated Centrifuges are designed for efficient separation of temperature-sensitive biological and chemical materials. They offer stable and adjustable temperature control, ensuring optimal conditions for sample preservation. These units feature a user-friendly control panel for easy operation and monitoring. They are equipped with multiple rotor options, accommodating various sample volumes for versatile applications. Our centrifuges deliver quiet and stable operation, minimizing noise and vibration to enhance laboratory efficiency.

Low Speed Refrigerated Centrifuge FM-LRC-A100

  • Maximum speed : 4200 rpm
  • Maximum RCF : 3387 ×g
  • Swing rotor capacity : 4 × 600 ml
Catalog

Low Speed Refrigerated Centrifuge FM-LRC-A101

  • Maximum speed : 4200 rpm
  • Maximum RCF : 5116 ×g
  • Swing rotor capacity : 6 × 1000 ml
Catalog
Low Speed Refrigerated Centrifuge FM-LRC-A102
  • Maximum speed : 8000 rpm
  • Maximum RCF : 11068 ×g
  • Swing rotor capacity : 6 × 2400 ml
Catalog

High Speed Centrifuge

Fison High Speed Centrifuge applies large centrifugal force to separate sample components. They come with microprocessor regulated LCD Display for easy monitoring. Cooling systems protect heat-sensitive samples by maintaining sub-zero temperatures. They feature multiple working modes along with noise-free operation. We offer High Speed Centrifuge with different speed settings, ranging from 6000 to 23000 rpm.

Benchtop High-Speed Centrifuge FM-BHC-A100
  • Maximum RPM : 24000 r/min
  • Maximum RCF : 47800 × g
  • Maximum Capacity : 4 × 100 ml
Catalog

High Speed Centrifuge FM-HSC-A100

  • Maximum speed : 6000 rpm
  • Maximum RCF : 1248 × g
  • Maximum capacity : 2 × 8 × 0.2 ml
Catalog

High Speed Centrifuge FM-HSC-A101

  • Maximum speed : 10000 rpm
  • Maximum RCF : 6596 × g
  • Maximum capacity : 12 × 1.5 / 0.5 / 0.2 ml
Catalog

High Speed Refrigerated Centrifuge

Fison High Speed Refrigerated Centrifuges are designed for rapid and precise separation while maintaining accurate temperature control. They provide an advanced cooling system, maintaining stable temperatures to protect heat-sensitive samples. These units are equipped with multiple rotor types for versatile applications. Our centrifuges deliver low noise and vibration, ensuring a quiet and stable laboratory environment. They feature durable and corrosion-resistant construction for long-term use.

High speed Refrigerated Centrifuge FM-HRC-A303
  • Maximum speed : 21000 r/min
  • Maximum RCF : 31300 × g
  • Maximum Capacity : Angle rotor : 600 ml
    Swing rotor : 3000 ml
Catalog
High Speed Refrigerated Centrifuge FM-HRC-A100
  • Maximum speed : 18000 rpm
  • Maximum RCF : 23846 × g
  • Maximum capacity : 24 × 0.5 ml
Catalog

High Speed Refrigerated Centrifuge FM-HRC-A101

  • Maximum speed : 23000 rpm
  • Maximum RCF : 33097 × g
  • Maximum capacity : 6 × 250 ml
Catalog

Mini Centrifuge

Fison Mini Centrifuge features a transparent lid design, allowing easy observation of samples during operation. They provide protection at high speed, preventing damage from excessive forces or rapid movements. Their adoption of high-frequency broad voltage technology ensures stable performance across varying voltage levels. The rotor snaps allow for easy replacement, reducing downtime and ensuring continuous, efficient operation. Our mini centrifuge uses the opening and closing of the lid as the stop or start mechanism, ensuring safe and efficient operation.

Mini Centrifuge FM-MC-A100

  • Maximum speed : 4000 rpm
  • Maximum RCF : 900 × g
  • Speed accuracy : ±20 rpm
Catalog
Mini Centrifuge FM-MC-A101
  • Maximum speed : 6000 rpm
  • Maximum RCF : 2000 × g
  • Speed accuracy : ±20 rpm
Catalog
Mini Centrifuge FM-MC-A102
  • Maximum speed : 10000 rpm
  • Maximum RCF : 5500 × g
  • Speed accuracy : ±20 rpm
Catalog

Microplate Centrifuge

Fison Microplate Centrifuge offers adjustable speed settings for efficient spin-downs and pellet formation. They are crafted to minimize vibrations for a comfortable lab environment. Their digital controls with pre-set or customizable spin programs to accommodate various protocols. These are equipped with quick acceleration and deceleration to minimize total processing time. The advanced safety features secure lid locks to ensure safe and reliable operation during use. Our Microplate Centrifuge offers a compact storage option, making them easy to store.

Microplate Centrifuge FM-MPC-A100

  • Maximum speed : 2500 rpm
  • Maximum RCF : 500 × g
  • Maximum Rotor Radius : 63 mm
Catalog

Microplate Centrifuge FM-MPC-A101

  • Maximum Speed : 2800rpm
  • Maximum RCF : 600×g
  • Capacity : 8×0.2ml PCR tube strips/ 0.2ml PCR tubes / 2×96-well PCR plate
Catalog
