Low Speed Centrifuge FM-LSC-A301

Low Speed Centrifuge FM-LSC-A301

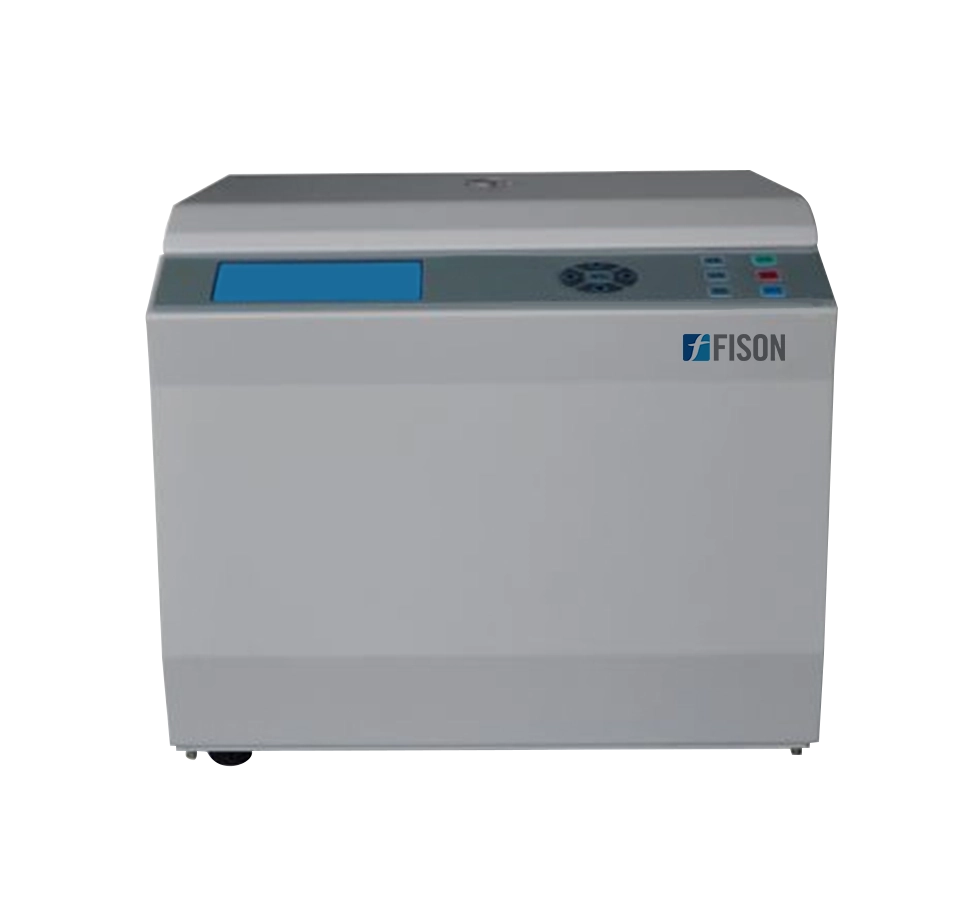

Low Speed Centrifuge FM-LSC-A301 is a compact and robust centrifuge, ideal for routine low-speed centrifugation, capable of spinning specimens at 6000 rpm with 5000 ×g centrifugal force with maximum capacity of 4 × 100 ml. Work station unit is driven by AC frequency conversion motor and offers nine acceleration and deceleration rate selection mode. The sturdy base has a built-in safety feature that resists lid to open while the rotor is in motion, and a beeping sound to indicate when spinning stops.

Specifications

Maximum speed 6000 rpm
Maximum RCF 5000 ×g
Rotor capacity 4 × 100 ml
Temperature increment ≤ 8℃ (running 20 minutes)
Speed accuracy ± 10 rpm
Noise level ≤ 55 dB
Centrifugation time 1s to 99 min continuous /timed centrifugation
Power supply AC 220 V/50 Hz, 12 A
Weight 55 kg
Dimension (L×W×H) 433 × 580 × 402 mm

Features

  • LCD screen display
  • Maximum speed: 4000 rpm with 5000 x g RCF
  • Swing bucket rotor with maximum capacity of 4 × 100 ml
  • Auto balancing system extends the centrifuge life by reducing noise and vibration
  • AC frequency conversion motor and low Maintenance
  • Programmable with 9 accelerating and decelerating selection mode
  • Comes with balance control, lid lock, and temperature/speed protection devices
  • Automatic speed and RCF display
  • Stainless steel chamber

Applications

  • Used in sample separations of cellular materials, lipid cell, stem cell, blood, urine etc. and applied for biomedical, clinical, pharmaceutical, proteomics, biochemistry, microbiology, molecular biology, chemical laboratories.

Optional Rotor Selection

  • Rotor Name Maximum Speed (rpm) Maximum RCF (*g) Maximum Capacity
    Swing rotor 01 4200 3155 4×100 ml
    Swing rotor 02 4200 3155 40×Vacuum blood tube(Φ13×80 mm short)
    Swing rotor 02 4200 3155 40×Vacuum blood tube(Φ13×105 mm long)
    Angle rotor 01 6000 5000 12×15 ml
    ELISA Plate rotor 01 4000 1842 96 holes×2
    ELISA Plate rotor 01 4000 2173 96 holes×4

Optional Adapter Selection

  • For Swing Rotor 01
    Adapter 01 4×50 ml
    Adapter 02 12×15 ml (Bottom tip with cover)
    Adapter 03 12×urinary sediment tubes
    Adapter 04 16×10 ml/15 ml
    Adapter 05 16×Vacuum blood tube (high)
    Adapter 06 16×Vacuum blood tube (short)

Alternative Models Of Low Speed Centrifuge

Fison Low Speed Centrifuges are designed for efficient separation of biological and chemical samples. They offer reliable low speed centrifugation, ensuring gentle handling of sensitive materials. These units feature a user-friendly control panel, allowing easy speed and time adjustments. They include a lid-lock mechanism and imbalance detection for enhanced safety. Our centrifuges are equipped with multiple rotors to accommodate various sample types and volumes for versatile use.

Low Speed Centrifuge FM-LSC-A103

  • Maximum speed: 4000 rpm
  •  Maximum RCF: 2432 × g
  •  Rotor capacity: 15 ml/ 20 ml × 12
Catalog

Low Speed Centrifuge FM-LSC-A200

  • Maximum speed: 5000 rpm
  • Maximum RCF: 3075 × g
  • Rotor capacity: 10 ml × 12
Catalog

Low Speed Centrifuge FM-LSC-A201

  • Maximum speed: 4200 rpm
  • Maximum RCF: 3155 × g
  • Rotor capacity: 4 ml × 12, 48 vacuum blood tube
Catalog
Low Speed Centrifuge FM-LSC-A300
  • Maximum speed: 6000 rpm
  • Maximum RCF: 4830 ×g
  • Rotor capacity: 12 × 15 ml
Catalog
Low Speed Centrifuge FM-LSC-A400
  • Maximum speed: 4200 rpm
  • Maximum Rcf: 3387 ×g
  • Rotor capacity: 600 ml ×4
Catalog

Low Speed Centrifuge FM-LSC-A401

  • Maximum speed: 4000 rpm
  • Maximum Rcf: 3184 xg
  • Rotor capacity: 4 ml x 124 vacuum blood tube
Catalog

Low Speed Centrifuge FM-LSC-A402

  • Maximum speed: 4000 rpm
  • Maximum Rcf: 3184 xg
  • Rotor capacity: 4 ml x 148 vacuum blood tube
Catalog

Low speed centrifuge FM-LSC-A100

  • Maximum speed: 4000 rpm
  • Maximum RCF: 2432 × g
  • Rotor capacity: 15 ml/ 20 ml × 6
Catalog
Low speed centrifuge FM-LSC-A101
  • Maximum speed: 6000 rpm
  • Maximum RCF: 5000 × g
  • Rotor capacity: 100 ml × 4
Catalog
Low Speed Centrifuge FM-LSC-A102
  • Maximum speed: 6000 rpm
  • Maximum RCF: 5000 × g
  • Rotor capacity: 450 ml × 4
Catalog

Low-Speed Centrifuge FM-LSC-A403

  • Maximum speed: 5000 r/min
  • Maximum RCF: 4730 × g
  • Maximum Capacity: 4 × 800 ml
Catalog

Low Speed Centrifuge FM-LSC-A404

  • Maximum Speed: 4000 rpm
  • Maximum RCF: 3580 × g
  • Maximum Capacity: 4 × 1000 ml
Catalog

Low Speed Centrifuge FM-LSC-A405

  • Maximum Speed: 6000 rpm
  • Maximum RCF: 5201 × g
  • Maximum Capacity: 4 × 800 ml
Catalog
Low-Speed Centrifuge FM-LSC-A406
  • Maximum Speed: 5000 rpm
  • Maximum RCF: 4390×g
  • Maximum Capacity: 4×750ml
Catalog

Low Speed Refrigerated Centrifuge

Fison Low Speed Refrigerated Centrifuges are designed for efficient separation of temperature-sensitive biological and chemical materials. They offer stable and adjustable temperature control, ensuring optimal conditions for sample preservation. These units feature a user-friendly control panel for easy operation and monitoring. They are equipped with multiple rotor options, accommodating various sample volumes for versatile applications. Our centrifuges deliver quiet and stable operation, minimizing noise and vibration to enhance laboratory efficiency.

Low Speed Refrigerated Centrifuge FM-LRC-A100

  • Maximum speed : 4200 rpm
  • Maximum RCF : 3387 ×g
  • Swing rotor capacity : 4 × 600 ml
Catalog

Low Speed Refrigerated Centrifuge FM-LRC-A101

  • Maximum speed : 4200 rpm
  • Maximum RCF : 5116 ×g
  • Swing rotor capacity : 6 × 1000 ml
Catalog
Low Speed Refrigerated Centrifuge FM-LRC-A102
  • Maximum speed : 8000 rpm
  • Maximum RCF : 11068 ×g
  • Swing rotor capacity : 6 × 2400 ml
Catalog

High Speed Centrifuge

Fison High Speed Centrifuge applies large centrifugal force to separate sample components. They come with microprocessor regulated LCD Display for easy monitoring. Cooling systems protect heat-sensitive samples by maintaining sub-zero temperatures. They feature multiple working modes along with noise-free operation. We offer High Speed Centrifuge with different speed settings, ranging from 6000 to 23000 rpm.

Benchtop High-Speed Centrifuge FM-BHC-A100
  • Maximum RPM : 24000 r/min
  • Maximum RCF : 47800 × g
  • Maximum Capacity : 4 × 100 ml
Catalog

High Speed Centrifuge FM-HSC-A100

  • Maximum speed : 6000 rpm
  • Maximum RCF : 1248 × g
  • Maximum capacity : 2 × 8 × 0.2 ml
Catalog

High Speed Centrifuge FM-HSC-A101

  • Maximum speed : 10000 rpm
  • Maximum RCF : 6596 × g
  • Maximum capacity : 12 × 1.5 / 0.5 / 0.2 ml
Catalog

High Speed Refrigerated Centrifuge

Fison High Speed Refrigerated Centrifuges are designed for rapid and precise separation while maintaining accurate temperature control. They provide an advanced cooling system, maintaining stable temperatures to protect heat-sensitive samples. These units are equipped with multiple rotor types for versatile applications. Our centrifuges deliver low noise and vibration, ensuring a quiet and stable laboratory environment. They feature durable and corrosion-resistant construction for long-term use.

High speed Refrigerated Centrifuge FM-HRC-A303
  • Maximum speed : 21000 r/min
  • Maximum RCF : 31300 × g
  • Maximum Capacity : Angle rotor : 600 ml
    Swing rotor : 3000 ml
Catalog
High Speed Refrigerated Centrifuge FM-HRC-A100
  • Maximum speed : 18000 rpm
  • Maximum RCF : 23846 × g
  • Maximum capacity : 24 × 0.5 ml
Catalog

High Speed Refrigerated Centrifuge FM-HRC-A101

  • Maximum speed : 23000 rpm
  • Maximum RCF : 33097 × g
  • Maximum capacity : 6 × 250 ml
Catalog

Mini Centrifuge

Fison Mini Centrifuge features a transparent lid design, allowing easy observation of samples during operation. They provide protection at high speed, preventing damage from excessive forces or rapid movements. Their adoption of high-frequency broad voltage technology ensures stable performance across varying voltage levels. The rotor snaps allow for easy replacement, reducing downtime and ensuring continuous, efficient operation. Our mini centrifuge uses the opening and closing of the lid as the stop or start mechanism, ensuring safe and efficient operation.

Mini Centrifuge FM-MC-A100

  • Maximum speed : 4000 rpm
  • Maximum RCF : 900 × g
  • Speed accuracy : ±20 rpm
Catalog
Mini Centrifuge FM-MC-A101
  • Maximum speed : 6000 rpm
  • Maximum RCF : 2000 × g
  • Speed accuracy : ±20 rpm
Catalog
Mini Centrifuge FM-MC-A102
  • Maximum speed : 10000 rpm
  • Maximum RCF : 5500 × g
  • Speed accuracy : ±20 rpm
Catalog

Microplate Centrifuge

Fison Microplate Centrifuge offers adjustable speed settings for efficient spin-downs and pellet formation. They are crafted to minimize vibrations for a comfortable lab environment. Their digital controls with pre-set or customizable spin programs to accommodate various protocols. These are equipped with quick acceleration and deceleration to minimize total processing time. The advanced safety features secure lid locks to ensure safe and reliable operation during use. Our Microplate Centrifuge offers a compact storage option, making them easy to store.

Microplate Centrifuge FM-MPC-A100

  • Maximum speed : 2500 rpm
  • Maximum RCF : 500 × g
  • Maximum Rotor Radius : 63 mm
Catalog

Microplate Centrifuge FM-MPC-A101

  • Maximum Speed : 2800rpm
  • Maximum RCF : 600×g
  • Capacity : 8×0.2ml PCR tube strips/ 0.2ml PCR tubes / 2×96-well PCR plate
Catalog
