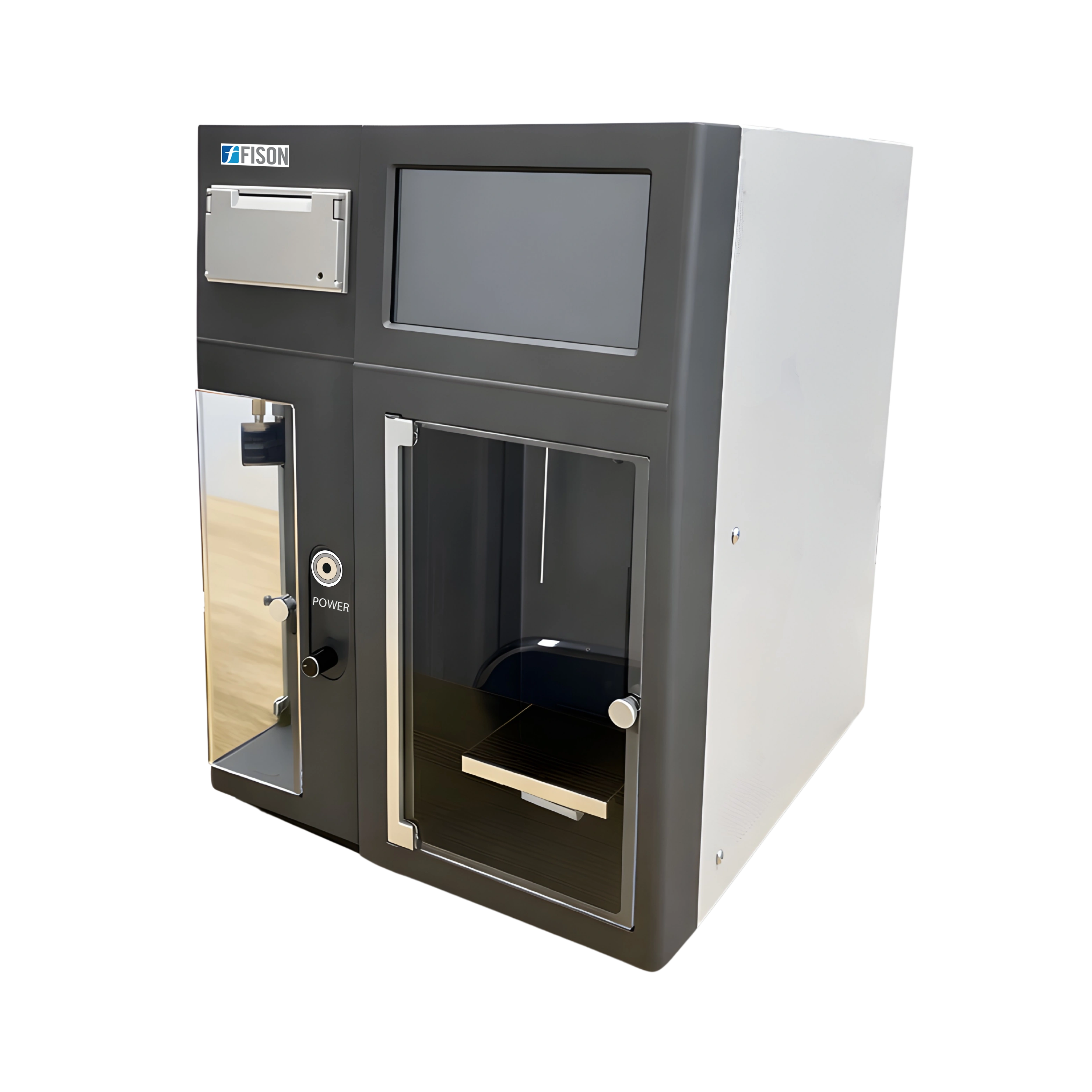

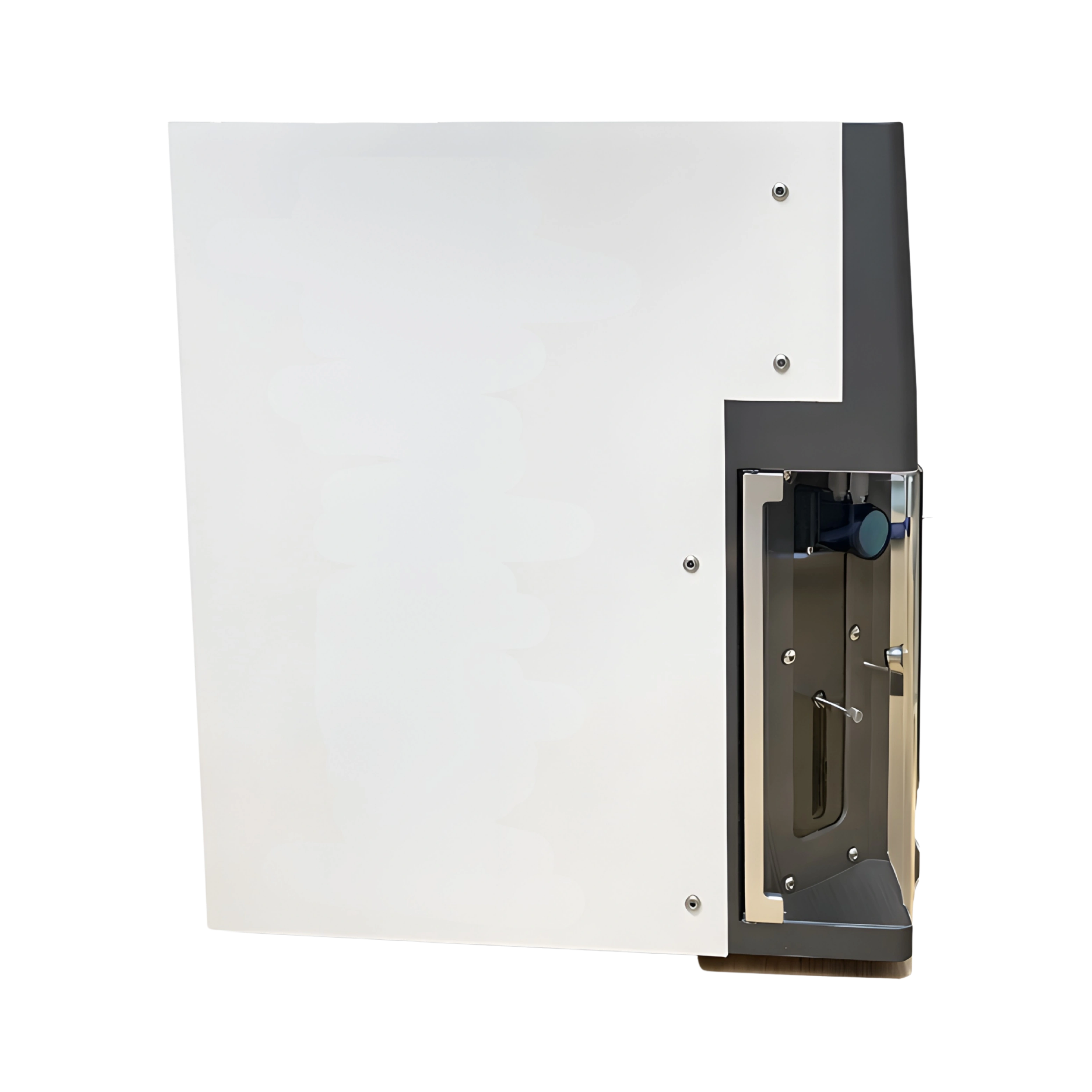

Liquid Particle Counter FM-LPC-A100
Liquid Particle Counter FM-LPC-A100 is a compact and tabletop unit, adopted with light scattering analysis method and desktop offline sampling method. Designed as per ISO 21501 standard configurations, this unit comes with small capacity syringe sampling and different syringe specification. With 24 particle size channels and magnetic stirring, features 2 to 100 µm of particle size range with 1 to 500 ml of sample volume range and 0.2 ml of minimum sample volume. Equipped with 316 stainless steel/quartz glass/Teflon sensor material and 7-inch LCD touch screen display, offers magnetic stirring with adjustable speed and 10000 particles/ml of maximum detection concentration. Incorporated with automatic data storage, Built-in calibration curve and advanced software system, it also supports RS232 and USB interface with thermal printer, and have compliance with 21CFR-11 guidelines.
Specifications
| Particle size range | 2 to 100 µm |
| Particle size channel | 24 |
| Maximum detection concentration | 10000 particles/ml |
| Accuracy | ± 10% |
| Repeatability | RSD < 2% (particles > 1000/ ml, 5ml sample) |
| Resolution | < 10% |
| Analysis method | Light scattering method |
| Sampling method | Desktop offline sampling method |
| Sampling type | Small capacity syringe sampling |
| Syringe specification | 1 ml, 5 ml, 10 ml and 25 ml |
| Sampling speed | 20 ml/min |
| Sampling volume accuracy | ± 1% |
| Sample volume range | 1 to 500 ml |
| Minimum sample volume | 0.2 ml |
| Stirring method | Magnetic stirring (with adjustable speed) |
| Sensor material | 316 stainless steel/quartz glass/Teflon |
| Display | 7-inch LCD touch screen display |
| Data storage | Automatic |
| Calibration curve | Built-in |
| Data output | RS232, USB interface and Thermal printer |
| Ambient temperature | 10 to 40°C |
| Relative humidity | 0 to 95% RH |
| Power supply | AC 100 to 240 V, 50/60 Hz |
| Dimension (L×W×H) | 320×309×394 mm |
| Packaging dimension (L×W×H) | 370×359×444 mm |
| Net weight | 11 kg |
| Gross weight | 16 kg |
Features
- A compact and tabletop unit adopted with light scattering analysis method
- Desktop offline sampling method with small capacity syringe sampling
- Different syringe specifications: 1 ml, 5 ml, 10 ml, and 25 ml
- 24 particle size channels, with adjustable particle size as per requirement
- 2 to 100 µm of particle size range, 10000 particles/ml of maximum detection concentration
- 1 to 500 ml of sample volume range and 0.2 ml of minimum sample volume
- 316 stainless steel/quartz glass/Teflon as sensor material
- 7-inch LCD touch screen display, convenient setting and monitoring of parameters
- Magnetic stirring with adjustable speed, minimize the risk of contamination
- Automatic data storage and Built-in calibration curve, convenient and repeatable results
- Advanced software system, ensures speed and accuracy of operation
- Supports RS232 and USB interface with thermal printer for easy data processing
- Designed as per ISO 21501 standard configuration
- Complies with 21CFR-11 guidelines, offers quality management
- Highly-efficient, stable and reliable unit for fast and accurate results
Applications
- Liquid Particle Counter is used for detection of insoluble particles in injection, infusion, sterile powders, particle contamination detection of infusion, anesthesia, medical equipment and packaging materials, for particle detection in organic, colored, transparent, and oil-based liquid samples across pharmaceutical, medical, hospital etc.
