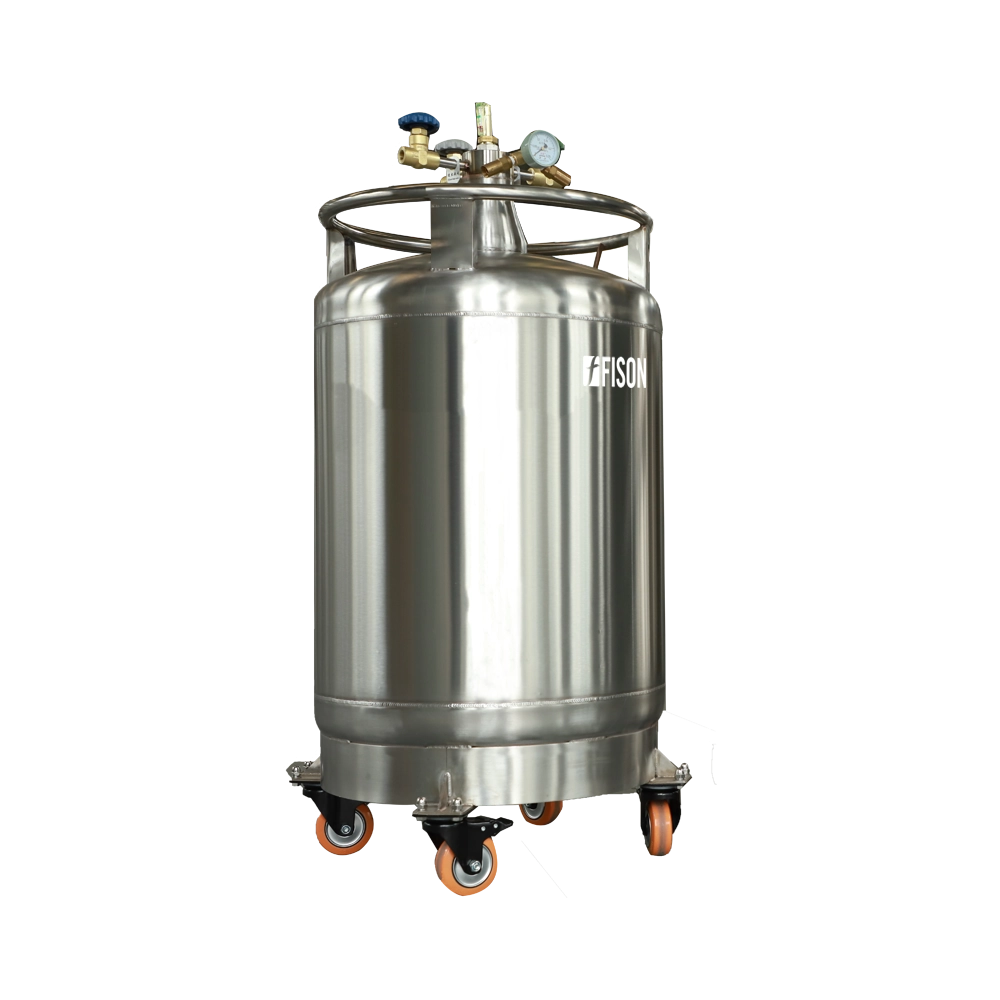

Liquid Nitrogen Container FM-LNC-B100
The FM-LNC-B100 Liquid Nitrogen Container features a 0.099 MPa safety valve, ensuring enhanced protection against over-pressurization. The continuous pressurization and drainage system facilitates uninterrupted operation. Their high-capacity mobile casters provide mobility. Its durable ultra-low valve guarantees reliable performance in extreme cryogenic conditions. Our container has customizable optional features to tailor it to their specific needs.
Specifications
| Geometric Volume | 220 L |
| Effective Volume | 200 L |
| Infusion Volume | ≥10 L/min |
| Primary Safety Valve Opening Pressure | 0.099 Mpa |
| Caliber | 50 |
| Daily Evaporation Rate of Static Liquid Nitrogen | 0.01 |
| Standard Working Pressure | 0.05 Mpa |
| Maximum Working Pressure | 0.09 Mpa |
| Work Pressure | <0.1 Mpa |
| Daily Evaporation Rate | ≤1.1 |
| Output Volume | ≥8 L/min |
| Tank Outer Diameter | 656 mm |
| Height | 1300 mm |
| Dimensions (D × H) | 706 × 1450 mm |
| Weight | 125 kg |
Features
- Stable flow system
- Leak detection certified
- Low-temperature tested
- Double safety protection
- Vacuum technology efficiency
Applications
- Liquid Nitrogen Container FM-LNC-B100 is used to store and transport liquid nitrogen at cryogenic temperatures. It is essential for applications like cryopreservation, medical treatments, and industrial processes, ensuring reliability and efficiency for ultra-cold storage.
