Specifications

Dispersion Type	Spray
Measurement Range	0.1 to 360 µm
Channel number	54
Accuracy Error	<1% (National Standard Sample D50)
Repeatability Error	<1% (National Standard Sample D50)
Light Source	Semiconductor laser, λ = 650 nm P > 10 mW
Measuring Area	60 mm
Injection Mode	Open
Optical Path Protection	Multiple
Operation mode	Software automated operation
Standard	ISO 13320:2009
Test Speed	<1 min/time
Analysis mode	Free Distribution, R-R Distribution, Logarithm Normal Distribution, Mesh number classification etc.
Statistic Method	Size Distribution
Test Report	Word, Excel, Photo( Bmp), Text etc.
Intelligent Operation Mode	Yes
Dimension (L×W×H)	612×230×325 mm
Package Dimension (L×W×H)	710×430×440 mm
Net Weight	13 kg
Gross Weight	25 kg

Features

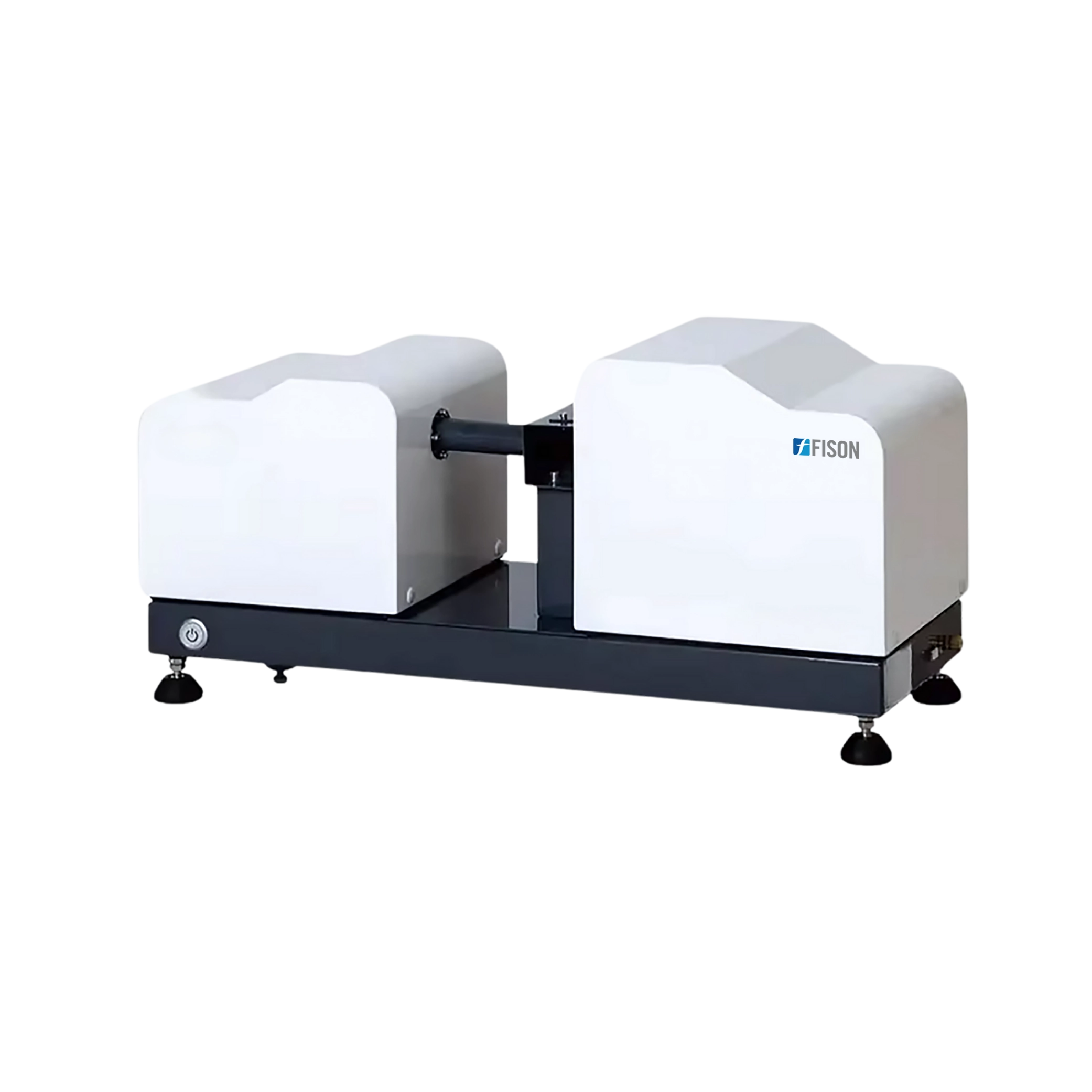

• A portable spray laser particle size analyzer, convenient operation with accurate results
• Fraunhofer diffraction principle and typical parallel light path design, efficient results
• Single optical path multi lens technology and unique high-density detection unit
• 0.1 to 360 µm of measuring range with 54 detector channels, small particle testing ability
• Integrated design with high-power fiber output semiconductor laser, highly stable
• Open injection mode with software automated operation, ensures accurate test results
• <1 min of test time with different analysis mode, statistic comparison and methods
• Supports intelligent operation mode with different test reports format, easy data processing and analysis
• High-efficient, stable and reliable unit for accurate and repeatable results

Applications

• Laser Particle Size Analyzer is used for droplet size detection of small spray equipment such as medical atomizer, aerosol, aerosol and spray etc.
