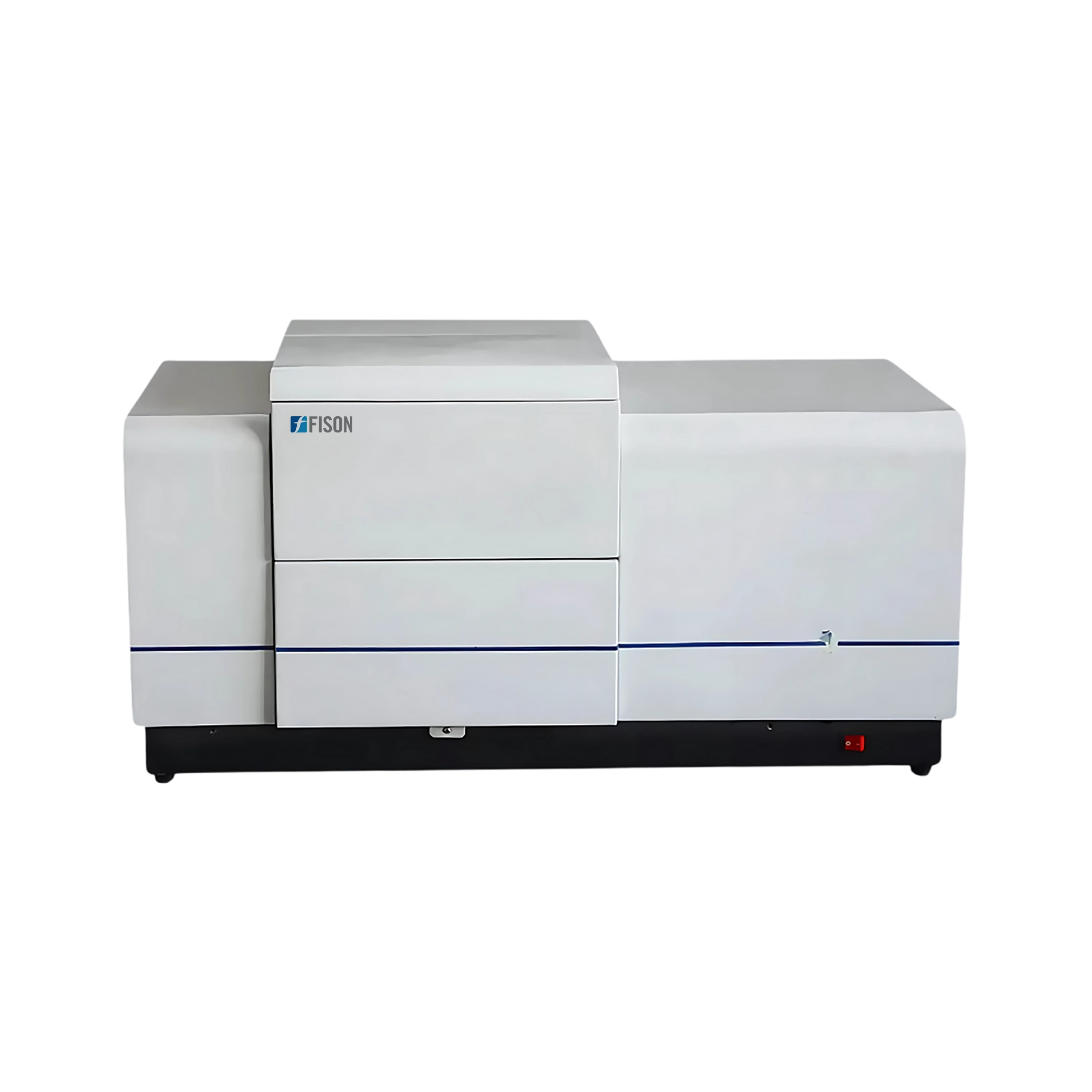

Laser Particle Size Analyzer FM-LPA-A202
Laser Particle Size Analyzer FM-LPA-A202 is an intelligent unit, designed as per ISO 13320-1:1999 standard configurations, adopted with MIE scattering principle and converging light Fourier transform light path. With highly stable He-Ne semiconductor laser and high-sensitive ring photoelectric detector, features 97 detector channels with 0.1 to 1200 µm of measuring range and dry-turbulence dispersion mode. Designed with manual and fully automatic operation modes, automatic vibration feeding and automatic optical path calibration system, offers different analysis modes, statistic comparison and method, and user-defined analysis. With <1 min of test time and results in various formats, supports intelligent data analysis with unconstrained free fitting technology and Windows operating software.
Specifications
| Dispersion Type | Dry |
| Measurement Range | 0.1 to 1200 µm |
| Channel number | 97 |
| Accuracy Error | <1% (National Standard Sample D50) |
| Repeatability Error | <1% (National Standard Sample D50) |
| Light Source | Semiconductor laser, λ = 632.8 nm P > 2 mW |
| Detector | High-sensitive ring photoelectric detector |
| Dispersion Mode | Dry-turbulence dispersion mode |
| Dispersion Technique | Normal shock wave shear technique |
| Feeding | Automatic vibration feeding |
| Optical Path Alignment | Fully automatic |
| Operation mode | Automatic/ Manual (Switchable) |
| Standard | ISO 13320-1:1999 |
| Test Speed | <1 min/time |
| Software Running | WIN 7/10/XP, 64 bits |
| Analysis mode | Free Distribution, R-R Distribution, Logarithm Normal Distribution, Mesh number classification etc. |
| Statistic Method | Volume Distribution, Quantity Distribution |
| Test Report | Word, Excel, Photo( Bmp), Text etc. |
| Dimension (L×W×H) | 1040×440×540 mm |
| Box 01 Packaging Dimension (L×W×H) | 1250×650×650 mm |
| Box 02 Packaging Dimension (L×W×H) | 860×450×750 mm |
| Box 03 Packaging Dimension (L×W×H) | 410×410×550 mm |
| Net Weight | 58 kg |
| Box 01 Gross Weight | 93 kg |
| Box 02 Gross Weight | 60 kg |
| Box 03 Gross Weight | 10 kg |
Features
- An intelligent unit designed as per ISO 13320-1:1999 standard configurations
- MIE scattering principle and converging light Fourier transform light path
- High-stable He-Ne semiconductor laser with high-sensitive ring photoelectric detector
- 97 detector channels with 0.1 to 1200 µm of measuring range
- Dry-turbulence dispersion mode, ensures sufficient particles dispersion
- Manual and fully automatic operation modes, switchable and easy-to-use
- Automatic vibration feeding and automatic optical path calibration system
- Different analysis modes, statistic comparison and method, and user-defined analysis
- <1 min of test time with results in various formats, such as Word, Excel, text etc.
- Intelligent data analysis with unconstrained free fitting technology and Windows operating software
- Highly-efficient, stable and reliable unit with good repeatability and accuracy
Applications
- Laser Particle Size Analyzer is used to measure the sizes of particles in a material across cosmetics, food, coal, paint, paper, petrochemical, dyes, inks, explosives, kaolin, medicine, metal powder, mica, milling, minerals, oxides industries etc.
