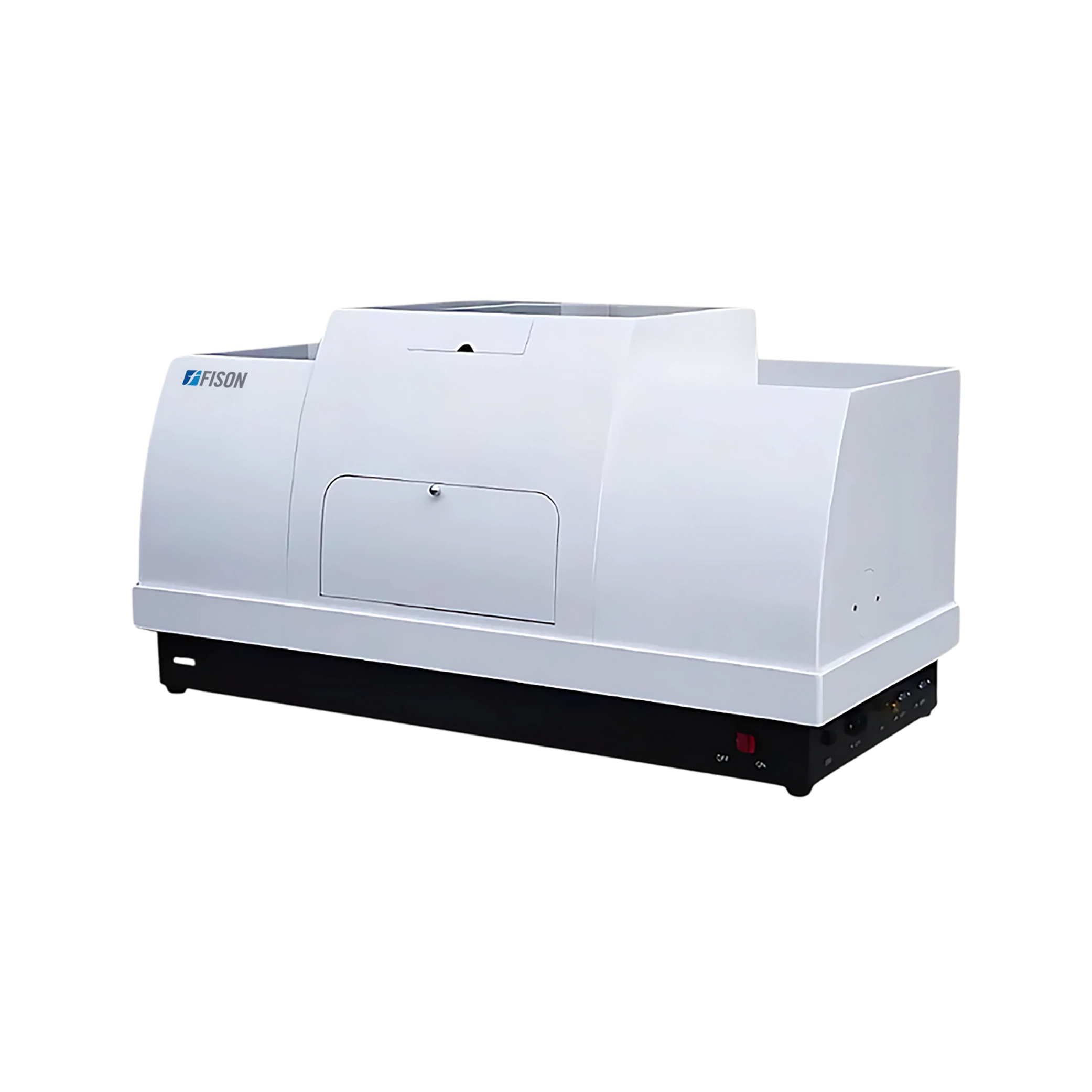

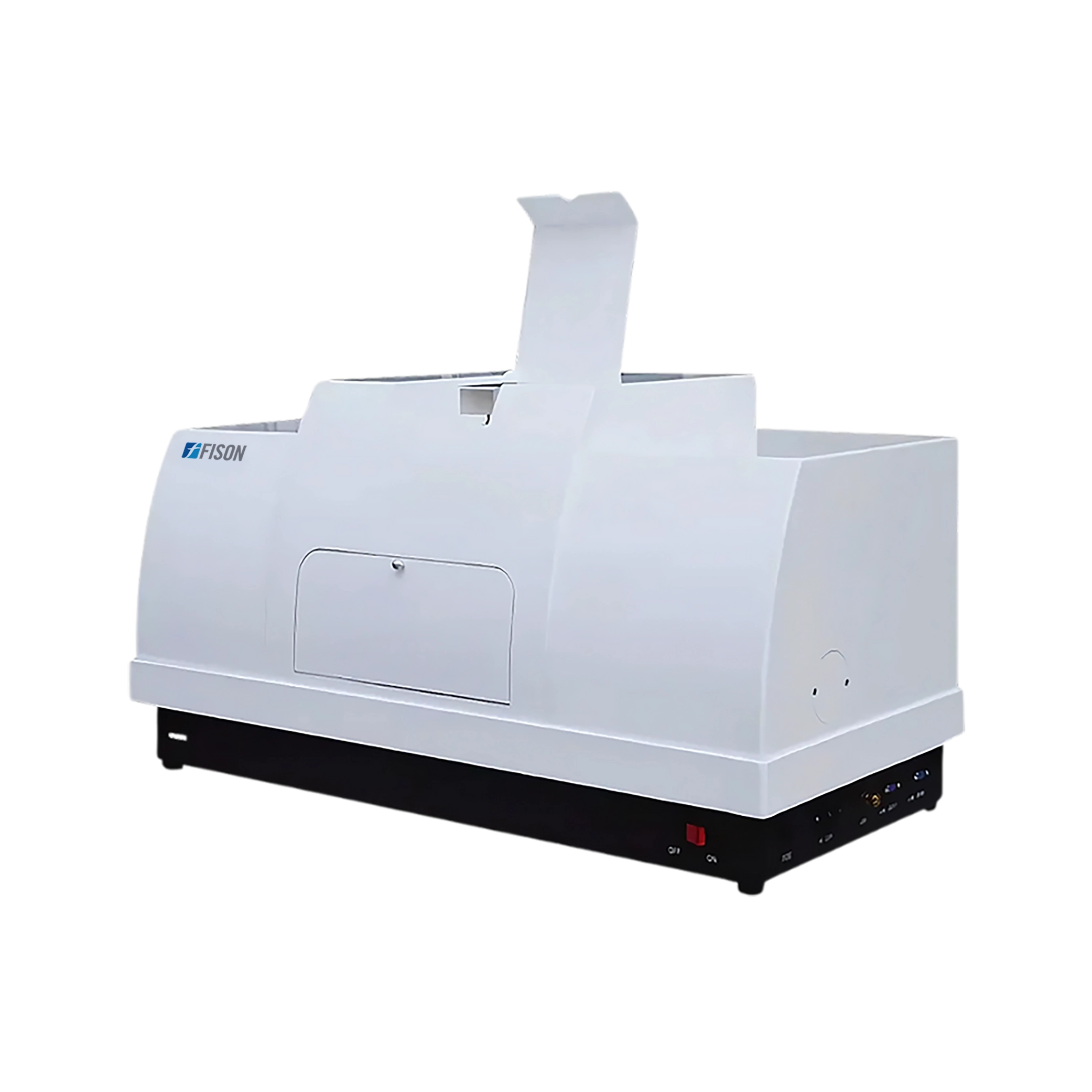

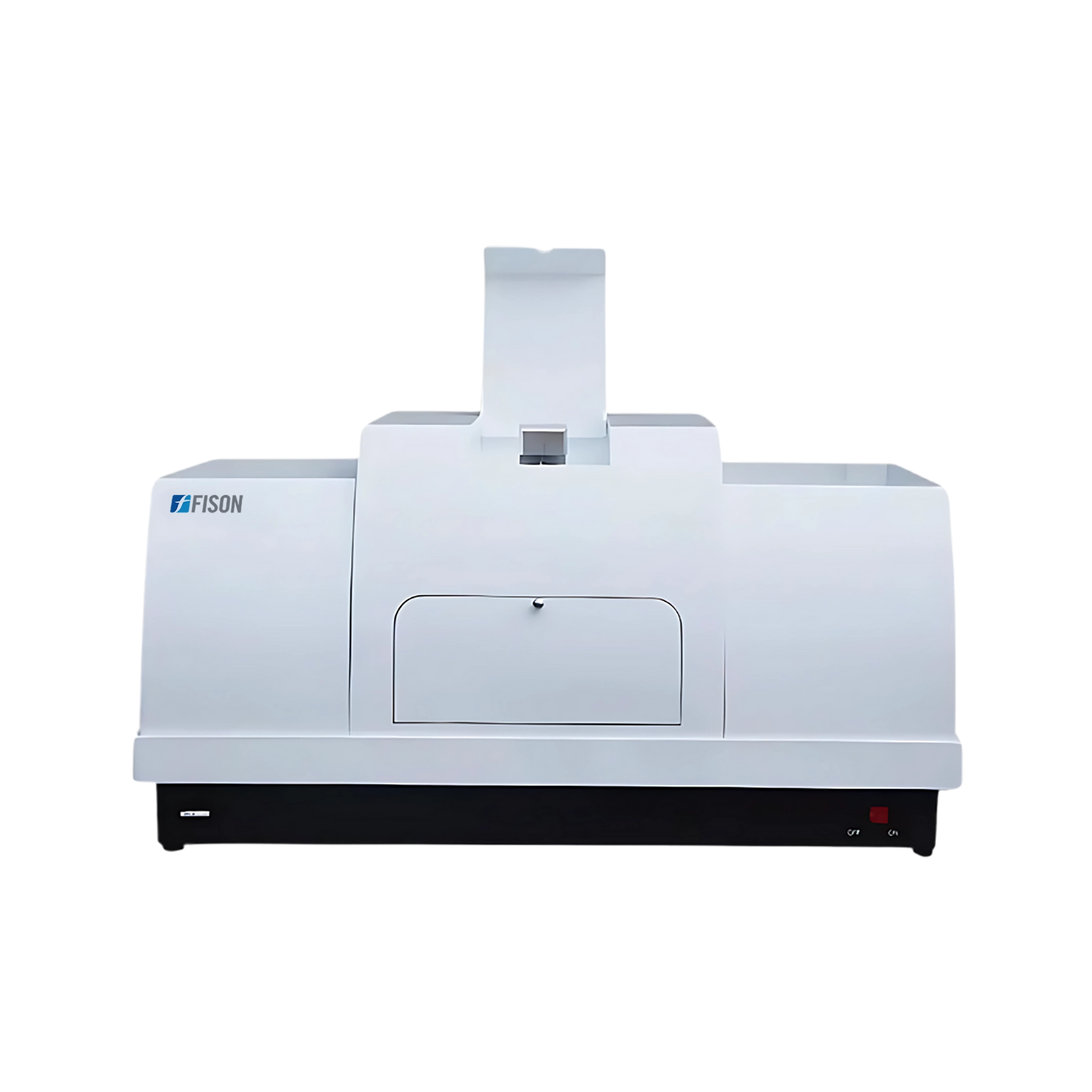

Laser Particle Size Analyzer FM-LPA-A102
Laser Particle Size Analyzer FM-LPA-A102 is designed for measuring the intensity of scattered light to determine the size distribution of particles suspended in a liquid medium. It features a measuring range from 0.1 µm to 1000 µm. Our analyzer allows for quick sample analysis with a test speed of less than 2 minutes for wet dispersion. Utilizes high-performance semiconductor lasers as light sources, providing stable and reliable illumination for accurate measurement.
Specifications
| Principle | Laser Diffraction |
| Measurement Range | 0.1 to 1000 µm |
| Temperature Range | 15 to 35 °C |
| Accuracy Error | <1% (CRM D50) |
| Repeatability Error | <1% (CRM D50) |
| Wet Dispersion Sample Pool | 450 mL |
| Laser | Semiconductor Laser λ = 632.8 µm, P> 2.0 mW |
| Wet Dispersion Ultrasonic Frequency | 40 KHz |
| Wet Dispersion Ultrasonic Power | 60 W |
| Wet Dispersion Ultrasonic Time | Adjustable |
| Wet Dispersion Stir Revolution Speed | 0 to 3000 rpm (adjustable) |
| Wet Dispersion Circulation | Rated Flow: 8 L/min |
| Rated Power | 10 W |
| Optical Path Alignment | Fully automatic |
| Optical Path Precision | 0.2 µm |
| Operation mode | Full-automatic, optical path alignment system |
| Test Speed | < 2 min/time, measuring time 10s |
| Dimension (L×W×H) | 860× 390 × 460 mm |
| 01 Box Packaging Dimension (L×W×H) | 1050× 570 × 610 mm |
| 02 Box Packaging Dimension (L×W×H) | 430 × 250 × 360 mm |
| Net Weight | 40 Kg |
| 01 Box Gross Weight | 69 Kg |
| 02 Box Gross Weight | 14 Kg |
Features
- Incorporates dual lens system for enhanced performance and versatility in particle size analysis
- Employs advanced laser diffraction principles and side light scatter test technology
- Integrated Sample Dispersion System guarantees consistent sample dispersion
- Enhanced with optical path system technology with automatic alignment
- Effortless handling with safety and sanitation
- Cost-effective maintenance
Applications
- Laser Particle Size Analyzer is used to determine the size and distribution of particles across cement, ceramics, medicines, paints, chemicals, catalyst, fuel, explosives, dyes, coal etc.
Accessories
- Power Cable 1 Pcs
Communication cable 2 Pcs
Slotted screwdriver 1 Pcs
Cross screwdriver 1 Pcs
Wrench 3 Pcs
Inner hexagon spanner 1 Pcs
Lens wiping paper 3 Pcs
Inlet pipeline 1 Pcs
Outlet pipeline 1Pcs
Quartz Sample cuvette 1Pcs
2A Fuse 5 Pcs
Sampling spoon 2 Pcs
Sample tank -Brush 2 Pcs
Tool bag 1 Pcs
Filter Set 1 Pcs
National certified reference material Bottle 1 Pcs
AC purification regulated power supply Set 1
