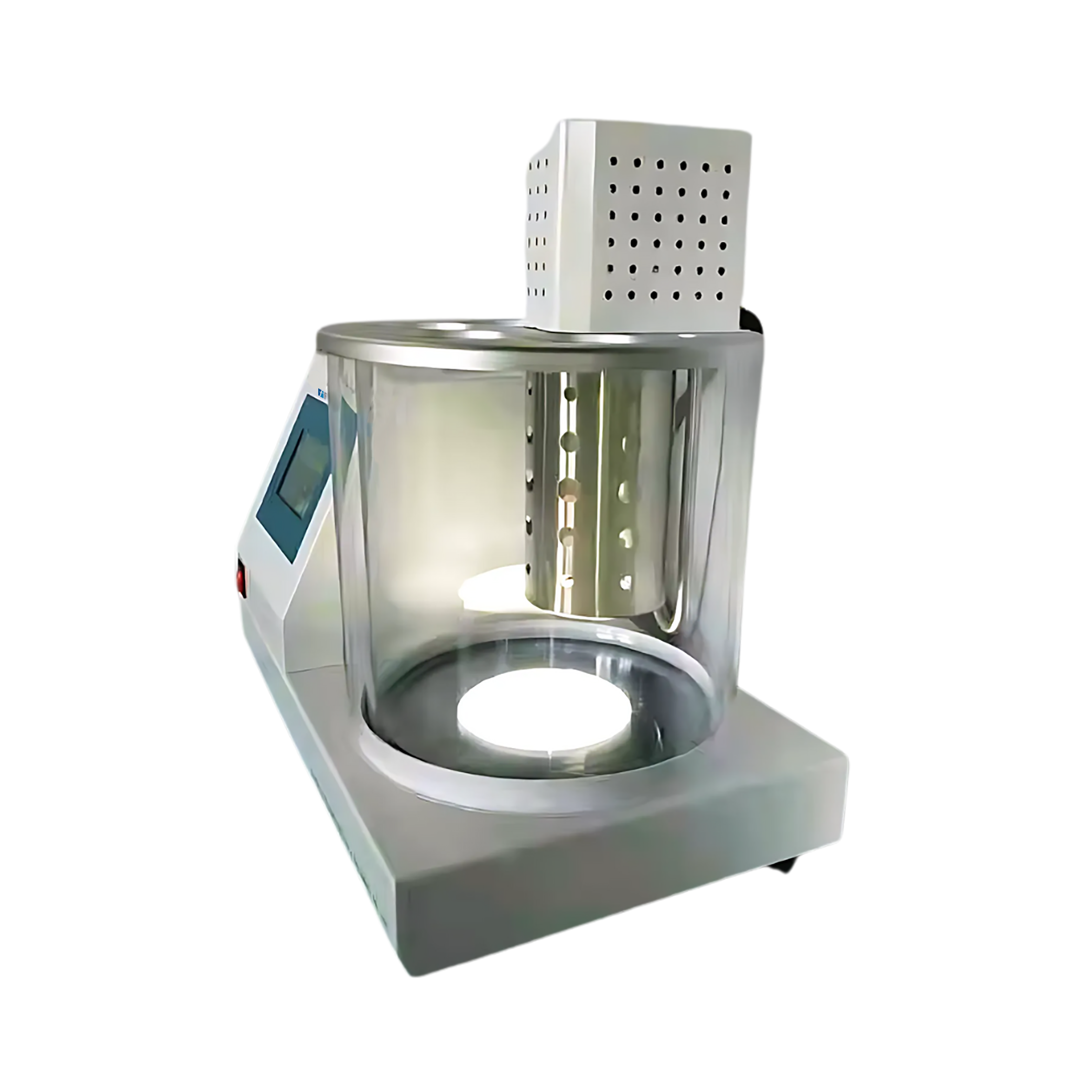

Kinematic Viscometer FM-KV-A100
Kinematic Viscometer FM-KV-A100 measures viscosity parameters within the range of 0.5 to 20000 mm2/s. Designed to regulate temperature in the dynamic range of RT to 99℃. Features built-in thermostats and homeothermic bathtub for consistent operation. Capable of testing 4 samples simultaneously and individually. Our product is versatile enough to examine both kinematic and dynamic viscosity of fluids.
Specifications
| Kinematic Viscometer Type | Capillary |
| Temperature Control Range | Room temperature to 99℃ |
| Temperature Control Accuracy | ± 0.01℃ |
| Temperature Sensor Type | Platinum electric resistance |
| Measurement Type | Kinematic and Dynamic Viscosity |
| Kinematic Viscosity Range | 0.5 to 20000 mm2/s |
| Dynamic Viscosity Range | 0.3 to 40000 mPa.s |
| Stirring Speed | 1520 rounds/min |
| Heating Power | 1800 W |
| Timing Range | 0.1 s to 999.9 s |
| Timing Accuracy | ± 0.1 s |
| Vessel Type | Double layer homeothermic bathtub |
| Vessel Dimensions | 300 × 300 mm |
| Display Type | 7-inch colour LCD |
| Printer | Thermal printer with 55 mm paper roll |
| Sample Processing Quantity | 4 pieces |
| Working Environment Temperature | 0℃ to 40℃ |
| Relative Humidity | < 80% |
| Power Supply | AC 220V ± 10%, 50 Hz |
| Dimensions (L × W × H) | 560 × 370 × 520 |
| Weight | 20 kg |
Features
- Portable benchtop design
- 7-inch LCD colour display
- Powerful heating device
- Advanced platinum electric resistance sensor
- High-speed thermal printer
- Auto-storage and auto-printing of results
Applications
- Kinematic Viscometer measures gravity influenced fluid flow of pharmaceuticals, petroleum products, paints, dyes and cosmetics.
