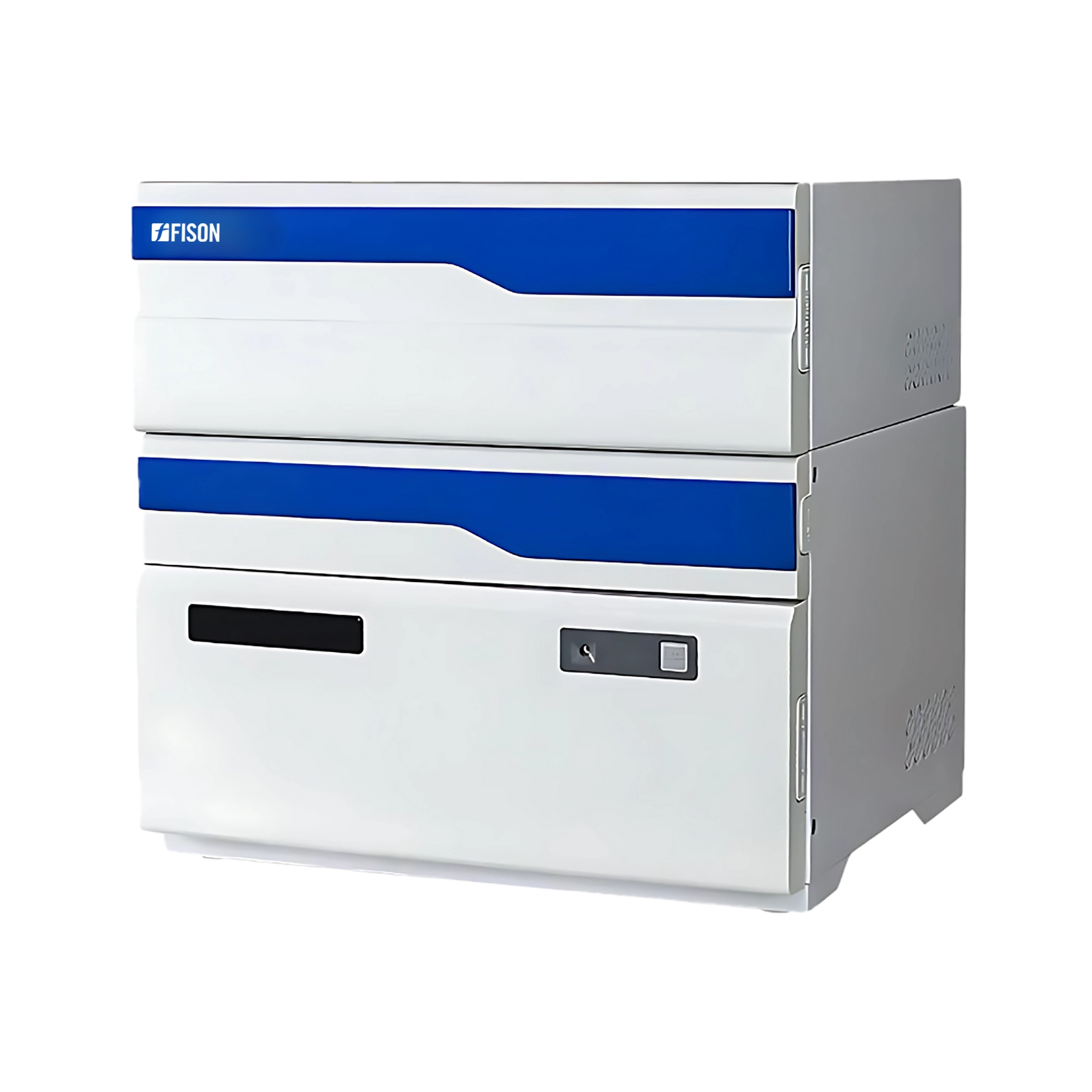

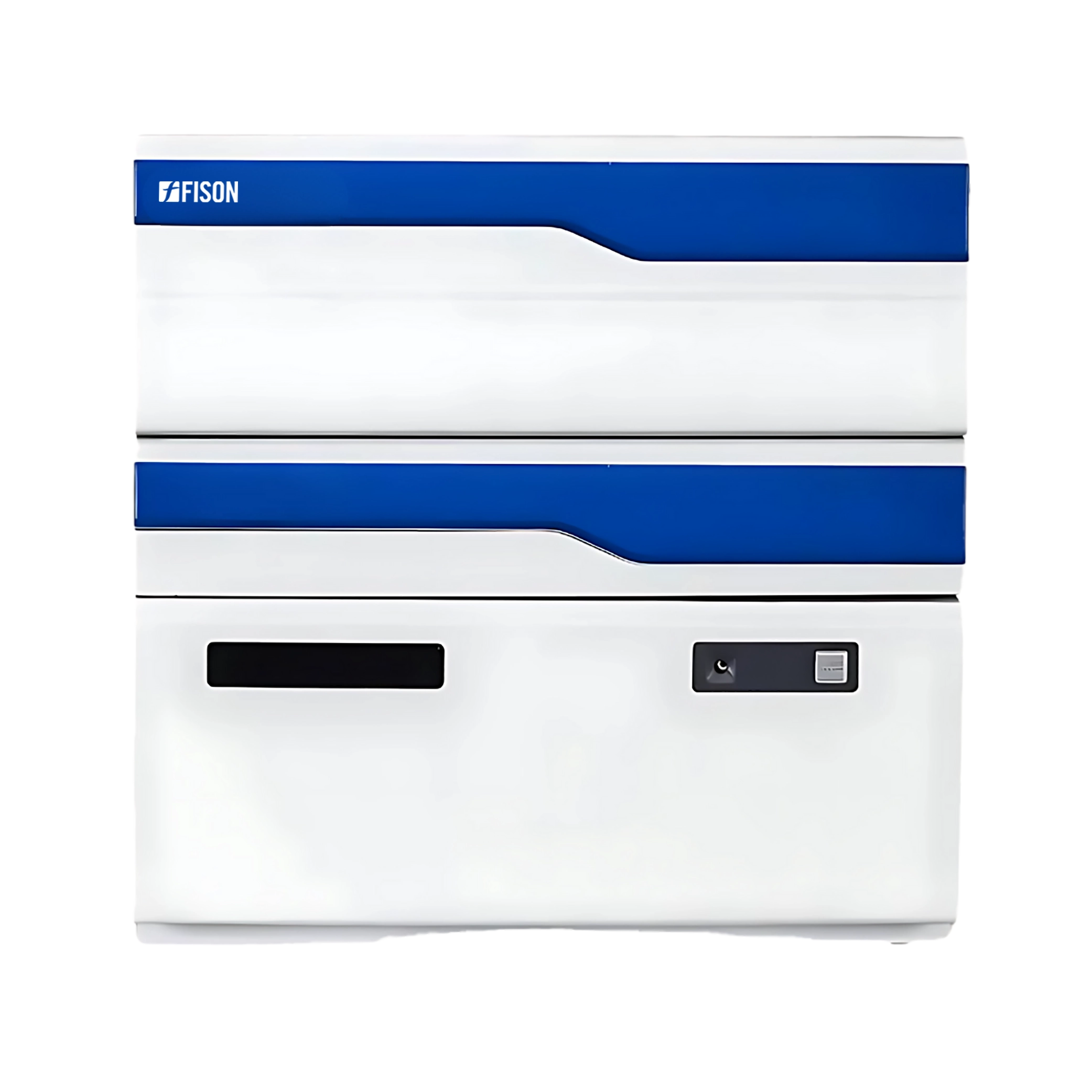

Ion Chromatography system FM-ICS-A100

Ion Chromatography system FM-ICS-A100

Ion Chromatography system FM-ICS-A100 is designed to deliver unparalleled performance in ion analysis. Column heater maintains a stable temperature for optimal performance, with a controlling accuracy of ± 0.1 °C. Integrated with dual-channel system for independent operation of cation and anion channels. This enables simultaneous detection without any interference. With its advanced features and extensive capabilities, it is the ultimate solution for high-performance in diverse analytical settings.

Specifications

Eluent Types KOH, NaOH, LiOH, MSA
Eluent Concentration Range 0.1 to 100 mM
Eluent Generator Concentration Increment 0.1 mM
Eluent Generator Flow Rate Range 0.1 to 5.0 ml/min
Eluent Generator Maximum Pressure 30 Mpa
Eluent Generator Minimum Pressure 5 Mpa
Eluent Generator Accuracy of Gradient 0.0015
Vacuum Degree -70 kPa
Vacuum Degasser Internal Volume 300 μL
Vacuum Degasser Flow Rate Maximum 10 ml/min
Degassing Efficiency 90% at 1.0 ml/min
Degassing Volume 7.5 ml
Flow Path Material Chemically inert, metal-free PEEK, compatible with aqueous eluents of pH 0 to 14 and reversed-phase solvents
Pump Type Two-piston tandem advection pump
Maximum Pressure of Pump 42 Mpa
Pump Pressure Ripple ≤0.5%
Flow Rate Range of Pump 0.001 to 9.999 mL/min
Pump Flow Precision ≤0.1%
Pump Flow Accuracy ≤0.1%
External Diameter of the Tube 1/16"
Column heater operating temperature range Ambient +5 to 60 ℃
Column heater temperature accuracy ±0.1 °C
Column heater temperature stability ≤0.1 ℃/h
Columns Supported 2, 3, 4, 5 mm ID (up to 250 mm length, with 50 mm guard column)
Conductivity Detector type Auto-range conductivity detector
Conductivity Detector Cell Volume ≤0.8 μL
Detection Range 0 to 50000 μS/cm
Conductivity Detector Resolution ≤0.0020 nS/cm
Conductivity Baseline Noise ≤0.0005 μS/cm
Conductivity Detector Electronic noise 0.02 nS
Detector Baseline Drift ≤0.005 Μs
Conductivity Detector Maximum Pressure 10 Mpa
Operating Temperature Range Ambient +5 ℃ to 60 ℃
Controlling Temperature Accuracy ±0.01 ℃
Temperature Compensation 1.7 % / ℃
Maximum Pressure Handling 10.0 MPa
Linear Range of Conductivity Measurement ≥10 3
Instrument Linearity for Conductivity ≥0.999
Quantitative Repeatability in Conductivity ≤0.5%
Qualitative Repeatability in Conductivity ≤0.2%
Minimum Detectable Concentration (Cl-) ≤0.0004 µg/mL
Minimum Detectable Concentration (Li+) ≤0.0001 µg/mL
Suppressor type Self-Regeneration electrolytic micro-membrane
Suppressor maximum pressure 6 MPa
Suppressor void volume < 40 μL (4 mm), < 15 μL (2 mm)
Power 350 W
Exterior dimension (L × W × H) 500 × 500 × 760 mm
Net Weight 48 Kg
Gross Weight 73 Kg

Features

  • Cutting-edge ion chromatography system
  • Advanced eluent thermal buffer system
  • High-pressure, low-pulse pump technology
  • High-performance conductivity detector
  • Temperature stability and control
  • Self-regeneration electrolytic suppressors
  • Built-in leakage sensors
  • Chemically inert design
  • Low-pressure degassing technology

Applications

  • Ion Chromatography system is widely used across environmental analysis, pharmaceuticals and biotechnology, food and beverage, chemicals, petrochemicals, water treatment, healthcare and clinical laboratories, agriculture, etc.

Analytical HPLC System

Fison Analytical HPLC Systems are designed for precise and efficient liquid chromatography, offering reliable performance for various applications. They feature an adjustable flow rate range, ensuring optimal flow control for different sample types. These systems provide user-friendly interface for simple operation and boost productivity. They offer robust pump designs for reliable, stable performance. Our units include integrated software system for seamless digital documentation.

Analytical HPLC System FM-AHS-A100

  • Pump Type : Low-Pressure Quaternary Constant Flow Pump with mixer
  • Pump Flow Range : 0.001 to 10 mL / min
  • Pump Flow Step : 0.001 mL / min
Catalog

Analytical HPLC System FM-AHS-B100

  • System Qualitative Repeatability : less than or equal to.0.2%
  • System Quantitative Repeatability : less than or equal to. 0.4%
  • Flow Pump Flow Rate Setting Range : 0.001 to 10.000 mL/min
Catalog

Liquid Chromatography

Labtron Liquid Chromatography are designed for multi-component purification with high specificity, sensitivity and stability. They combine liquid chromatograph with mass spectrometer for improved identification accuracy. Their design minimizes contamination and background noise for operational ease. They are equipped with pumps for accurate and precise flow rate control. Our Liquid Chromatography feature wider dynamic range of detectors for data reproducibility and reliability.

Liquid Chromatograph Mass Spectrometer FM-LCMS-A100
  • Solvent Selection : Switchable between two solvent pairs (A/B or C/D)
  • Degasser Type : Vacuum Degasser, Separate degasser for each pump
  • Pump Flow Range : 1 to 4,000 µL/min
Catalog

GC-MS

Fison GC-MS includes highly sensitive detection systems that analyze trace compounds at levels as low as ppb or ppt. They support various analysis modes, such as selected ion monitoring (SIM) for targeted analyses. Their integration with autosamplers ensures fast and consistent sample handling for large batches. The vast libraries, such as NIST and Wiley, enable the accurate identification of unknown compounds through spectral matching. These are capable of detecting a wide range of concentrations, from ultra-trace levels to high concentrations, making them ideal for diverse sample types. Our GC-MS are equipped with sensitive detectors like quadrupoles, ion traps, or (TOF) systems for advanced mass analysis.

Gas Chromatography-Mass Spectrometry FM-GCMS-A100
  • Inlet Temperature : Max. 450°C
  • Pressure Range : 0 to 100 psi (±0.002 psi)
  • Pressure Control Mode : Electronic Pressure Control (EPC), supports Constant Volume (CV) and Constant Current (CC)
Catalog
