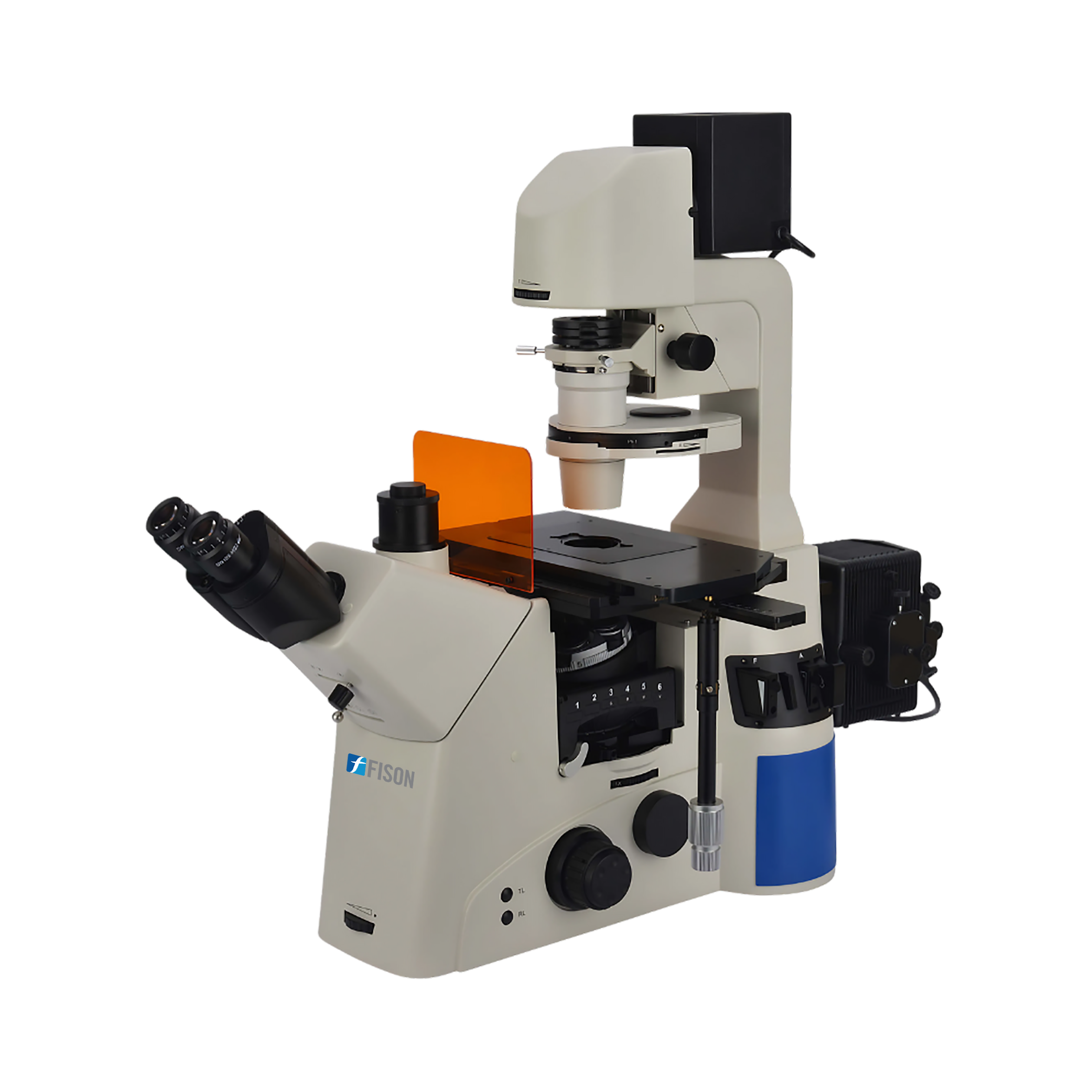

Inverted Fluorescence Microscope FM-FM-B101

Inverted Fluorescence Microscope FM-FM-B101

Inverted Fluorescence Microscope FM-FM-B101 features internal magnification settings of 1× and 1.5×, providing versatility for detailed observation and enhanced imaging. It includes a customizable stage with a three-layer design and options for attaching smaller stages. This incorporates a high-power LED lamp for bright, consistent imaging. Our Microscope provides a long working distance condenser that ensures clear imaging for thick or live specimens.

  •  Adjustable beam split ratio
  •  Efficient fluorescence filter module
  •  Robust image capture support
  •  Flexible viewing configuration
  •  Enhanced phase contrast

Viewing Head Trinocular head with Bertrand lens, inclined at 45°, Interpupillary 47 to 78mm, 3 position beam split ratio: 50/50, 100/0, 0/100
Eyepiece SW10×/25mm, φ30mm
Optical System Infinite optical system
Illumination Kohler illumination, 12V/100W halogen lamp, ECO Auto-off function (automatically shut off in 15 mins if no users)
Nosepiece 6-hole nosepiece with DIC slot
Infinite Plan Semi-APO Phase Contrast Objective 10× NA = 0.3 WD = 8.1mm Cover glass 1.2mm, 20× NA = 0.45 WD = 7.5-8.8mm Cover glass 0 to 2mm, 40× NA = 0.60 WD = 3 to 4.4mm Cover glass 0 to 2mm
Condenser Long working distance condenser, NA0.55, WD = 26mm, with 6-position plate
Focusing Coaxial coarse & fine focusing. Movement range 9mm, coarse adjustment 2mm/rotation, fine adjustment 0.2mm/rotation
Internal Magnification 1×, 1.5×
Side Video Port Switchable by turning plate, 3 models: left side port/eyepiece = 50/50; right side port/eyepiece = 20/80; left & right-side port/eyepiece = 0/100
Phase Contrast Standard
Stage Three-layer mechanical stage, stage size: 340×230mm, movement range 130×85mm, flexible knob. Different small sizes stages could be attached to the main stage
Fluorescent Attachment Epi-fluorescence attachment with 5W LED lamp and B, G, UV fluorescent filters (input voltage: 100V to 240V), field diaphragm, center adjustable, Multi-model plate structure, total 6 position, could be taken out from main frame and change different cube easily
Dimensions (L×W×H) 580 × 570 × 530 mm
Weight 26.5 kg

Inverted Fluorescence Microscope FM-FM-B101 is used in cell biology, microbiology, and genetic engineering for observing live cells, microorganisms, and tissues. It is widely applied in research institutes, universities, and medical laboratories.

1× C-mount adapter B, G, U fluorescent filters


LED lamp
B, G, U, R LED lamps

DIC


Darkfield
