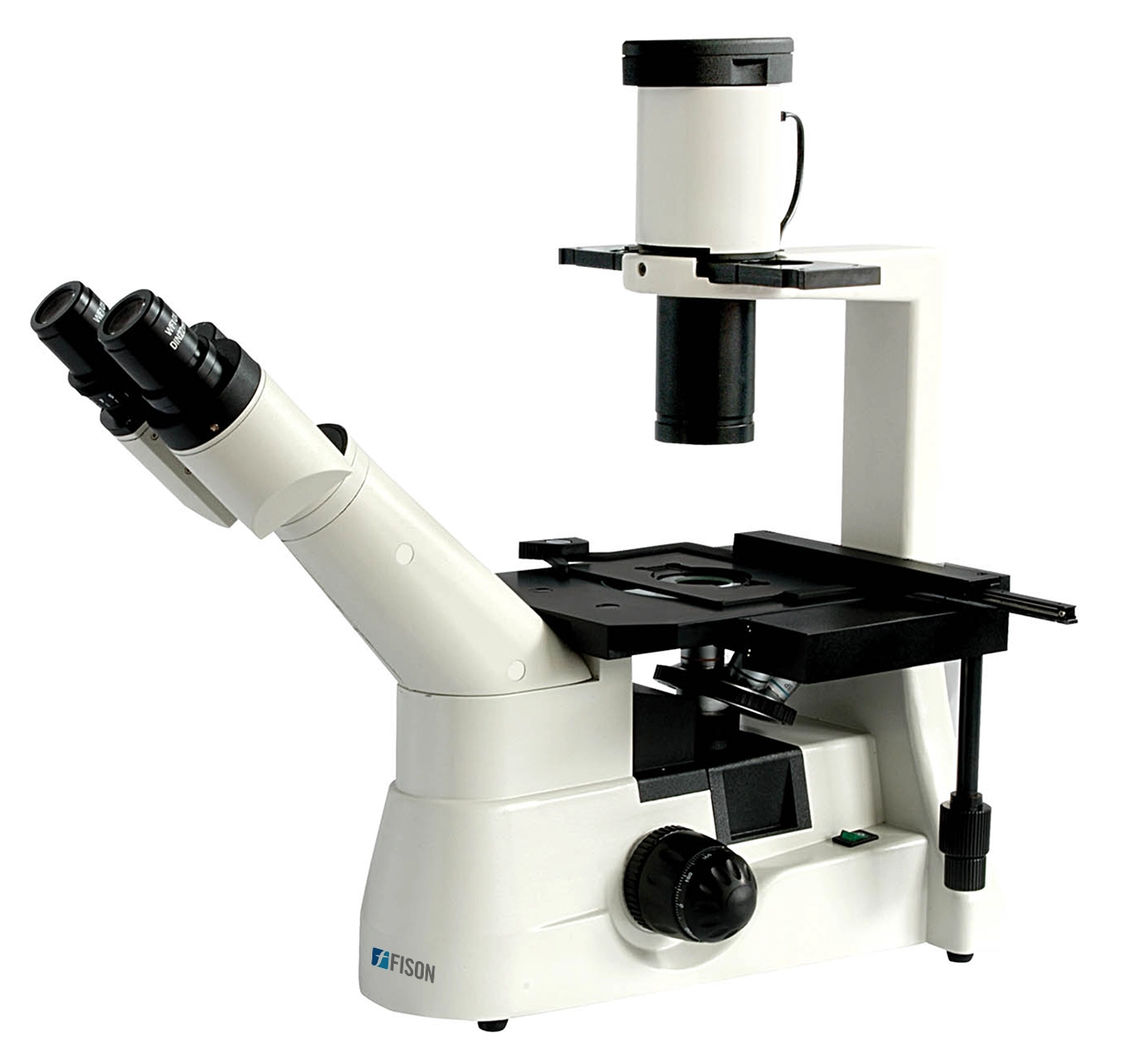

Inverted Biological Microscope FM-BM-B101

Inverted Biological Microscope FM-BM-B101

Inverted Biological Microscope FM-BM-B101 offers compact and sleek design, stable and reliable (T) type base unit with infinite optical system. Equipped with superior resolution, distance infinite plan objectives, to deliver high quality images. User can configure the cell more clearly and obtain high quality images of the specimen. This user-friendly inverted microscope is used in many branches of biology.

Specifications

Optical System Infinite optical system
Viewing head Compensation free binocular head inclined at 45°C, interpupillary distance 50 to 75 mm
Eyepiece WF10X/ 22 mm
Long working distance plan objective Not applicable
Distance infinite plan objective LWDPL 4X/ 0.1 W.D. 29.4 mm
LWDPL 10X/0.25 phase contrast W.D. 16 mm
LWDPL 20X/ 0.4 phase contrast W.D. 10.5 mm
LWDPL 40X/ 0.6 W.D. 5.4 mm
Nosepiece Backward Quintuple Nosepiece
Stage dimension Double layer mechanical stage, stage size: 242×172 mm, central stage : 110 mm, Moving stage: 115×75 mm
Condenser N.A. 0.3 Abbe condenser W.D. 75 mm
Focusing Coaxial coarse & fine focusing adjustment with rack & pinion mechanism, fine focusing scale value 0.001 mm
Phase contrast sliding plate Adjustable center for phase contrast ring plate
Centering telescope Centering Telescope 30 mm
Filter Blue, green, yellow froster glass plate
Illumination Halogen bulb 12 V/ 30 W, brightness adjustable
Dimension 750×320×475 mm
Gross weight 13 kg

Features

  • Distance infinity plan objective
  • Adjustable center phase contrast ring plate
  • Seidentopf binocular 45° inclined viewing head
  • Inverted working stage
  • Backward quintuple nosepiece
  • Center telescope attachment

Applications

  • Used for wide range of applications in biotechnology, tissue culture, microbiology, medicine and other industry.

Accessories Optional

  • Accessories No. Name
    1 WF10X/ 18 mm with cross graduation of 0.1 mm scale
    2 Long working distance objective LWDPL 10X
    3 Long working distance objective LWDPL 20X
    4 Long working distance phase contrast objective LWDPL 40X
    5 Fluorescence attachment: B, G wave band, 220 V/ 100 W mercury lamp
    6 0.5X C mount adapter
    7 1X C mount adapter
