Hydrogen Peroxide Plasma Sterilizer FM-HPS-C104 Hydrogen Peroxide Plasma Sterilizer FM-HPS-C104

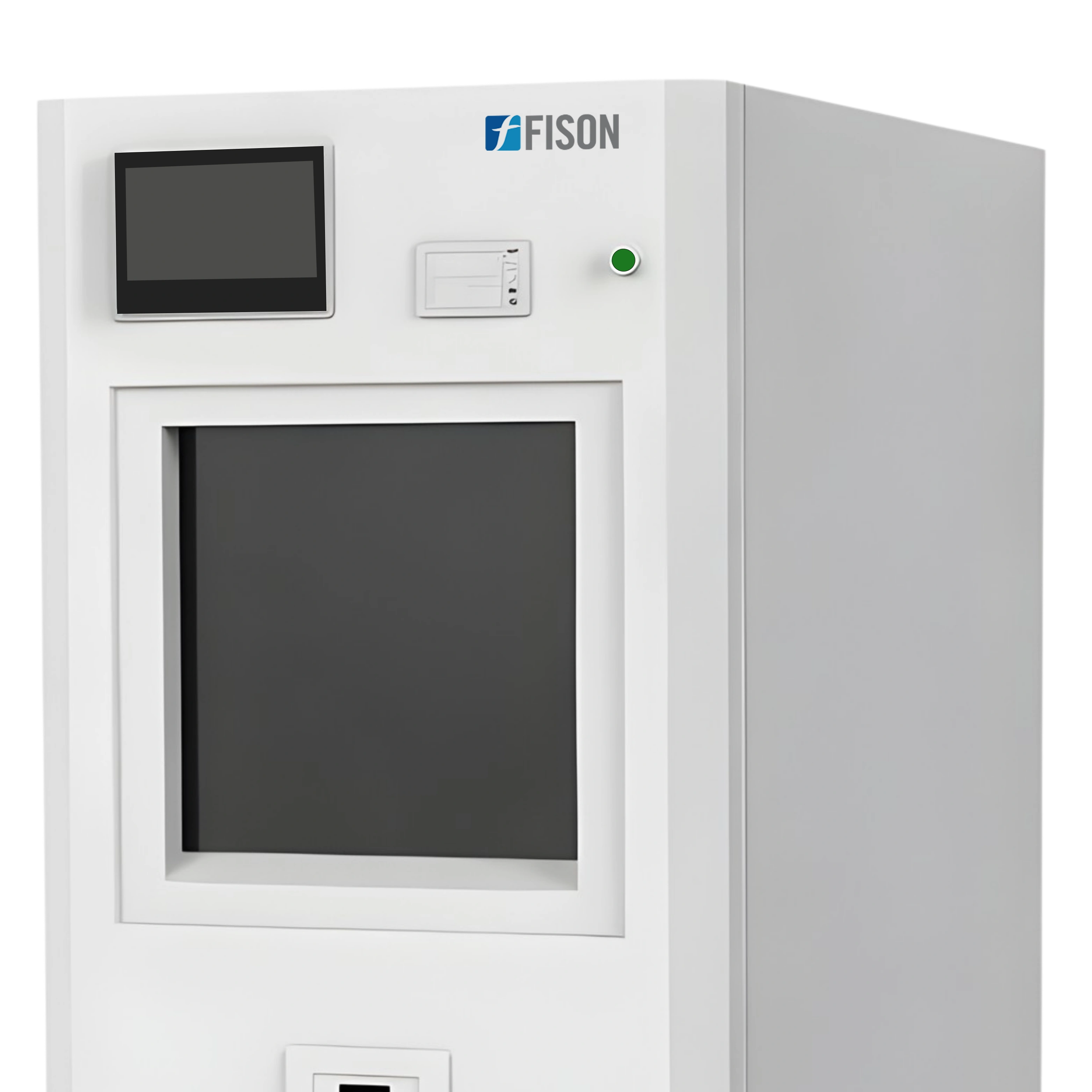

Hydrogen Peroxide Plasma Sterilizer FM-HPS-C104

Hydrogen Peroxide Plasma Sterilizer FM-HPS-C104, with its cassette plasma sterilizer, has a 180 L capacity. The device utilizes H2O2 sterilization technology for safe and effective disinfection. Its enhanced sterilization efficacy makes it ideal for complete pathogen elimination and ensuring a sterile environment. The sterilizer features an efficient cassette sterilizer designed for quick and reliable performance.

Specifications

Volume 180 L
Sterilization Temperature 50℃
H2O2 Filling Method Bottled
Sterilization Agent 60 % Hydrogen Peroxide
Sterilization Cycle Fast Sterilization≤ 25 min
Standard Sterilization≤ 35min
Enhanced Sterilization≤ 55min
Biological Indicator Cultivator ≤± 0.3℃ Temperature Control Accuracy
Temperature Sensor 50±5℃
Master Controller PLC Control
Vacuum Pump System 16 m³/h High-Vacuum H2O2 Resistant Pump
Test Methods Biological Monitoring of Bacillus subtilis and Bacillus stearothermophilus
Power Supply 110/220 V, 50/60 Hz
Inner Dimension (L × W × H) 850 × 460 × 460 mm
Outer Dimension (L × W × H) 1040 × 780 × 1670 mm
Weight 308 kg

Features

  • User-friendly controls
  • Quiet operating system
  • Optimized energy usage
  • Chemical-free sterilization
  • Precision sterilization capability

Applications

  • Hydrogen Peroxide Plasma Sterilizer FM-HPS-C104 effectively sterilizes medical instruments and sensitive devices at low temperatures using H2O2 gas. It offers a safe and efficient solution for hospitals, laboratories, and healthcare settings and ensures thorough disinfection.

Alternative Models Of Hydrogen Peroxide Plasma Sterilizer

Hydrogen Peroxide Plasma Sterilizer FM-HPS-A100

  • Cabinet type: Vertical (Full automatic)
  • Capacity: 100 L
  • Design: Single door rectangular autoclave
Catalog

Hydrogen Peroxide Plasma Sterilizer FM-HPS-A101

  • Cabinet type: Vertical (Full automatic)
  • Capacity: 130 L
  • Design: Single door rectangular autoclave
Catalog

Hydrogen Peroxide Plasma Sterilizer FM-HPS-A102

  • Cabinet type: Vertical (Full automatic)
  • Capacity: 190 L
  • Design: Single door rectangular autoclave
Catalog
Hydrogen Peroxide Plasma Sterilizer FM-HPS-B100
  • Volume: 63 L
  • Sterilization Temperature: 50℃ ± 5℃
  • Filling Method: Cassette: 12 vials of H2O2 / Cassette
Catalog
Hydrogen Peroxide Plasma Sterilizer FM-HPS-B101
  • Volume: 110 L
  • Sterilization Temperature: 50℃ ± 5℃
  • Filling Method: Cassette: 12 vials of H2O2 / Cassette
Catalog

Hydrogen Peroxide Plasma Sterilizer FM-HPS-B102

  • Volume: 128 L
  • Sterilization Temperature: 50℃ ± 5℃
  • Filling Method: Cassette: 12 vials of H2O2 / Cassette
Catalog

Hydrogen Peroxide Plasma Sterilizer FM-HPS-B103

  • Volume: 160 L
  • Sterilization Temperature: 50℃ ± 5℃
  • Filling Method: Cassette: 12 vials of H2O2 / Cassette
Catalog

Hydrogen Peroxide Plasma Sterilizer FM-HPS-B104

  • Volume: 180 L
  • Sterilization Temperature: 50℃ ± 5℃
  • Filling Method: Cassette: 12 vials of H2O2 / Cassette
Catalog
Hydrogen Peroxide Plasma Sterilizer FM-HPS-B105
  • Volume: 200 L
  • Sterilization Temperature: 50℃ ± 5℃
  • Filling Method: Cassette: 12 vials of H2O2 / Cassette
Catalog
Hydrogen Peroxide Plasma Sterilizer FM-HPS-B106
  • Volume: 300 L
  • Sterilization Temperature: 50℃ ± 5℃
  • Filling Method: Cassette: 12 vials of H2O2 / Cassette
Catalog

Hydrogen Peroxide Plasma Sterilizer FM-HPS-C100

  • Volume: 63 L
  • Sterilization Temperature: 50℃
  • Filling Method: Bottled Type
Catalog

Hydrogen Peroxide Plasma Sterilizer FM-HPS-C101

  • Volume: 110 L
  • Sterilization Temperature: 50℃
  • Filling Method: Bottled Type
Catalog

Hydrogen Peroxide Plasma Sterilizer FM-HPS-C102

  • Volume: 128 L
  • Sterilization Temperature: 50℃
  • Filling Method: Bottled Type
Catalog
Hydrogen Peroxide Plasma Sterilizer FM-HPS-C103
  • Volume: 160 L
  • Sterilization Temperature: 50℃
  • H2O2 Filling Method: Bottled
Catalog
Hydrogen Peroxide Plasma Sterilizer FM-HPS-C105
  • Volume: 200 L
  • Sterilization Temperature: 50℃
  • H2O2 Filling Method: Bottled
Catalog

Damp Heat Quick Sterilizer

Damp Heat Quick Sterilizer FM-DSP-A101

  • Type : Pulsating vacuum type (Full automatic)
  • Cabinet style : Desktop
  • Sterilizing chamber Capacity : 23 L
Catalog

Damp Heat Quick Sterilizer FM-DSP-A102

  • Type : Pulsating vacuum type (Full automatic)
  • Cabinet style : Desktop
  • Sterilizing chamber Capacity : 45 L
Catalog

Ethylene Oxide Sterilizer

Ethylene Oxide Sterilizer FM-ETS-A100
  • Sterilizing chamber Capacity : 120L
  • Type : Constant temperature heating box
  • Cabinet : Vertical (manual front door opening)
Catalog
Ethylene Oxide Sterilizer FM-ETS-A101
  • Sterilizing chamber Capacity : 220 L
  • Type : Constant temperature heating box
  • Cabinet : Vertical (manual front door opening)
Catalog

Bacti-Cinerator Sterilizer

Bacti-Cinerator Sterilizer-FM-BCS-A100

  • Center High Temperature : 825℃ ±50℃
  • Max-Diameter of Sterilizer : φ35
  • Length of Sterilizer : 100 mm
Catalog

Horizontal Steam Sterilizer

Fison Horizontal Steam Sterilizer has a real-time status display provides clear updates on the sterilization process to monitor progress and ensure accuracy. The overpressure relief valve ensures controlled pressure release to prevent system damage. The efficient steam generator delivers consistent and powerful steam output, ensuring thorough sterilization in a shorter time. They feature a microcomputer control system, offering precise control over parameters like temperature and pressure for reliable performance. Our Horizontal Steam Sterilizer has customizable sterilization modes to adjust settings for optimal performance.

Horizontal Steam Sterilizer FM-HSS-A100

  • Capacity : 150 L
  • Design Pressure : 0.3 Mpa
  • Working Pressure : 0.23 Mpa
Catalog

Glass Bead Sterilizer

Fison Glass Bead Sterilizer is constructed with a stainless-steel inner container for enhanced durability and easy cleaning. It is equipped with a digital controller for precise operation. They include one bag of glass beads for immediate use in sterilization. This unit comes with a highly precise temperature controller and over-temperature protection for accurate sterilization. Our Glass Bead Sterilizer operates without gases, fumes, open flames, or harsh liquids to provide a safer sterilization process.

Glass Bead Sterilizer FM-GBS-A100
  • Chamber Volume : Φ40 mm x 80 mm
  • Glass Beads Capacity : 150 g
  • Temperature Range : 100°C ~ 300°C
Catalog
