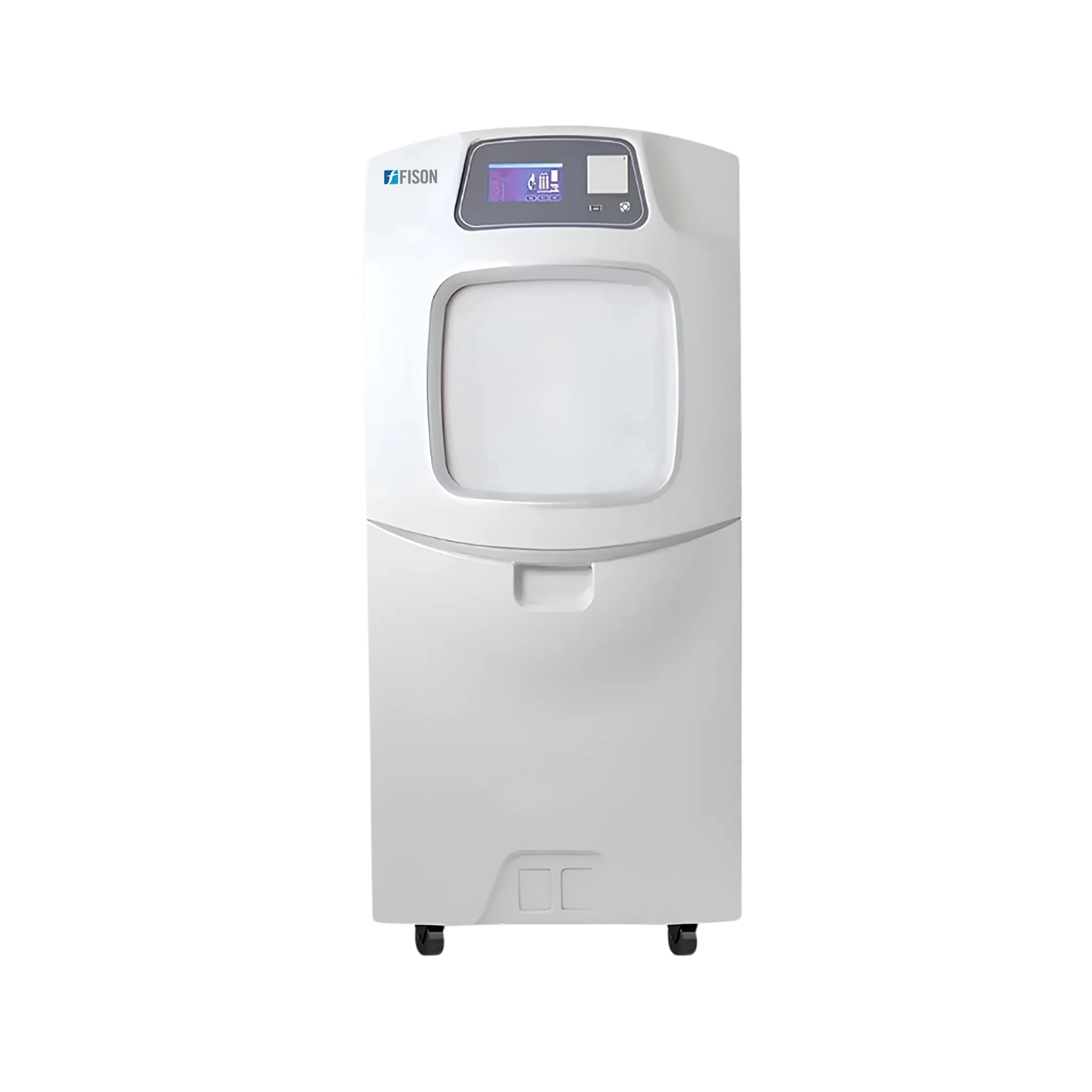

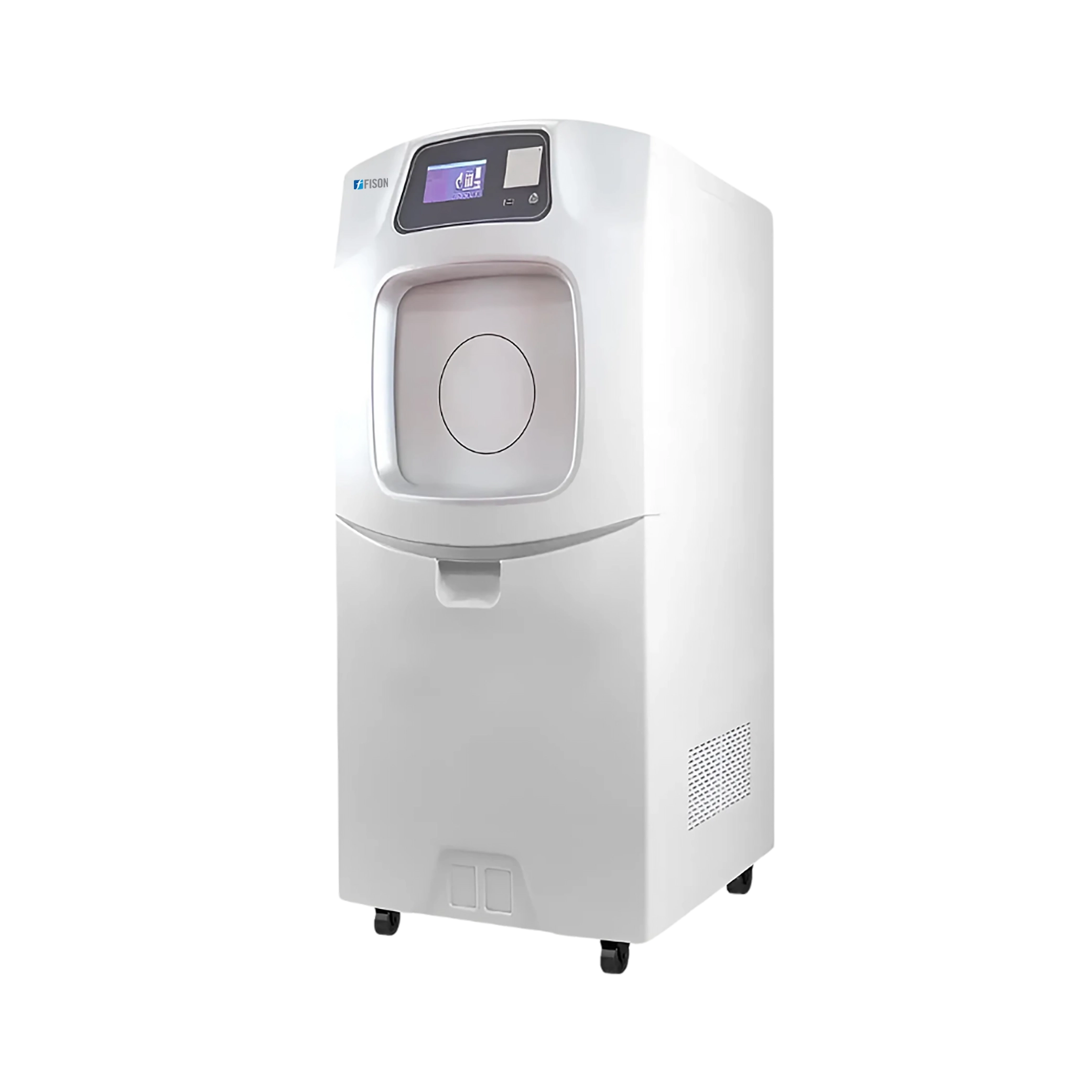

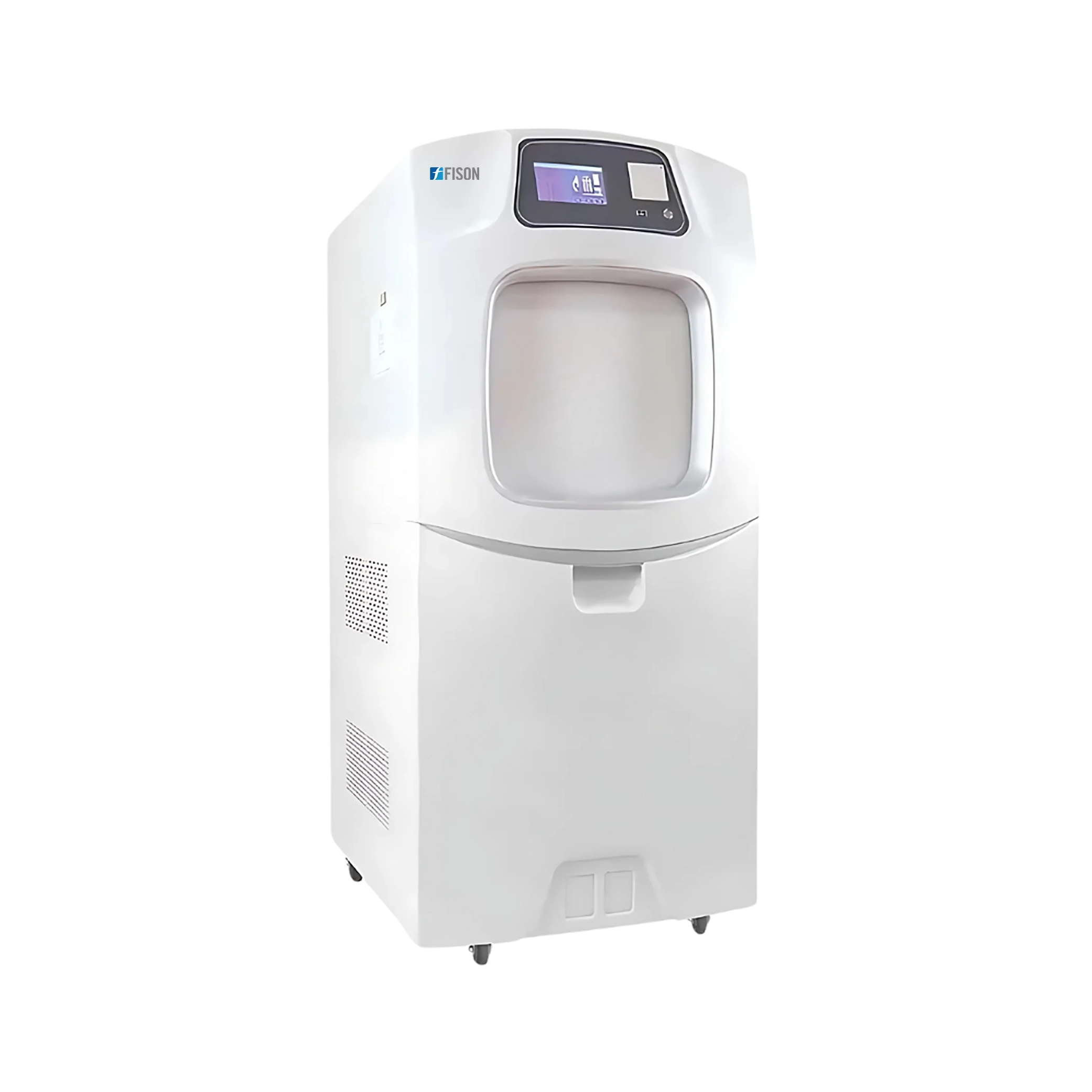

Hydrogen Peroxide Plasma Sterilizer FM-HPS-A101

Hydrogen Peroxide Plasma Sterilizer FM-HPS-A101

Hydrogen Peroxide Plasma Sterilizer FM-HPS-A101 is a low temperature PLC control system based autoclave with the sterilization capacity of 130 L. This fully automatic unit features 50°C sterilizing temperature, 50 Pa hydraulic pressure and 45 to 50 min sterilization time. It uses hydrogen peroxide solution as a sterilizing agent which does not leave any residue of toxic substances after sterilization. Unit comes with high grade durable 5052 Aluminum material and equipped with color LCD touch screen panel to monitor operation steps with running state and an alarm system to indicate low and high temperature.

Specifications

Cabinet type Vertical (Full automatic)
Capacity 130 L
Design Single door rectangular autoclave
Category Class B
Working pressure 50 Pa
Ambient temperature 5°C - 45°C
Working temperature 50°C
Temperature accuracy ±5°C
Sterilizing agent 60% Hydrogen peroxide solution (H2O2)
Filter accuracy ≤ 0.2 µm
Display LCD touch screen
Chamber construction material 5052 Aluminum
Chamber tray Two-layer aluminum alloy plate
Sterilization period 46 - 50 min
Caster Yes
Power 4.35 kW
Voltage AC 220 V / 110 V, 50 Hz
Inner tank dimension (W × D × H) 750 x 540 x 400 mm
Outer tank dimension (W × D × H) 1070 x 810 x 1780 mm
Packaging dimension (W × D × H) 1220 x 920 x 1860 mm
Net weight 245 kg
Gross weight 290 kg

Features

  • PLC controlled system based autoclave with LCD display
  • Sterilize agent: 60% Hydrogen peroxide solution (H2O2)
  • Sterilization temperature is 50°C
  • Hydraulic pressure is 50 Pa and Highest anti-pressure value is 10 Pa
  • High strength vacuum pump to ensure fast vacuum speed and long service life
  • Top rod driven electric lift door and security interlocking devices to prevent risks of false operation
  • Two-layer aluminum alloy punching plates for loading sterilized articles
  • Sterilization room is made-up of aluminum or stainless steel with superior anti-corrosion and thermal conductivity
  • No drainage or ventilation required, zero pollution to environment
  • Alarm system to indicate high or low temperature, pressure, time, cycle mode, process stage and provide the actual interface photo
  • Anti-explosion and fire resistance heating system
  • Test data storage up-to more than one million sterilization data

Applications

  • Used in the hospitals, pharmaceutical industries, laboratories and research institutes to sterilize probes, rigid endoscope, hose endoscope, ophthalmic lens, fiber optic cables, intracranial pressure sensor, esophageal dilator, electrocautery apparatus, defibrillation electrode, laser head, metal, glass, silica gel rubber etc.

Alternative Models Of Hydrogen Peroxide Plasma Sterilizer

Hydrogen Peroxide Plasma Sterilizer FM-HPS-A100

  • Cabinet type: Vertical (Full automatic)
  • Capacity: 100 L
  • Design: Single door rectangular autoclave
Catalog

Hydrogen Peroxide Plasma Sterilizer FM-HPS-A102

  • Cabinet type: Vertical (Full automatic)
  • Capacity: 190 L
  • Design: Single door rectangular autoclave
Catalog

Hydrogen Peroxide Plasma Sterilizer FM-HPS-B100

  • Volume: 63 L
  • Sterilization Temperature: 50℃ ± 5℃
  • Filling Method: Cassette: 12 vials of H2O2 / Cassette
Catalog
Hydrogen Peroxide Plasma Sterilizer FM-HPS-B101
  • Volume: 110 L
  • Sterilization Temperature: 50℃ ± 5℃
  • Filling Method: Cassette: 12 vials of H2O2 / Cassette
Catalog
Hydrogen Peroxide Plasma Sterilizer FM-HPS-B102
  • Volume: 128 L
  • Sterilization Temperature: 50℃ ± 5℃
  • Filling Method: Cassette: 12 vials of H2O2 / Cassette
Catalog

Hydrogen Peroxide Plasma Sterilizer FM-HPS-B103

  • Volume: 160 L
  • Sterilization Temperature: 50℃ ± 5℃
  • Filling Method: Cassette: 12 vials of H2O2 / Cassette
Catalog

Hydrogen Peroxide Plasma Sterilizer FM-HPS-B104

  • Volume: 180 L
  • Sterilization Temperature: 50℃ ± 5℃
  • Filling Method: Cassette: 12 vials of H2O2 / Cassette
Catalog

Hydrogen Peroxide Plasma Sterilizer FM-HPS-B105

  • Volume: 200 L
  • Sterilization Temperature: 50℃ ± 5℃
  • Filling Method: Cassette: 12 vials of H2O2 / Cassette
Catalog
Hydrogen Peroxide Plasma Sterilizer FM-HPS-B106
  • Volume: 300 L
  • Sterilization Temperature: 50℃ ± 5℃
  • Filling Method: Cassette: 12 vials of H2O2 / Cassette
Catalog
Hydrogen Peroxide Plasma Sterilizer FM-HPS-C100
  • Volume: 63 L
  • Sterilization Temperature: 50℃
  • Filling Method: Bottled Type
Catalog

Hydrogen Peroxide Plasma Sterilizer FM-HPS-C101

  • Volume: 110 L
  • Sterilization Temperature: 50℃
  • Filling Method: Bottled Type
Catalog

Hydrogen Peroxide Plasma Sterilizer FM-HPS-C102

  • Volume: 128 L
  • Sterilization Temperature: 50℃
  • Filling Method: Bottled Type
Catalog

Hydrogen Peroxide Plasma Sterilizer FM-HPS-C103

  • Volume: 160 L
  • Sterilization Temperature: 50℃
  • H2O2 Filling Method: Bottled
Catalog
Hydrogen Peroxide Plasma Sterilizer FM-HPS-C104
  • Volume: 180 L
  • Sterilization Temperature: 50℃
  • H2O2 Filling Method: Bottled
Catalog
Hydrogen Peroxide Plasma Sterilizer FM-HPS-C105
  • Volume: 200 L
  • Sterilization Temperature: 50℃
  • H2O2 Filling Method: Bottled
Catalog

Damp Heat Quick Sterilizer

Damp Heat Quick Sterilizer FM-DSP-A101

  • Type : Pulsating vacuum type (Full automatic)
  • Cabinet style : Desktop
  • Sterilizing chamber Capacity : 23 L
Catalog

Damp Heat Quick Sterilizer FM-DSP-A102

  • Type : Pulsating vacuum type (Full automatic)
  • Cabinet style : Desktop
  • Sterilizing chamber Capacity : 45 L
Catalog

Ethylene Oxide Sterilizer

Ethylene Oxide Sterilizer FM-ETS-A100
  • Sterilizing chamber Capacity : 120L
  • Type : Constant temperature heating box
  • Cabinet : Vertical (manual front door opening)
Catalog
Ethylene Oxide Sterilizer FM-ETS-A101
  • Sterilizing chamber Capacity : 220 L
  • Type : Constant temperature heating box
  • Cabinet : Vertical (manual front door opening)
Catalog

Bacti-Cinerator Sterilizer

Bacti-Cinerator Sterilizer-FM-BCS-A100

  • Center High Temperature : 825℃ ±50℃
  • Max-Diameter of Sterilizer : φ35
  • Length of Sterilizer : 100 mm
Catalog

Horizontal Steam Sterilizer

Fison Horizontal Steam Sterilizer has a real-time status display provides clear updates on the sterilization process to monitor progress and ensure accuracy. The overpressure relief valve ensures controlled pressure release to prevent system damage. The efficient steam generator delivers consistent and powerful steam output, ensuring thorough sterilization in a shorter time. They feature a microcomputer control system, offering precise control over parameters like temperature and pressure for reliable performance. Our Horizontal Steam Sterilizer has customizable sterilization modes to adjust settings for optimal performance.

Horizontal Steam Sterilizer FM-HSS-A100

  • Capacity : 150 L
  • Design Pressure : 0.3 Mpa
  • Working Pressure : 0.23 Mpa
Catalog

Glass Bead Sterilizer

Fison Glass Bead Sterilizer is constructed with a stainless-steel inner container for enhanced durability and easy cleaning. It is equipped with a digital controller for precise operation. They include one bag of glass beads for immediate use in sterilization. This unit comes with a highly precise temperature controller and over-temperature protection for accurate sterilization. Our Glass Bead Sterilizer operates without gases, fumes, open flames, or harsh liquids to provide a safer sterilization process.

Glass Bead Sterilizer FM-GBS-A100
  • Chamber Volume : Φ40 mm x 80 mm
  • Glass Beads Capacity : 150 g
  • Temperature Range : 100°C ~ 300°C
Catalog
