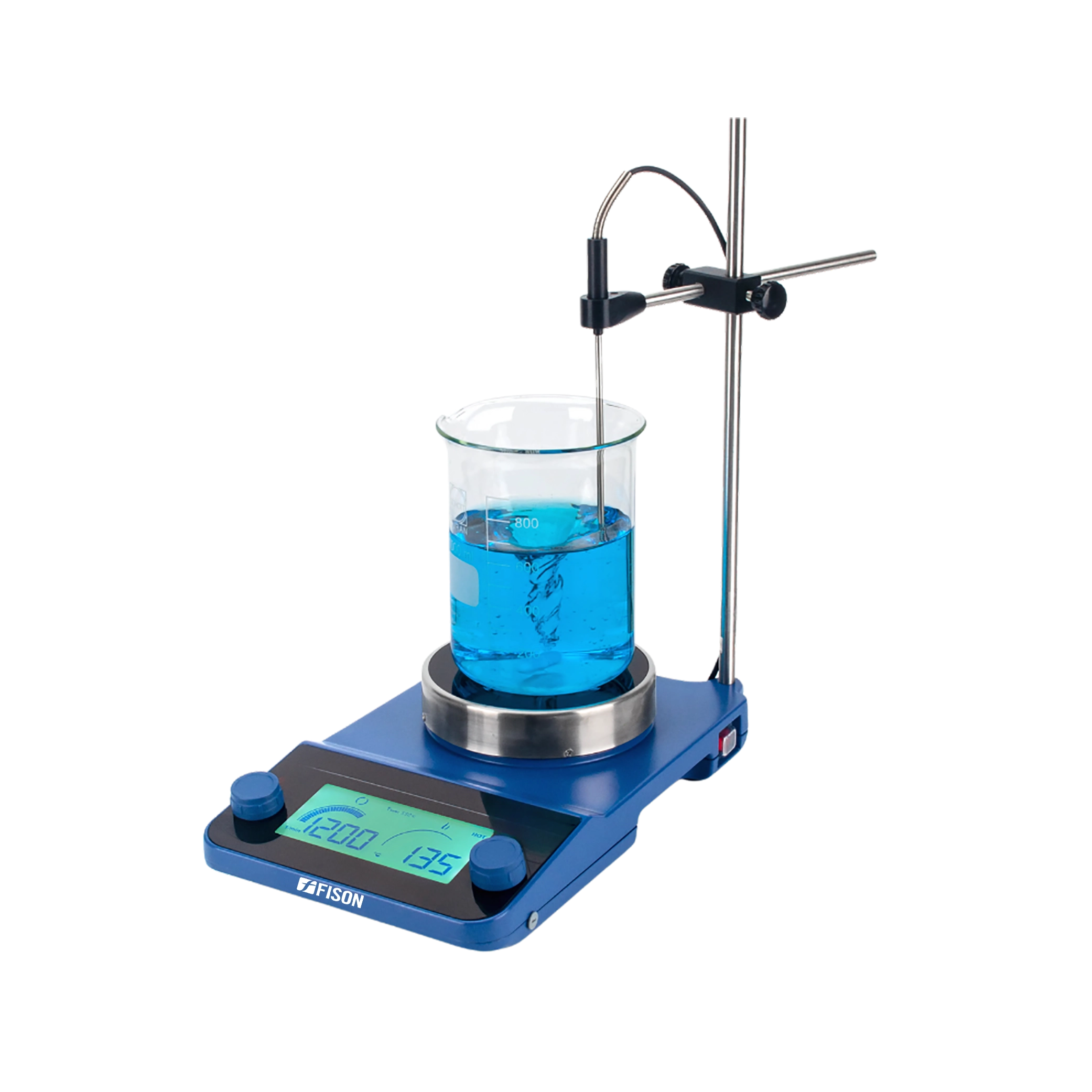

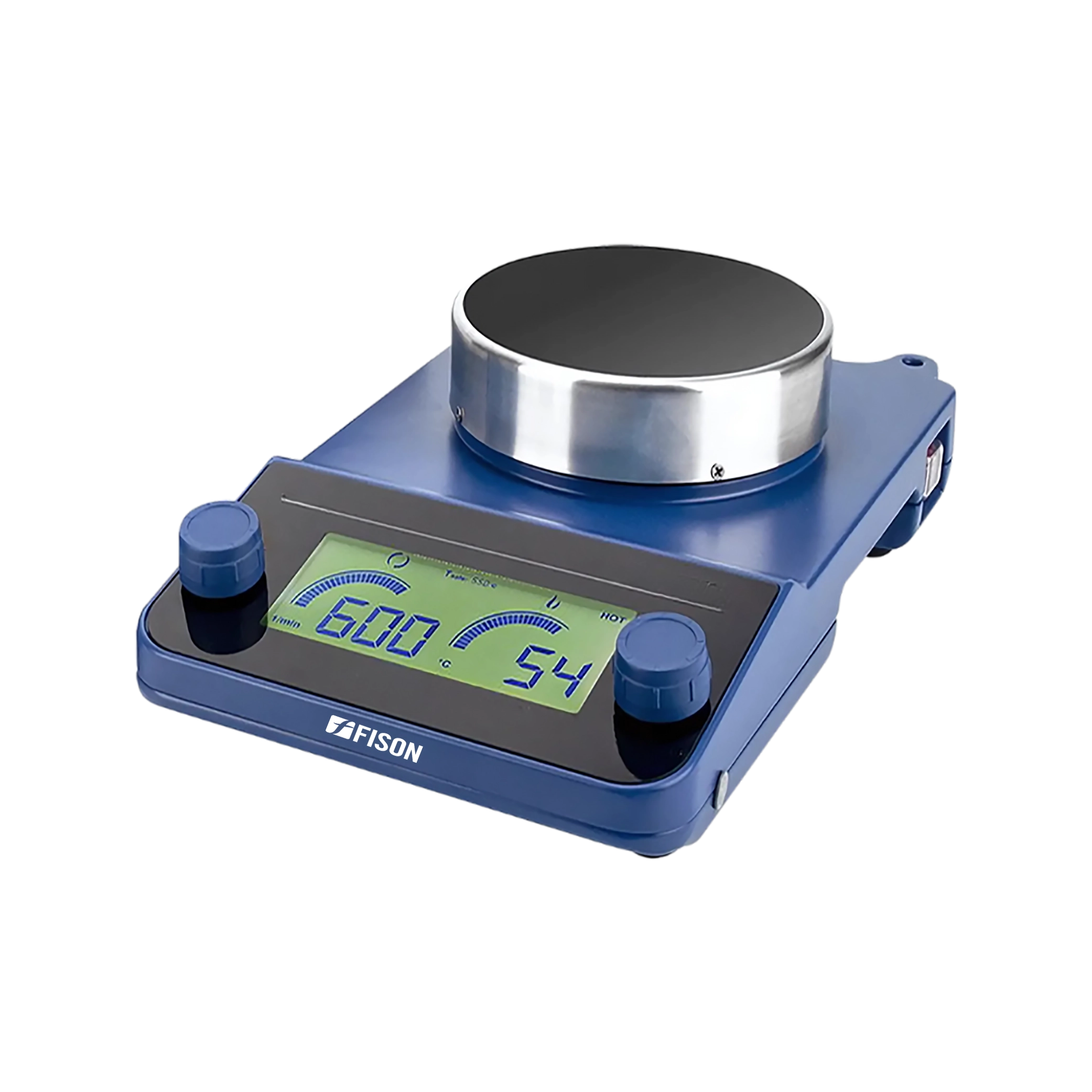

Hotplate Magnetic Stirrer FM-HMS-A102
Hotplate Magnetic Stirrer FM-HMS-A102 employs Schott glass ceramic surface for maintaining its durability. PID control technology ensures good temperature stability and uses Pt-100 sensor to improve hotplate magnetic stirrer’s reliability. LCD display allows user to easily view and monitor all functions. Safety temperature circuit prevents temperature from exceeding a specified set temperature, enhancing safety of user.
Specifications
| Maximum temperature | 450 ℃ |
| Maximum temperature with E-sensor | 300 ℃ |
| Safety temperature | 50 to 500 ℃ (adjustable) |
| High temperature protection | 10 to 50 ℃ (adjustable) |
| Temperature stability with E-sensor | ± 2 ℃ |
| Sensor | Pt100 |
| PID parameter | 3 sets |
| Speed | 100 to 1500 rpm |
| Stirring quantity max | 20 L / H2O |
| Display | LCD |
| Temperature and Speed setting | Turning knob |
| Time setting | 1 to 1999 min / continuous |
| Top plate material | Ceramic glass |
| Top plate dimensions | Ø135 mm |
| USB interface | Yes |
| Power supply | 220 V/50 Hz |
| Heat output Power | 800 W |
| Dimensions (W × D × H) | 320 × 190 × 90 mm |
| Weight | 3.0 Kg |
Features
- Schott glass ceramic surface offers resistance to chemicals and temperature shocks
- High infrared permeability ensures quick and efficient transfer of heating energy
- PID control technology of hotplate magnetic stirrer provides good temperature stability
- Pt -100 sensor helps in temperature-controlled work with a stability of ± 2 ℃
- LCD display for monitoring technical parameters
- Memory function records stirring speed and temperature settings
- Design incorporates a liquid drainage to increase device’s lifespan
- Safety protection feature automatically switches off the device to ensure user’s safety
- Standard PT100 temperature sensor ensures accurate solution temperature control
- Connection to PC via a USB interface for convenient operation and data management
- Device's control panel features rotating knobs for simplified operation
Applications
- Hotplate Magnetic Stirrer is manufactured with a focus on efficiency, precision, safety, and user convenience across academics, chemical industries, and laboratory settings.
Accessories
- Thermocouple sensor PT100-01
Holder
Clamp
Stirrer bar
