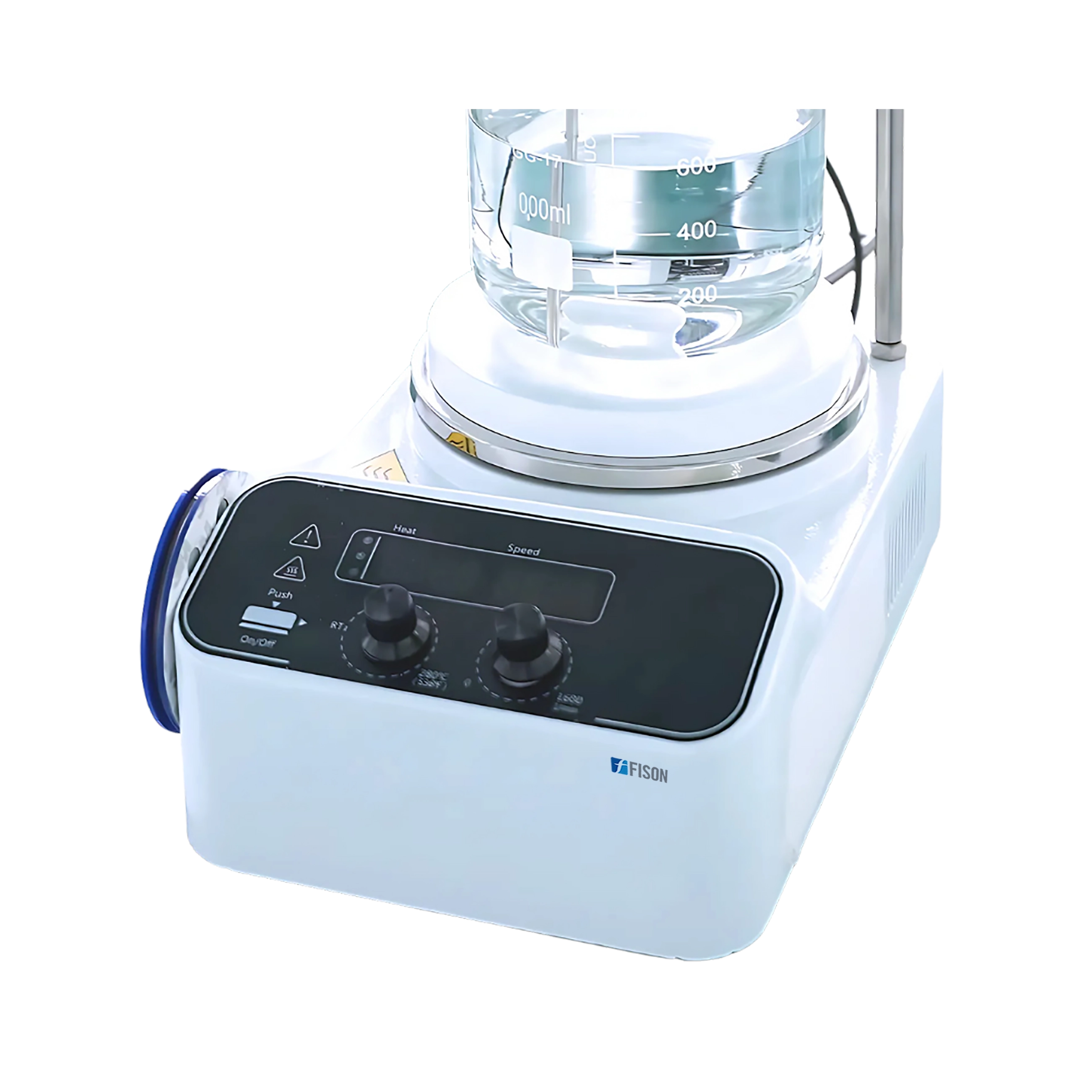

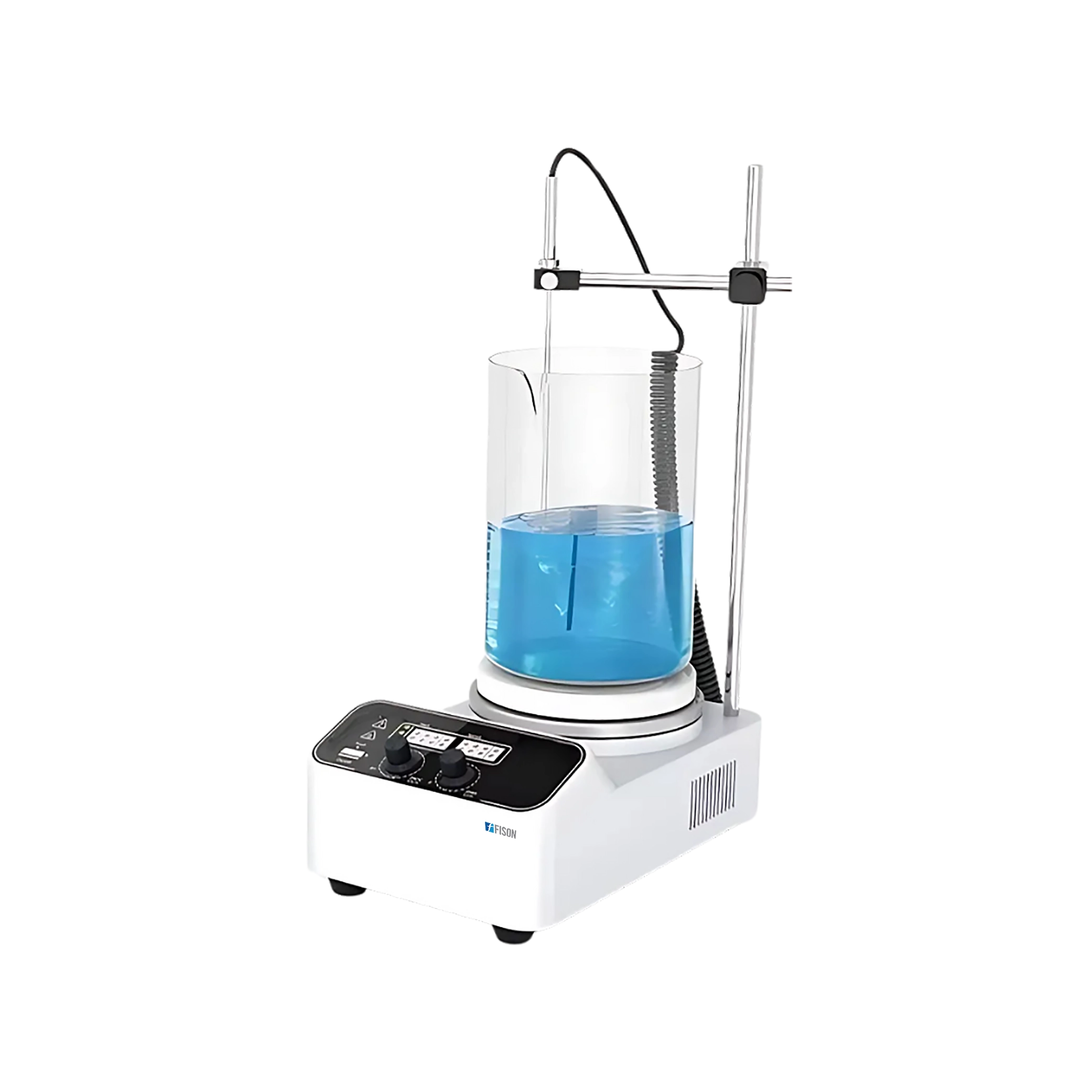

Hotplate Magnetic Stirrer FM-HMS-A101
Hotplate Magnetic Stirrer FM-HMS-A101 is a digital temperature-controlled unit, comes with RT to 280°C of temperature range and maximum stirring capacity of 3 L. Features digital speed control regulation to reach 150 to 1600 rpm of speed range. Compact design with ceramic coated stainless-steel work plate and LED display for speed and temperature, has DC brushless motor and PT1000 temperature sensor for a fast and stable operation.
Specifications
| Speed range | 150 to 1600 rpm |
| Temperature range | RT to 280°C, step 1°C |
| Time range | NA |
| Stirring capacity | 3 L |
| Speed regulation mode | Digital speed control |
| Temperature sensor | PT1000, Accuracy: ±0.5°C |
| Motor | DC brushless motor |
| Display | LED |
| Work plate | Ceramic coated stainless steel |
| Work plate size | Φ 135 mm |
| Ambient temperature | 5 to 40°C |
| Ambient humidity | 0.8 |
| Power supply | 100 to 120/200 to 240 V, 50/60 Hz |
| Packaging dimension (L×W×H) | 360×260×180 mm |
| Gross weight | 4 kg |
Features
- A highly sensitive unit with strong controllability
- Digital temperature-control with wide temperature control range
- Convenient speed regulation mode with adjustable speed range

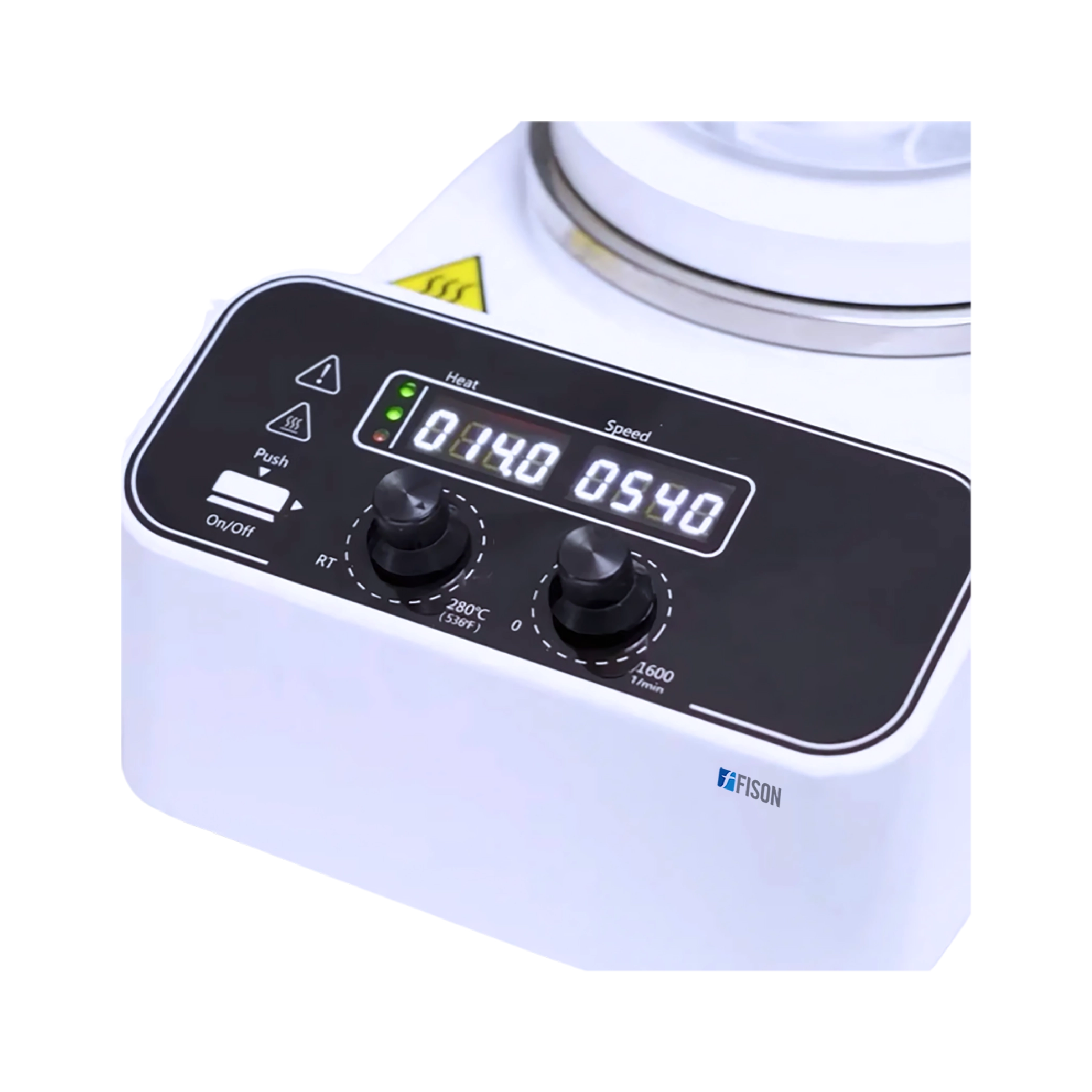

- LED display for running parameter observation
- Compact design with small footsteps, saves space
- Ideal for mixtures with low viscosity
- Offers stirring and heating at a same time
Applications
- Hotplate magnetic stirrer is used to conduct biological and chemical experiments by mixing two components across education, chemical industry, medicine etc.
Accessories

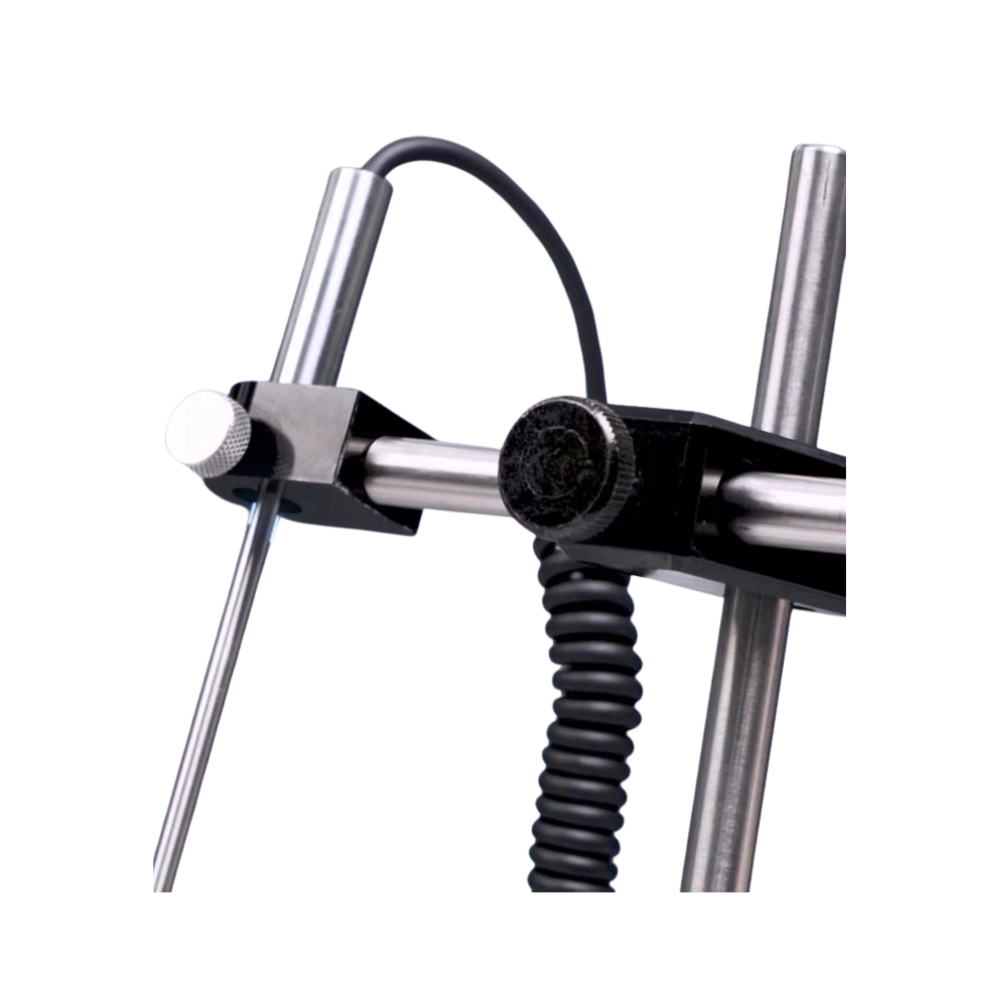

- Sensor with holder
