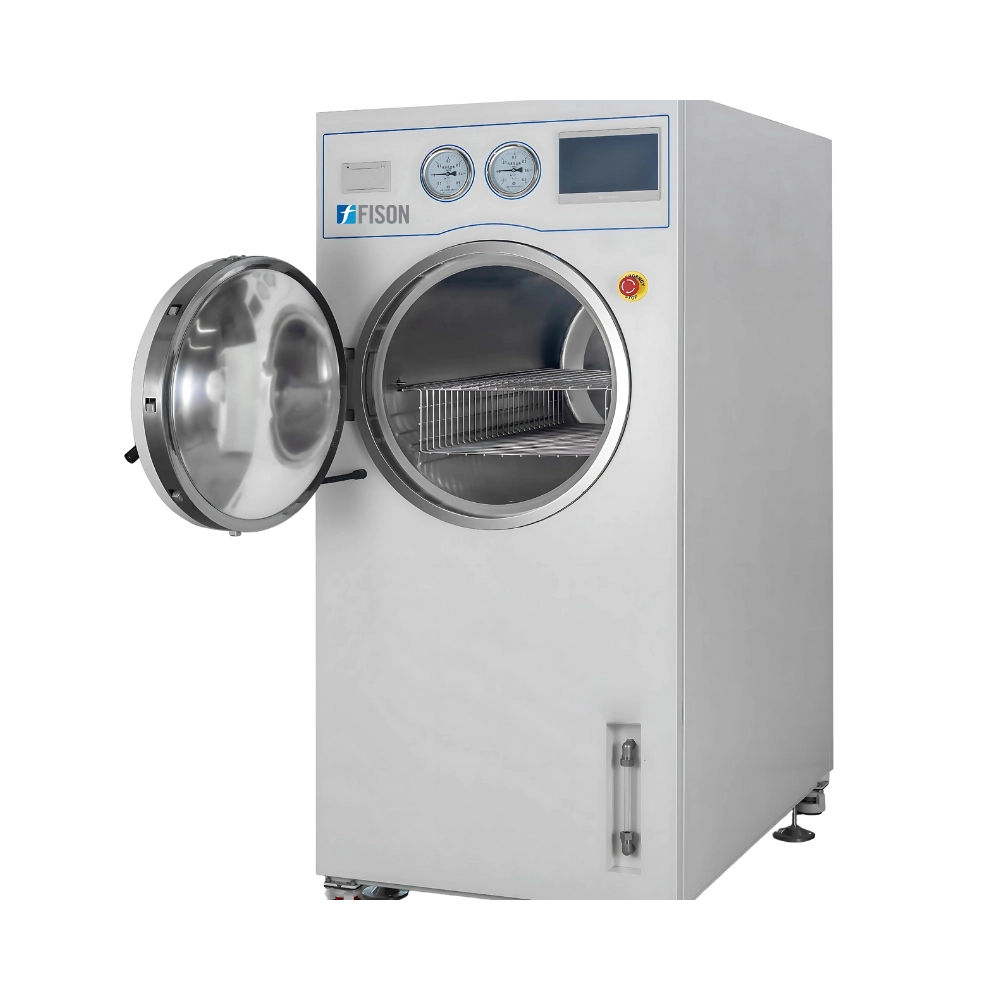

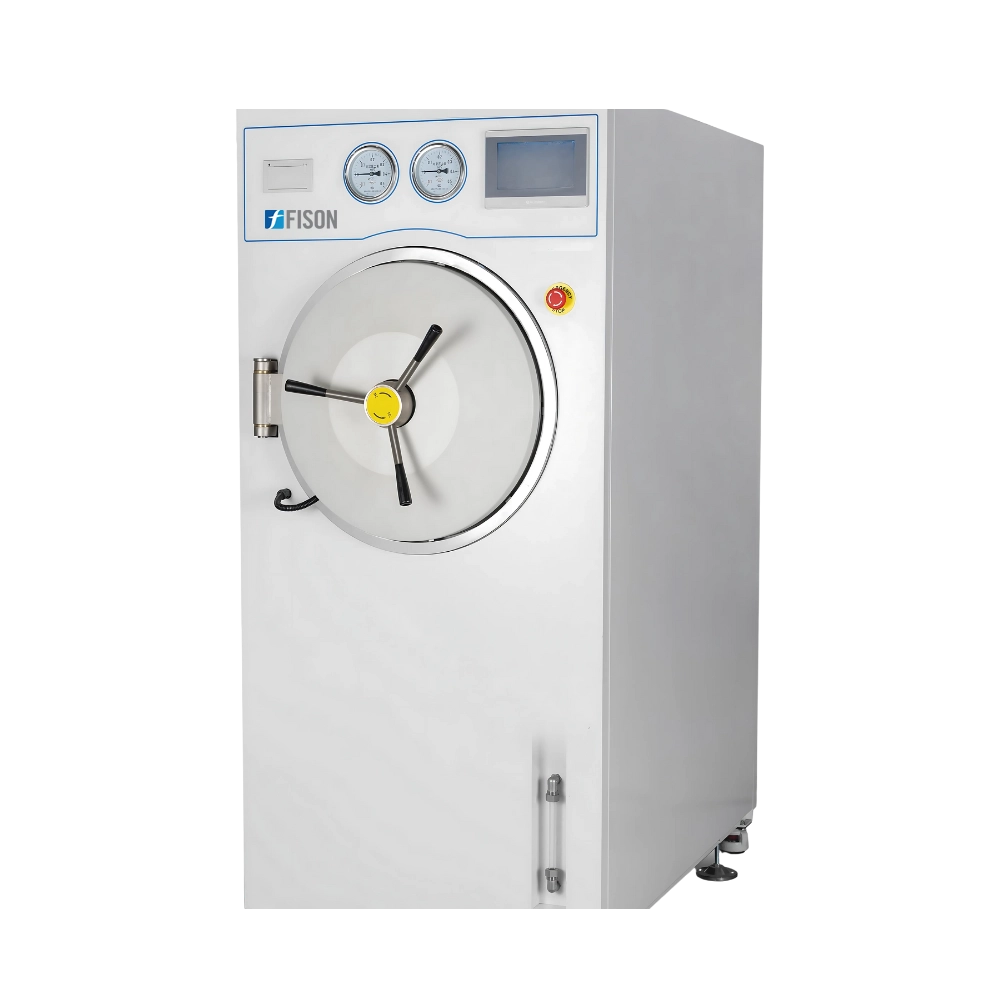

Horizontal Steam Sterilizer FM-HSS-A100
Horizontal Steam Sterilizer FM-HSS-A100 has a 150-liter capacity, making it suitable for large-scale sterilization tasks. It includes an optional micro printer for convenient data logging and record keeping. The safety door interlock feature prevents accidental opening during cycles, enhancing user safety. Our sterilizer has electronic circuit protection, providing reliable performance and durability.
Specifications
| Capacity | 150 L |
| Design Pressure | 0.3 Mpa |
| Working Pressure | 0.23 Mpa |
| Pressure Display Accuracy | 0.1 kPa |
| Sterilization Temperature | 105 to 136°C |
| Temperature Display Accuracy | 0.1°C |
| Maximum Temperature | 136°C |
| Temperature Uniformity | ≤±0.5°C |
| Power Consumption | 12 kW |
| Power Supply | 380 V/220 V, 50 Hz |
| Chamber Size (Φ × L) | 500 × 780 mm |
| Dimensions (L × W × H) | 1080 × 750 × 1750 mm |
| Packaging Dimensions (L × W × H) | 1300 × 1000 × 1950 mm |
| Net Weight | 215 kg |
| Gross Weight | 360 kg |
Features
- Real-time status display
- Efficient steam generator
- Microcomputer control system
- Automatic sterilization process
- Customizable sterilization modes
Applications
- Horizontal Steam Sterilizer FM-HSS-A100 is a high-capacity sterilization device for efficient disinfection across various industries. It is widely used in hospitals, laboratories, and industrial settings to sterilize medical instruments, laboratory equipment, and tools.
Accessories Optional
- Heater
Gasket
Pressure Valve
Safety Valve
Electric Switch
Temperature Sensor
