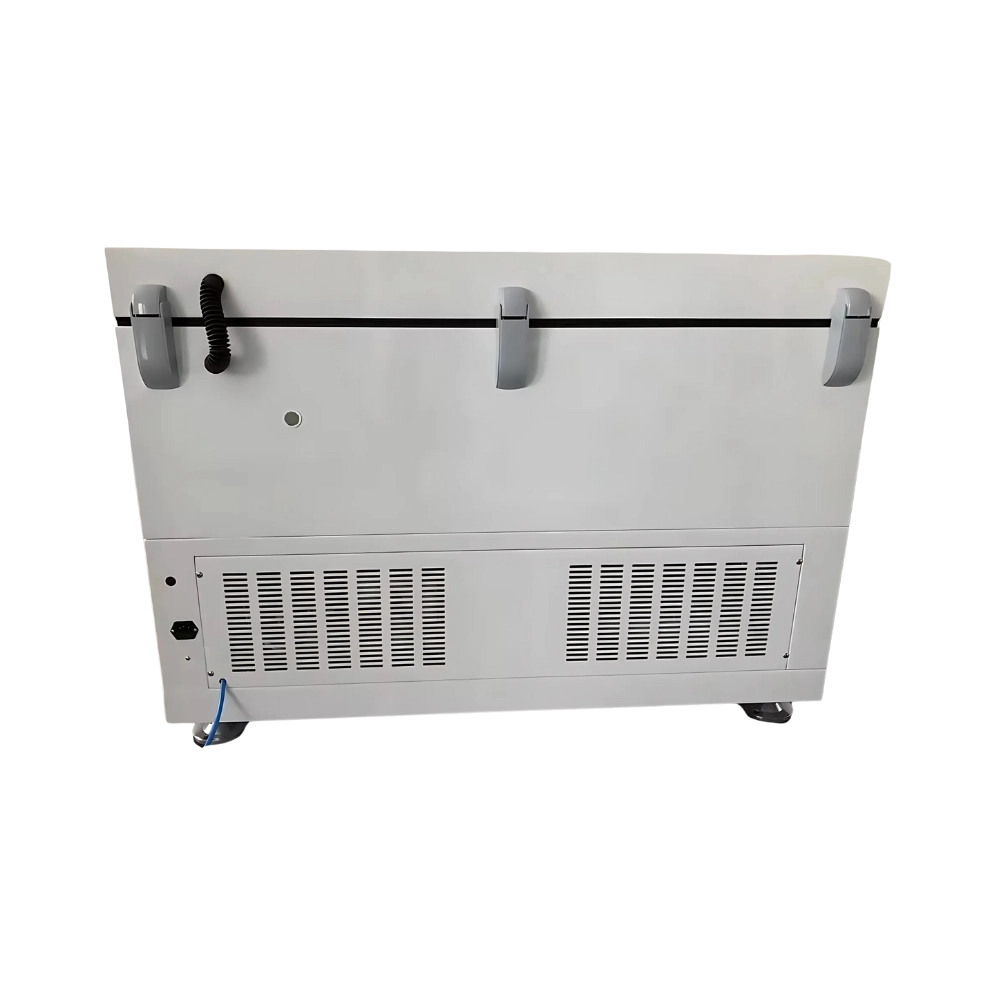

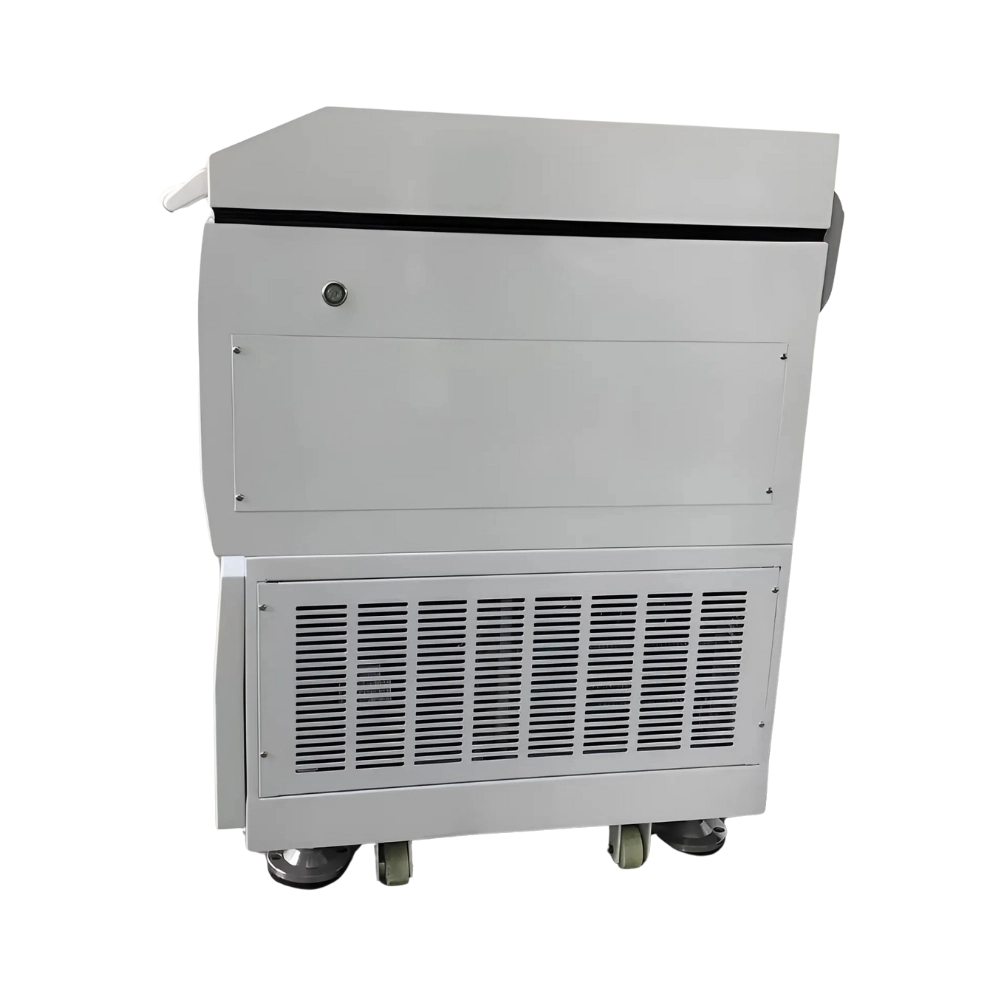

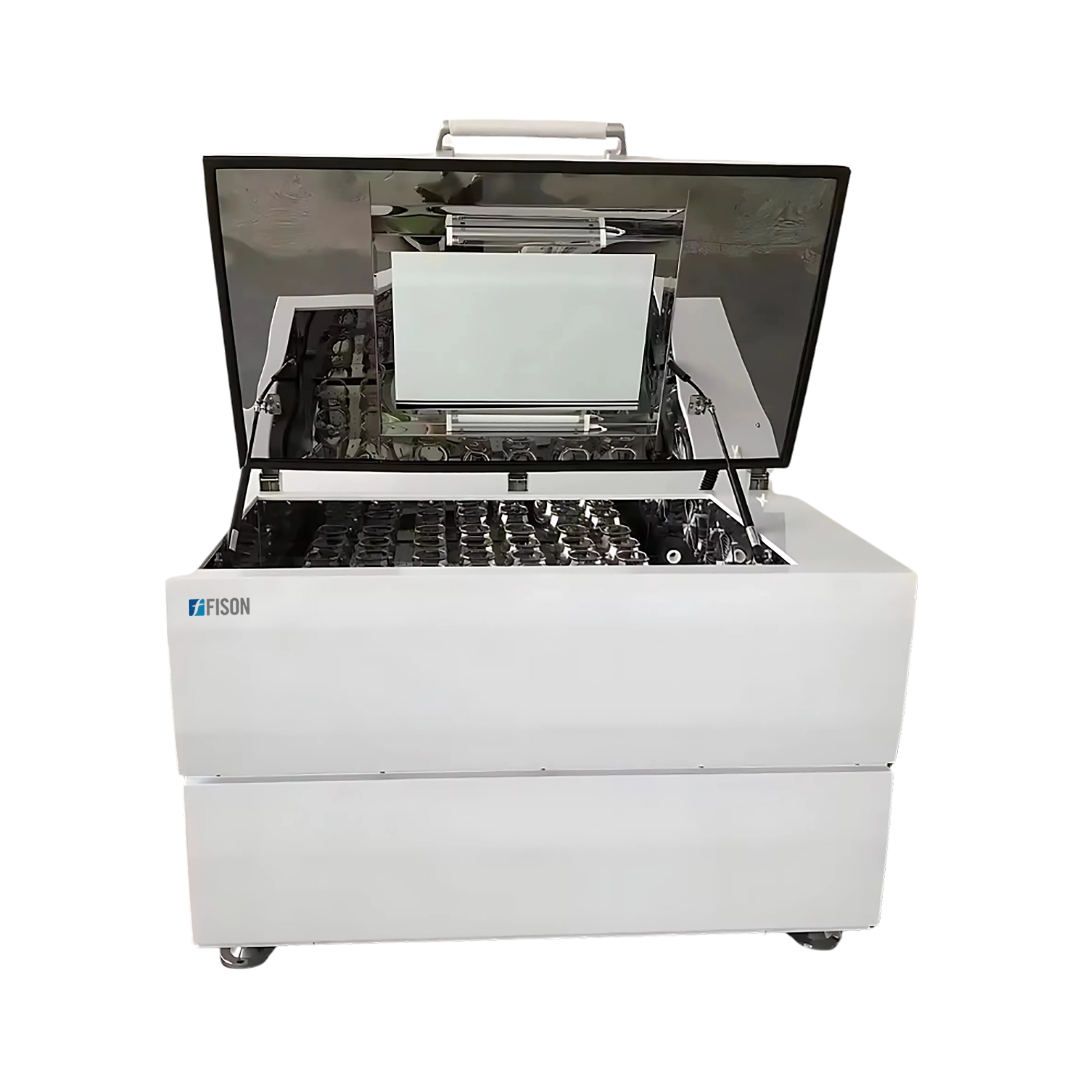

Horizontal Shaking Incubator FM-SI-A504

Horizontal Shaking Incubator FM-SI-A504

Horizontal Shaking Incubator FM-SI-A504 operates within a rotational frequency of 30 to 300 rpm, with an accuracy of ±1 rpm. Equipped with advanced high-torque motor for continuous and maintenance-free operation. It comes with a highly efficient refrigeration system, that meets cooling requirements. With its large-screen backlit LCD display, it offers easy adjustment of parameters. Our incubator includes a memory function that stores operating parameters, for easy access.

Specifications

Rotation Frequency 30 to 300rpm
Frequency Accuracy ±1 rpm
Ambient Temperature +5℃ to 60℃
Temperature Control Accuracy ± 0.1°C (constant temperature state)
Temperature Uniformity ±1°C
Swing Amplitude Swivel φ 26mm
Standard Configuration 2000ml ×12 sticks
Maximum Capacity 1000ml × 18 pieces or 2000ml × 12 pieces or 3000ml × 8 pieces or 5000 ml × 6 pieces
Pallet Size 920mm × 510mm
Timing Range 0 to 999 hours
Digital Display Method LCD
Number Of Pallets 1 piece
Volume 980mm × 570mm × 500mm (280L)
Power Consumption 951W
Power Supply AC220V-240V 50HZ to 60HZ
Dimensions 1200mm × 810mm × 1050mm
Net Weight 183Kg

Features

  • Outer shell crafted from durable ABS plastic
  • Cavity made of mirror stainless steel components
  • Password locking function
  • Automatic resume option after power cut
  • Furnished with uniform plastic surface coating

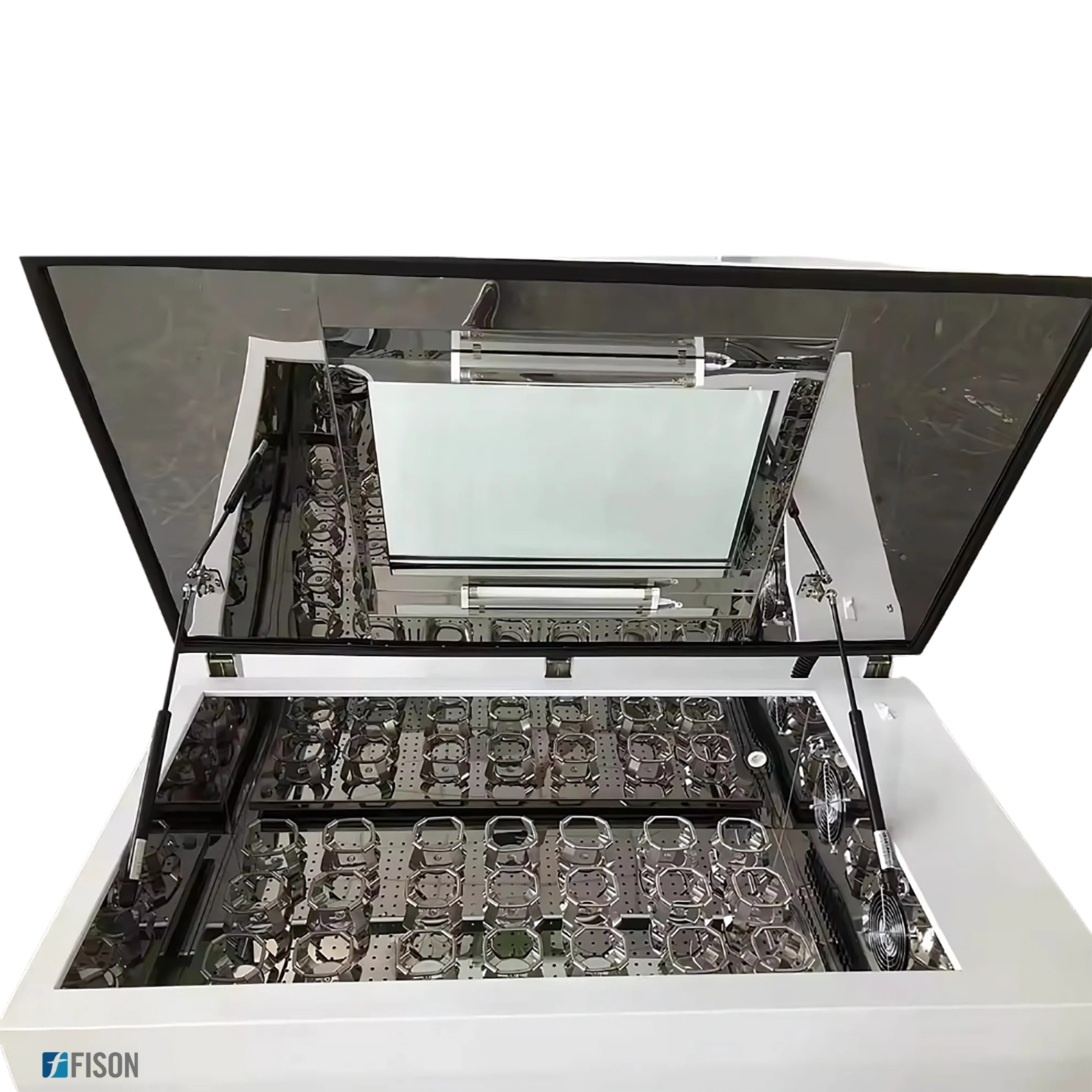

  • Large tempered glass viewing window
  • Adjustable heating rate
  • Automatic frost function
  • Alarms for temperature deviation

Applications

  • Horizontal Shaking Incubator provides controlled temperature and agitation conditions for a variety of biological and chemical processes. It finds applications in molecular biology, microbiology, biochemistry, pharmaceuticals, food safety and clinical diagnostics.

Alternative Models Of Horizontal Shaking Incubator

Fison Horizontal Shaking Incubator features a horizontal shaking platform for uniform agitation ideal for cultivating bacterial cultures, yeast, or plant cell cultures. They are equipped with over-temperature protection to prevent overheating and safeguard samples. Their humidity control is beneficial for experiments requiring specific moisture levels. The programmable controls for setting specific shaking times and intervals, providing greater flexibility. These operate quietly, reducing disturbances in the lab while maintaining effective shaking action. Our Horizontal Shaking Incubator built-in timer allows for precise control over the shaking duration, ensuring consistency in experiments.

Horizontal Shaking Incubator FM-SI-A500

  • Chamber volume: 69 L
  • Shaking speed: 20 to 300 rpm
  • Speed precision: ± 1 rpm
Catalog

Horizontal Shaking Incubator FM-SI-A501

  • Chamber volume: 155 L
  • Shaking speed: 20 to 300 rpm
  • Speed precision: ± 1 rpm
Catalog

Horizontal Shaking Incubator FM-SI-A502

  • Chamber volume: 265 L
  • Shaking speed: 20 to 300 rpm
  • Speed precision: ± 1 rpm
Catalog
Horizontal Shaking Incubator FM-SI-A503
  • Capacity: 250 ml × 6 + 500ml × 10 + 1000ml × 5
  • Temperature Range: 4 to 60 °C
  • Shaking Speed: 10 to 500 rpm
Catalog
Horizontal Shaking Incubator FM-SI-C100
  • Speed: 40 to 300 rpm
  • Speed Accuracy: ±1 rpm
  • Temperature Control: 4℃ to 60℃
Catalog

Lighting Incubator

Fison Lighting incubators offer precise temperature control, ensuring stable conditions for optimal sample growth. They are equipped with even air circulation, maintaining consistent temperature distribution throughout the chamber. These units feature programmable settings for customized light cycles, temperature, and humidity. They include energy-efficient LED lighting, delivering uniform illumination with minimal heat generation. Our incubators provide various capacity options and ensure safe operation with alarms and overheat protection.

Lighting Incubator FM-LI-A100

  • Capacity : 250 L
  • Illumination type : 2-side illumination
  • Light source : Fluorescent lamp
Catalog

Lighting Incubator FM-LI-A101

  • Capacity : 402 L
  • Illumination type : 2-side illumination
  • Light source : Fluorescent lamp
Catalog
Lighting Incubator FM-LI-B100
  • Capacity : 800 L
  • Illumination type : 6-steps adjustable 3D illumination
  • Lighting illumination : 0 to 15000 lx
Catalog

Air Jacketed CO2 Incubator

Fison Air Jacketed CO? Incubators offer a stable and uniform environment with an advanced heating system. They feature a microcomputer-controlled system with a PID controller for precise regulation of multiple parameters. These units provide an LCD touch screen for easy monitoring. They include a tightly sealed inner door made of tempered safety glass for better insulation. They are equipped with water level and over-temperature alarms with audible and visual alerts for enhanced safety.

Air Jacketed CO2 Incubator FM-CIA-A100
  • Capacity : 50 L
  • Heating : Air jacket
  • Temperature range : RT +5 to 60°C
Catalog

Air Jacketed CO2 Incubator FM-CIA-A101

  • Capacity : 80 L
  • Heating : Air jacket
  • Temperature range : RT +5 to 60°C
Catalog

Air Jacketed CO2 Incubator FM-CIA-A102

  • Capacity : 160 L
  • Heating : Air jacket
  • Temperature range : RT +5 to 60°C
Catalog

Water Jacketed CO2 Incubator

Fison Water Jacketed CO? Incubators offer a stable and controlled environment for optimal cell culture. They feature a microprocessor PID controller for precise temperature and CO? regulation. These units are equipped with a water jacket system for consistent temperature stability and security. They provide an advanced filtration and sterilization system to maintain a contamination-free chamber. Our incubators deliver a well-insulated chamber with a tightly sealed door and durable construction for long-term reliability.

Water Jacketed CO<sub>2</sub> Incubator FM-CIW-A100
  • Capacity : 80 L
  • Heating : Water jacket
  • Temperature range : RT +5 to 60°C
Catalog
Water Jacketed CO<sub>2</sub> Incubator FM-CIW-A101
  • Capacity : 160 L
  • Heating : Water jacket
  • Temperature range : RT +5 to 60°C
Catalog

Benchtop Shaking Incubator

Fison Benchtop Shaking Incubator provides precise temperature settings to maintain a stable and controlled environment for optimal growth and incubation of cultures. They are equipped with adjustable shaking speeds, ensuring customized agitation for various applications. Their fans promote uniform air circulation, for heat and shaking are evenly distributed. These automatically adjust or stop shaking to protect the motor from overload. The low-vibration design ensures smooth operation without disruptions. Our Benchtop Shaking Incubator allows easy integration with data logging for continuous monitoring.

Benchtop Shaking Incubator FM-SI-A100

  • Chamber capacity : 20 L
  • Rotating speed range : 30 to 300 rpm
  • Speed accuracy : ± 1 rpm
Catalog

Benchtop Shaking Incubator FM-SI-A101

  • Chamber capacity : 51 L
  • Rotating speed range : 30 to 400 rpm
  • Speed accuracy : ± 1 rpm
Catalog
Benchtop Shaking Incubator FM-SI-A102
  • Chamber capacity : 70 L
  • Rotating speed range : 30 to 400 rpm
  • Speed accuracy : ± 1 rpm
Catalog

Biochemical Incubator

Fison Biochemical Incubators offer a stable and controlled environment for the incubation of biological samples. They feature precise temperature control to ensure uniform conditions for optimal sample growth and preservation. These units are equipped with a user-friendly interface allowing easy temperature adjustment and monitoring. They include internal illumination to allow sample observation without disrupting incubation conditions. Our incubators provide durable construction with corrosion-resistant materials for long-term reliability.

Biochemical Incubator FM-BCI-A100
  • Capacity : 70 L
  • Temperature range : 0 to 60°C
  • Accuracy : ± 0.5°C
Catalog

Biochemical Incubator FM-BCI-A101

  • Capacity : 100 L
  • Temperature range : 0 to 60°C
  • Accuracy : ± 0.5°C
Catalog

Biochemical Incubator FM-BCI-A102

  • Capacity : 150 L
  • Temperature range : 0 to 60°C
  • Accuracy : ± 0.5°C
Catalog
