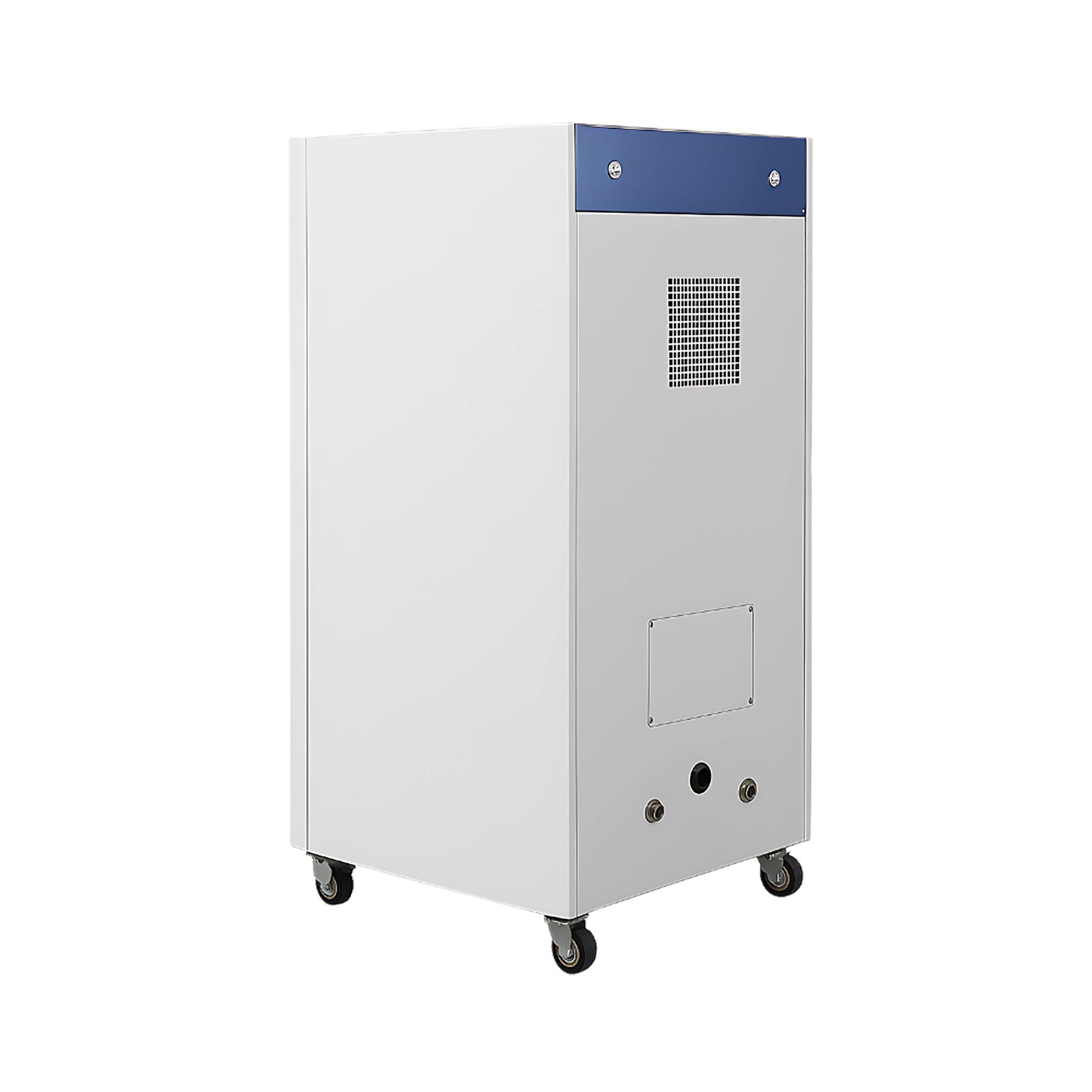

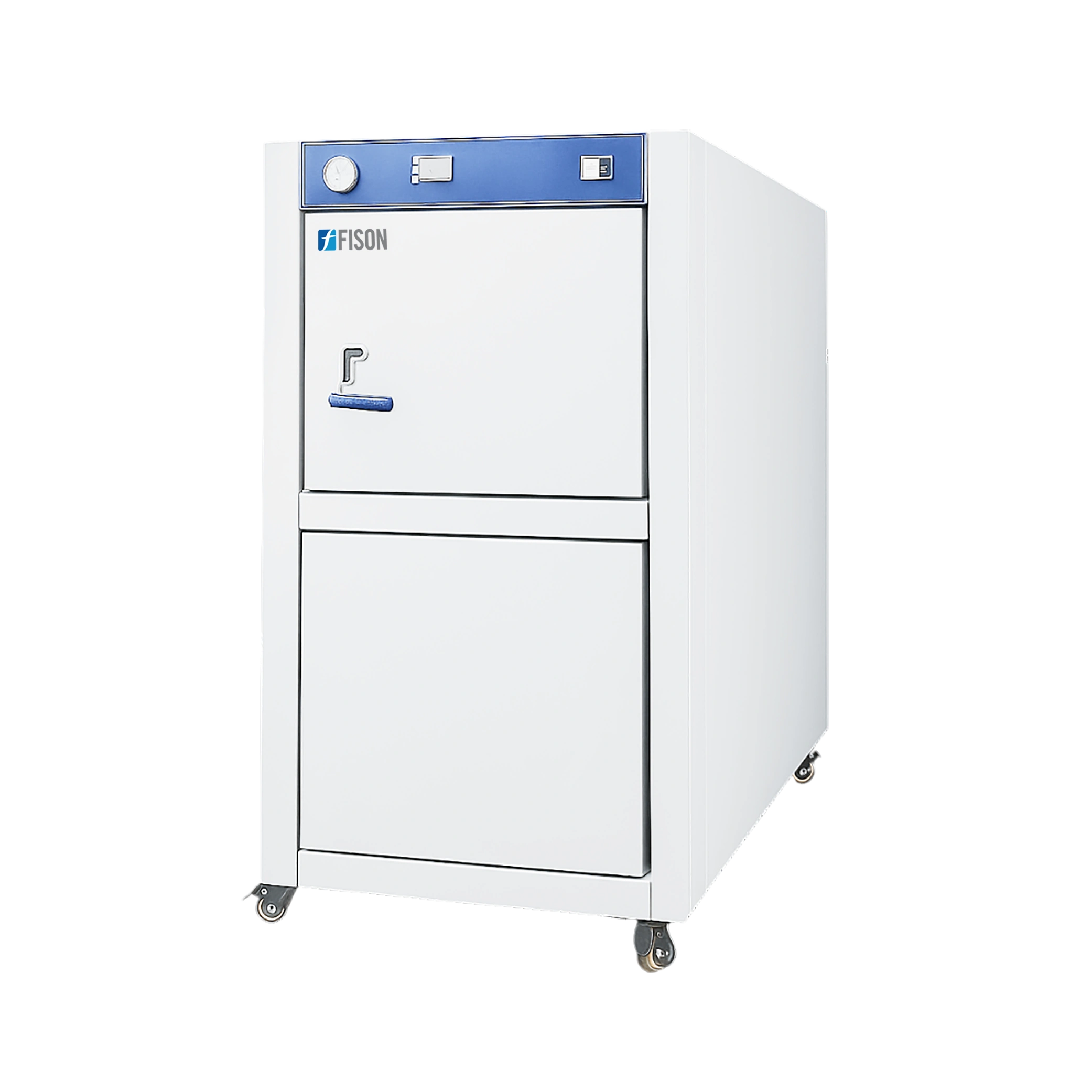

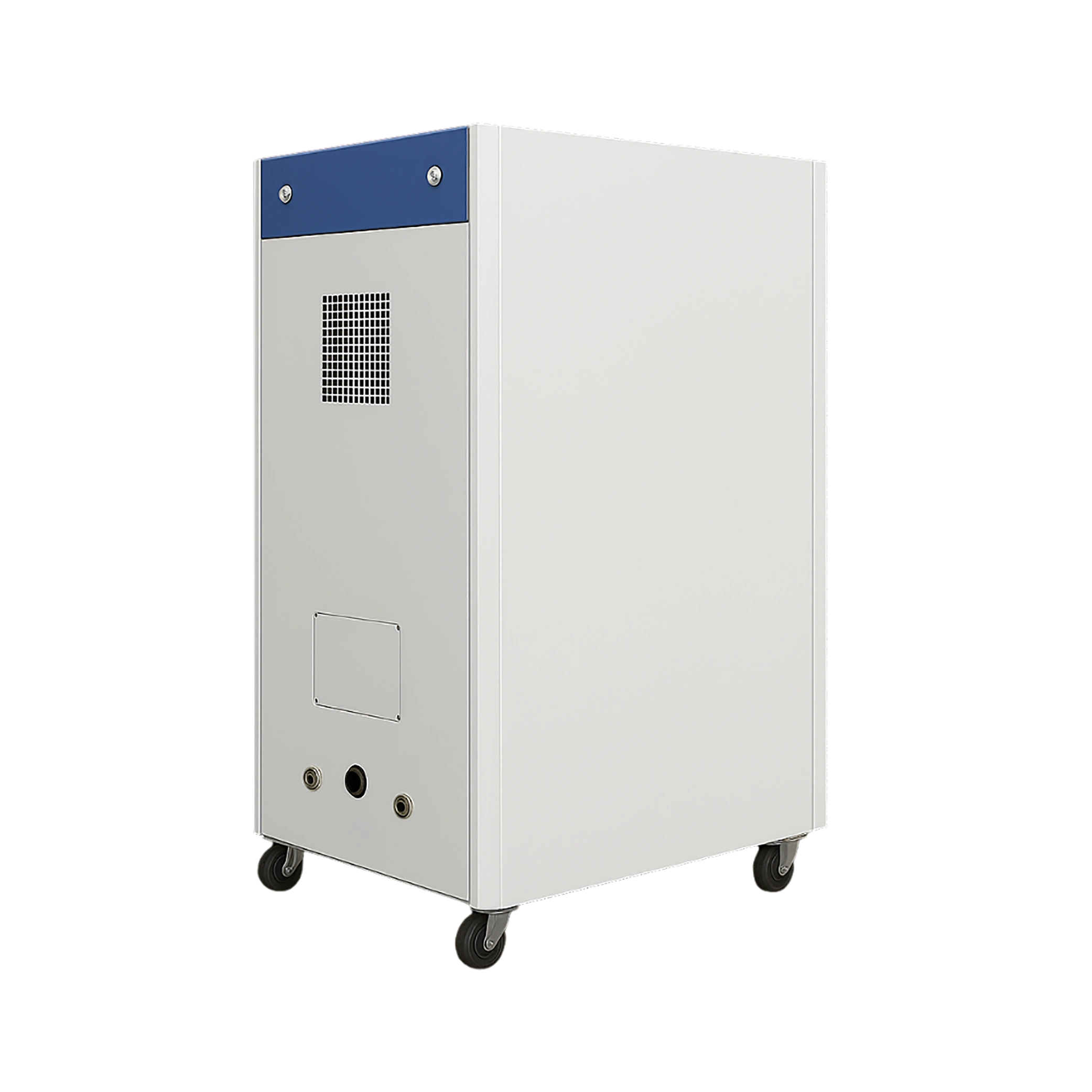

Horizontal Autoclave FM-HA-C100

Horizontal Autoclave FM-HA-C100

Horizontal Autoclave FM-HA-C100 is a specialized steam sterilization unit designed to operate under the principle of gravity-assisted pressure sterilization using electrical heating to sterilize various laboratory items. A spacious horizontally oriented cylindrical 90-liter chamber and sterilizing temperature range of 115°C to 134°C ensures efficient and reliable sterilization. The unit combines high efficiency, stability, and reliability, making it a great choice for a wide range of applications.

Specifications

Capacity 90 L
Temperature Range 115°C to 134°C
Pressure Control Range 0.07 to 0.22 Mpa
Timer Range 0 to 99 min
Controller Microcomputer
Heating Electrical
Parameter Settings Automatic and Manual
Power Supply AC 220 V, 50 Hz
Power 4000 W
Dimension (W×D×H) 940×690×1330 mm
Packaging Dimension (W×D×H) 1030×770×1460 mm
Net Weight 187 kg
Gross Weight 232 kg

Features

  • Equipped with a microcomputer digital controller and a clear screen indicator for user convenience
  • Integrated with a safety door lock system to prevent accidental openings during operation
  • Includes electrical elements as heating source
  • Features a built-in safety valve that offers protection mechanisms against water shortages, over-temperature conditions, over-current situations, and over-pressure issues
  • Choice provided between automatic and manual settings for sterilization temperature, sterilization time, and drying time, allowing for flexibility and ease of use

Applications

  • It serves as a critical tool for disinfecting and sterilizing an array of items, including medical devices, dressings, glassware, laboratory equipment, cultures, and hydroponic mediums. Its application extends across a wide spectrum of medical, scientific, and research institutions.

Alternative Models Of Horizontal Autoclave

Fison Horizontal Autoclave has larger load capacity of up to 600 L. They operate in temperature range of 134°C to 150°C for rapid sterilization. Our front-loading autoclaves come in cylindrical and rectangular orientation. They are durable and built of corrosion resistant stainless steel. They feature innovative safety systems with warning buzzers, thermo-pressure controllers and automatic water cut off. Our advanced horizontal autoclaves are equipped with intuitive digital interface for automatic operation.

Horizontal Autoclave FM-HA-A100

  • Sterilizing chamber  volume: 150 L
  • Inner tank dimension: 440×1000 mm
  • Design: Cylindrical orientation
Catalog

Horizontal Autoclave FM-HA-A101

  • Sterilizing chamber  volume: 200 L
  • Inner tank dimension: 515×1000 mm
  • Design: Cylindrical orientation
Catalog

Horizontal Autoclave FM-HA-A102

  • Sterilizing chamber  volume: 280 L
  • Inner tank dimension: 600×1000 mm
  • Design: Cylindrical orientation
Catalog
Horizontal Autoclave FM-HA-A103
  • Sterilizing chamber  volume: 400 L
  • Inner tank dimension: 700×1100 mm
  • Design: Cylindrical orientation
Catalog
Horizontal Autoclave FM-HA-A104
  • Sterilizing chamber  volume: 500 L
  • Inner tank dimension: 700×1300 mm
  • Design: Cylindrical orientation
Catalog

Horizontal Autoclave FM-HA-A200

  • Sterilizing chamber  volume: 150 L
  • Inner tank dimension: 440×1000 mm
  • Design: Single door rectangular autoclave
Catalog

Horizontal Autoclave FM-HA-A201

  • Sterilizing chamber  volume: 200 L
  • Inner tank dimension: 515×1000 mm
  • Design: Single door rectangular autoclave
Catalog

Horizontal Autoclave FM-HA-A202

  • Sterilizing chamber  volume: 280 L
  • Inner tank dimension: 600×1000 mm
  • Design: Single door rectangular autoclave
Catalog
Horizontal Autoclave FM-HA-B100
  • Capacity: 360 L
  • Working Temperature: 105 to 134°C
  • Working Pressure: 0.225 MPa
Catalog
Horizontal Autoclave FM-HA-B101
  • Capacity: 600 L
  • Operating temperature: 150 ℃
  • Maximum working temperature: 139 ℃
Catalog

Horizontal Autoclave FM-HA-B102

  • Capacity: 500 L
  • Operating temperature: 150 ℃
  • Maximum working temperature: 139 ℃
Catalog

Vertical Autoclave

Fison Vertical Autoclave line features top loading steam sterilizers with different capacities of 35 L to 150 L. Designed with larger chamber volumes to achieve effective sterilization within space-restricted labs. They operate at 134°C and 0.22 MPa for quick autoclaving within few minutes. We offer versatile functions like semiautomatic control, warning buzzer systems, additional bacteria filters, customizable programs and multiple pulse vacuum drying. Our CE certified top loading sterilizers come with advanced safety mechanisms to ensure user-friendly operation.

Vertical Autoclave FM-VA-A100

  • Capacity : 35 L
  • Sterilization temperature : 134°C
  • Wokring sterilization pressure : 0.22 MPa
Catalog

Vertical Autoclave FM-VA-A101

  • Capacity : 50 L
  • Sterilization temperature : 134°C
  • Wokring sterilization pressure : 0.22 MPa
Catalog
Vertical Autoclave FM-VA-A102
  • Capacity : 75 L
  • Sterilization temperature : 134°C
  • Wokring sterilization pressure : 0.22 MPa
Catalog

Portable Autoclave

Fison Portable Autoclaves are compact and lightweight steam sterilizers. They feature both electric and LPG type heating to facilitate versatile operation. Adjustable thermostat, auto shut off, pressure gauges and safety valves ensure effective sterilization. Our space-efficient autoclaves are appropriate for medical, dental, laboratory, and field settings. We offer Portable Autoclaves working at 126? and 0.16 MPa with loading capacities of 18 L- 24 L.

Portable autoclave FM-PA-A101
  • Chamber capacity : 18 L
  • Chamber dimension : 280 × 260 mm
  • Working temperature : 126 ℃
Catalog

Portable autoclave FM-PA-A102

  • Chamber capacity : 24 L
  • Chamber dimension : 280 × 390 mm
  • Working temperature : 126 ℃
Catalog

Portable autoclave FM-PA-A200

  • Chamber capacity : 18 L
  • Chamber dimension : 280 × 260 mm
  • Working temperature : 126℃
Catalog

Benchtop Autoclave

Fison Benchtop Autoclaves are compact, low wattage steam sterilizers. They operate at effective working conditions of 134°C and 0.22 MPa. They feature thermo-pressure controllers, automatic safety locks, alarm system and digital display. They are certified with successful vacuum and B&D test procedures to ensure cost-effective yet streamline performance. We offer space saving Benchtop autoclaves appropriate for small labs and dental clinics.

Benchtop Autoclave FM-BA-A100
  • Chamber Capacity (Volume) : 35 L
  • Chamber dimension : 300 × 500 mm
  • Working pressure : 0.22 MPa
Catalog
Benchtop Autoclave FM-BA-A101
  • Chamber Capacity (Volume) : 50 L
  • Chamber dimension : 340 × 550 mm
  • Working pressure : 0.22 MPa
Catalog

Benchtop Autoclave FM-BA-A102

  • Chamber Volume : 50 Liters
  • Max working temperature : 1340 ℃ ± 10 ℃
  • Max working pressure : 0.22 mpa
Catalog

Hydrothermal Autoclave

Fison Hydrothermal Autoclaves are constructed with corrosion-resistant material to facilitate unconventional chemical reactions. They feature inert internal liners to prevent interactions between the solution and vessel walls. Equipped with thermo-pressure regulators for process monitoring. Reliable seepage-proof design along with rupture discs ensure additional safety. Our high-pressure reactors enable you to conduct advanced hydrothermal applications such as nanomaterial synthesis, crystal growth, chemical transformations and more.

Hydrothermal Autoclave FM-HTA-102

  • Capacity : 100 ml
  • Heating / Cooling rate : 5℃/min
  • Working temperature : 200℃
Catalog
Hydrothermal Autoclave FM-HTA-A100
  • Capacity : 200 ml
  • Heating / Cooling rate : 5 ℃/min
  • Working temperature : ≤ 230 ℃
Catalog
Hydrothermal Autoclave FM-HTA-A101
  • Capacity : 500 ml
  • Heating / Cooling rate : 5 ℃/min
  • Working temperature : ≤ 230 ℃
Catalog

Vacuum Autoclave

Fison Vacuum autoclave features a rectangular cross-section with a European ring-type jacket and reinforcing ribs, ensuring operational stability. They are constructed with stainless steel for steam-contact surfaces, ensuring durability for up to various sterilization cycles. The jacket is crafted from high-quality carbon steel, ensuring safety for pressure vessel applications. Their double pulsation process effectively removes interior air, improving drying performance. Our Vacuum Autoclave features a variety of safety and alarming systems, ensuring reliable protection in critical situations.

Vacuum Autoclave FM-VMA-A100

  • Capacity : 360 L
  • Sterilization Temperature : 150 °C
  • Operational Temperature : 139 °C
Catalog
