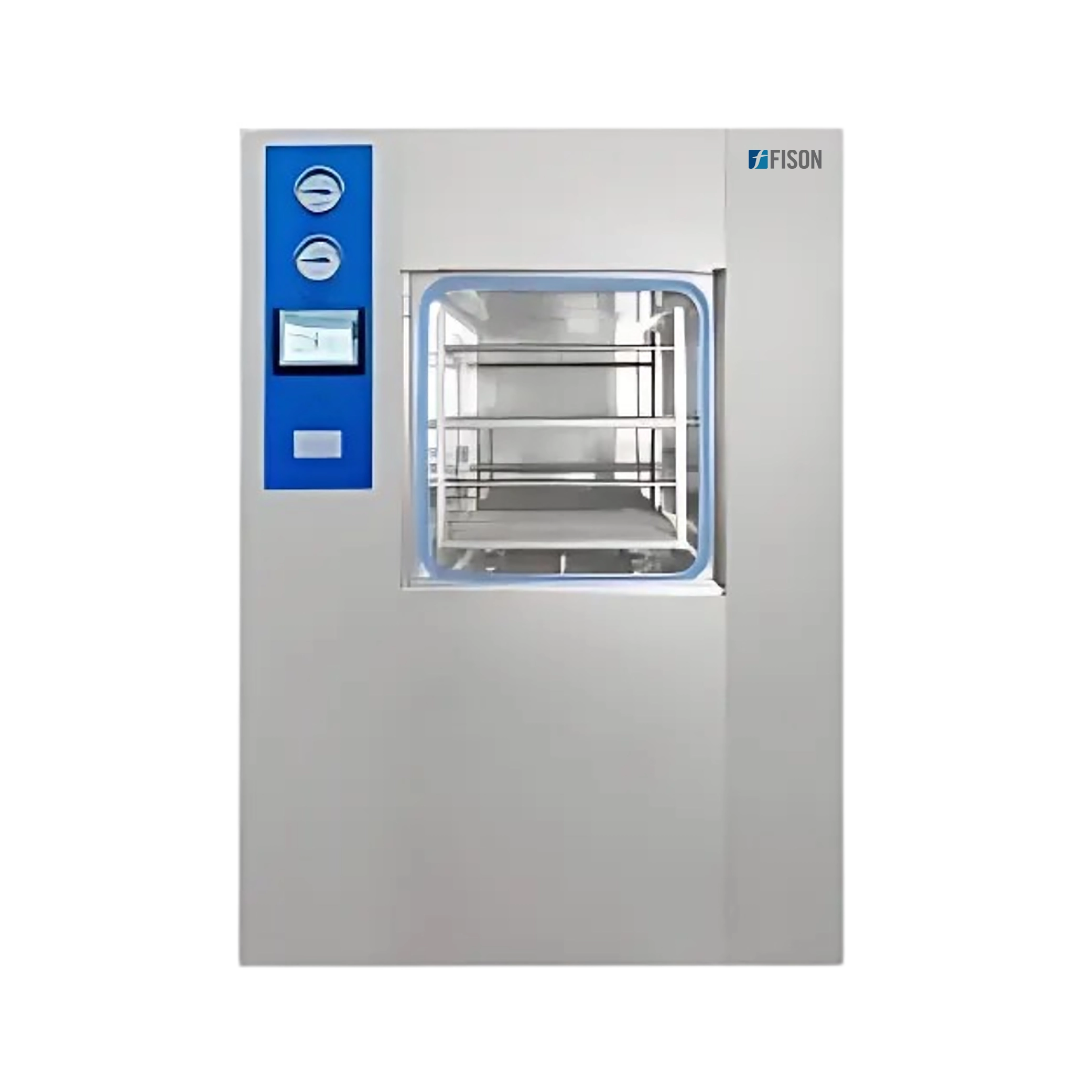

Horizontal Autoclave FM-HA-B102

Horizontal Autoclave FM-HA-B102

Horizontal Autoclave FM-HA-B102 with 500 L capacity and interior liner and door panels are made of s30408 stainless steel material. The double pulsation method ensures a more comprehensive removal of internal air during the sterilization process. Jacket is made of high-quality AISI 304 material specific for pressure. 7-inch color touch screen display for convenience of the user

  •  Sanitary pipeline with clamp joint ensures a reliability
  •  Pneumatic control valve with long life
  •  Automatic vertical sliding double door with pressure interlock system
  •  Liquid ring vacuum pump to effectively remove air
  •  Automatic drainage device ensures steam saturation
  •  Alarm to indicate status of Horizontal Autoclave
  •  Aluminium silicate as insulating material
  •  Silicate insulation cotton with strong thermal insulation performance
  •  Controller system with four-level password access authority
  •  Drain lines with removable filter plugs to prevent clogging
  •  Steam generator insulated with resin embedded glass wool

Capacity 500 L
Operating temperature 150 ℃
Maximum working temperature 139 ℃
Working pressure range 0 to 0.25 MPa
Temperature control accuracy ≤ ± 0.2℃
Temperature display accuracy 0.1 ℃
Temperature equilibrium ≤ ± 0.5 ℃
Opening pressure of inner chamber safety valve 0.28 MPa
Pressure of water source 0.15 to 0.3 MPa
Steam pressure 0.3 to 0.6 MPa
Compressed air source 0.4 MPa to 0.7 MPa
Times of positive pressure pulsation 1 to 3
Time of negative pressure pulsation vacuum 1 to 99 times
Time of vacuum pulsation 1 to 99 times
Ultimate vacuum -97 KPa
Steam consumption 22 Kg/C
Tap Water Consumption 180 Kg/C
Power 32 KW
Chamber dimensions (W × H × D) 652 × 690 × 1100 mm
Overall dimensions (W × H × D) 1350 × 1950 × 1350 mm
Weight 950 kg

Horizontal Autoclave is widely used in hospitals, pharmaceutical factories, food industries, scientific research institutes and other units to sterilize and dry clothing, dressings, metal instruments, culture medium, etc.
